Toyota Corolla Nap/Sed
1997-08 → 2002-01 · chassis ZZE110 · catalogue 155440 · United States
Discontinued model
Data version 2002-06
Radiator & Water Outlet
39 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

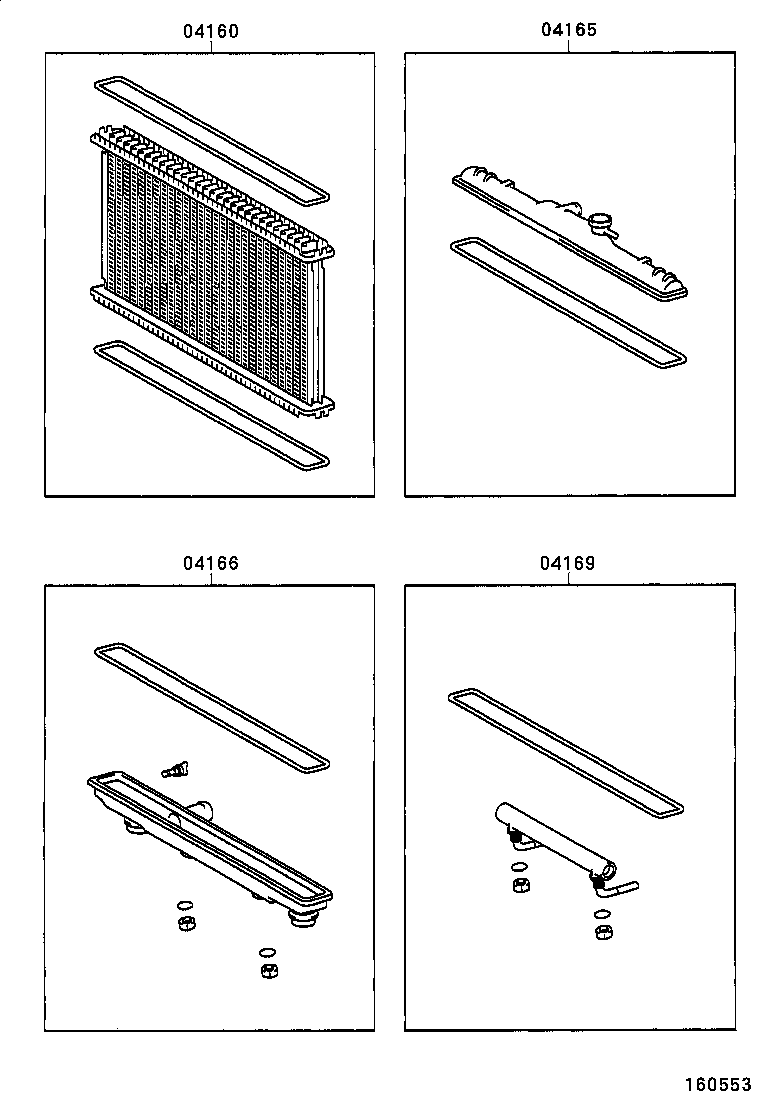

| 04160 | Core Kit, Radiator |
| 04165 | Tank Kit, Radiator, Upper |
| 04166 | Tank Kit, Radiator, Lower |
| 04169 | Cooler Kit, Oil(FOR ATM) |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16268G | Gasket(FOR WATER BY-PASS PIPE) |
| 16321 | Inlet, Water |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16331A | Thermostat |
| 16361 | Fan |
| 16361B | Fan, NO.2 |
| 16363 | Motor, Cooling Fan |
| 16363A | Motor, Cooling Fan, NO.2 |

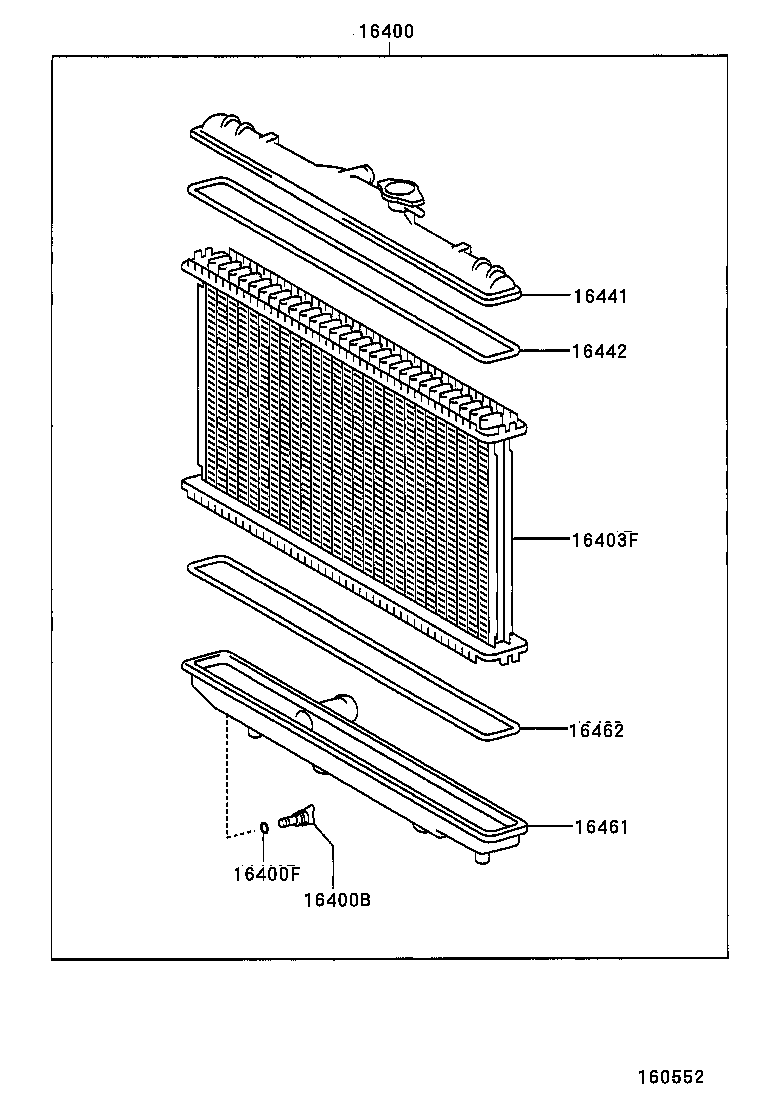

| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16403F | Core Sub-assy, Radiator |
| 16441 | Tank, Radiator, Upper |
| 16442 | Ring, O(FOR RADIATOR UPPER TANK) |
| 16461 | Tank, Radiator, Lower |
| 16462 | Ring, O(FOR RADIATOR LOWER TANK) |
| 16470 | Tank Assy, Radiator Reserve |
| 16470A | Hose OR Pipe(FOR RADIATOR RESERVE TANK) |
| 16470B | Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16473 | Support(FOR RADIATOR RESERVE TANK) |
| 16533 | Support, Radiator, Upper |
| 16535 | Support, Radiator, Lower |
| 16571 | Hose, Radiator, Inlet |
| 16571A | Clamp OR Clip, Hose(FOR RADIATOR INLET) |
| 16572 | Hose, Radiator, Outlet |
| 16572A | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) |
| 16581 | Clamp, Hose(FOR WATER HOSE) |
| 16701 | Shroud Sub-assy, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
