Toyota Corolla Nap/Sed
1997-08 → 2002-01 · chassis ZZE110 · catalogue 155440 · United States
Discontinued model
Data version 2002-06

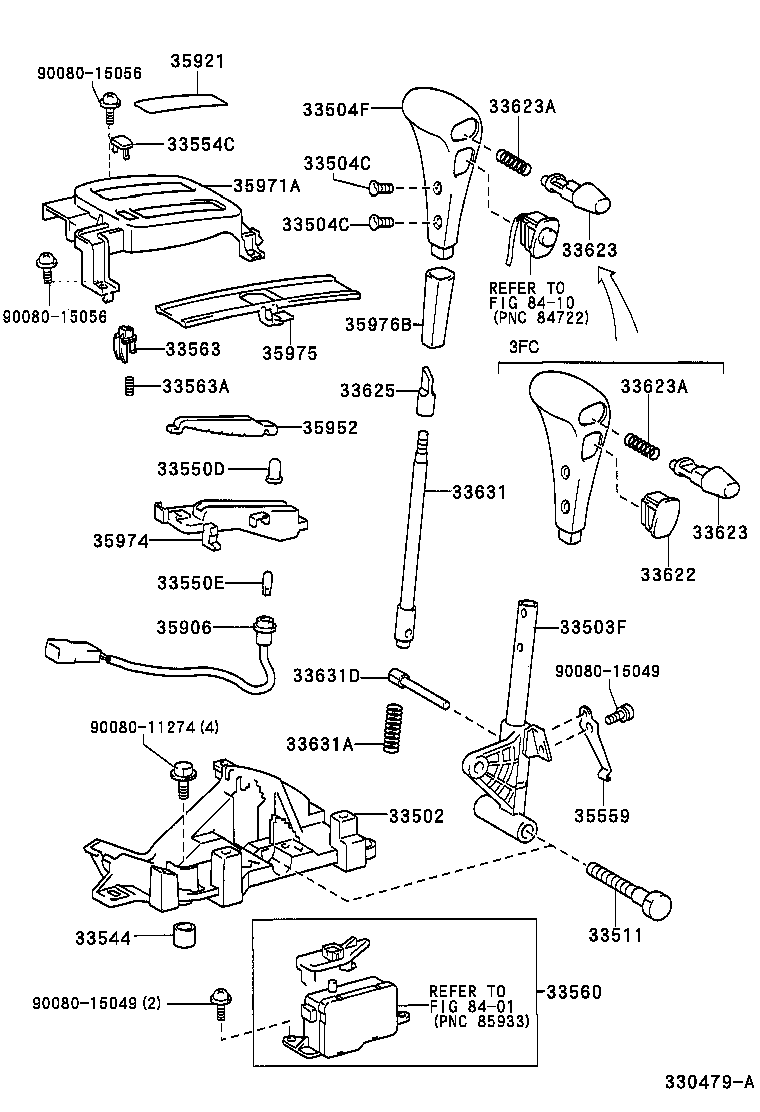

Shift Lever & Retainer
48 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33261D | Bush (FOR SHIFT & SELECT LEVER) |
| 33502 | Plate Sub-assy, Shift Lever |
| 33503F | Lever Sub-assy, Shift(FOR FLOOR SHIFT) |
| 33504C | Screw (FOR SHIFT LEVER KNOB SETTING) |
| 33504F | Knob Sub-assy, Shift Lever |
| 33511 | Shaft, Control (FOR FLOOR SHIFT) |
| 33524F | Bracket, Control Lever Housing Support (FOR FLOOR SHIFT) |
| 33530F | Lever Assy, Shift (FOR FLOOR SHIFT) |
| 33534E | Crank, Selecting Bell, NO.2 |
| 33534F | Bush (FOR SELECTING BELLCRANK NO.2) |
| 33534G | Washer, Plate (FOR SELECTING BELLCRANK NO.2) |
| 33544 | Insert, Shift Lever, NO.1 |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33554C | Cover, Shift Lock Release Button |
| 33557A | Cover, Selecting Bellcrank Dust, NO.1 |
| 33558 | Cover, Selecting Bellcrank Dust, NO.2 |
| 33560 | Unit Assy, Shift Lock Control |
| 33563 | Button, Shift Lock Release |
| 33563A | Spring, Compression (FOR SHIFT LOCK RELEASE BUTTON) |
| 33574A | Retainer, Shift Cable Grommet, NO.1 |
| 33574B | Retainer, Shift Cable Grommet, NO.2 |
| 33574F | Retainer, Dust Seal (FOR FLOOR SHIFT) |
| 33608 | Support Sub-assy, Selecting Bellcrank |
| 33622 | Cover, Shift Lever Knob, NO.1 |
| 33623 | Button, Shift Lever Knob |
| 33623A | Spring, Compression (FOR SHIFT LEVER KNOB BUTTON) |
| 33625 | Sleeve, Shift Lever Knob |
| 33631 | Rod, Detent |
| 33631A | Spring, Compression (FOR DETENT ROD) |
| 33631D | Pin, Grooved (FOR DETENT ROD) |
| 33820B | Cable Assy, Transmission Control |
| 33821 | Cable Transmission Control Shift (FOR FLOOR SHIFT) |
| 33821A | Grommet, NO.1 (FOR TRANSMISSION CONTROL CABLE) |
| 33821B | Grommet, NO.2 (FOR TRANSMISSION CONTROL CABLE) |
| 33821C | Washer, Plate (FOR TRANSMISSION CONTROL CABLE) |
| 33822 | Cable Transmission Control Select (FOR FLOOR SHIFT) |
| 33823 | Bracket, Transmission Control Cable, NO.1 |
| 33823C | Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET) |
| 33829B | Clamp, Transmission Control Cable |
| 35559 | Spring, Manual Detent |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35921 | Plate, Control Position Indicator |
| 35952 | Lens, Position Indicator |
| 35971A | Housing, Position Indicator, Upper |
| 35974 | Housing, Position Indicator, Lower |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35976B | Cover, Shift Lever Knob (FOR FLOOR SHIFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
