Toyota Corolla Nap/Sed

1997-08 → 2002-01 · chassis ZZE110 · catalogue 155440 · United States

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

8 part groups · 2 illustrations

Illustrations

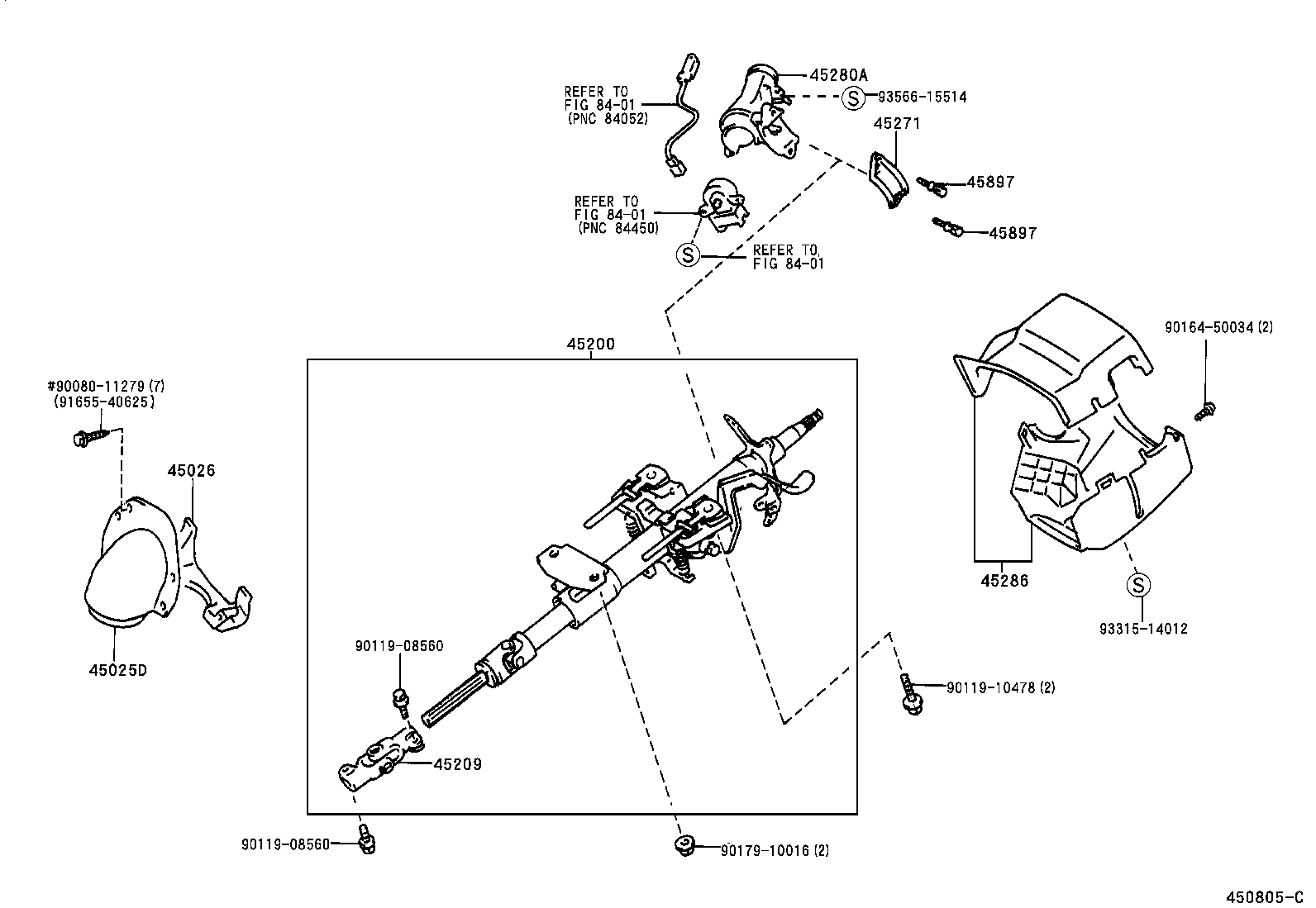

Figure 450804C 450804C 1997-08 → — Figure 450805C 450805C 1997-08 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45026 Cover Sub-assy, Steering Column Hole, NO.2
45200 Post Assy, Steering
45209 Yoke Sub-assy, Steering Sliding
45271 Clamp, Steering Column, Upper
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
