Toyota Corolla Nap/Sed
1997-08 → 2002-01 · chassis ZZE110 · catalogue 155440 · United States
Discontinued model
Data version 2002-06

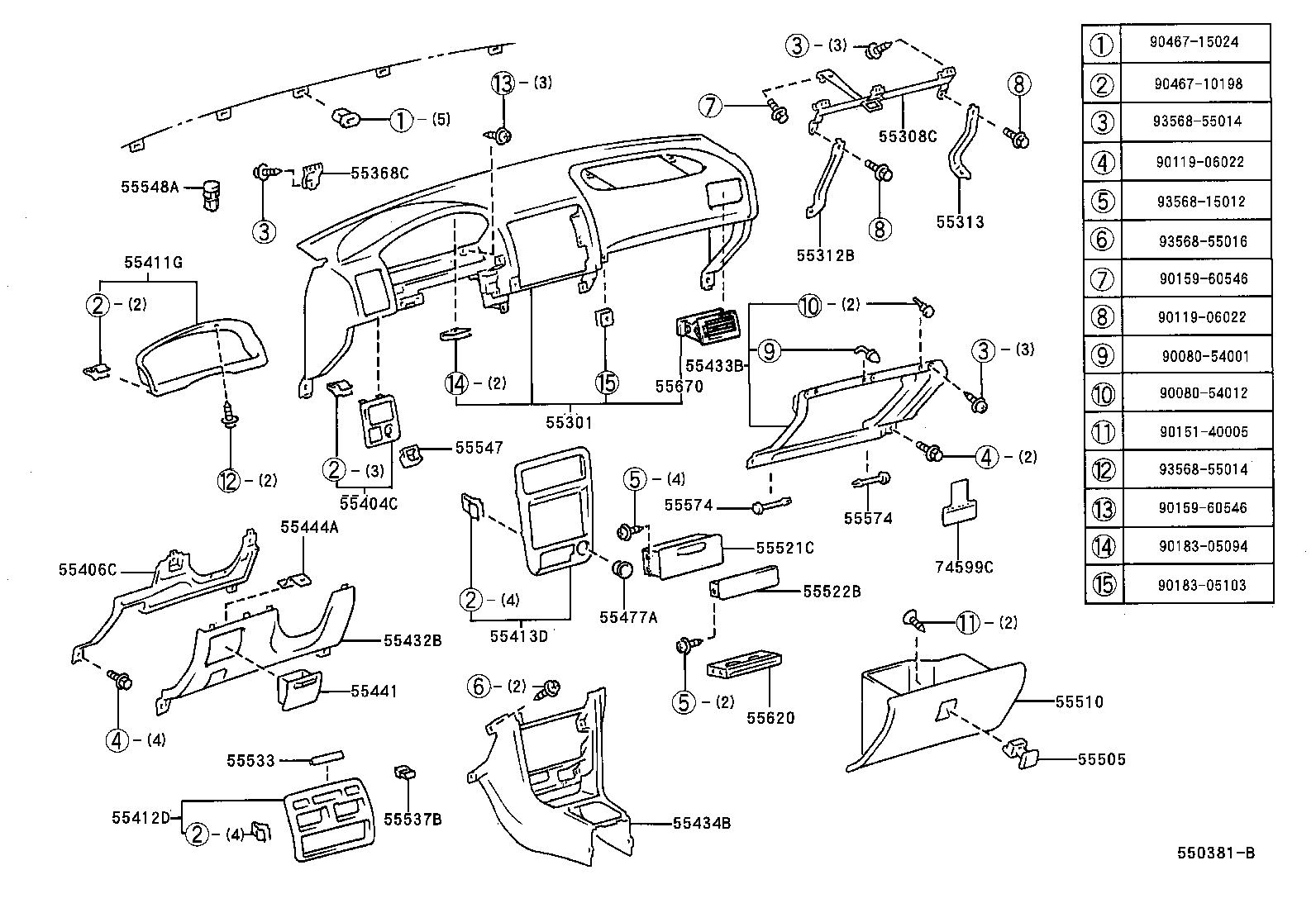

Instrument Panel & Glove Compartment
35 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55312B | Panel, Instrument, Lower RH |
| 55313 | Panel, Instrument, Lower LH |
| 55331 | Reinforcement, Instrument Panel |
| 55342A | Brace, Instrument Panel TO Cowl, NO.2 |
| 55368C | Bracket, Meter Mounting |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55406C | Insert Sub-assy, Instrument Panel, Lower LH |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55412D | Panel, Instrument Cluster Finish, Center |
| 55413D | Panel, Instrument Cluster Finish, Center Lower |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55441 | Box, Instrument Panel |
| 55444A | Spring, Instrument Panel Box |
| 55477A | Bezel, Cigarette Lighter Hole |
| 55505 | Lock Sub-assy, Glove Compartment Door |
| 55510 | Door Assy, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55533 | Cover, Auto Clock Hole |
| 55537B | Cover, Rear Defogger Switch Hole |
| 55547 | Cover, Remote Control Mirror Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55620 | Holder Assy, Instrument Panel Cup |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55950A | Nozzle Assy, Defroster |
| 55990 | Nozzle Assy, Center Defroster |
| 73970A | Airbag Assy, Instrument Panel Passenger |
| 74599C | Label, Driver & Passenger Airbag Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
