Toyota Corolla Nap/Sed
1997-08 → 2002-01 · chassis ZZE110 · catalogue 155440 · United States
Discontinued model
Data version 2002-06

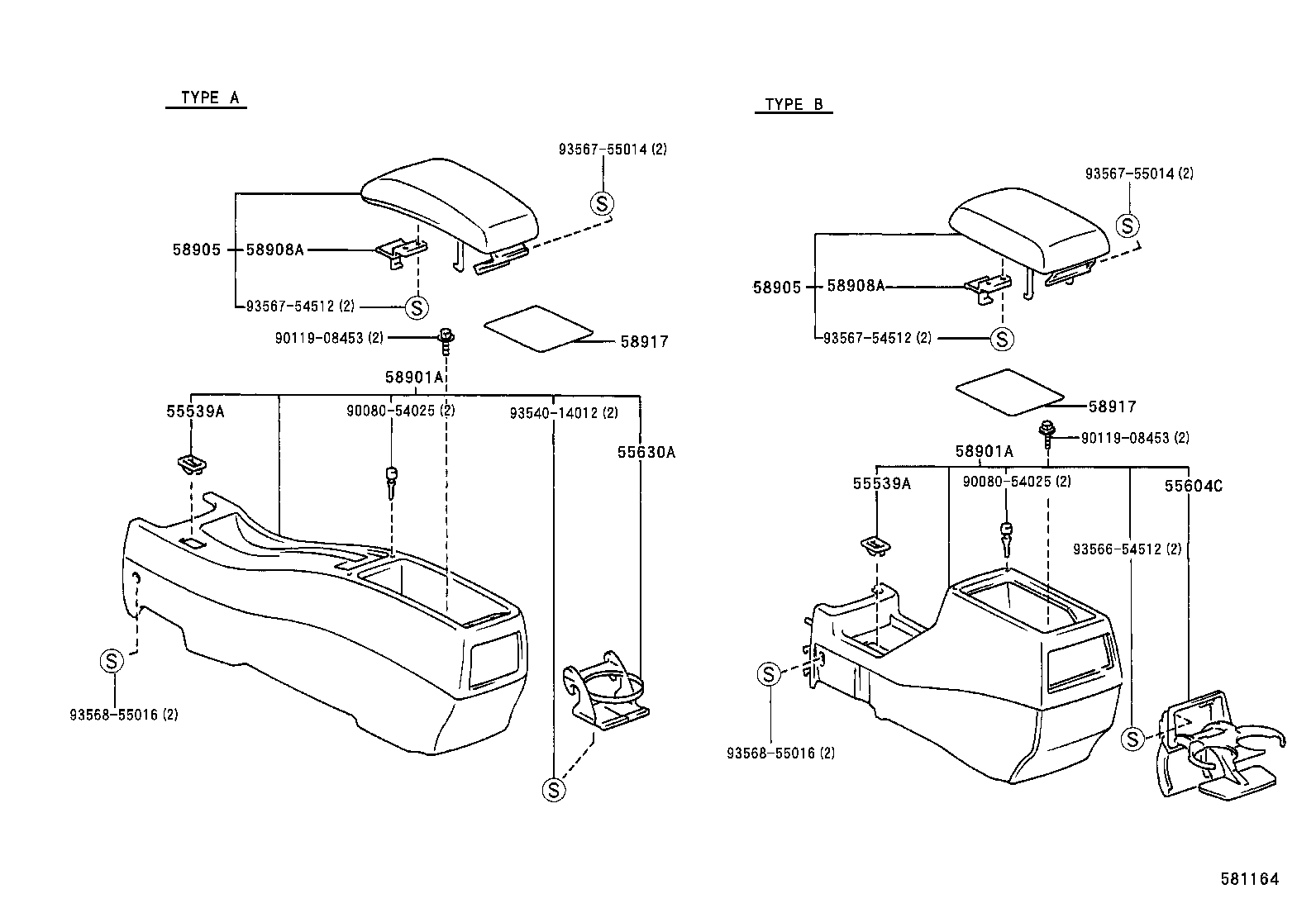

Console Box & Bracket
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55539A | Cover, Spare Switch Hole |
| 55604C | Holder Sub-assy, Console Box Cup |
| 55630A | Holder, Rear Console Box, Cup |
| 58808 | Cover Sub-assy, Shifting Hole |
| 58843 | Bezel, Shifting Hole |
| 58901A | Box Sub-assy, Console, Rear |
| 58905 | Door Sub-assy, Console Compartment |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58917 | Mat, Box Bottom, NO.2 |
| 58995A | Bracket, Console Box Mounting, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
