Toyota Corolla Nap/Sed

1997-08 → 2002-01 · chassis ZZE110 · catalogue 155440 · United States

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Luggage Compartment Door & Lock

18 part groups · 2 illustrations

Illustrations

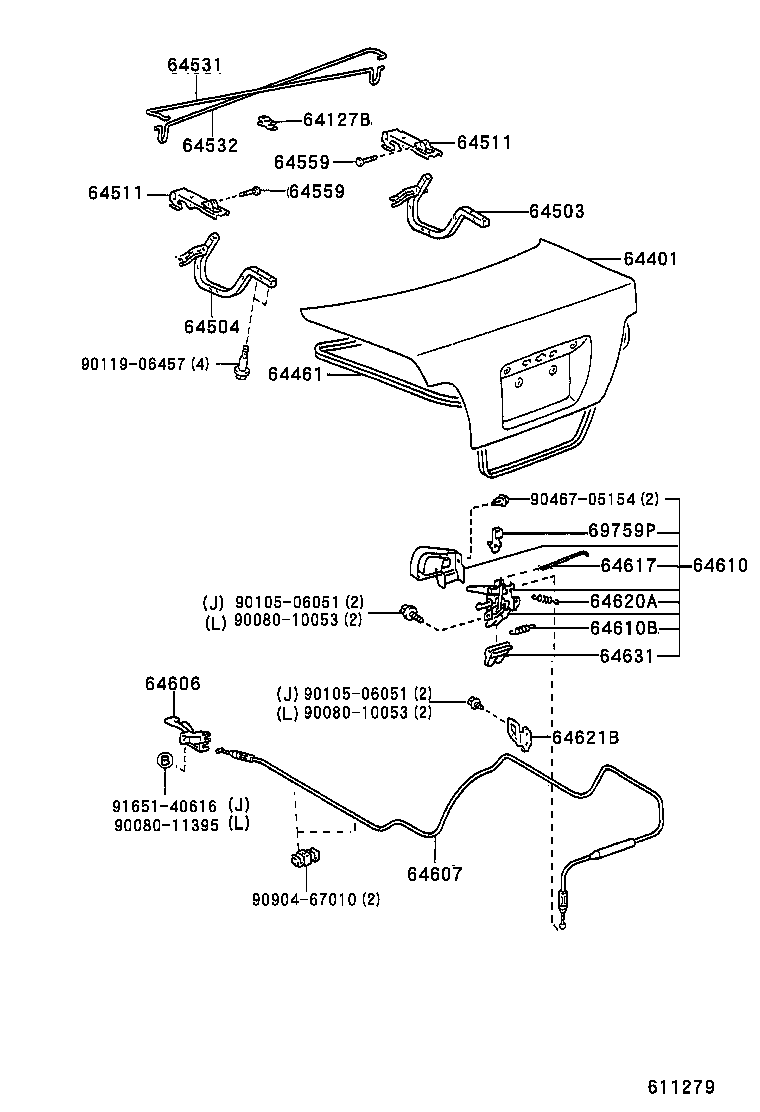

Figure 610548C 610548C 1997-08 → 2000-05 Figure 611279 611279 2000-05 → —

Part groups

PNCDescription
64127B Support, Luggage Compartment Door Torsion Bar
64401 Panel Sub-assy, Luggage Compartment Door
64461 Weatherstrip, Luggage Compartment Door
64503 Arm Sub-assy, Luggage Compartment Door Hinge, RH
64504 Arm Sub-assy, Luggage Compartment Door Hinge, LH
64511 Support, Luggage Compartment Door Hinge, RH
64531 Bar, Luggage Door Hinge Torsion, RH
64532 Bar, Luggage Door Hinge Torsion, LH
64559 Pin, Luggage Door Hinge
64606 Lever Sub-assy, Luggage Door Lock Open
64607 Cable Sub-assy, Luggage Door Lock Control
64610 Lock Assy, Luggage Compartment Door
64610B Spring, Tension(FOR LOCK)
64617 Link, Luggage Compartment Door Lock
64620A Spring, Tension(FOR LUGGAGE COMPARTMENT DOOR LOCK)
64621B Striker, Luggage Compartment Door Lock
64631 Protector, Luggage Door Lock
69759P Snap, Door Lock Control Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
