Toyota Corolla Nap/Sed

1997-08 → 2002-01 · chassis ZZE110 · catalogue 155440 · United States

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Lock & Handle

19 part groups · 2 illustrations

Illustrations

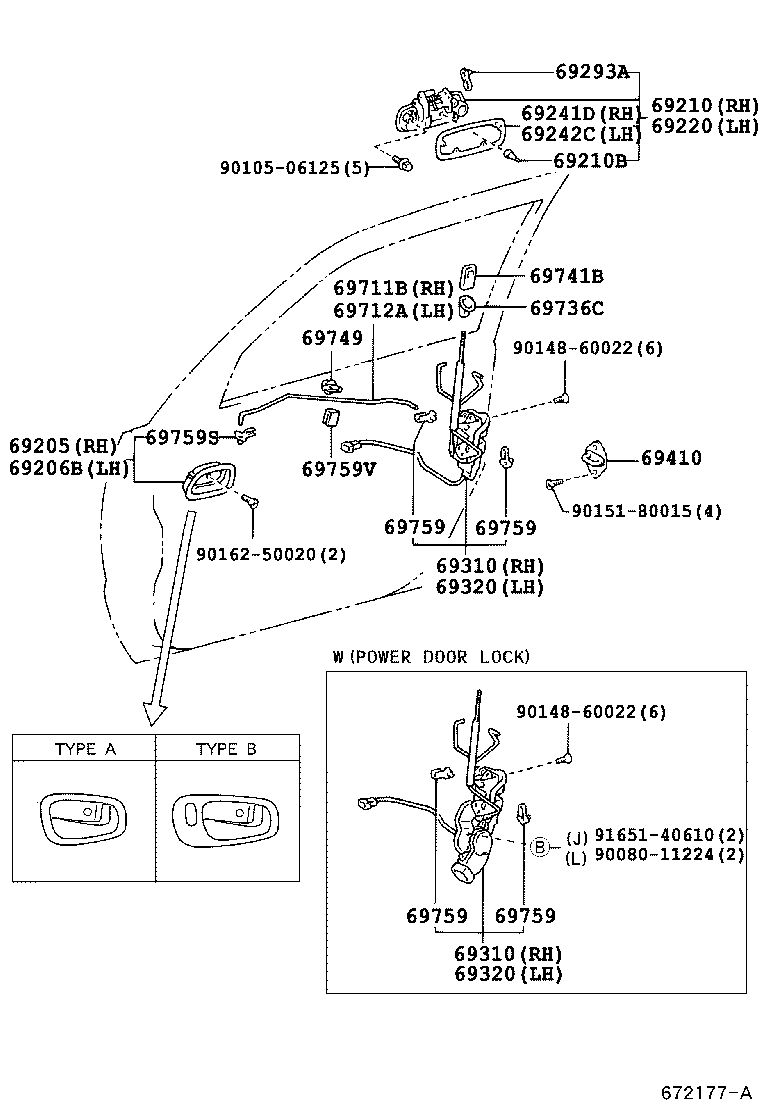

Figure 670806J 670806J 1997-08 → 2000-08 Figure 672177A 672177A 2000-08 → —

Part groups

PNCDescription
69205 Handle Sub-assy, Front Door Inside, RH
69206B Handle Sub-assy, Front Door Inside, LH
69210 Handle Assy, Front Door, Outside RH
69210B Cushion(FOR FRONT DOOR OUTSIDE HANDLE)
69220 Handle Assy, Front Door Outside, LH
69241D Pad, Front Door Outside Handle, RH
69242C Pad, Front Door Outside Handle, LH
69293A Snap, Front Door Outside Handle
69310 Lock Assy, Front Door, RH
69320 Lock Assy, Front Door, LH
69410 Plate Assy, Front Door Lock Striker
69711B Link, Front Door Lock Remote Control, RH
69712A Link, Front Door Lock Remote Control, LH
69736C Guide, Front Door Locking Link
69741B Knob, Front Door Lock Control
69749 Clamp, Front Door Lock Link
69759 Snap, Door Lock Control Link, NO.1
69759S Snap, Front Door Inside Handle
69759V Silencer, Front Door Lock Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
