Toyota Corolla Nap/Sed

1997-08 → 2002-01 · chassis ZZE110 · catalogue 155440 · United States

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Window Regulator & Hinge

11 part groups · 2 illustrations

Illustrations

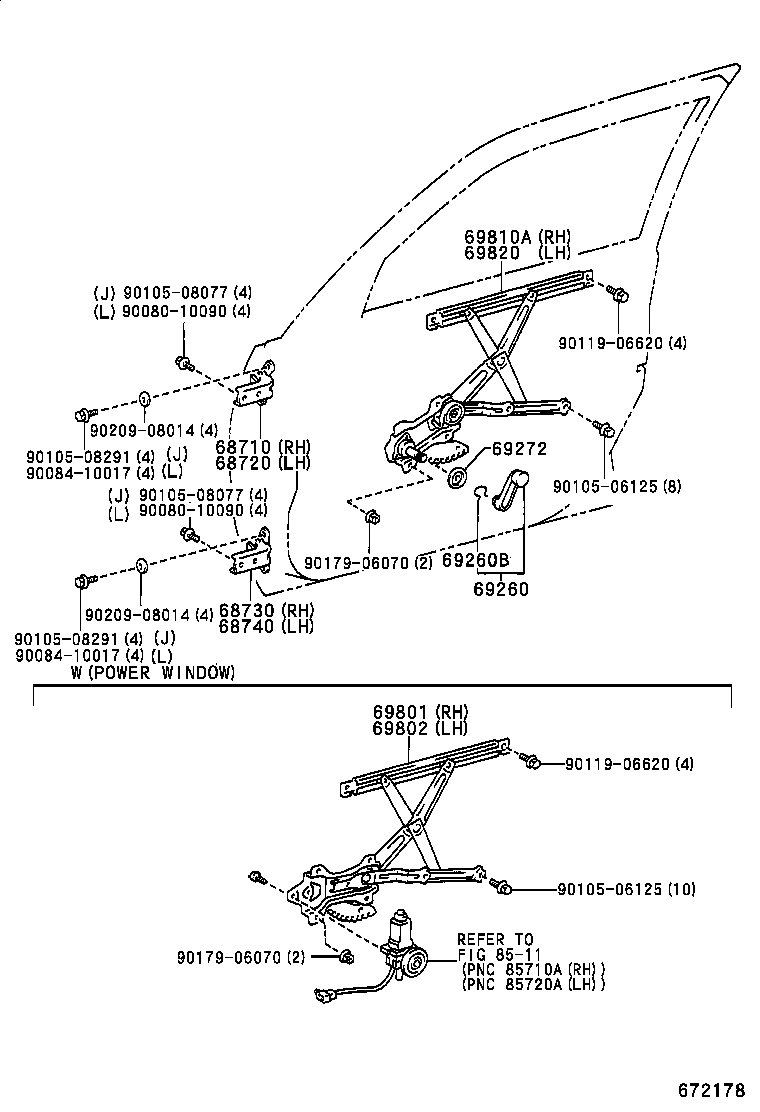

Figure 670803D 670803D 1997-08 → 2000-08 Figure 672178 672178 2000-08 → —

Part groups

PNCDescription
68710 Hinge Assy, Front Door, Upper RH
68720 Hinge Assy, Front Door, Upper LH
68730 Hinge Assy, Front Door, Lower RH
68740 Hinge Assy, Front Door, Lower LH
69260 Handle Assy, Front Door Window Regulator
69260B Ring, Shaft Snap(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69272 Plate, Front Door Regulator Inside Handle
69801 Regulator Sub-assy, Front Door Window, RH
69802 Regulator Sub-assy, Front Door Window, LH
69810A Regulator Assy, Front Door Window, RH
69820 Regulator Assy, Front Door Window, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
