Toyota Corolla Nap/Sed
1997-08 → 2002-01 · chassis ZZE110 · catalogue 155440 · United States
Discontinued model
Data version 2002-06

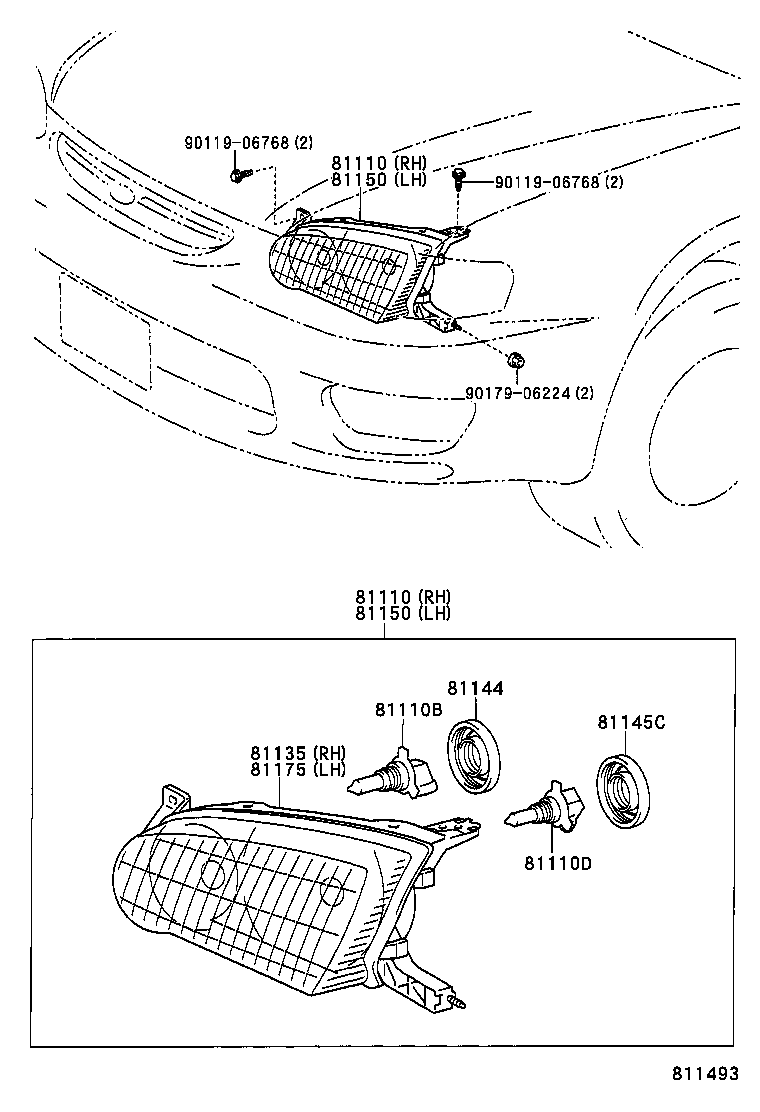

Headlamp
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81135 | Unit Assy, Headlamp, RH |
| 81139 | Cover, Headlamp Socket |
| 81144 | Cover, Headlamp, NO.1 |
| 81145C | Cover, Headlamp Socket, NO.2 |
| 81150 | Headlamp Assy, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81195 | Screw, Headlamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
