Toyota Corolla Nap/Sed

1997-08 → 2002-01 · chassis ZZE110 · catalogue 155440 · United States

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

31 part groups · 7 illustrations

Illustrations

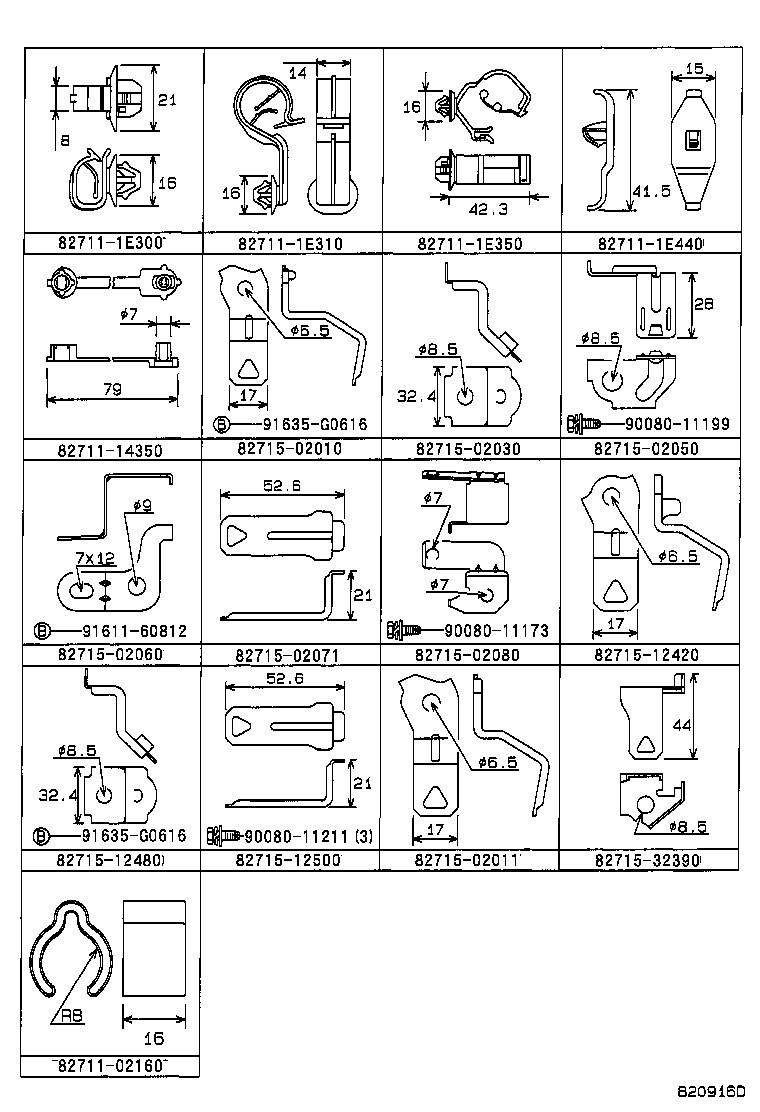

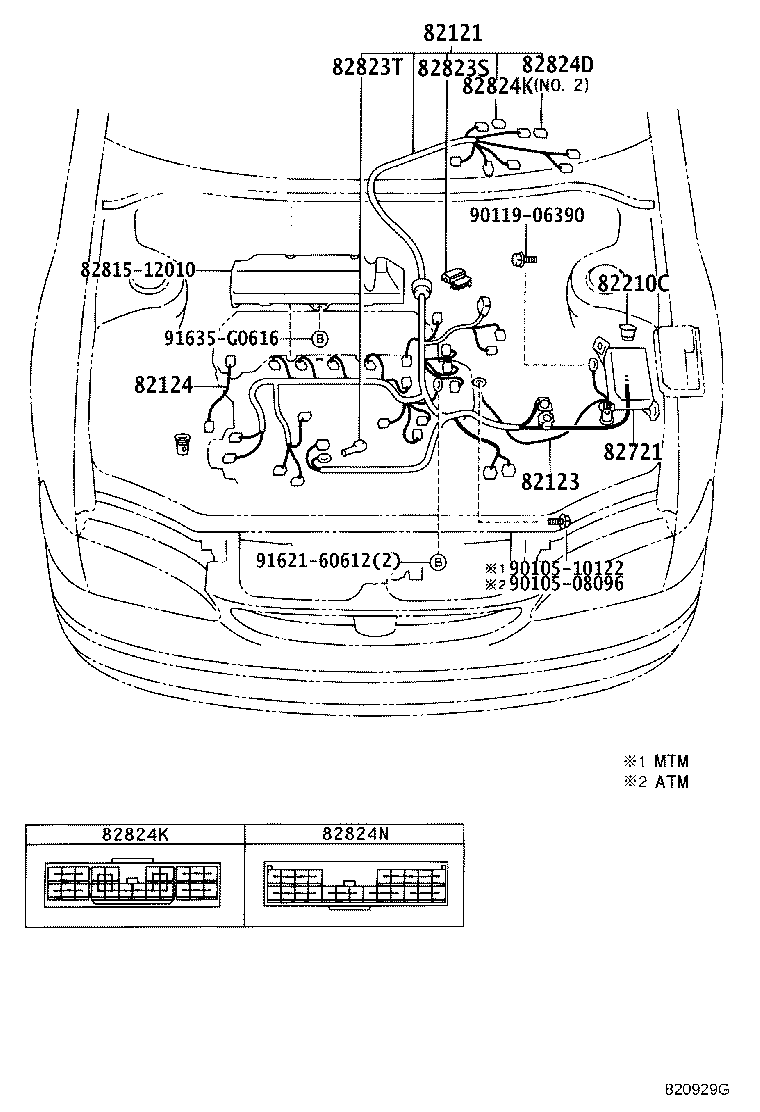

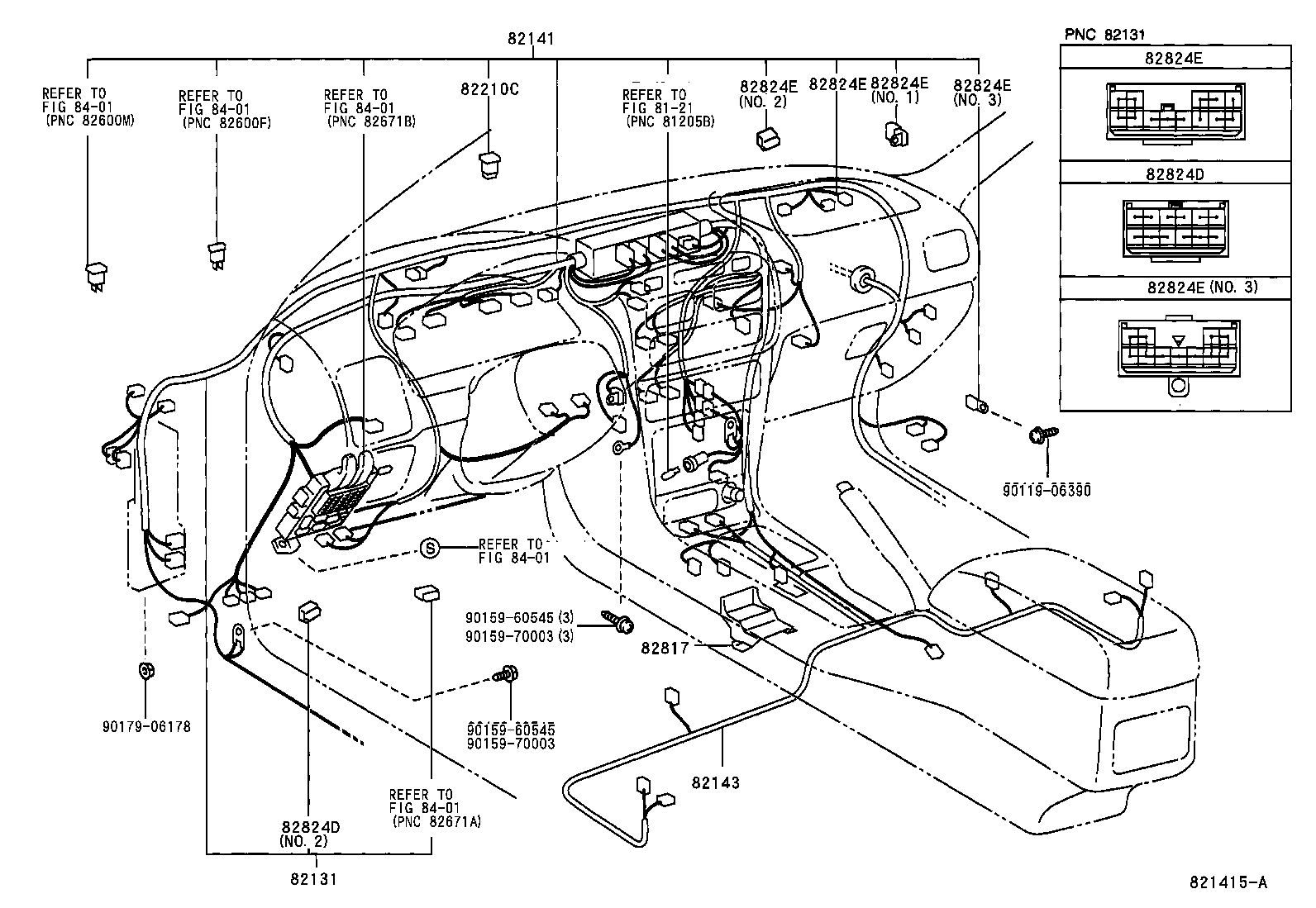

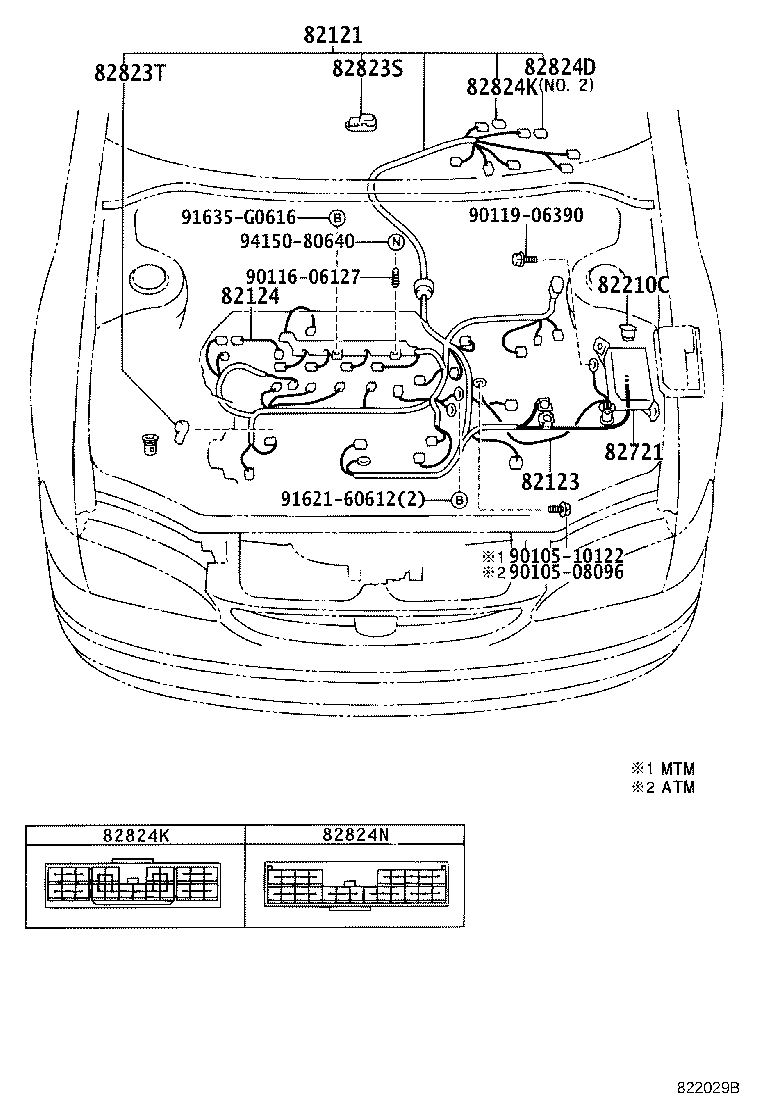

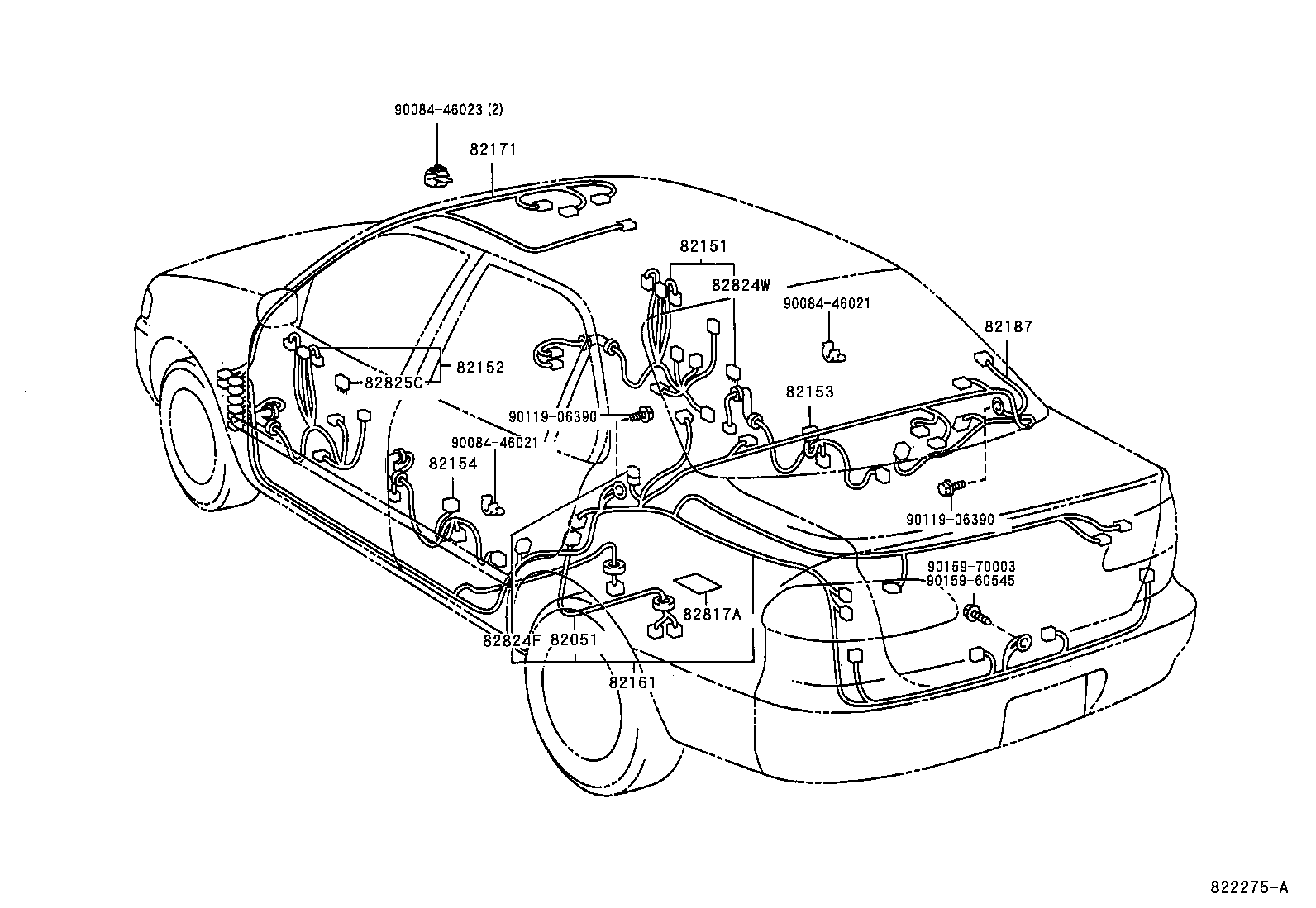

Figure 820853C 820853C 1997-08 → — Figure 820929G 820929G 1997-08 → 1999-08 Figure 822029B 822029B 1999-08 → — Figure 821415A 821415A 1997-08 → — Figure 822275A 822275A 1997-08 → — Figure 820916D 820916D 1997-08 → — Figure 820858C 820858C 1997-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82051 Harness Assy, Fuel Control
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82141 Wire, Instrument Panel
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82620 Block Assy, Fusible Link
82721 Bracket, Wiring Harness, NO.1
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824K Connector, Wiring Harness
82824W Connector, Wiring Harness
82825C Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
