Toyota Corolla Nap/Sed
1997-08 → 2002-01 · chassis ZZE110 · catalogue 155440 · United States
Discontinued model
Data version 2002-06

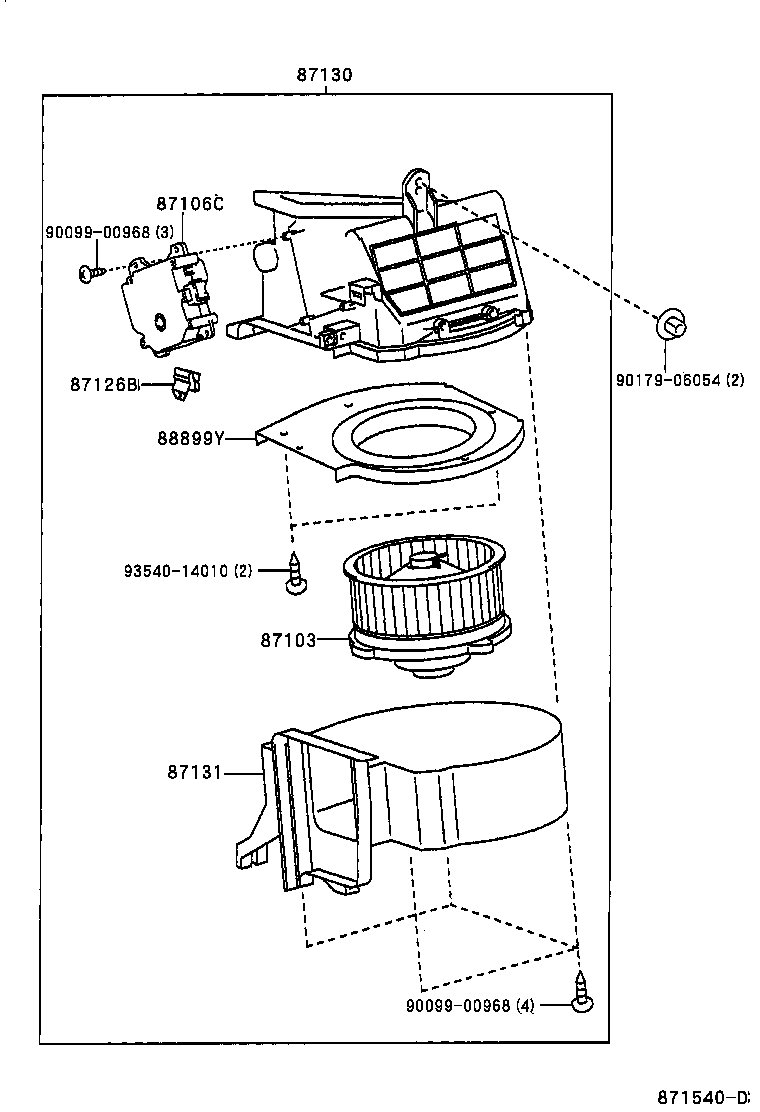

Heating & Air Conditioning - Heater Unit & Blower
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87106C | Servo Sub-assy, Damper(FOR BLOWER) |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87126A | Clamp, Heater Control |
| 87126B | Clamp, Heater Control |
| 87130 | Blower Assy, Heater, Front |
| 87131 | Bracket, Heater, Front LH |
| 87150 | Radiator Assy, Heater |
| 87201D | Duct Sub-assy, Air |
| 87211E | Duct, Air |
| 88899Y | Plate, Cover(FOR AIR FILTER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
