Heating & Air Conditioning - Control & Air Duct

26 part groups · 3 illustrations

Illustrations

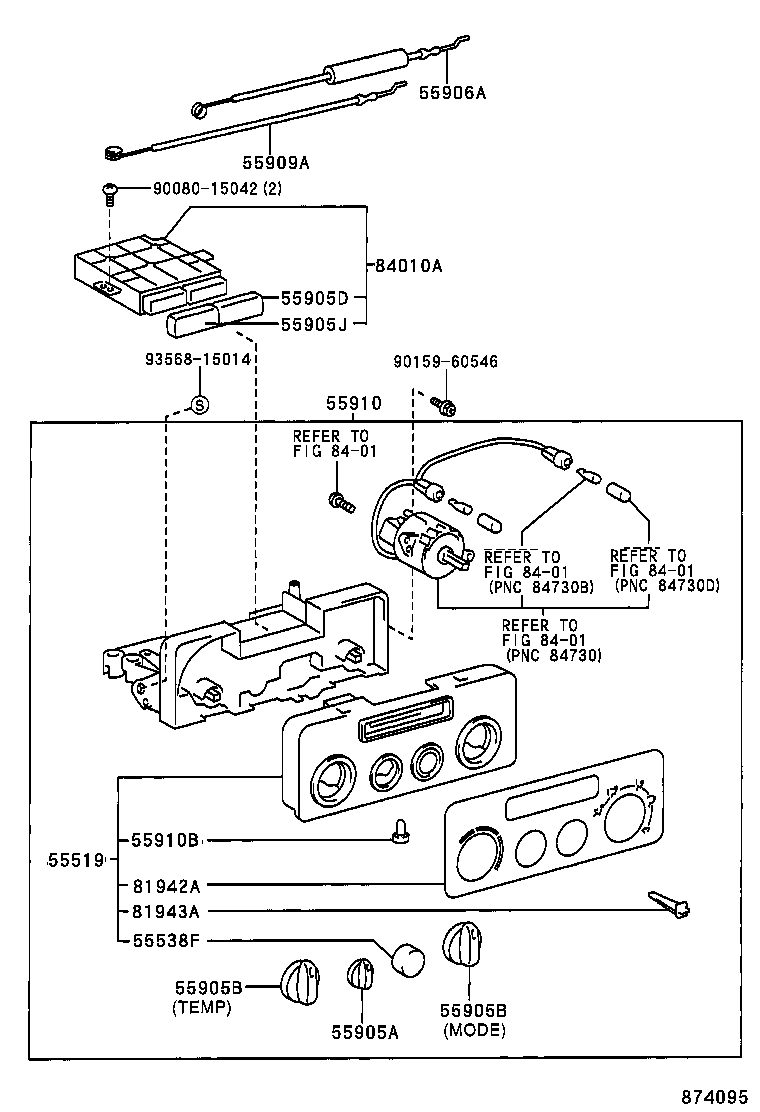

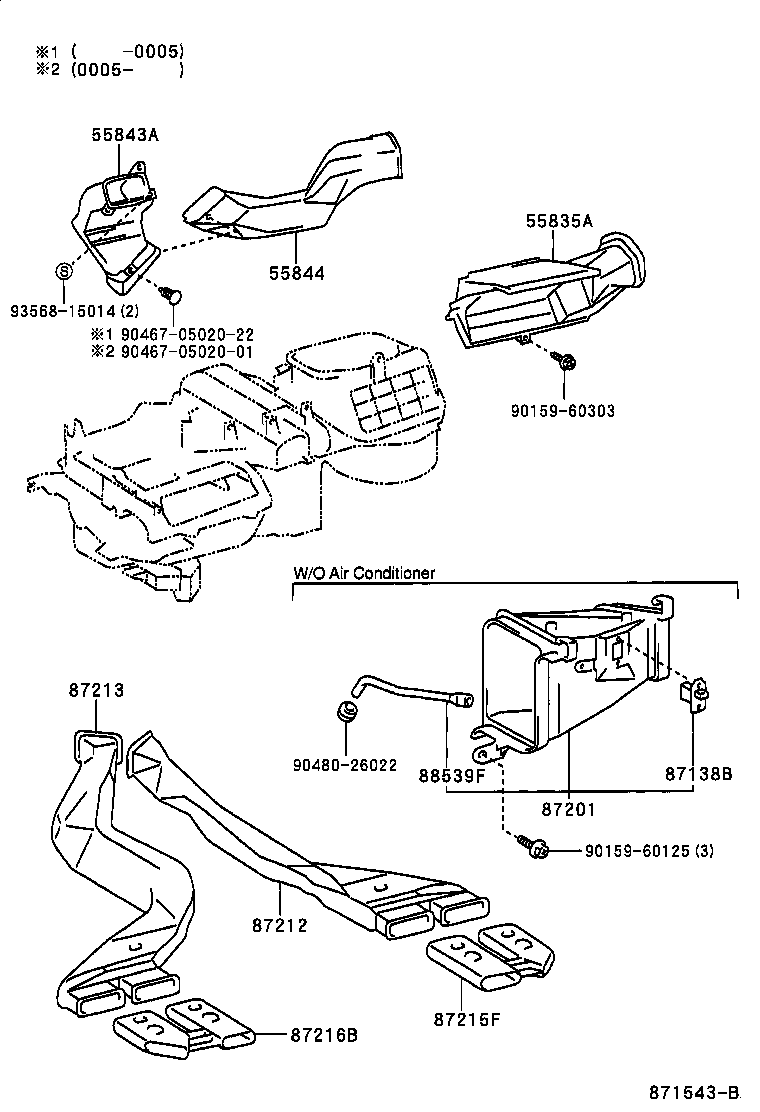

Figure 871542 871542 1997-08 → 2000-05 Figure 874095 874095 2000-05 → — Figure 871543B 871543B 1997-08 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55538F Cover, Cooler Switch Hole
55835A Duct, Heater TO Register, Center
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55905D Knob Sub-assy, Control
55905J Knob Sub-assy, Control
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55910B Bulb, Heater Control
55918A Lever, Air Inlet Damper Control
81942A Sheet, Heater Control Name, NO.1
81943A Lens, Heater Control Indicator Lamp
84010A Control & Panel Assy, Integration
87138B Resistor, Heater Blower
87201 Duct Sub-assy, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215F Duct, Air, Rear NO.3
87216B Duct, Air, Rear NO.4
88539F Hose, Drain
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
