Toyota Corolla Nap/Sed

1997-08 → 2002-01 · chassis ZZE110 · catalogue 155440 · United States

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

12 part groups · 3 illustrations

Illustrations

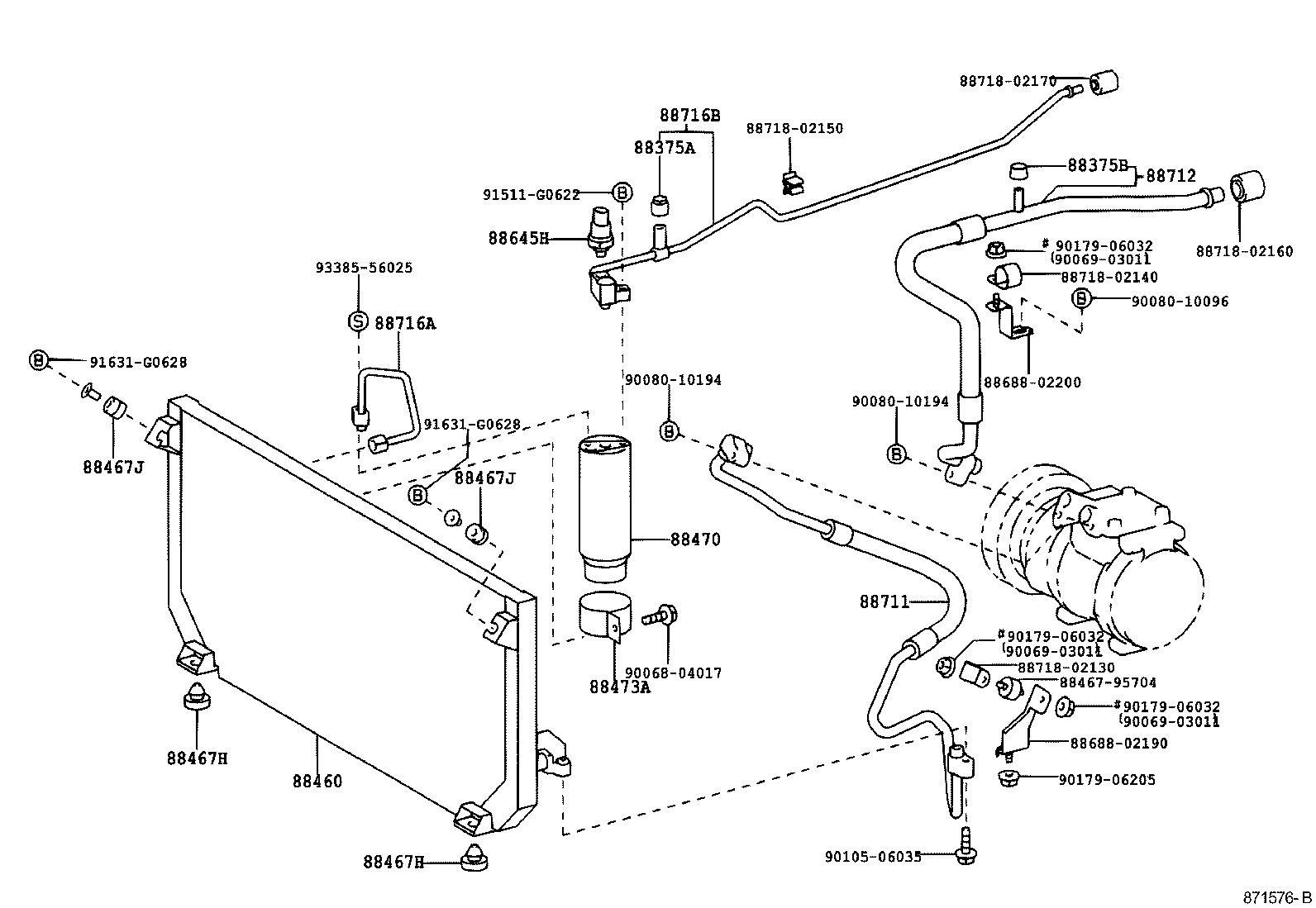

Figure 871839B 871839B 1997-08 → — Figure 871576B 871576B 1997-08 → — Figure 870980 870980 1997-08 → —

Part groups

PNCDescription
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88460 Condenser Assy, Cooler
88467H Cushion, Condenser Bracket, NO.1
88467J Cushion, Condenser Bracket, NO.2
88470 Receiver & Dryer Assy, Cooler
88473A Holder, Receiver
88645H Switch, Pressure NO.1
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
