Toyota Corolla/Matrix (NAP)

2002-01 → 2008-01 · chassis ZZE13# · catalogue 155450 · United States

Discontinued model Data version 2008-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 4 illustrations

Illustrations

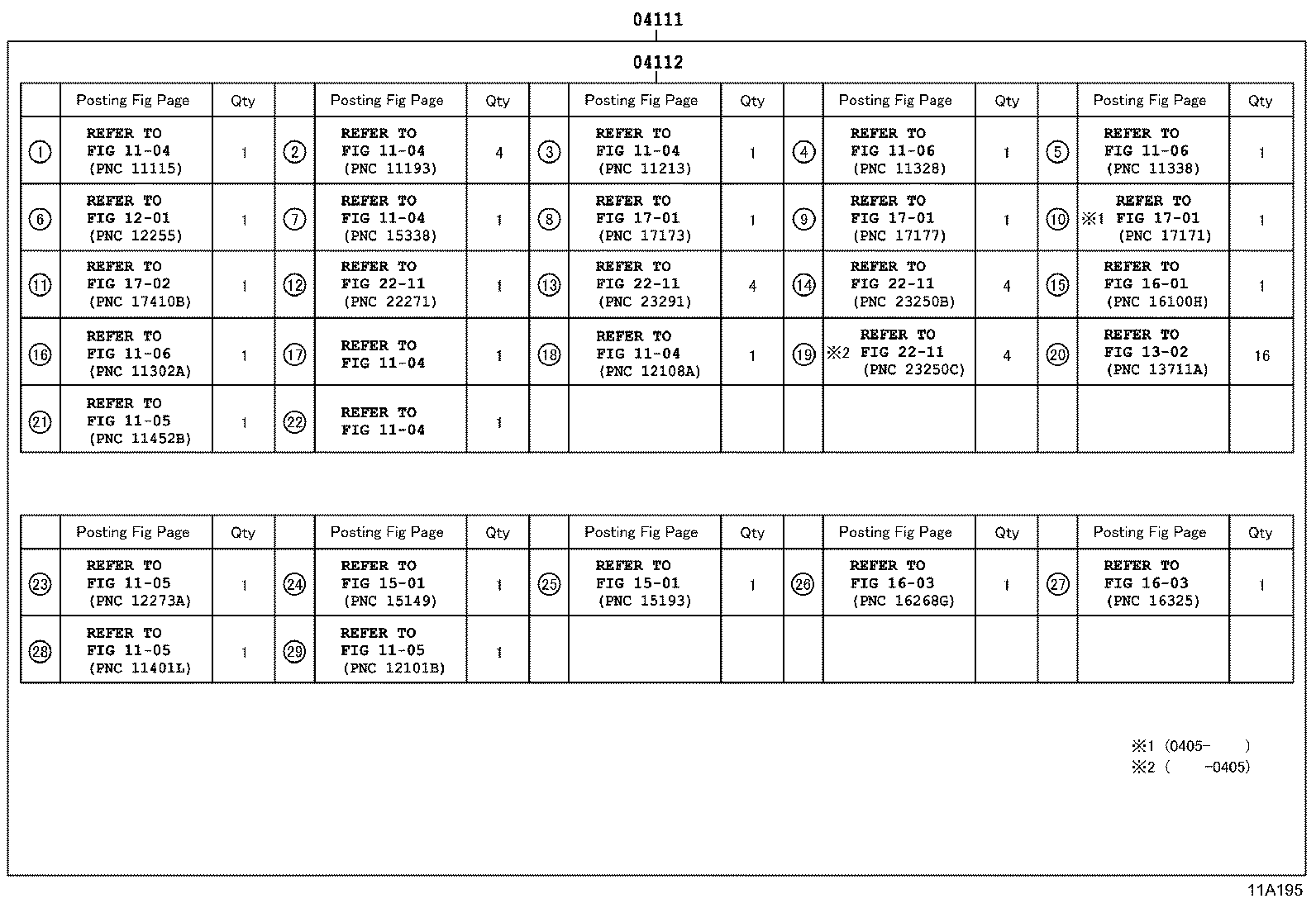

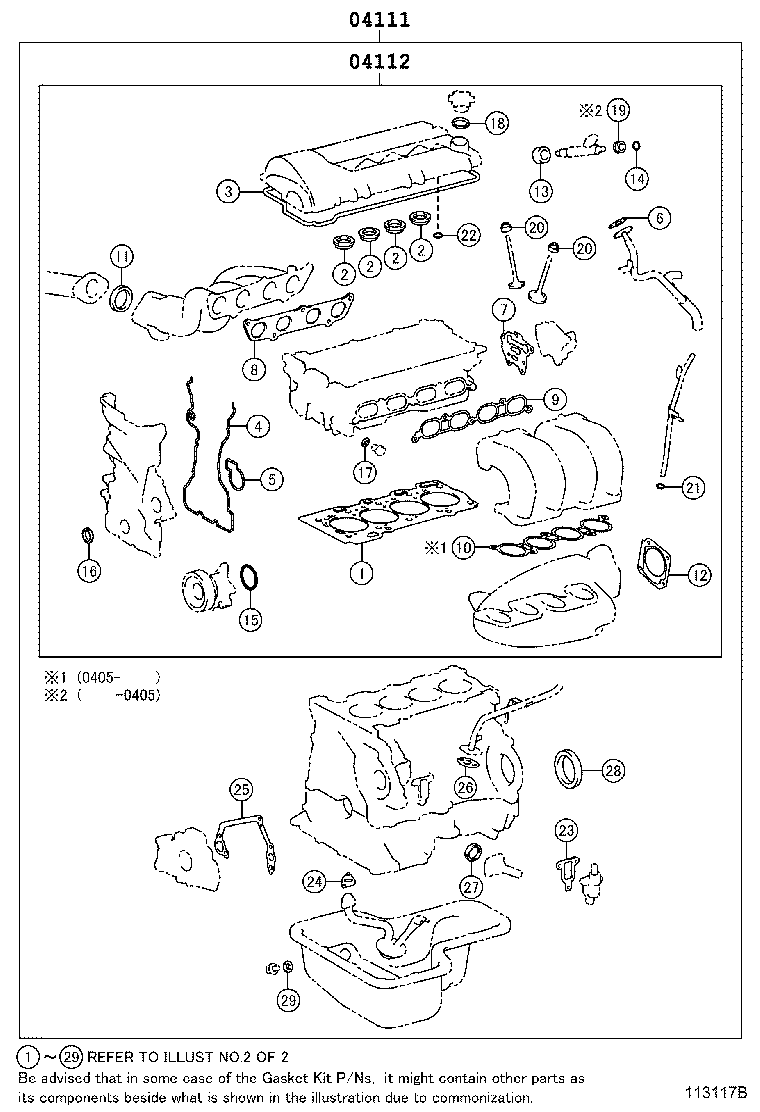

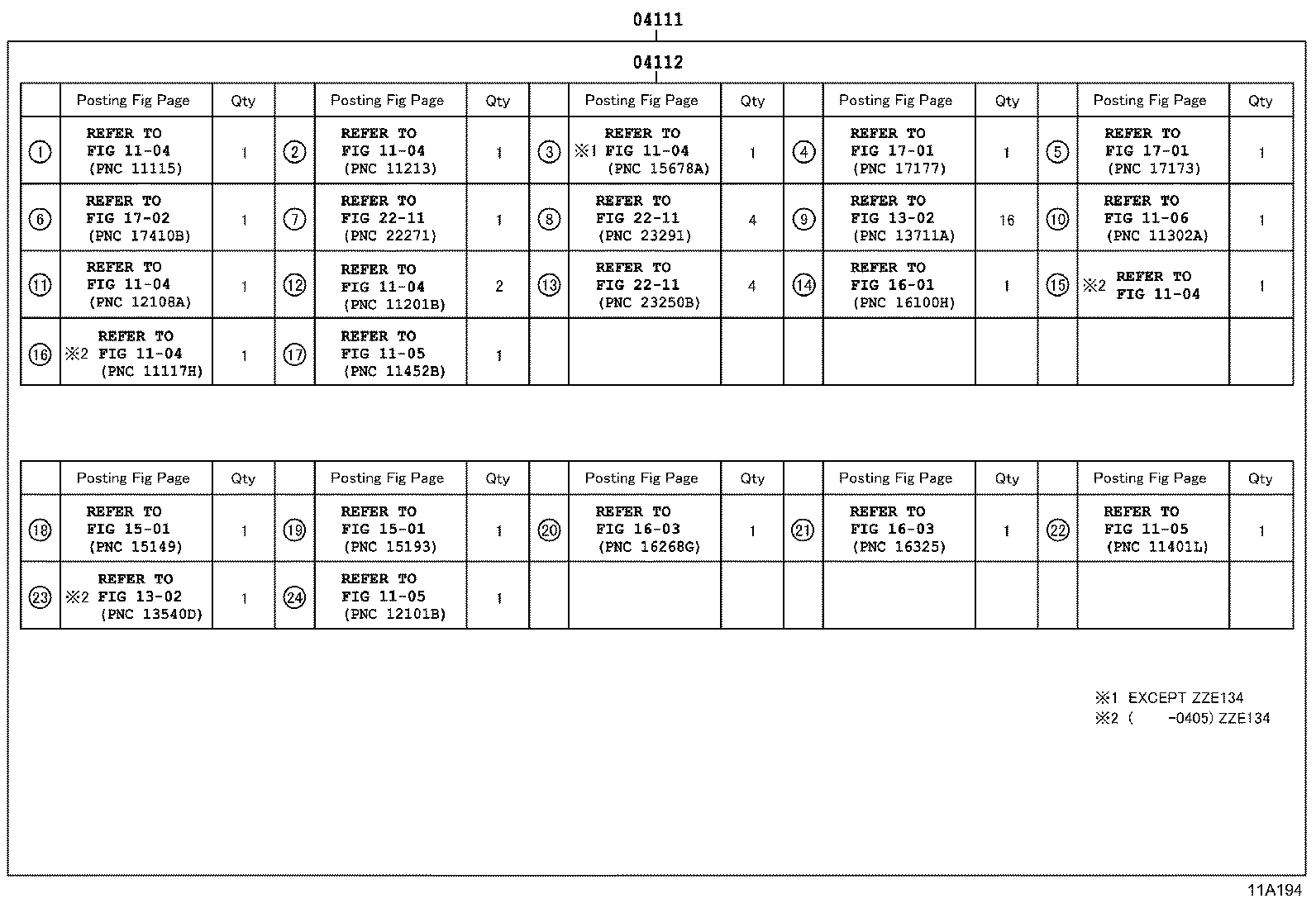

Figure 113136A 113136A 2002-01 → — Figure 11A194 11A194 2002-01 → — Figure 113117B 113117B 2002-01 → — Figure 11A195 11A195 2002-01 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
