Toyota Corolla/Matrix (NAP)

2002-01 → 2008-01 · chassis ZZE13# · catalogue 155450 · United States

Discontinued model Data version 2008-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 3 illustrations

Illustrations

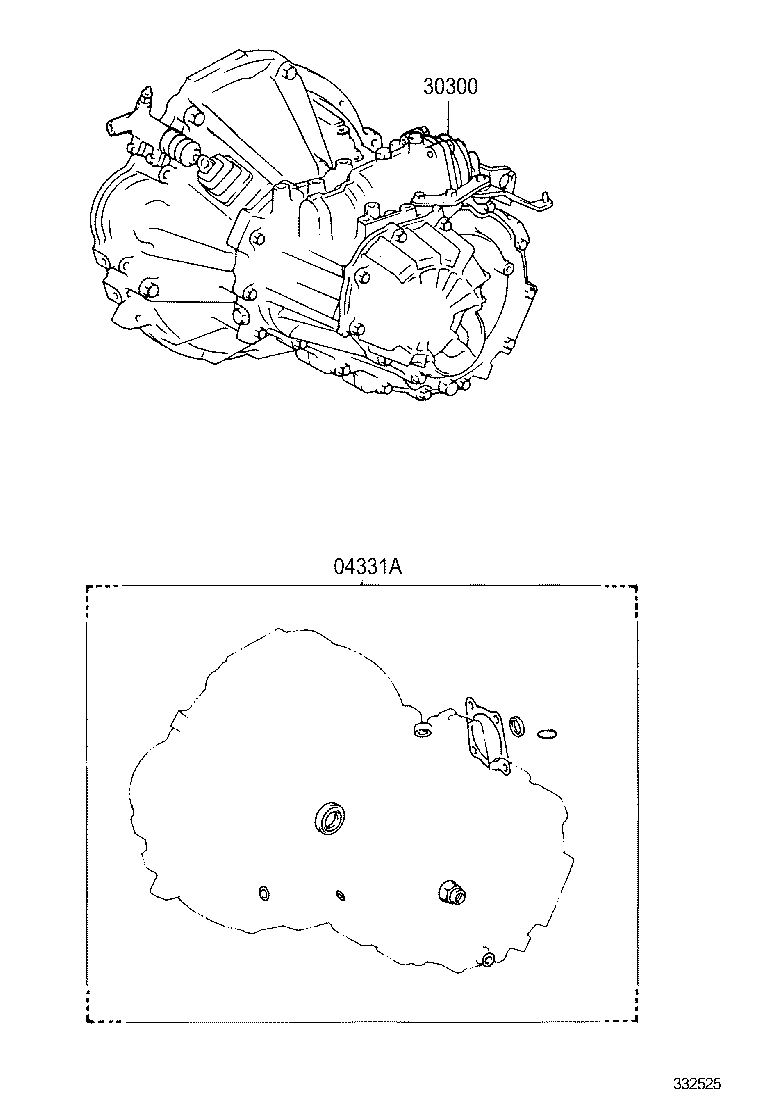

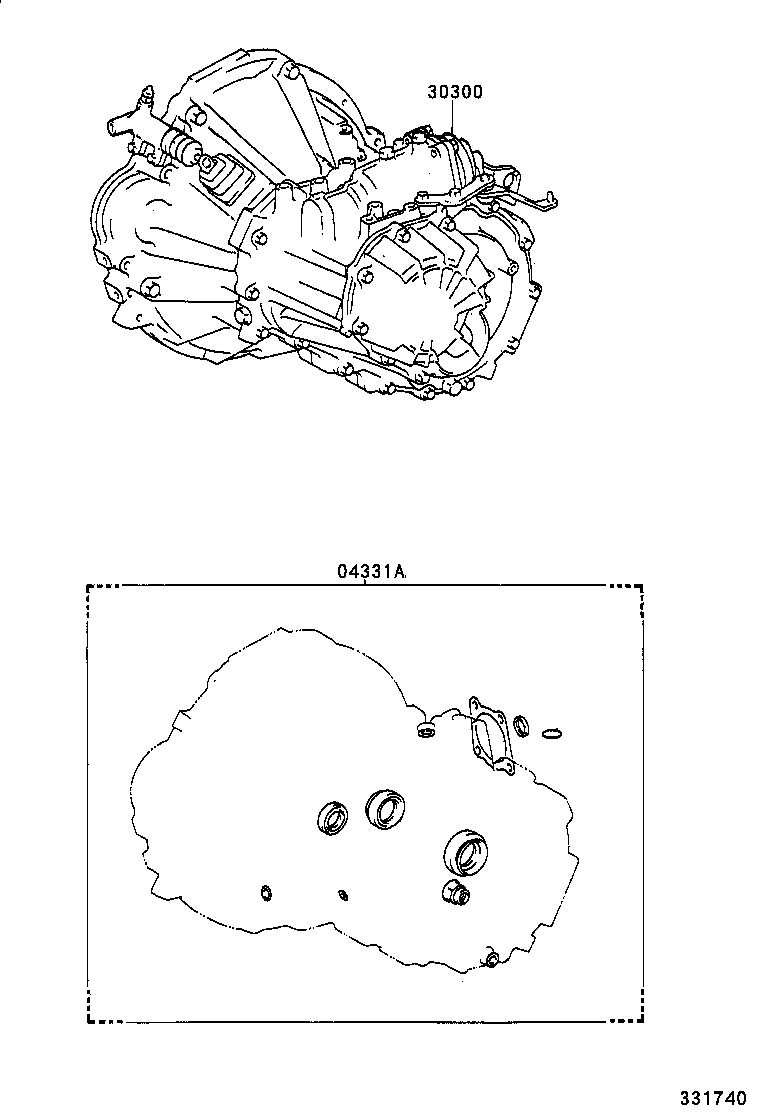

Figure 331739 331739 2002-01 → — Figure 331740 331740 2002-01 → 2004-05 Figure 332525 332525 2004-05 → —

Part groups

PNCDescription
04331A Gasket Kit, Transaxle Overhaul(MTM)
30300 Transaxle Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
