Toyota Corolla/Matrix (NAP)

2002-01 → 2008-01 · chassis ZZE13# · catalogue 155450 · United States

Discontinued model Data version 2008-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

7 part groups · 2 illustrations

Illustrations

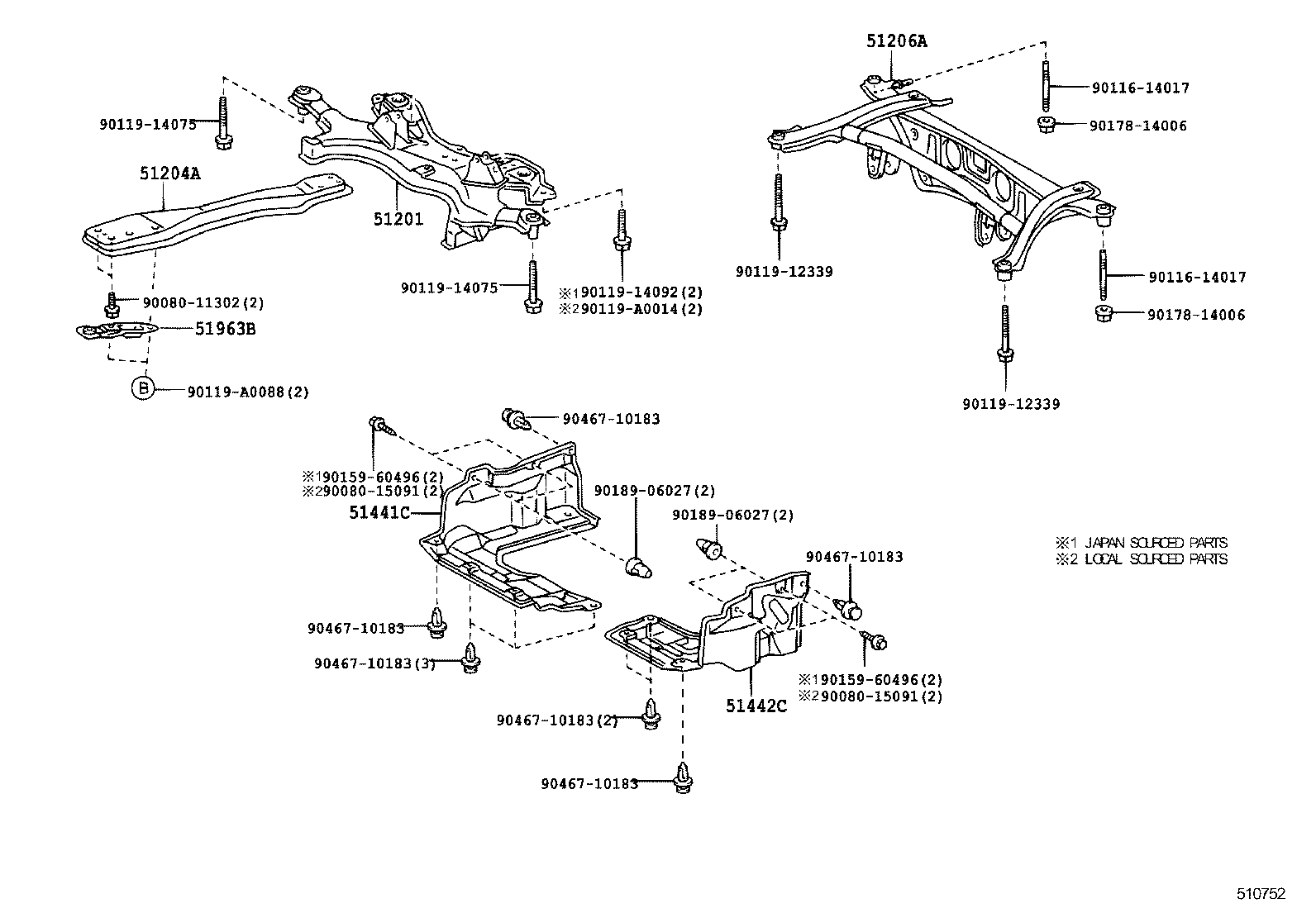

Figure 510762E 510762E 2002-01 → — Figure 510752G 510752G 2002-01 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51204A Member Sub-assy, Engine Mounting, Center
51206A Member Sub-assy, Rear Suspension
51227B Damper, Front Suspension Member Dynamic
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51963B Hook, Transport, Front RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
