Toyota Corolla/Matrix (NAP)

2002-01 → 2008-01 · chassis ZZE13# · catalogue 155450 · United States

Discontinued model Data version 2008-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

22 part groups · 5 illustrations

Illustrations

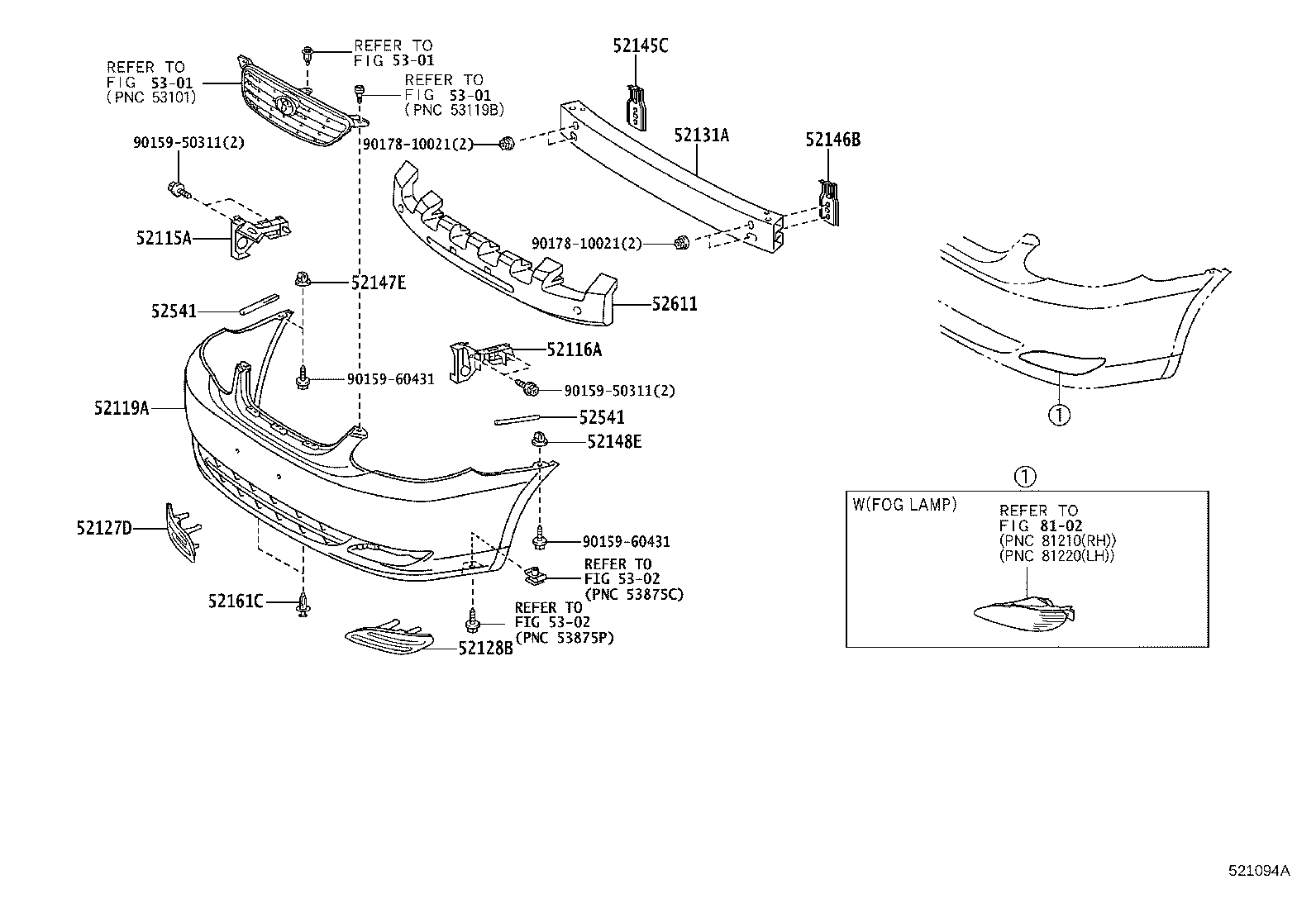

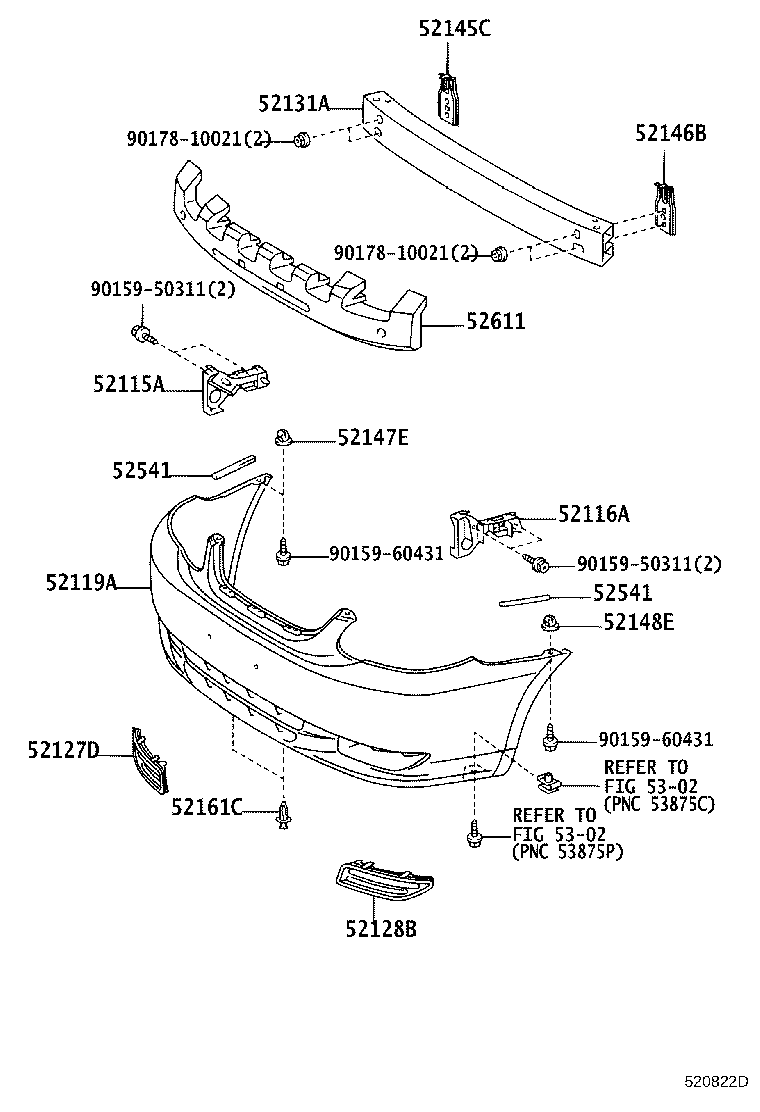

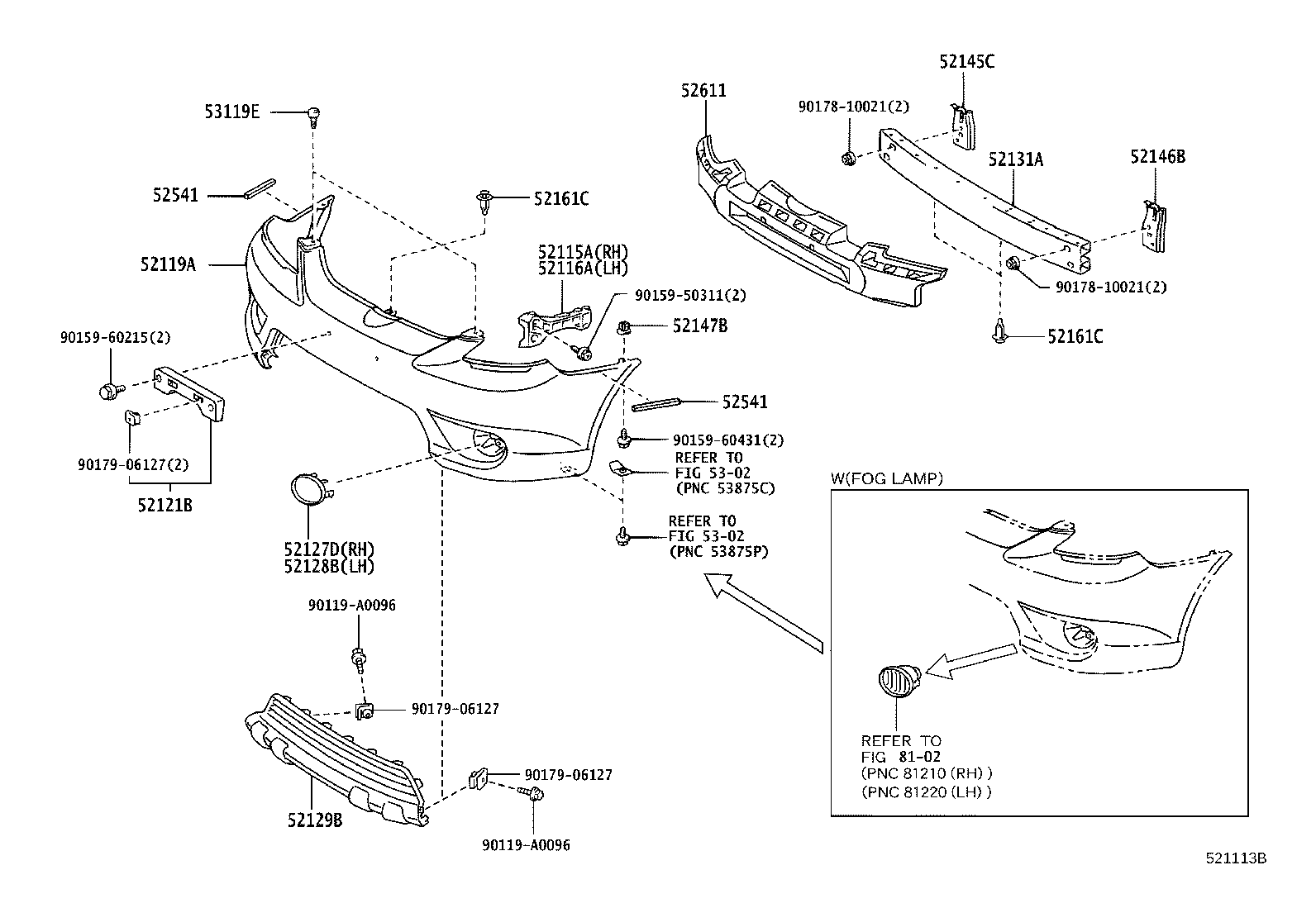

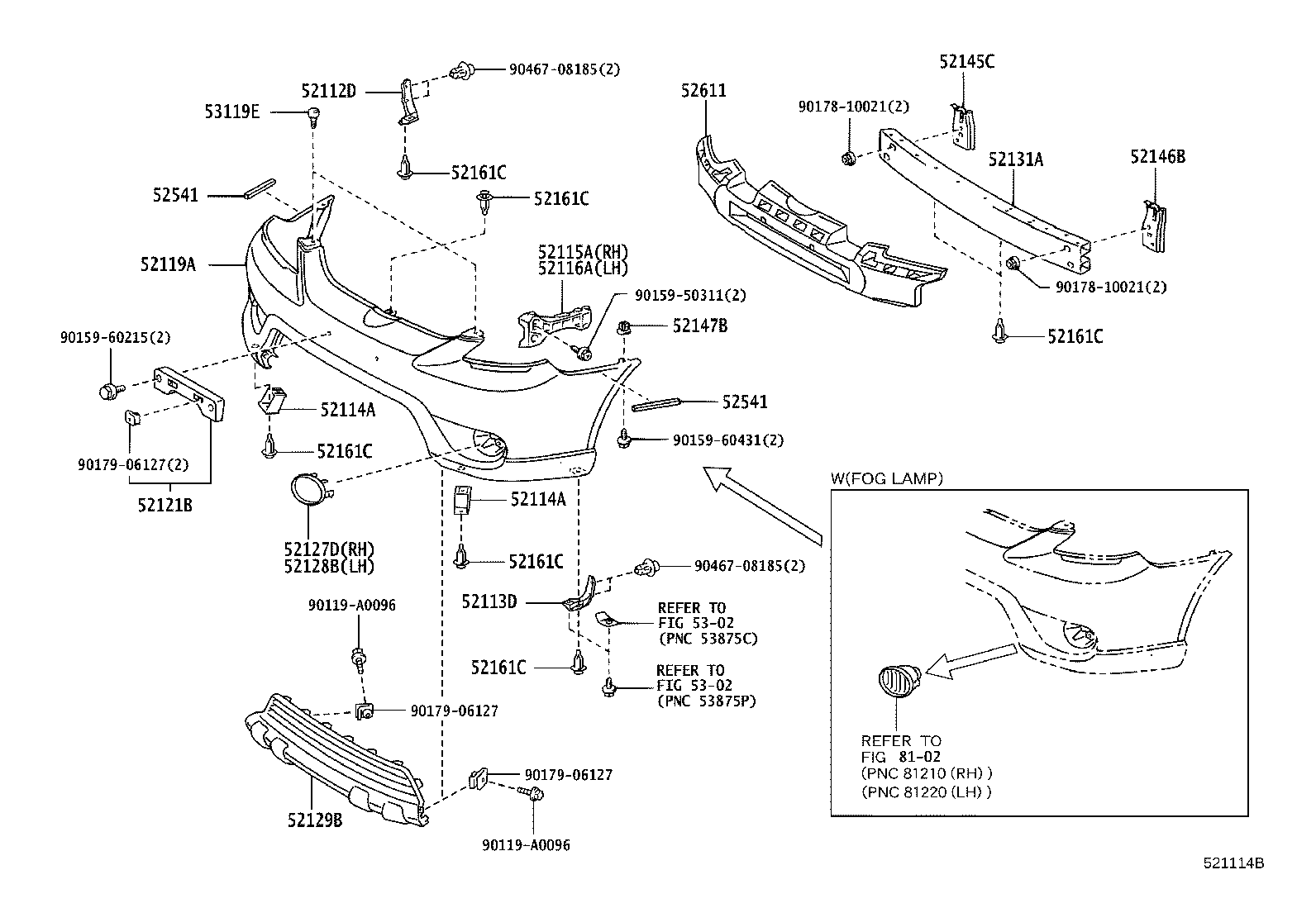

Figure 520813E 520813E 2002-01 → 2004-05 Figure 520822D 520822D 2002-01 → 2004-05 Figure 521094A 521094A 2004-05 → — Figure 521113B 521113B 2004-05 → — Figure 521114B 521114B 2004-05 → —

Part groups

PNCDescription
52112C Extension, Front Bumper
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52121B Bracket, Front Licence Plate Mounting
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52145C Bracket, Front Bumper Side Mounting, RH
52146B Bracket, Front Bumper Side Mounting, LH
52147B Bracket, Front Bumper Mounting
52147E Bracket, Front Bumper Mounting, RH
52148E Bracket, Front Bumper Mounting, LH
52161C Piece, Front Bumper
52541 Protector, Front Bumper
52611 Absorber, Front Bumper Energy
53119E Protector, Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
