Toyota Corolla/Matrix (NAP)

2002-01 → 2008-01 · chassis ZZE13# · catalogue 155450 · United States

Discontinued model Data version 2008-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

21 part groups · 2 illustrations

Illustrations

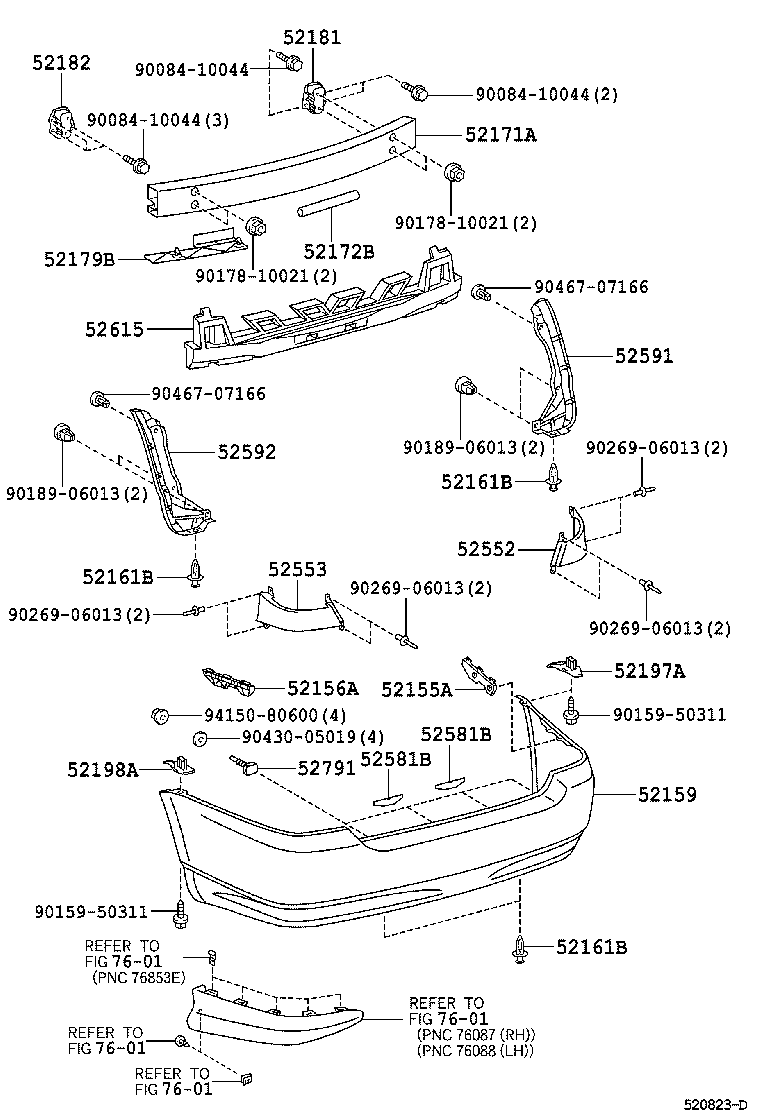

Figure 520814D 520814D 2002-01 → — Figure 520823D 520823D 2002-01 → —

Part groups

PNCDescription
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52171A Reinforcement, Rear Bumper, NO.1
52172B Reinforcement, Rear Bumper, NO.2
52172C Reinforcement, Rear Bumper Bar, Center
52175B Reinforcement, Rear Bumper, NO.5
52179B Plate, Rear Bumper Bar
52181 Arm, Rear Bumper, RH
52182 Arm, Rear Bumper, LH
52197A Bracket, Rear Bumper Seal, RH
52198A Bracket, Rear Bumper Seal, LH
52552 Filler, Rear Bumper, RH
52553 Filler, Rear Bumper, LH
52581B Protector, Rear Bumper
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
52599 Stopper, Rear Bumper, Upper
52615 Absorber, Rear Bumper Energy
52791 Bolt, Bumper Moulding Set, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
