Toyota Corolla/Matrix (NAP)

2002-01 → 2008-01 · chassis ZZE13# · catalogue 155450 · United States

Discontinued model Data version 2008-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

4 part groups · 3 illustrations

Illustrations

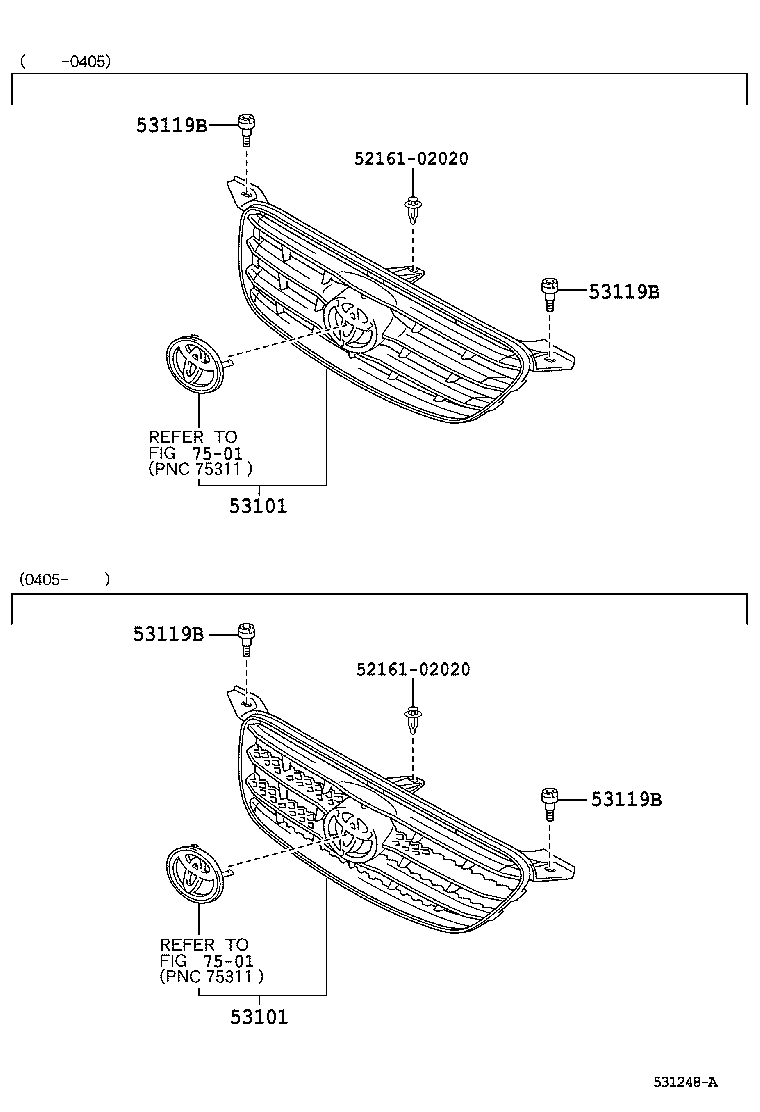

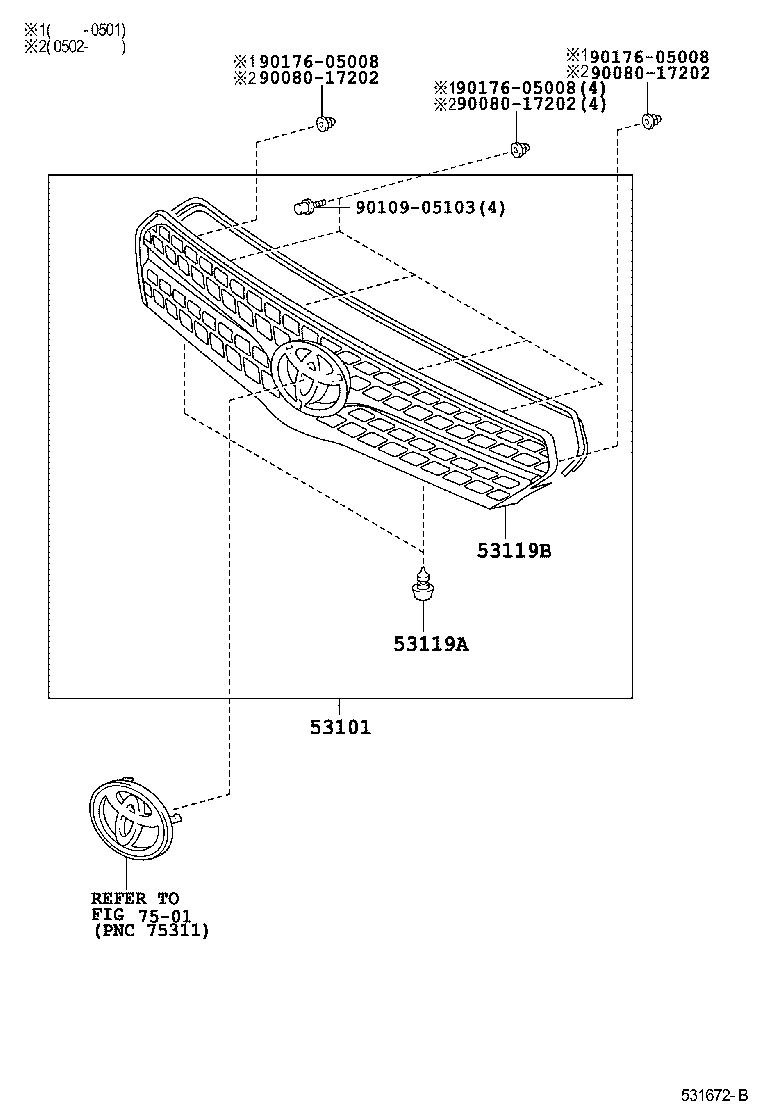

Figure 531233 531233 2002-01 → 2004-05 Figure 531672C 531672C 2004-05 → — Figure 531248A 531248A 2002-01 → —

Part groups

PNCDescription
53101 Grille Sub-assy, Radiator
53115B Bracket, Radiator Grille
53119A Cushion, Radiator Grille TO Front Valance Panel
53119B Protector, Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
