Toyota Corolla/Matrix (NAP)

2002-01 → 2008-01 · chassis ZZE13# · catalogue 155450 · United States

Discontinued model Data version 2008-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

47 part groups · 8 illustrations

Illustrations

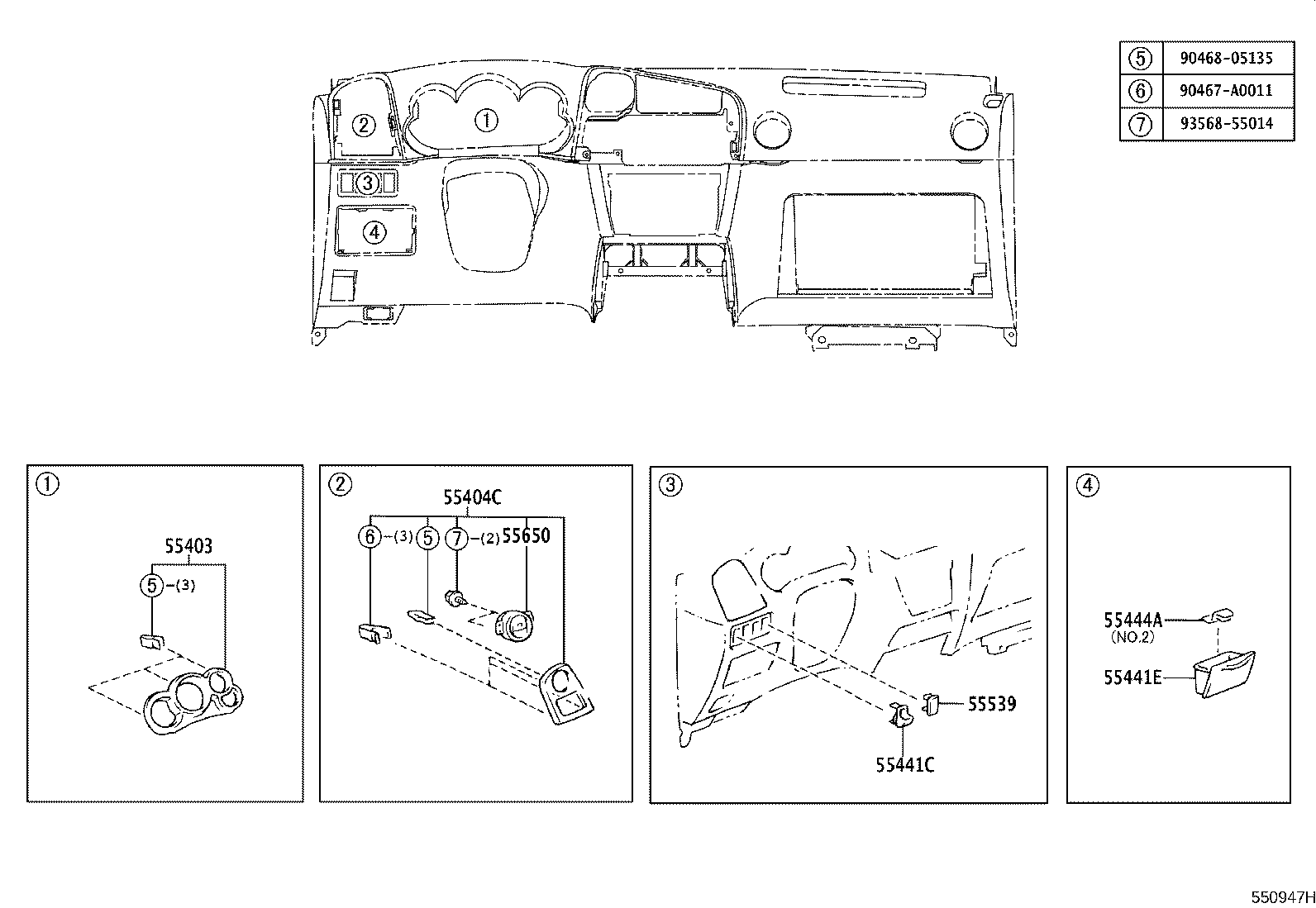

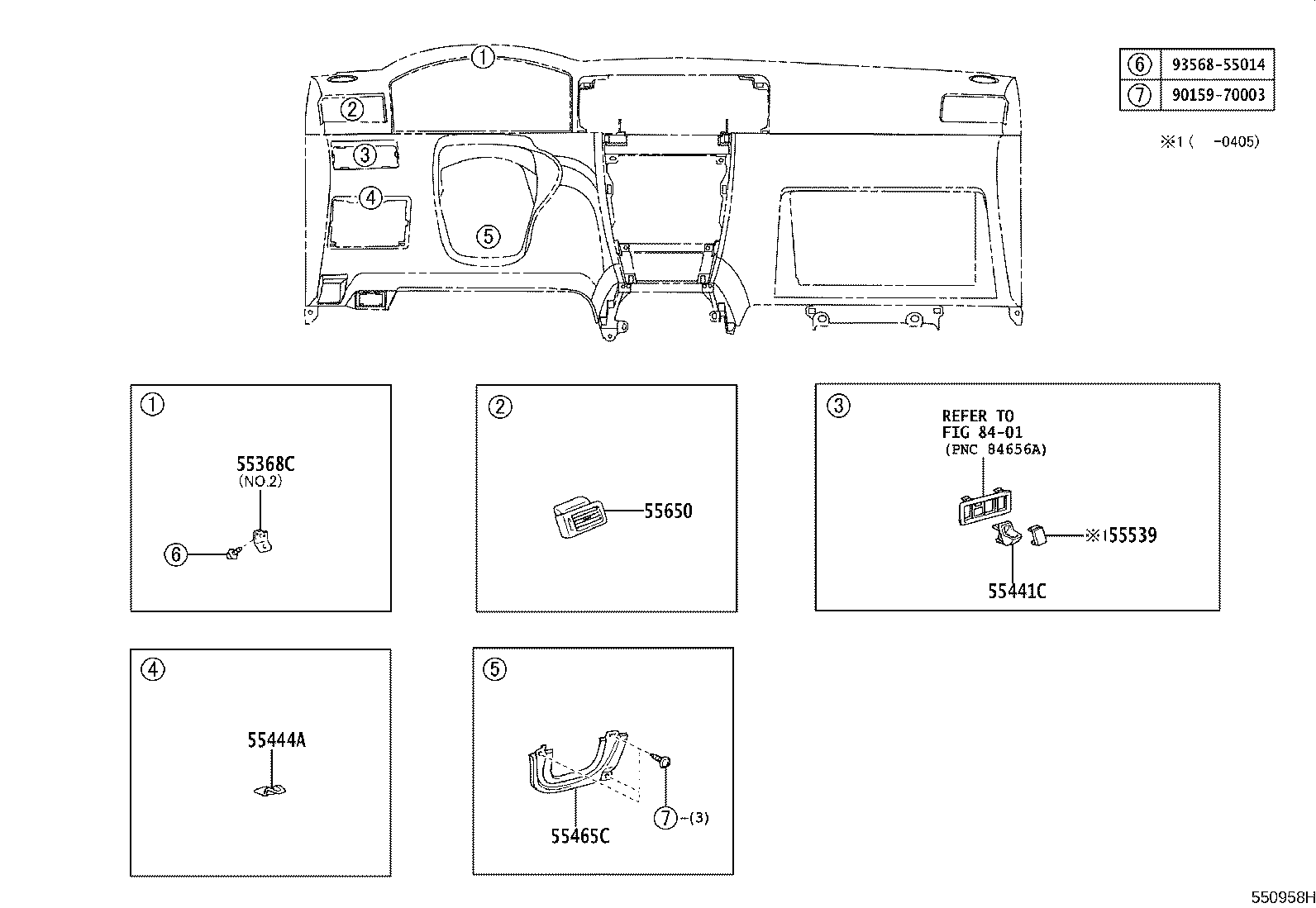

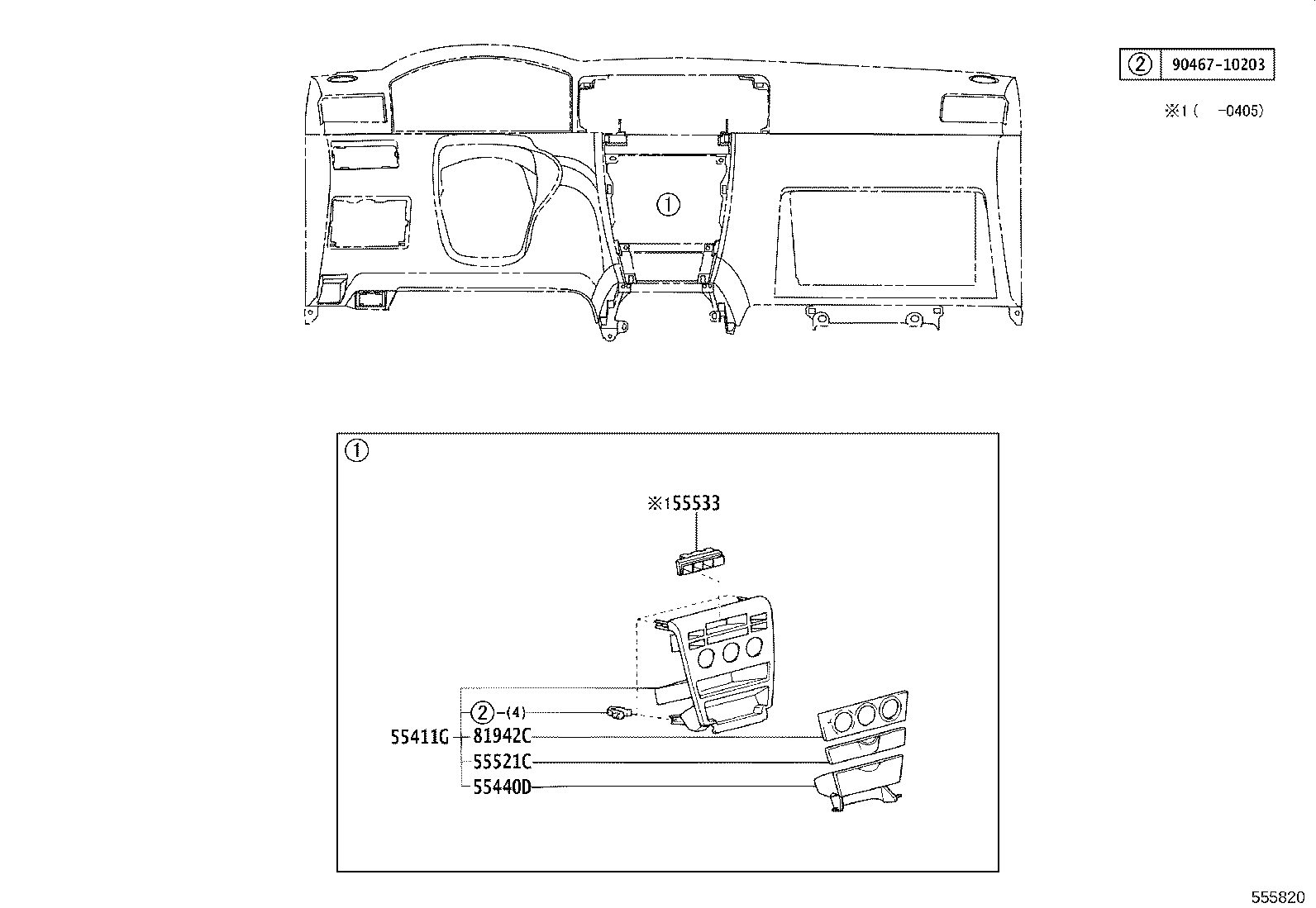

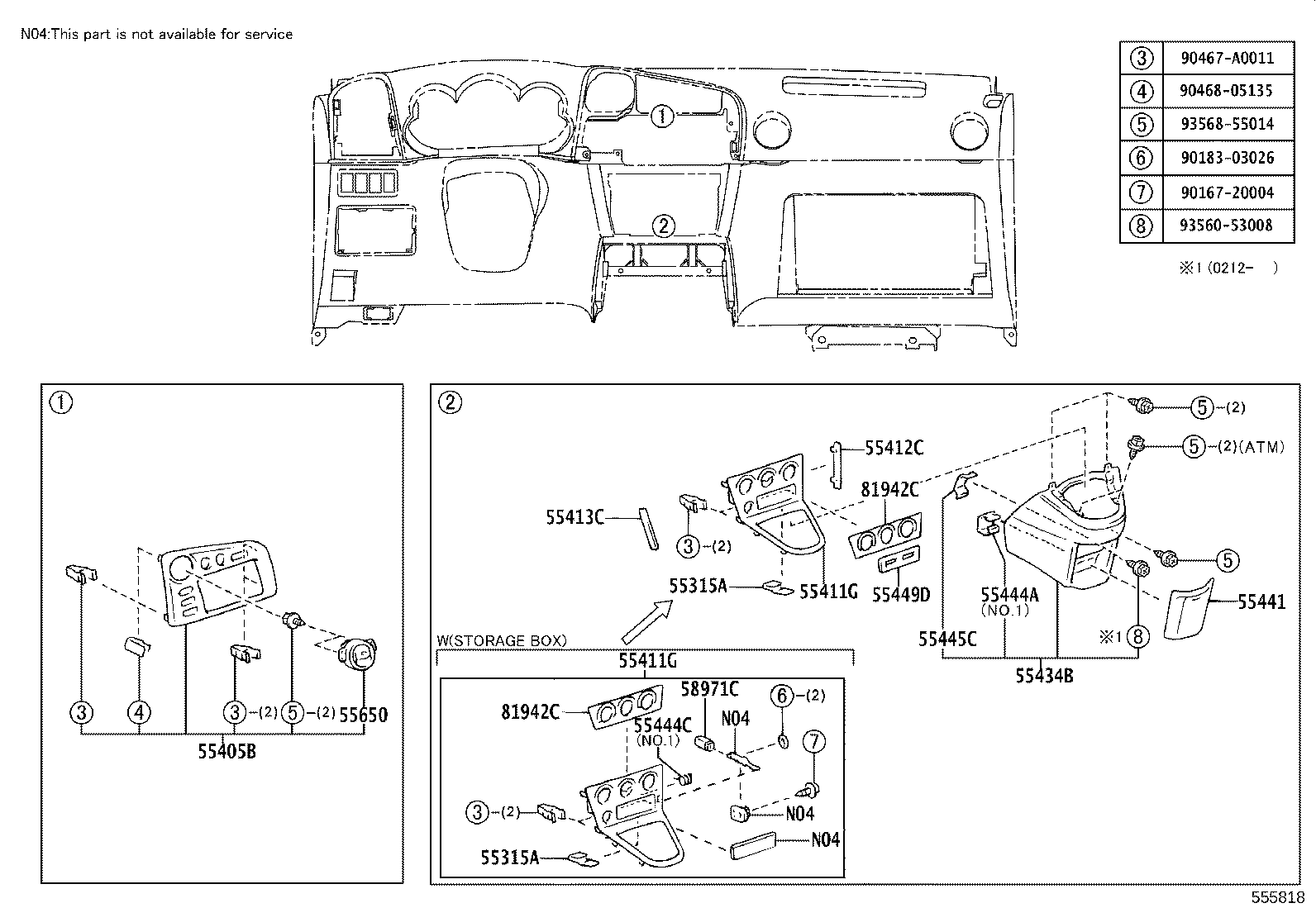

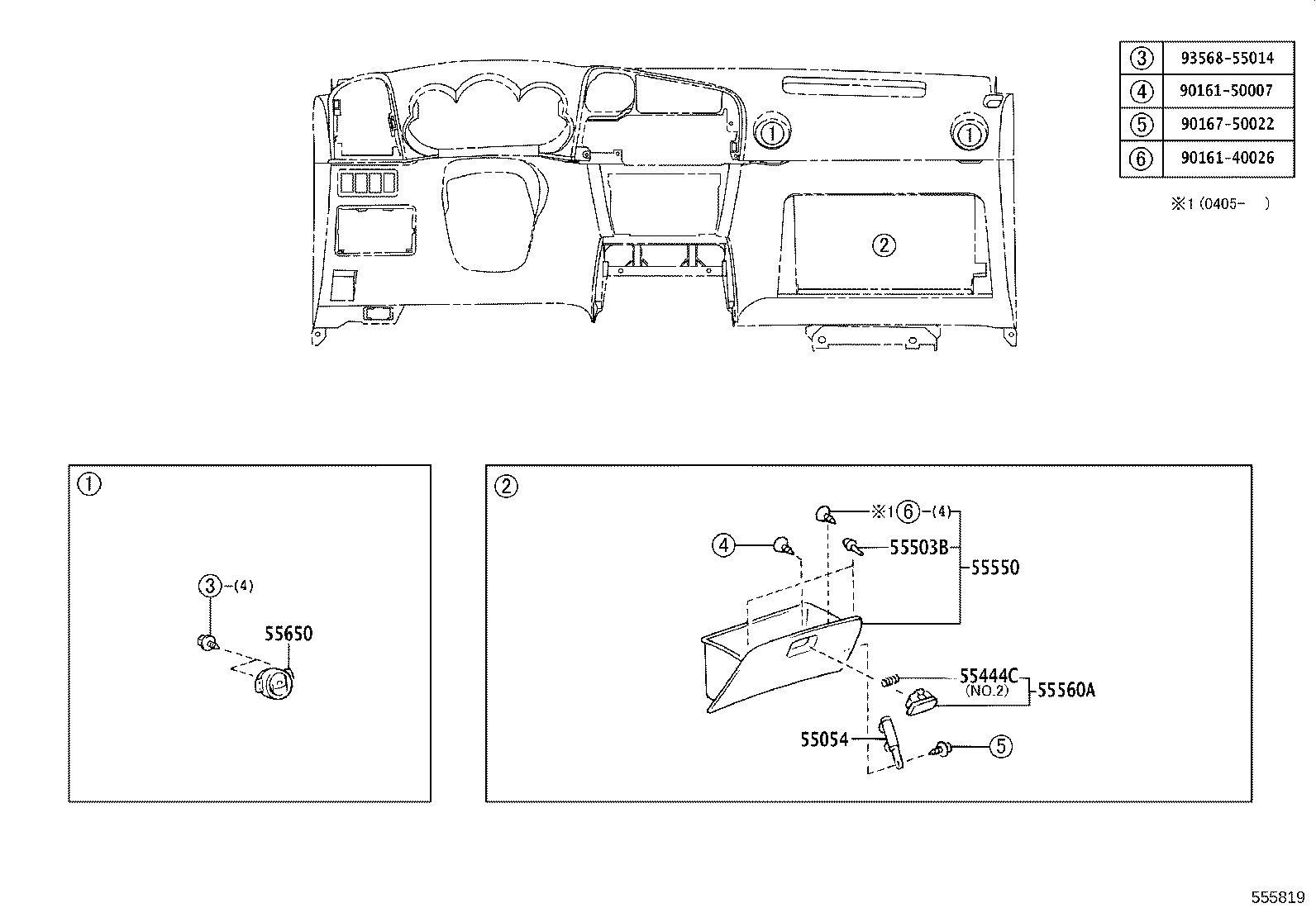

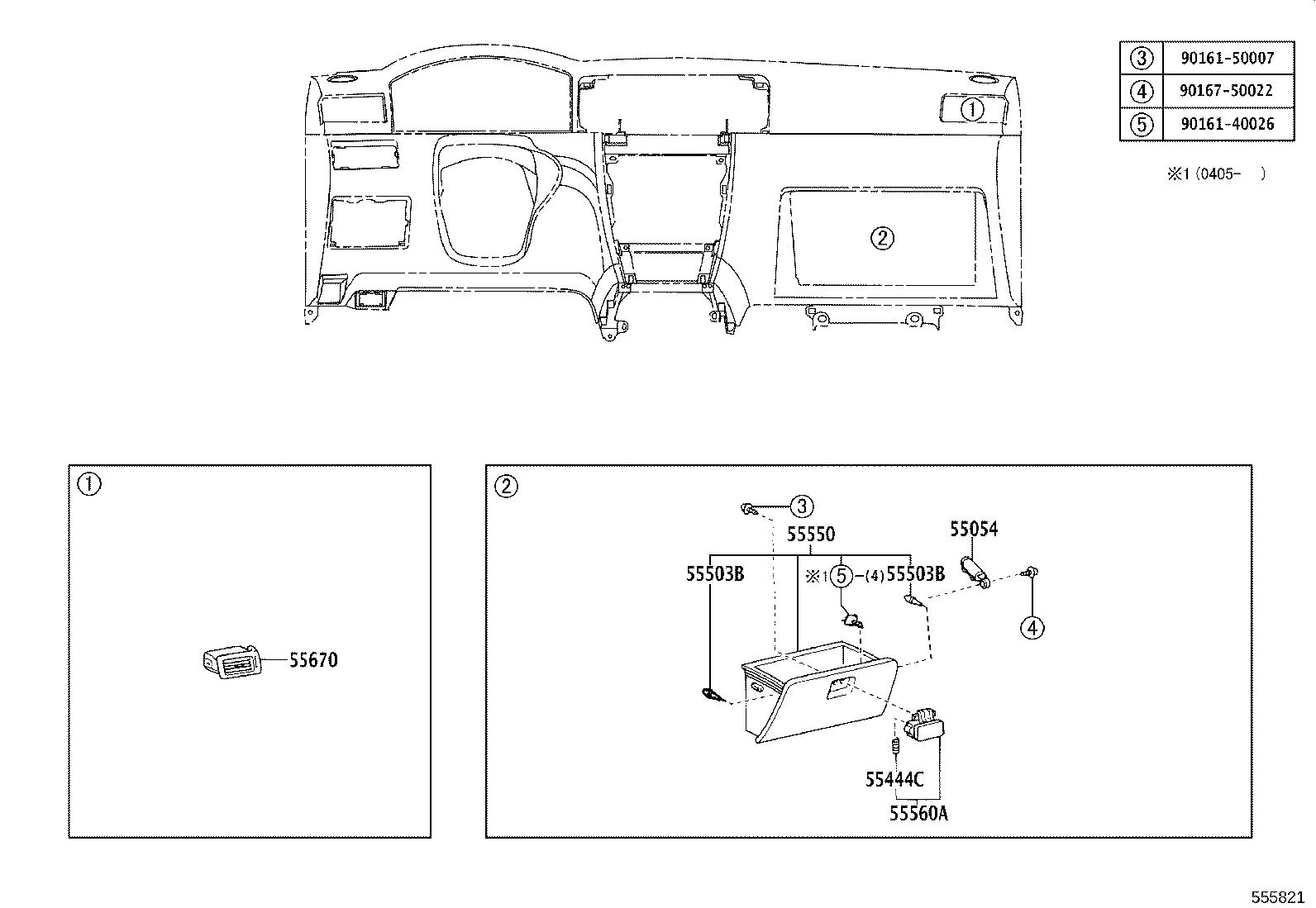

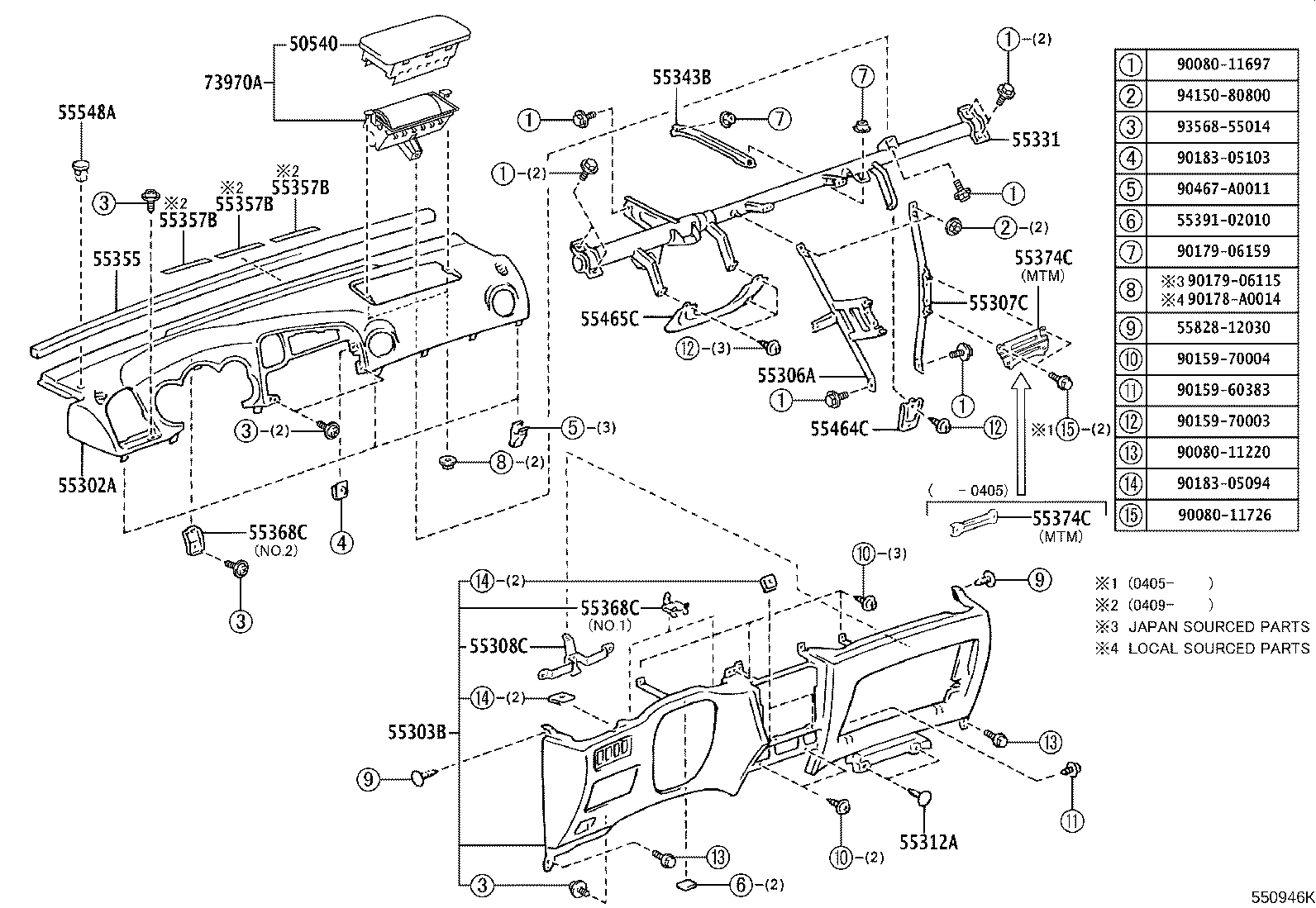

Figure 550957N 550957N 2002-01 → — Figure 550958H 550958H 2002-01 → — Figure 555820 555820 2002-01 → — Figure 555821 555821 2002-01 → — Figure 550946K 550946K 2002-01 → — Figure 550947H 550947H 2002-01 → — Figure 555818 555818 2002-01 → — Figure 555819 555819 2002-01 → —

Part groups

PNCDescription
50540 DO0R Assy, Airbag Passenger
55054 Stopper Sub-assy, Glove Compartment Door
55302A Panel Sub-assy, Instrument, Upper
55303B Panel Sub-assy, Instrument, Lower
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55308C Bracket Sub-assy, Instrument Panel, Center
55312A Clip, Instrument Panel
55315A Spacer, Instrument Panel, NO.1
55331 Reinforcement, Instrument Panel
55343B Brace, Instrument Panel TO Cowl, Center
55345A Clip, Instrument Panel, NO.1
55355 Cushion, Instrument Panel, NO.1
55357B Cushion, Instrument Panel, NO.3
55368C Bracket, Meter Mounting
55374C Bracket, Instrument Panel Lower Mounting, NO.1
55392C Cushion, Instrument Panel, Lower NO.2
55394B Bolt, Instrument Panel
55403 Hood Sub-assy, Meter
55404C Panel Sub-assy, Instrument Cluster Finish, NO.2
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55411G Panel, Instrument Cluster Finish, NO.1
55412C Panel, Instrument Cluster Finish, Center NO.1
55413C Panel, Instrument Cluster Finish, Center NO.2
55434B Panel, Instrument Panel Finish, Lower Center
55440D Box Assy, Instrument Panel
55441 Box, Instrument Panel
55441C Box, Instrument Panel Coin
55441E Box, Instrument Panel
55444A Spring, Instrument Panel Box
55444C Spring, Instrument Panel Box
55445C Plate, Instrument Panel Box
55449D Base, Switch
55464C Insert, Instrument Panel Lower Pad, RH
55465C Insert, Instrument Panel Lower Pad, LH
55503B Cushion(FOR GLOVE COMPARTMENT)
55521C Cover, Stereo Opening
55533 Cover, Auto Clock Hole
55539 Cover, Spare Switch Hole
55548A Cover, Instrument Panel Hole
55550 Door Assy, Glove Compartment
55560A Lock Assy, Glove Compartment Door
55650 Register Assy, Instrument Panel, NO.1
55670 Register Assy, Instrument Panel, NO.3
58971C Lock, Console Compartment Door
73970A Airbag Assy, Instrument Panel Passenger
81942C Sheet, Heater Control Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
