Toyota Corolla/Matrix (NAP)

2002-01 → 2008-01 · chassis ZZE13# · catalogue 155450 · United States

Discontinued model Data version 2008-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

18 part groups · 2 illustrations

Illustrations

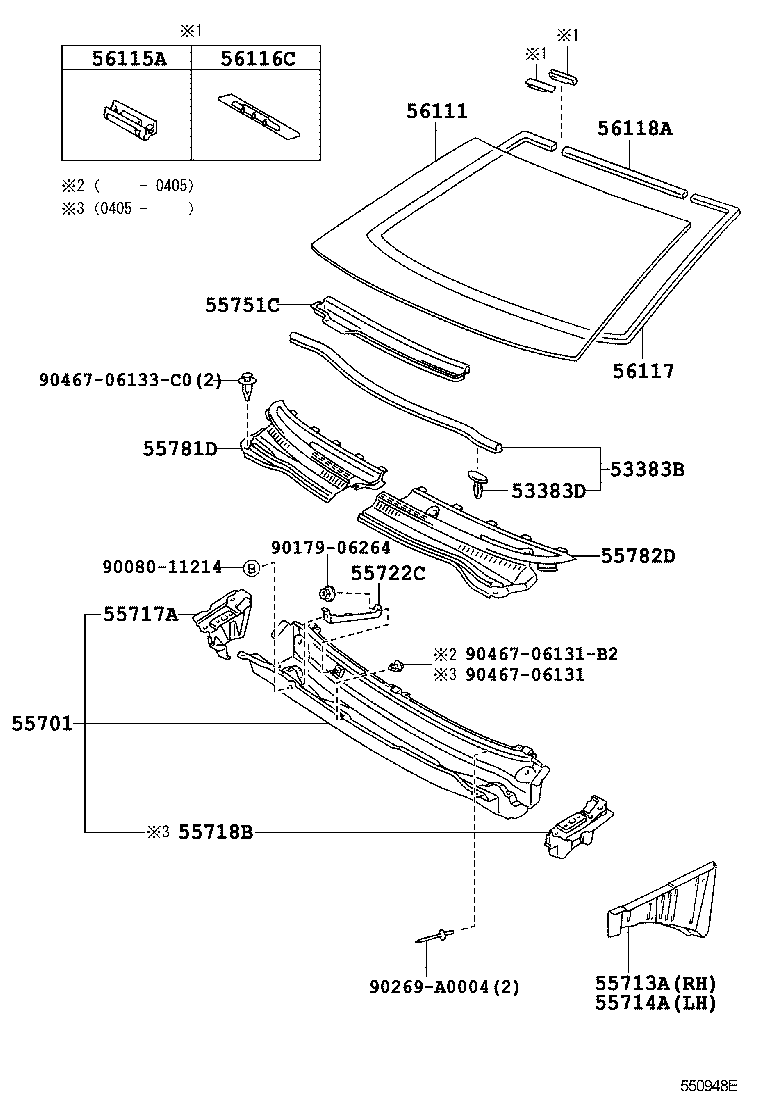

Figure 550929B 550929B 2002-01 → — Figure 550948E 550948E 2002-01 → —

Part groups

PNCDescription
53383B Seal, Hood TO Cowl Top
53383D Clip(FOR HOOD TO COWL TOP SEAL)
55701 Panel Sub-assy, Cowl
55713A Panel, Cowl Top Side, RH
55714A Panel, Cowl Top Side, LH
55717A Panel, Cowl Top Side, Inner RH
55718B Panel, Cowl Top Side, Inner LH
55722C Brace, Cowl Top TO Cowl, Inner
55725B Reinforcement, Hood Hinge Mounting
55726B Reinforcement, Hood Hinge Mounting, LH
55751C Shield, Cowl Ventilator Splash
55781D Louver, Cowl Top Ventilator, RH
55782D Louver, Cowl Top Ventilator, LH
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117 Dam, Front Pillar, Outer
56118A Dam, Window Glass Adhesive, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
