Toyota Corolla/Matrix (NAP)

2002-01 → 2008-01 · chassis ZZE13# · catalogue 155450 · United States

Discontinued model Data version 2008-06

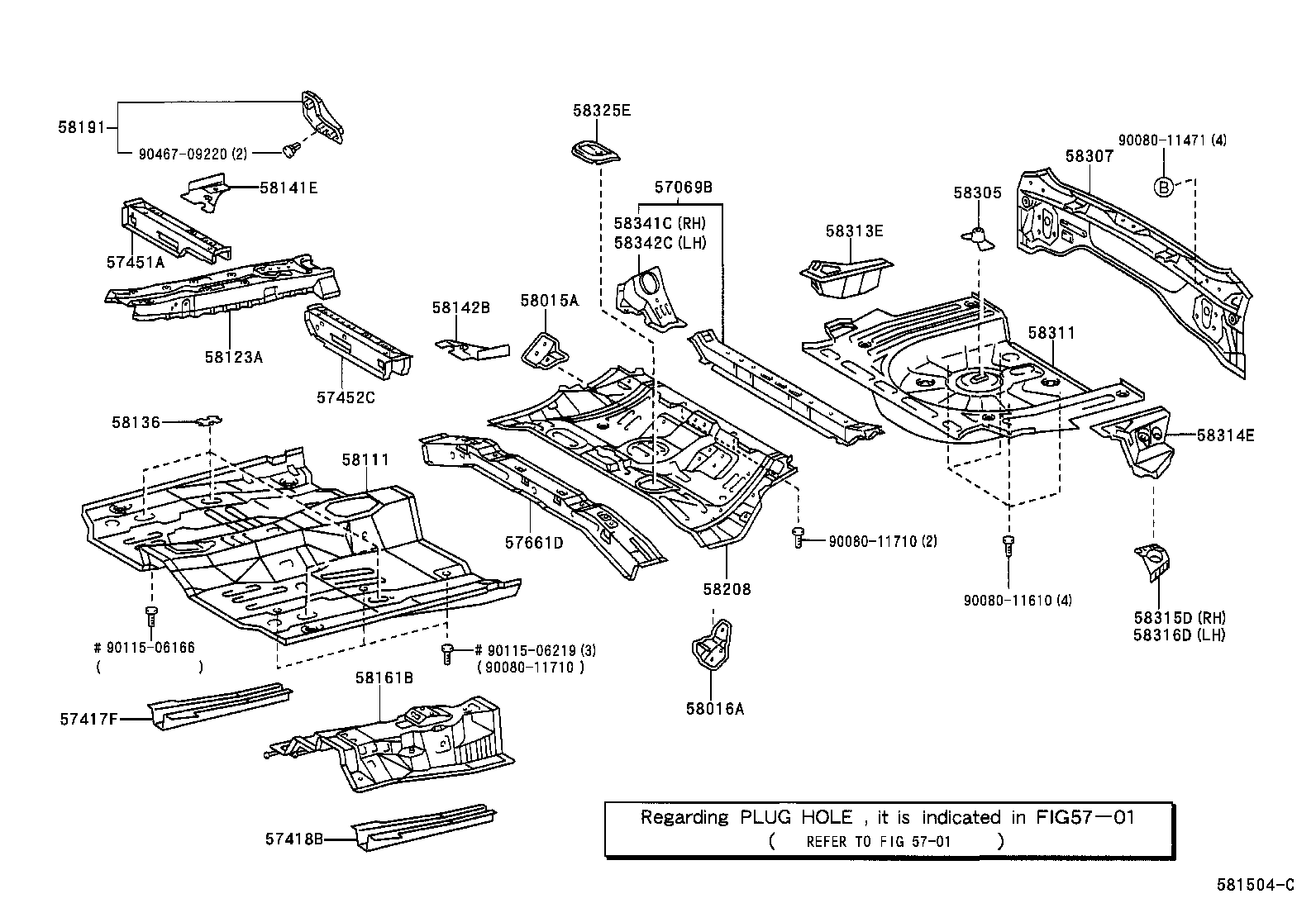

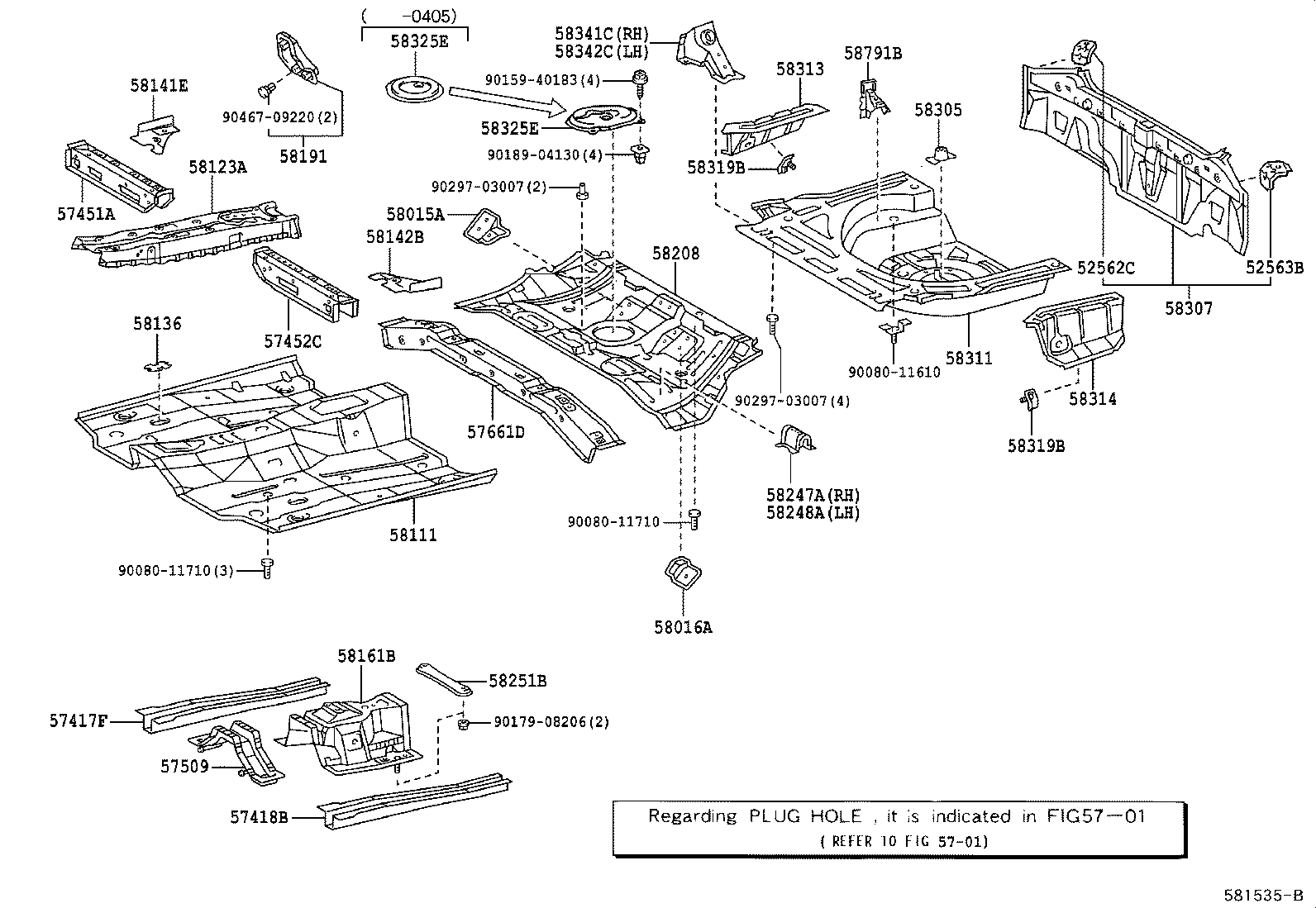

Floor Pan & Lower Back Panel

38 part groups · 3 illustrations

PNC	Description
52562C	Retainer, Rear Bumper, Upper RH
52563B	Retainer, Rear Bumper, Upper LH
57069B	Member Sub-assy, Rear Floor Cross, Center
57417F	Reinforcement, Front Floor Under, RH
57418B	Reinforcement, Front Floor Under, LH
57435E	Member, Center Floor Side, RH
57436D	Member, Center Floor Side, LH
57451A	Member, Front Floor Cross, RH
57452C	Member, Front Floor Cross, LH
57509	Reinforcement Sub-assy, Front Floor, Center
57661D	Member, Rear Floor Cross, Front
58015A	Reinforce Sub-assy, Belt Anchor, NO.3 RH
58016A	Reinforce Sub-assy, Belt Anchor, NO.3 LH
58111	Pan, Front Floor
58123A	Support, Shift & Select Lever
58136	Cover, Front Floor Hole
58141E	Reinforcement, Front Side Member TO Floor Pan, RH
58142B	Reinforcemnet, Front Side Member TO Floor Pan, LH
58161B	Reinforcement, Belt Anchor TO Floor Pan
58191	Footrest, Front Floor
58208	Pan, Center Floor
58247A	Reinforcement, Rear Seat Cushion Hinge, RH
58248A	Reinforcement, Rear Seat Cushion Hinge, LH
58251B	Brace, Floor Panel, Front
58305	Bracket Sub-assy, Spare Wheel Clamp
58307	Panel Sub-assy, Body Lower Back
58311	Pan, Rear Floor
58313	Panel, Rear Floor Side, RH
58313E	Extension, Rear Floor Side Panel, RH
58314	Panel, Rear Floor Side, LH
58314E	Extension, Rear Floor Side Panel, LH
58315D	Extension, Rear Floor Pan, RH
58316D	Extension, Rear Floor Pan, LH
58319B	Bracket, Rear Floor Side Panel
58325E	Cover, Rear Floor Service Hole
58341C	Bracket, Rear Absorber Mounting, NO.1 RH
58342C	Bracket, Rear Absorber Mounting, NO.1 LH
58791B	Carrier, Jack

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
