Toyota Corolla/Matrix (NAP)
2002-01 → 2008-01 · chassis ZZE13# · catalogue 155450 · United States
Discontinued model
Data version 2008-06

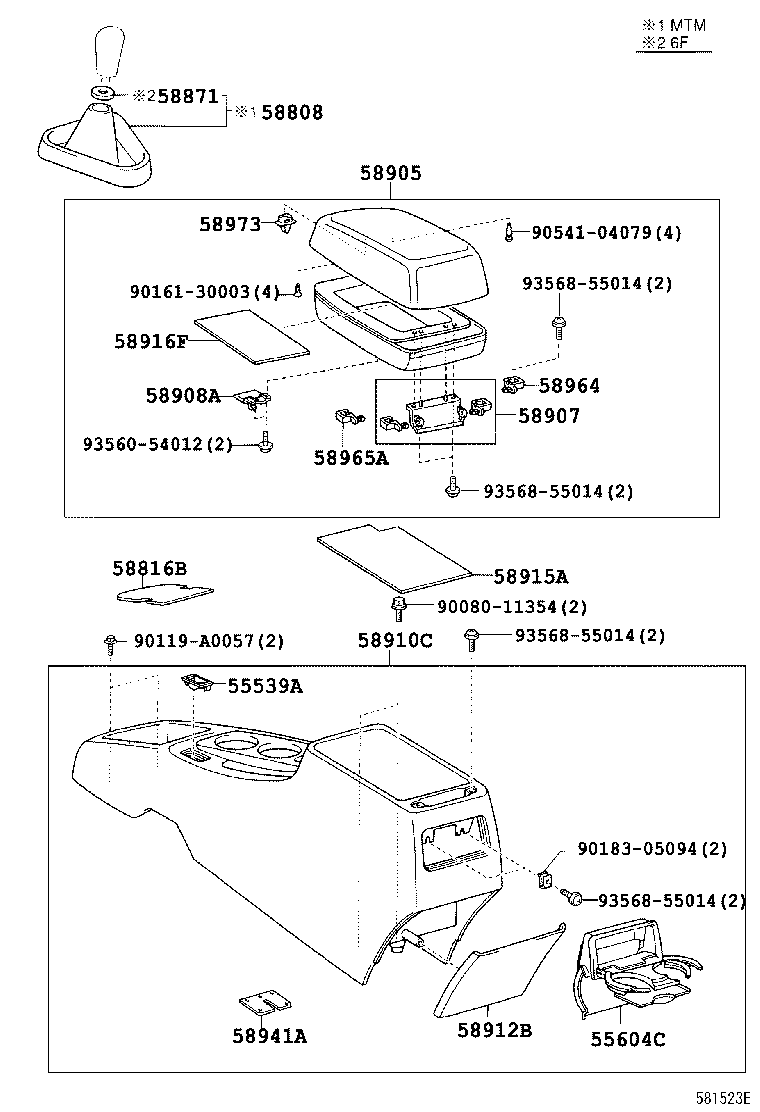

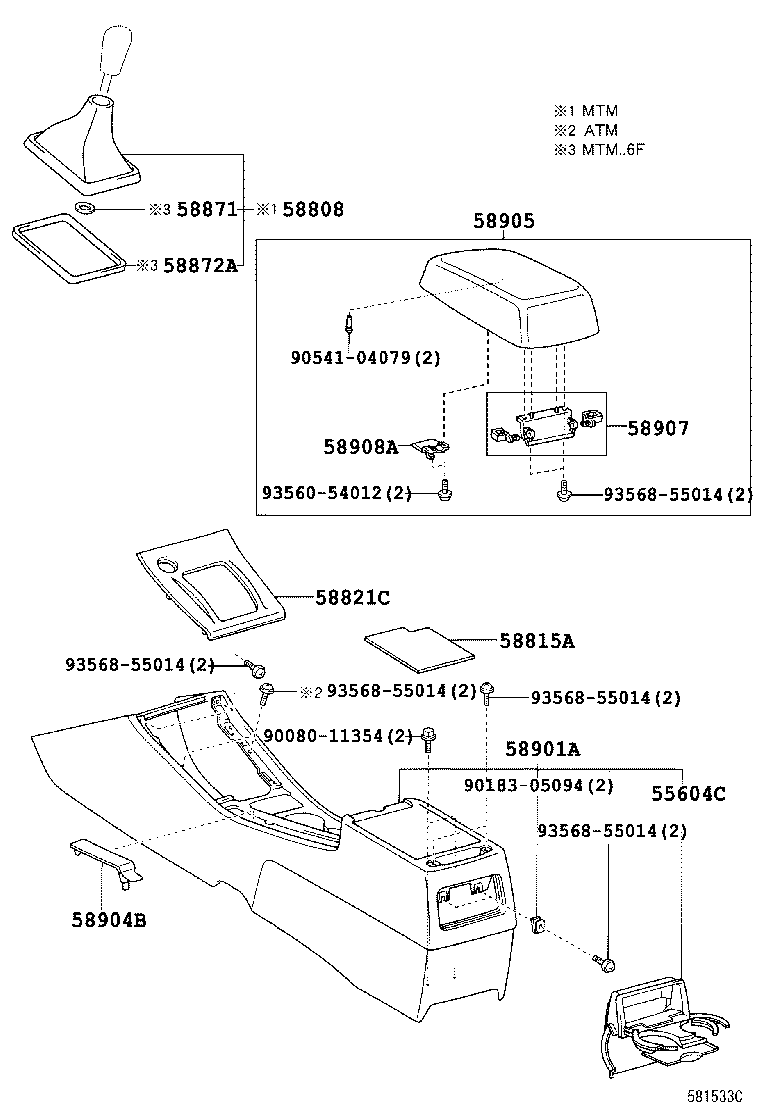

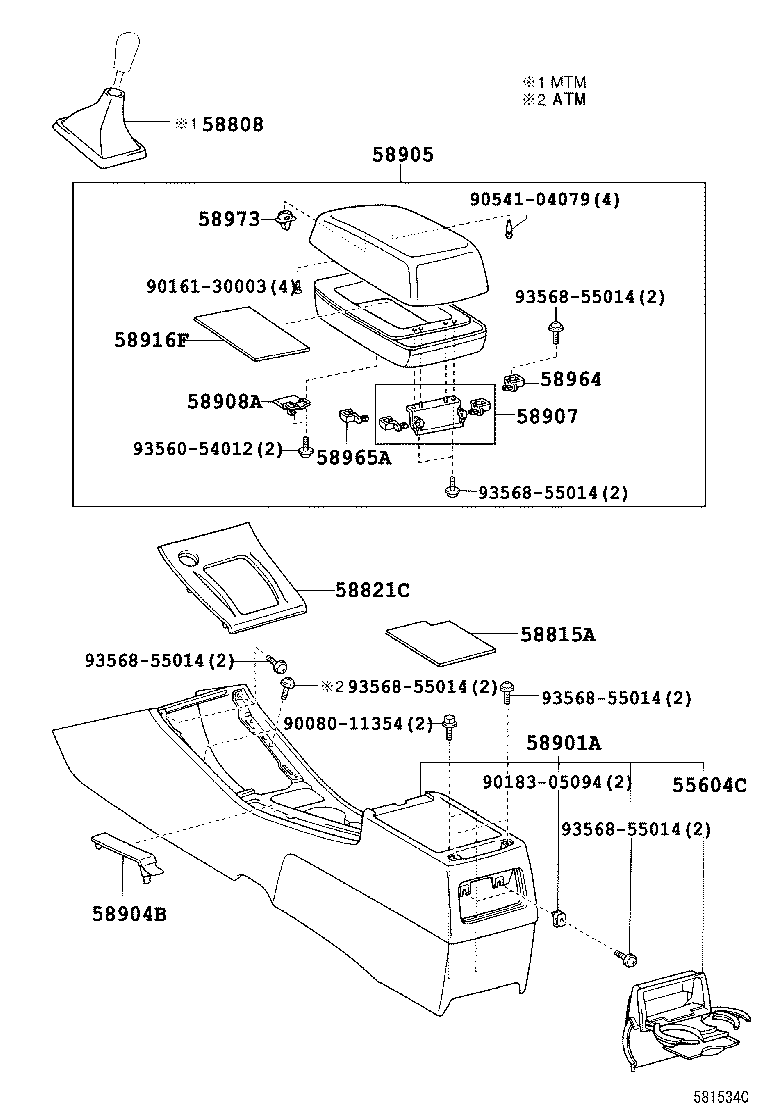

Console Box & Bracket
21 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55539A | Cover, Spare Switch Hole |
| 55604C | Holder Sub-assy, Console Box Cup |
| 58808 | Cover Sub-assy, Shifting Hole |
| 58815A | Carpet, Console Box |
| 58816B | Insert, Console Box |
| 58821C | Panel, Console, Upper |
| 58871 | Cushion, Console Box |
| 58872A | Cushion, Console Box, NO.2 |
| 58901A | Box Sub-assy, Console, Rear |
| 58904B | Cover Sub-assy, Parking Brake Hole |
| 58905 | Door Sub-assy, Console Compartment |
| 58907 | Hinge Sub-assy, Console Compartment Door |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58910C | Box Assy, Console, Rear |
| 58912B | Box, Rear Console, Lower |
| 58915A | Damper, Console Box, Rear |
| 58916F | Mat, Box Bottom, NO.1 |
| 58941A | Cover, Parking Brake Hole |
| 58964 | Stopper, Console Compartment Door, NO.1 |
| 58965A | Stopper, Console Compartment Door, NO.2 |
| 58973 | Pin, Console Compartment Door Lock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
