Toyota Corolla/Matrix (NAP)
2002-01 → 2008-01 · chassis ZZE13# · catalogue 155450 · United States
Discontinued model
Data version 2008-06
Side Member

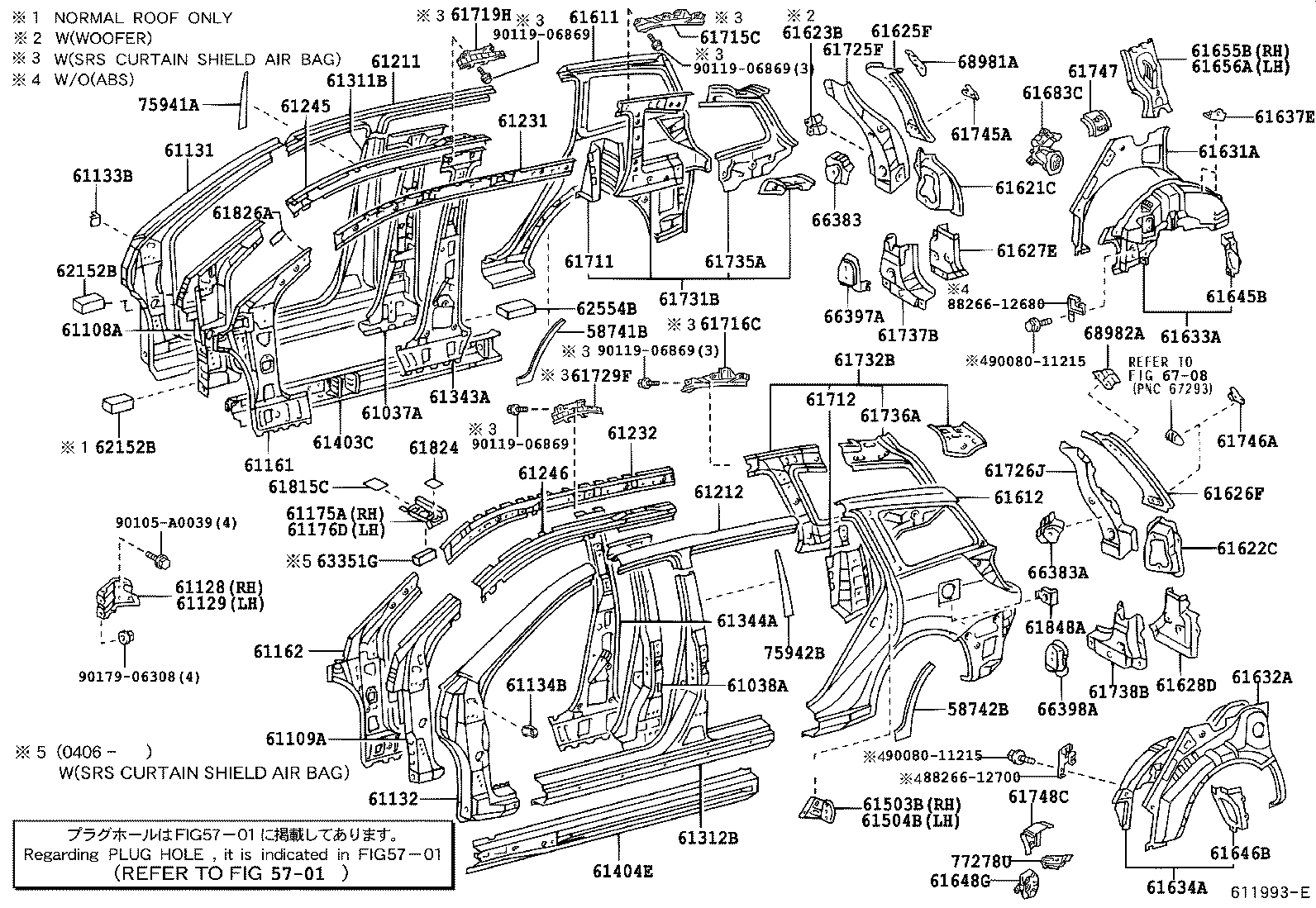

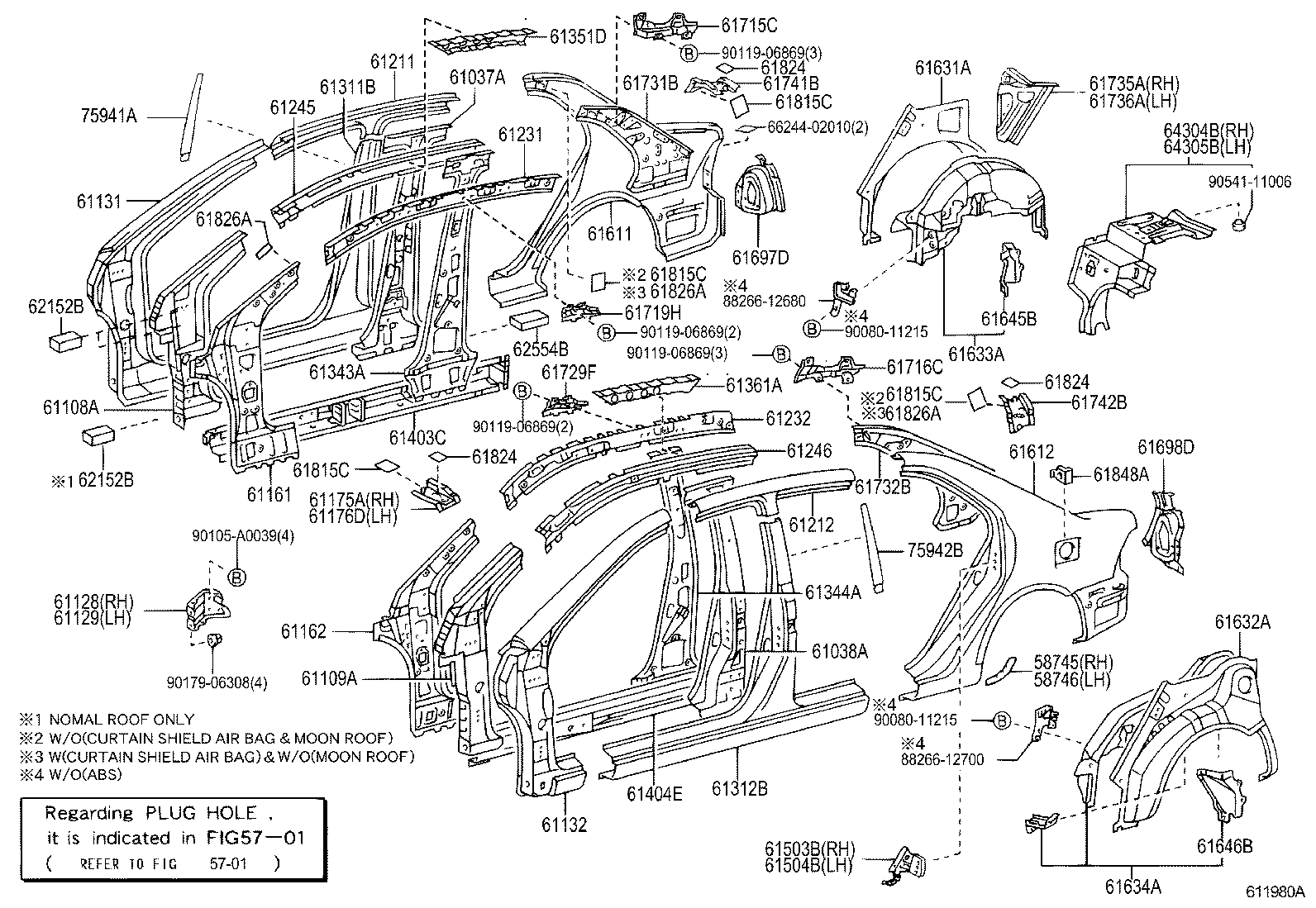

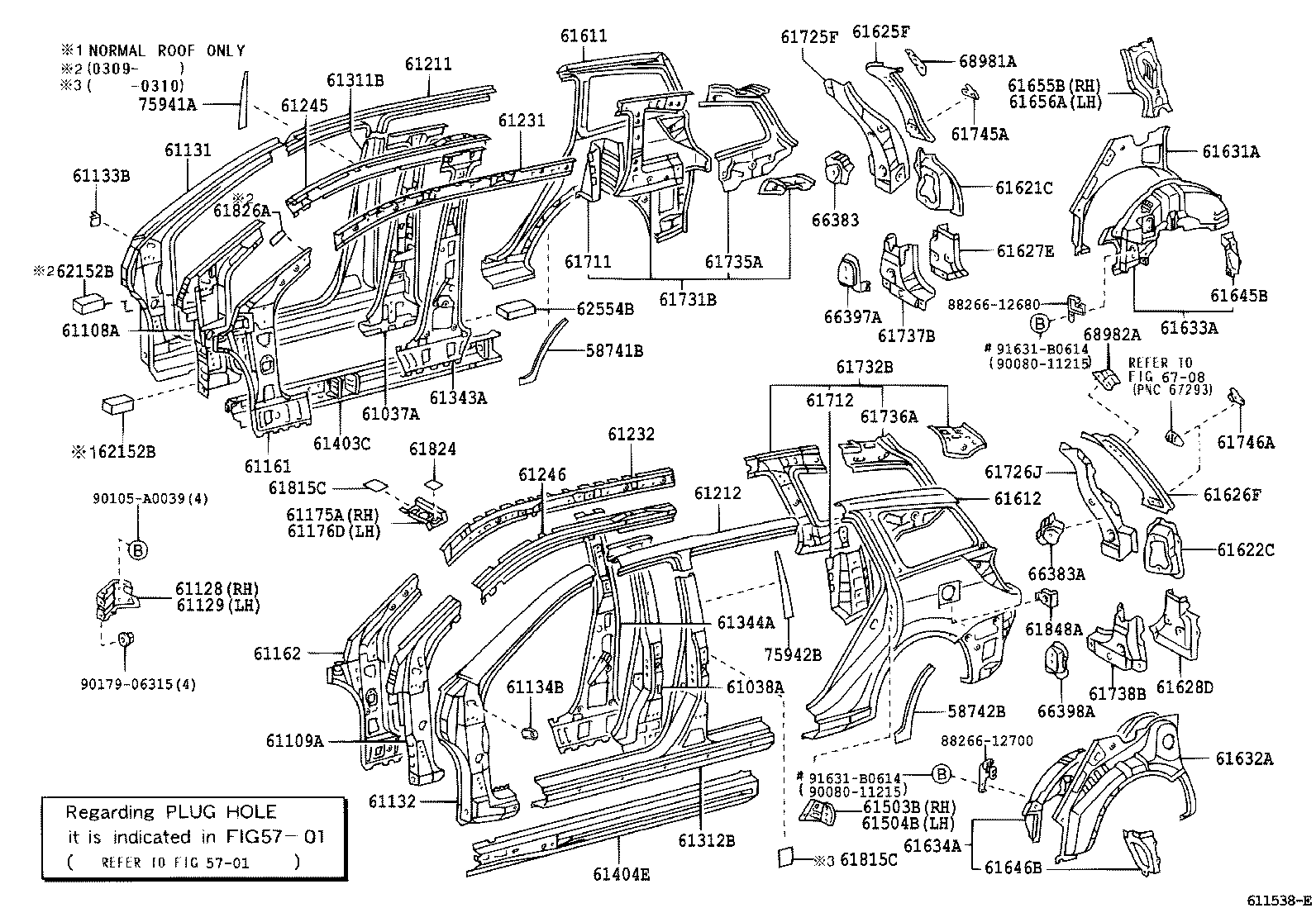

94 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58741B | Protector, Quarter Panel, RH |
| 58742B | Protector, Quarter Panel, LH |
| 58745 | Protector, Quarter Panel, Front RH |
| 58746 | Protector, Quarter Panel, Front LH |
| 61037A | Reinforcement Sub-assy, Center Body Pillar, RH |
| 61038A | Reinforcement Sub-assy, Center Body Pillar, LH |
| 61108A | Reinforce Sub-assy, Front Body Pillar, Lower RH |
| 61109A | Reinforce Sub-assy, Front Body Pillar, Lower LH |
| 61128 | Reinforcement, Cowl Side Panel, RH |
| 61129 | Reinforcement, Cowl Side Panel, LH |
| 61131 | Pillar, Front Body, Upper Outer RH |
| 61132 | Pillar, Front Body, Upper Outer LH |
| 61133B | Bracket, Front Body Pillar ,Outer RH |
| 61134B | Bracket, Front Body Pillar Outer, LH |
| 61161 | Pillar, Front Body, Upper Inner RH |
| 61162 | Pillar, Front Body, Upper Inner LH |
| 61175A | Reinforcement, Front Pillar, Upper Outer NO.2 RH |
| 61176D | Reinforce, Front Body Pillar, Upper Out NO.2 LH |
| 61211 | Rail, Roof Side, Outer RH |
| 61212 | Rail, Roof Side, Outer LH |
| 61231 | Rail, Roof Side, Inner RH |
| 61232 | Rail, Roof Side, Inner LH |
| 61245 | Reinforcement, Roof Side Rail, Outer RH |
| 61246 | Reinforcement, Roof Side Rail, Outer LH |
| 61311B | Pillar, Center Body, Outer RH |
| 61312B | Pillar, Center Body, Outer LH |
| 61343A | Pillar, Center Body, Inner RH |
| 61344A | Pillar, Center Body, Inner LH |
| 61351D | Rail, NO.1 Center Outer, RH |
| 61361A | Rail, NO.1 Center Outer, LH |
| 61403C | Reinforce Sub-assy, Rocker, Outer RH |
| 61404E | Reinforce Sub-assy, Rocker, Outer LH |
| 61503B | Reinforcement Sub-assy, Quarter Lock Pillar, RH |
| 61504B | Reinforcement Sub-assy, Quarter Lock Pillar, LH |
| 61611 | Panel, Quarter, RH |
| 61612 | Panel, Quarter, LH |
| 61621C | Trough, Luggage Compartment Opening, RH |
| 61622C | Trough, Luggage Compartment Opening, LH |
| 61623B | Trough, Back Door Opening, Rear RH |
| 61625F | Extension, Quarter Panel, Upper RH |
| 61626F | Extension, Quarter Panel, Upper LH |
| 61627E | Extension, Quarter Panel, Rear Lower RH |
| 61628D | Extension, Quarter Panel, Rear Lower LH |
| 61631A | Panel, Quarter Wheel House, Outer RH |
| 61632A | Panel, Quarter Wheel House, Outer LH |
| 61633A | Panel, Quarter Wheel House, Inner RH |
| 61634A | Panel, Quarter Wheel House, Inner LH |
| 61637E | Bracket, Quarter Wheel House |
| 61645B | Gusset, Quarter Wheel House, Rear RH |
| 61646B | Gusset, Quarter Wheel House, Rear LH |
| 61648G | Retainer, Rear Seatback Pivot, Lower LH |
| 61655B | Gusset, Quarter Wheel House, Inner RH |
| 61656A | Gusset, Quarter Wheel House, Inner LH |
| 61683C | Bracket, Rear Seatback Hinge, RH |
| 61697D | Housing, Quarter Panel End, RH |
| 61698D | Housing, Quarter Panel End, LH |
| 61711 | Panel, Roof Side, Outer RH |
| 61712 | Panel, Roof Side, Outer LH |
| 61715C | Bracket, Roof Side, RH |
| 61716C | Bracket, Roof Side, LH |
| 61719H | Bracket Sub-assy, Roof Side Rail, RH |
| 61725F | Reinforcement, Back Door Opening Side, Upper RH |
| 61726J | Reinforcement, Back Door Opening Side, Upper LH |
| 61729F | Bracket Sub-assy, Roof Side Rail, LH |
| 61731B | Panel, Roof Side, Inner RH |
| 61732B | Panel, Roof Side, Inner LH |
| 61735A | Panel, Roof Side, Inner Rear RH |
| 61736A | Panel, Roof Side, Inner Rear LH |
| 61737B | Panel, Roof Side, Inner Lower RH |
| 61738B | Panel, Roof Side, Inner Lower LH |
| 61741B | Reinforcement, Back Window Opening, RH |
| 61742B | Reinforcement, Back Window Opening, LH |
| 61745A | Reinforcement, Back Door Opening, Lower RH |
| 61746A | Reinforcement, Back Door Opening, Lower LH |
| 61747 | Brace, Roof Side Inner TO Wheel House, RH |
| 61748C | Brace, Roof Side Inner TO Wheel House, LH |
| 61815C | Cover, Roof Side, Inner Upper |
| 61824 | Plate, Noise Control, NO.1 |
| 61826A | Plate, Noise Control, NO.3 |
| 61848A | Retainer, Quarter Panel, LH |
| 62152B | Pad, Cowl Side Silencer, NO.2 |
| 62554B | Pad, Pillar, NO.4 |
| 63351G | Pad, Roof Headlining, NO.1 |
| 64304B | Reinforce Sub-assy, Package Tray Bracket, RH |
| 64305B | Reinforce Sub-assy, Package Tray Bracket, LH |
| 66383 | Bracket, Rope Hook Bar, NO.1 RH |
| 66383A | Bracket, Rope Hook Bar, NO.1 LH |
| 66397A | Retainer, Rope Hook Bar, RH |
| 66398A | Retainer, Rope Hook Bar, LH |
| 68981A | Retainer, Back Door Stay, RH |
| 68982A | Retainer, Back Door Stay, LH |
| 75941A | Stripe, Center Pillar, RH |
| 75942B | Stripe, Center Pillar, LH |
| 77278U | Bracket, Fuel Tank Filler Pipe Protector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
