Toyota Corolla/Matrix (NAP)
2002-01 → 2008-01 · chassis ZZE13# · catalogue 155450 · United States
Discontinued model
Data version 2008-06

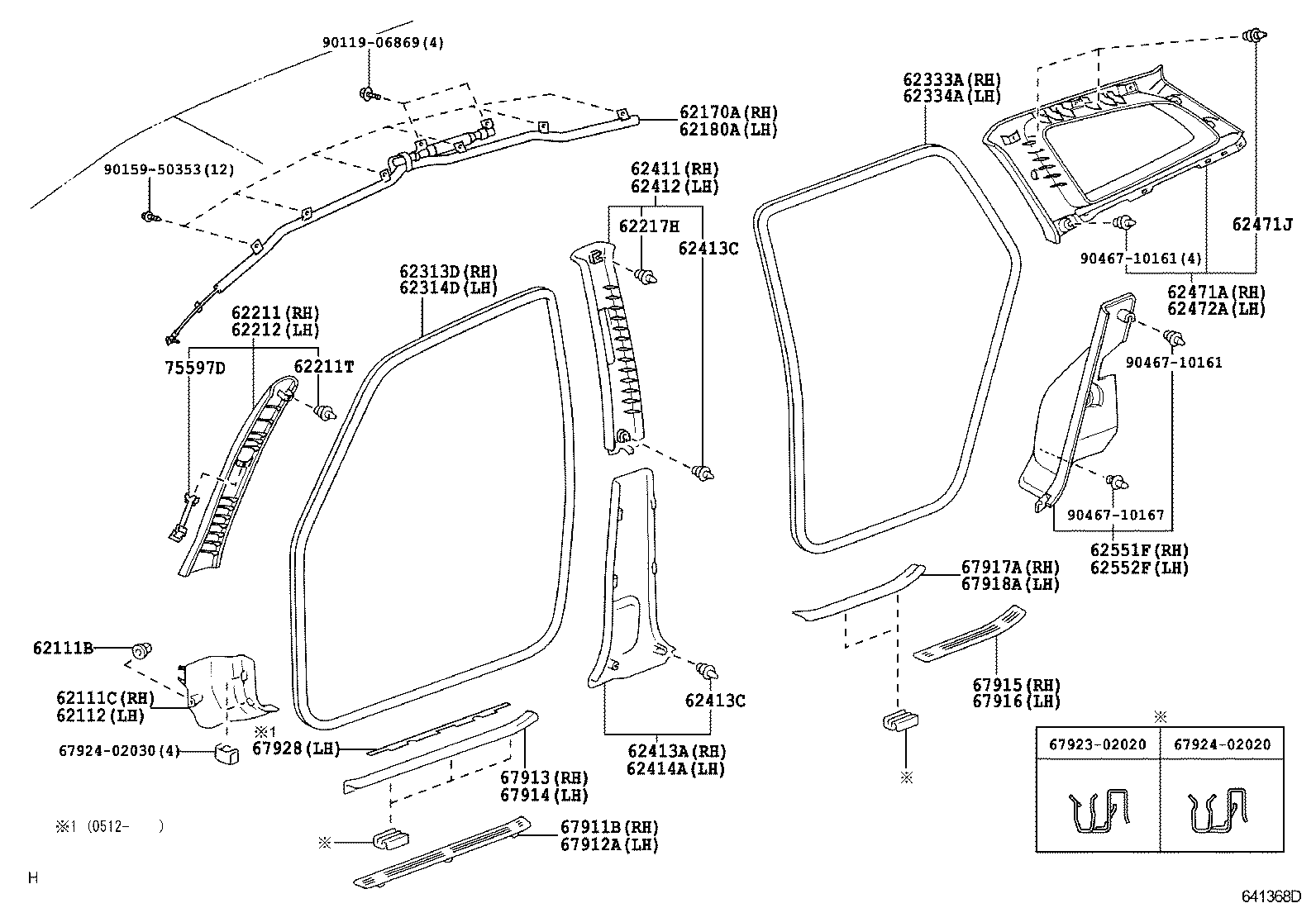

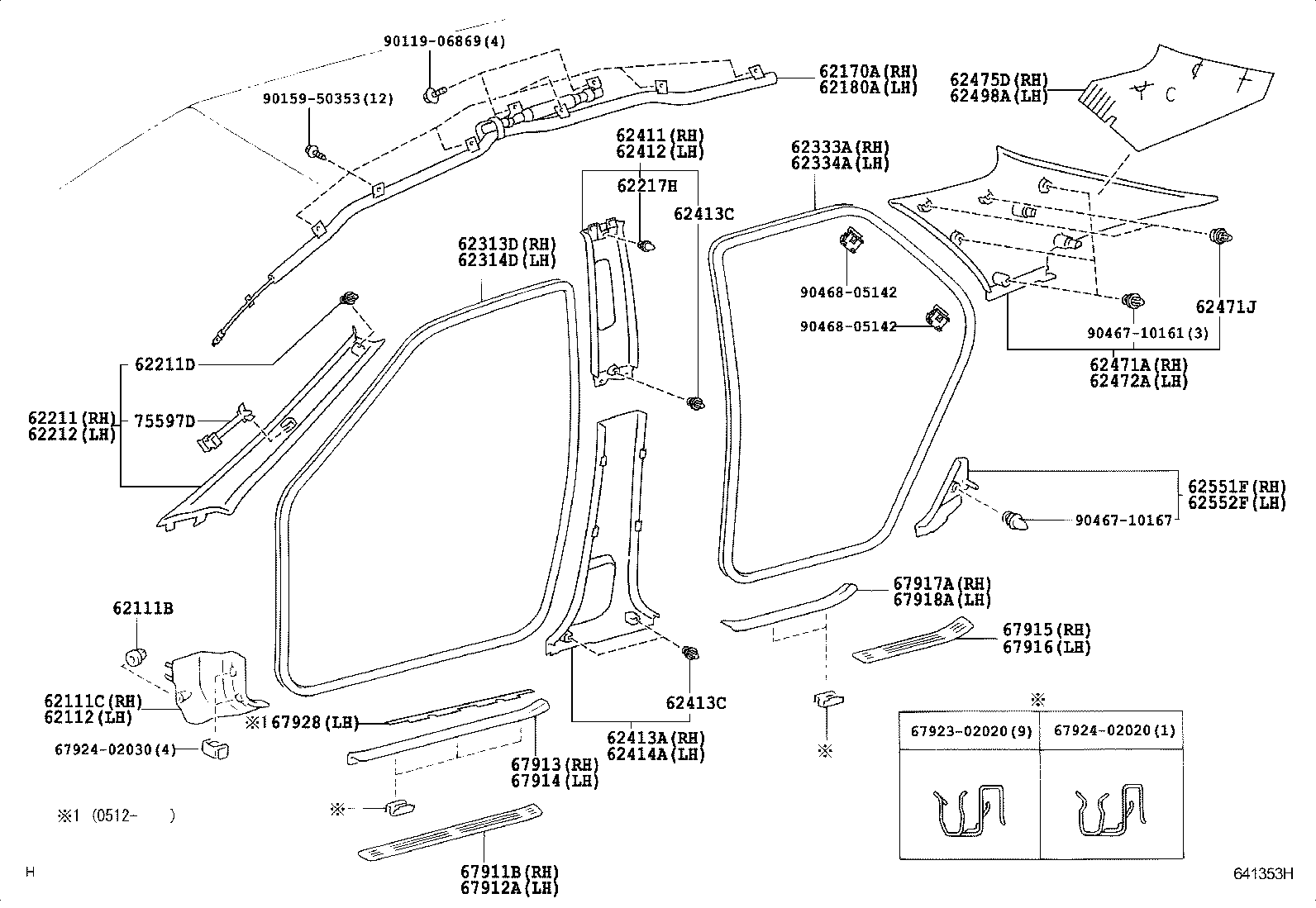

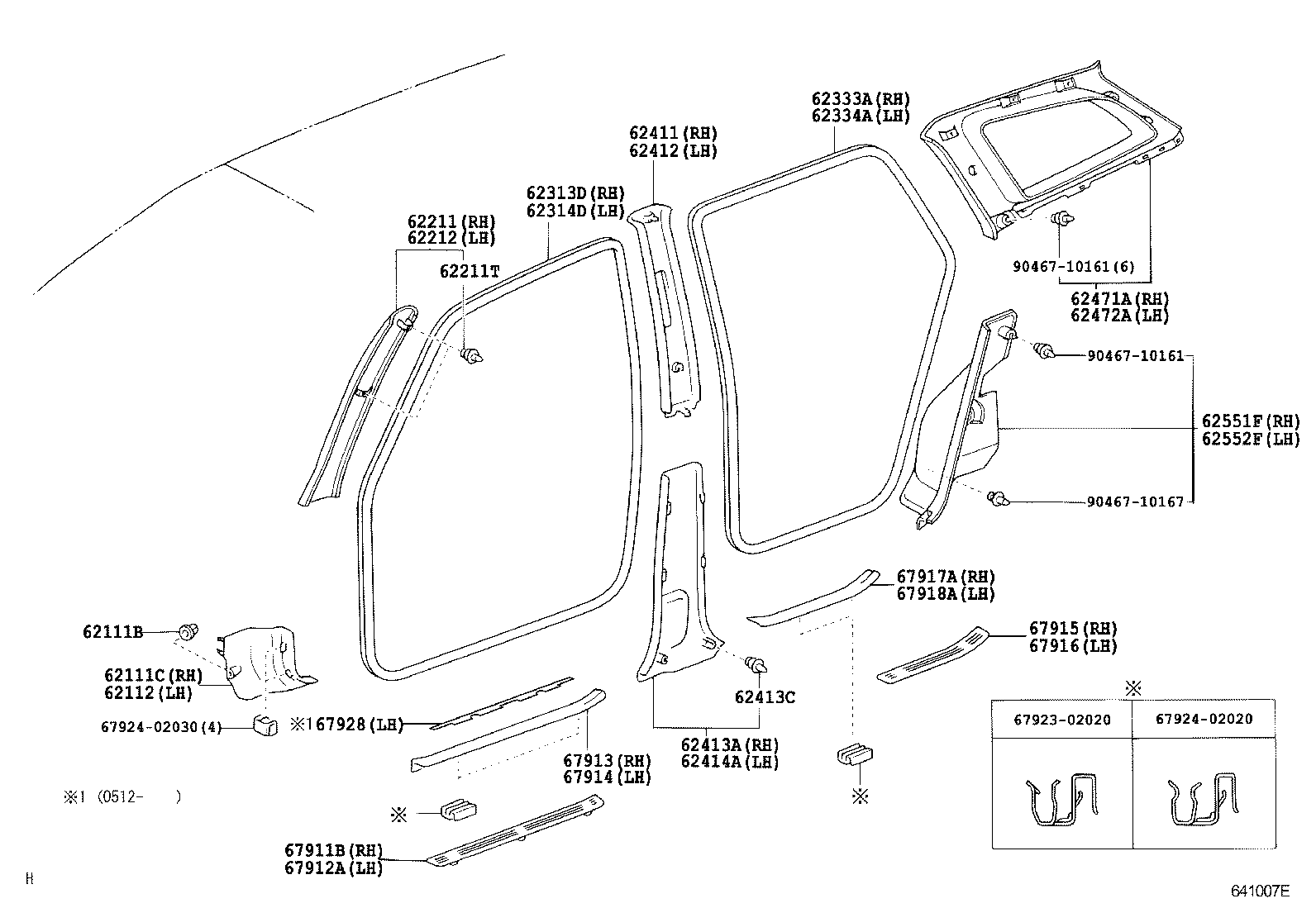

Inside Trim Board & Door Opening Trim Moulding
36 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62211D | Clip(FOR FRONT BODY PILLAR GARNISH) |
| 62211T | Clip(FOR FRONT PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62217H | Clip, Center Piller Garnish |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62333A | Trim, Rear Door Opening, RH |
| 62334A | Trim, Rear Door Opening, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62471J | Clip (FOR ROOF SIDE GARNISH) |
| 62472A | Garnish, Roof Side, Inner LH |
| 62475D | Pad, Roof Side Inner Garnish, RH |
| 62498A | Pad, Roof Side Inner Garnish, LH |
| 62551F | Garnish, Rear Seat Side, RH |
| 62552F | Garnish, Rear Seat Side, LH |
| 67911B | Plate, Front Door Scuff, Outside, RH |
| 67912A | Plate, Front Door Scuff, Outside LH |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67915 | Plate, Rear Door Scuff, Outside RH |
| 67916 | Plate, Rear Door Scuff, Outside LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
| 67928 | Ornament, Front Door Scuff, LH |
| 75597D | Clip, Roof Side Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
