Toyota Corolla/Matrix (NAP)
2002-01 → 2008-01 · chassis ZZE13# · catalogue 155450 · United States
Discontinued model
Data version 2008-06
Roof Headlining & Silencer Pad

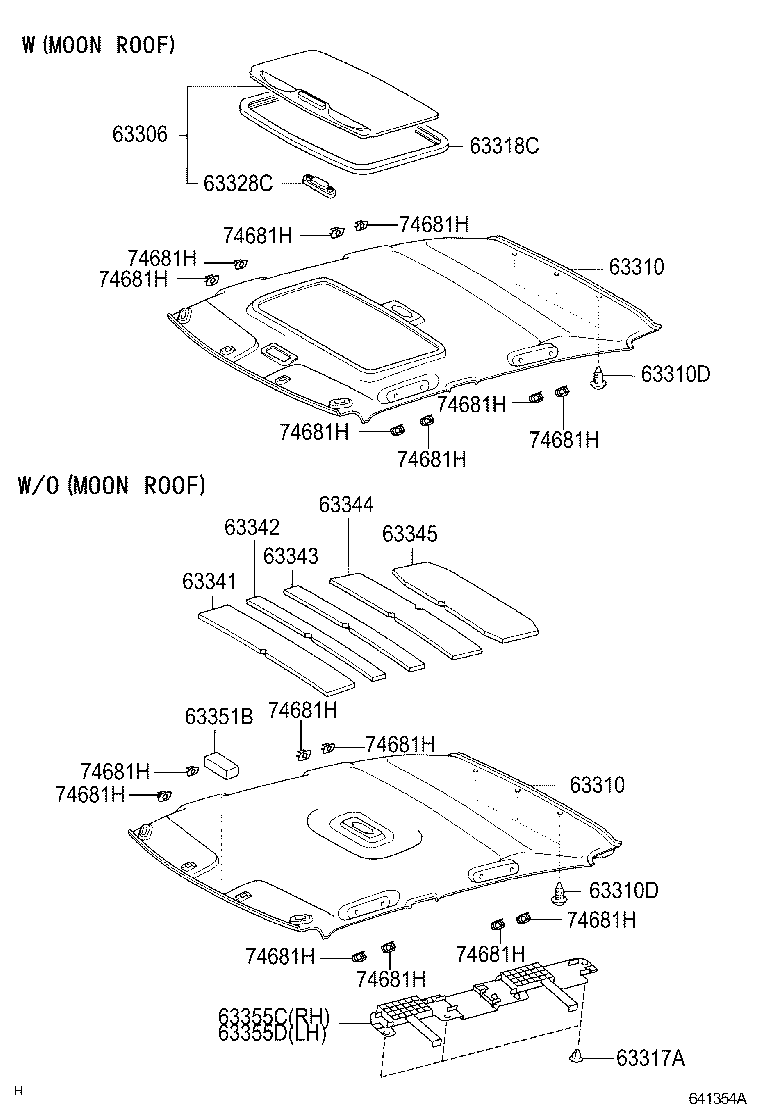

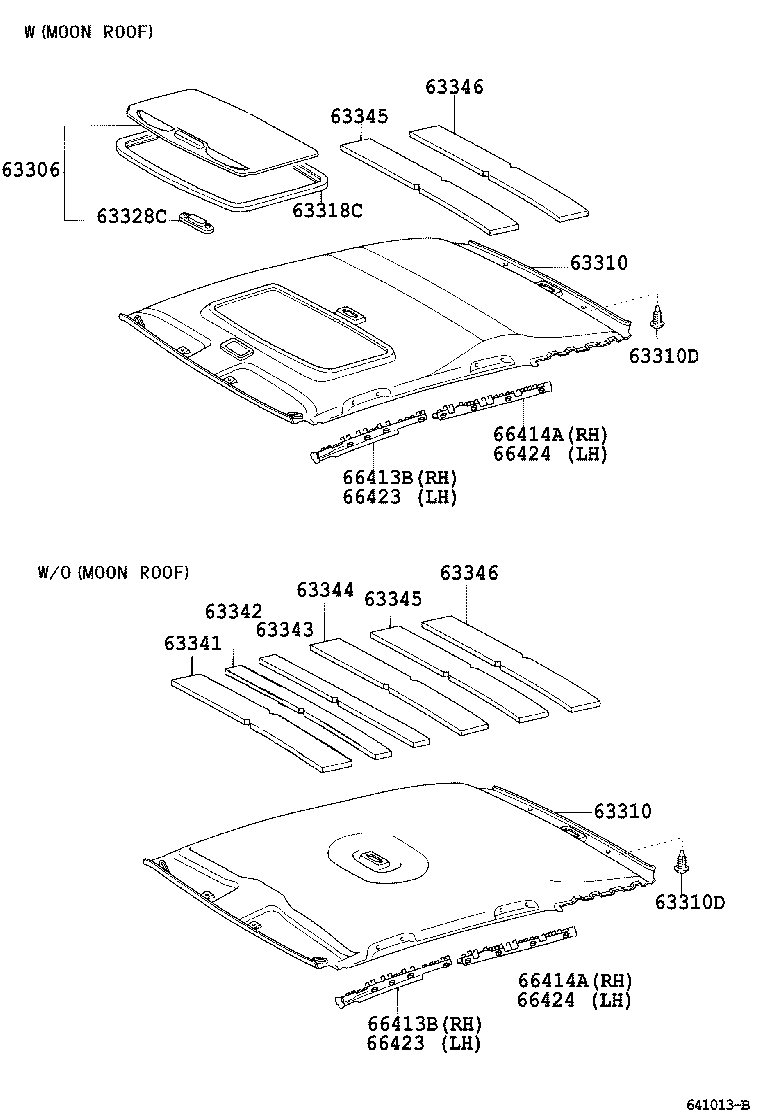

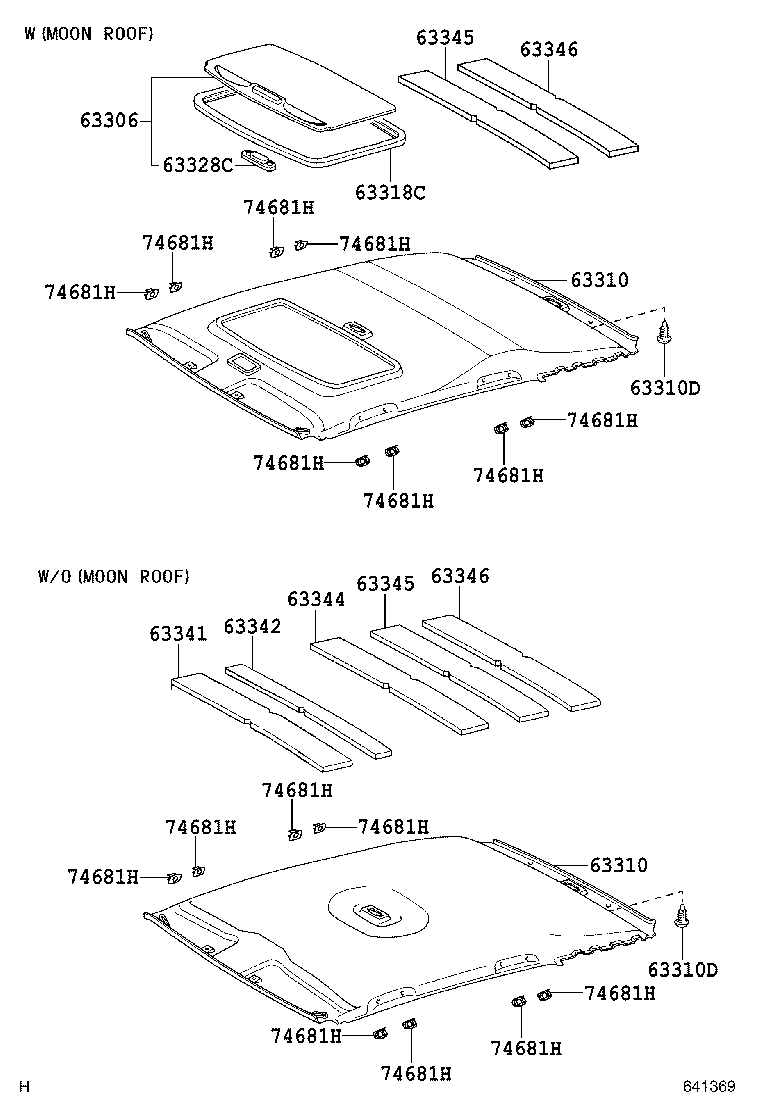

20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63317A | Retainer, Roof Headlining |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63328C | Knob, Sunshade Trim |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63344 | Pad, Roof Silencer, NO.4 |
| 63345 | Pad, Roof Silencer, NO.5 |
| 63346 | Pad, Roof Silencer, NO.6 |
| 63351B | Pad, Roof Headlining |
| 63355C | Pad, Roof Headlining, RH |
| 63355D | Pad, Roof Headlining, LH |
| 66413B | Spacer, Side Rail, Front RH |
| 66414A | Spacer, Side Rail, Rear RH |
| 66423 | Spacer, Side Rail, Front LH |
| 66424 | Spacer, Side Rail, Rear LH |
| 74681H | Retainer, Assist Grip |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
