Toyota Corolla/Matrix (NAP)

2002-01 → 2008-01 · chassis ZZE13# · catalogue 155450 · United States

Discontinued model Data version 2008-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

16 part groups · 2 illustrations

Illustrations

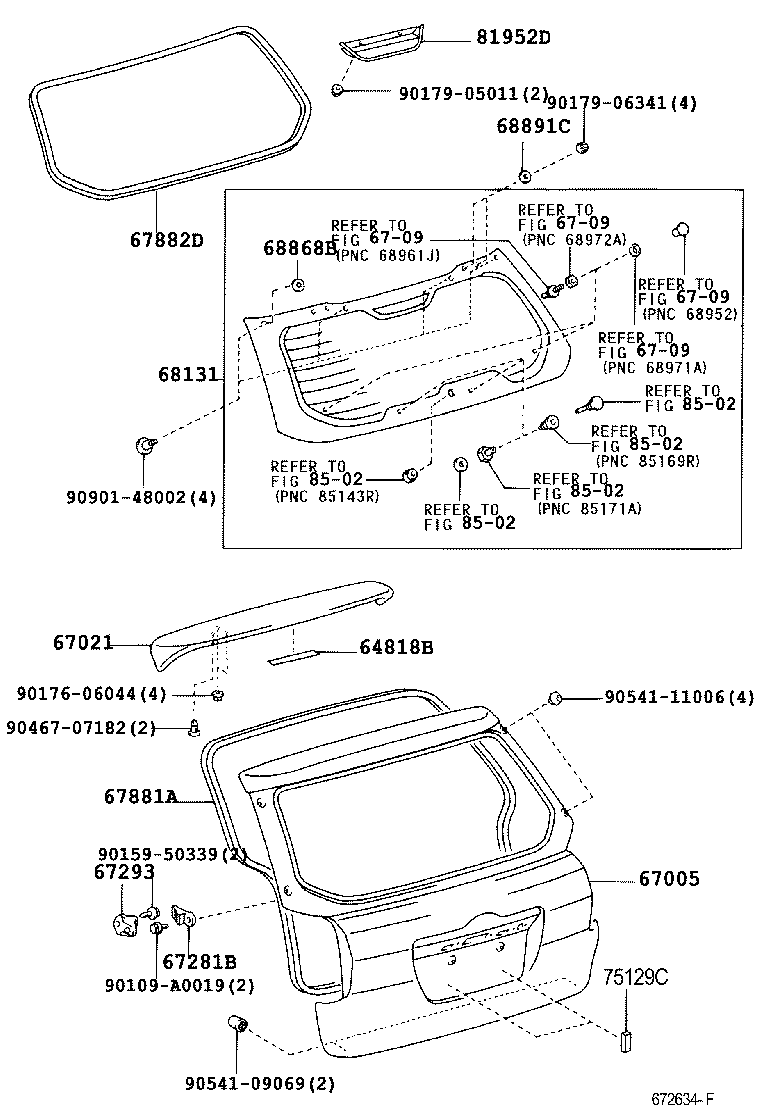

Figure 672582 672582 2002-01 → — Figure 672634F 672634F 2002-01 → —

Part groups

PNCDescription
64745M Cover, License Plate Lamp Service
64798 Cover, Back Door Lock
64818B Spacer, Back Door Glass, NO.1
67005 Panel Sub-assy, Back Door
67021 Panel Sub-assy, Back Door, Upper Outer
67281B Stopper, Back Door, Lower
67293 Cushion, Back Door Lower Stopper
67750 Board Assy, Back Door Trim
67881A Weatherstrip, Back Door
67882D Weatherstrip, Back Door, NO.2
68131 Glass, Back Door
68868B Seal, Back Door Hinge
68891C Packing, Back Door Hinge Male
74811D Handle, Door Pull
75129C Cushion, Rear Licence Plate
81952D Cover, Rear Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
