Toyota Corolla/Matrix (NAP)

2002-01 → 2008-01 · chassis ZZE13# · catalogue 155450 · United States

Discontinued model Data version 2008-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

64 part groups · 12 illustrations

Illustrations

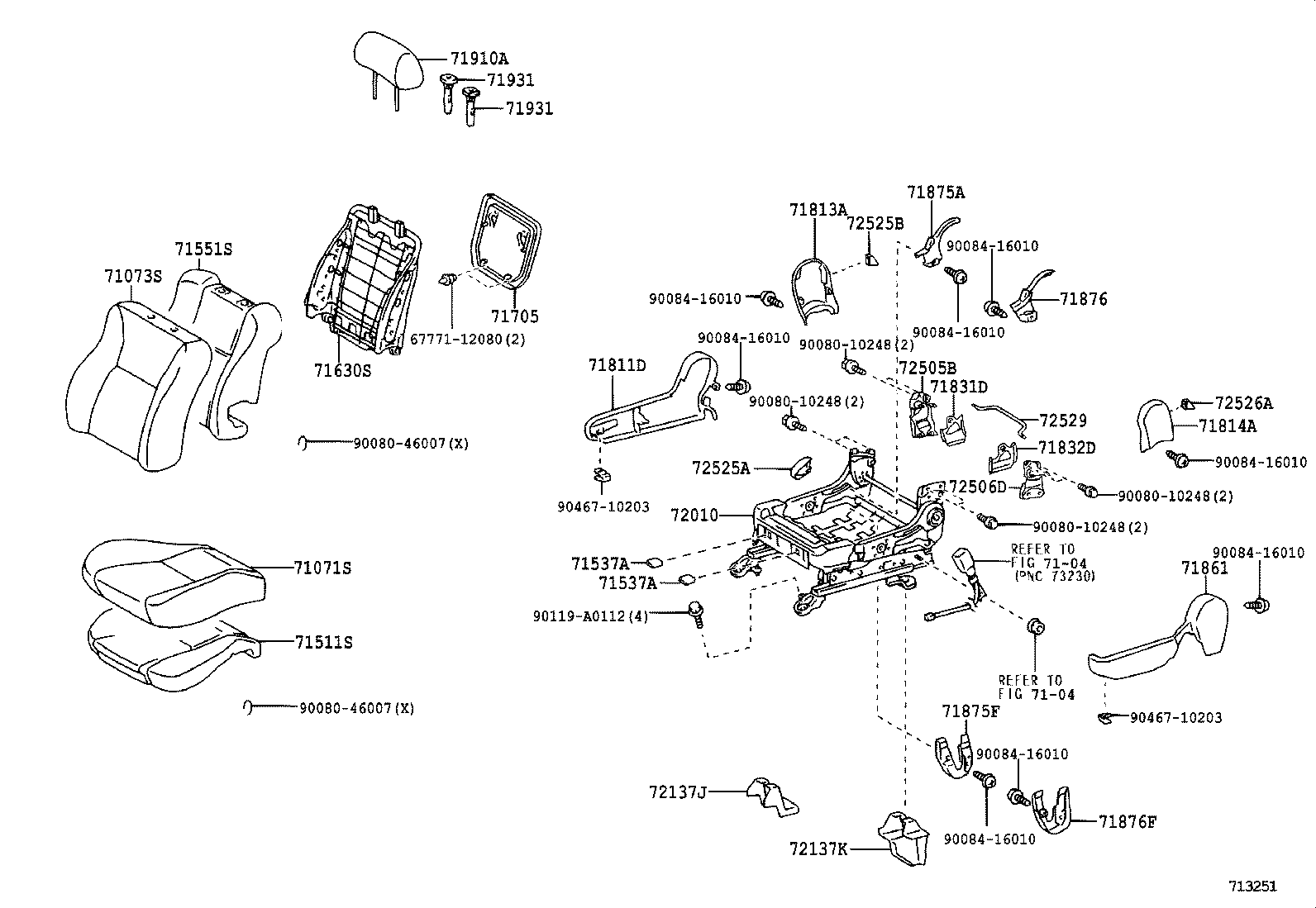

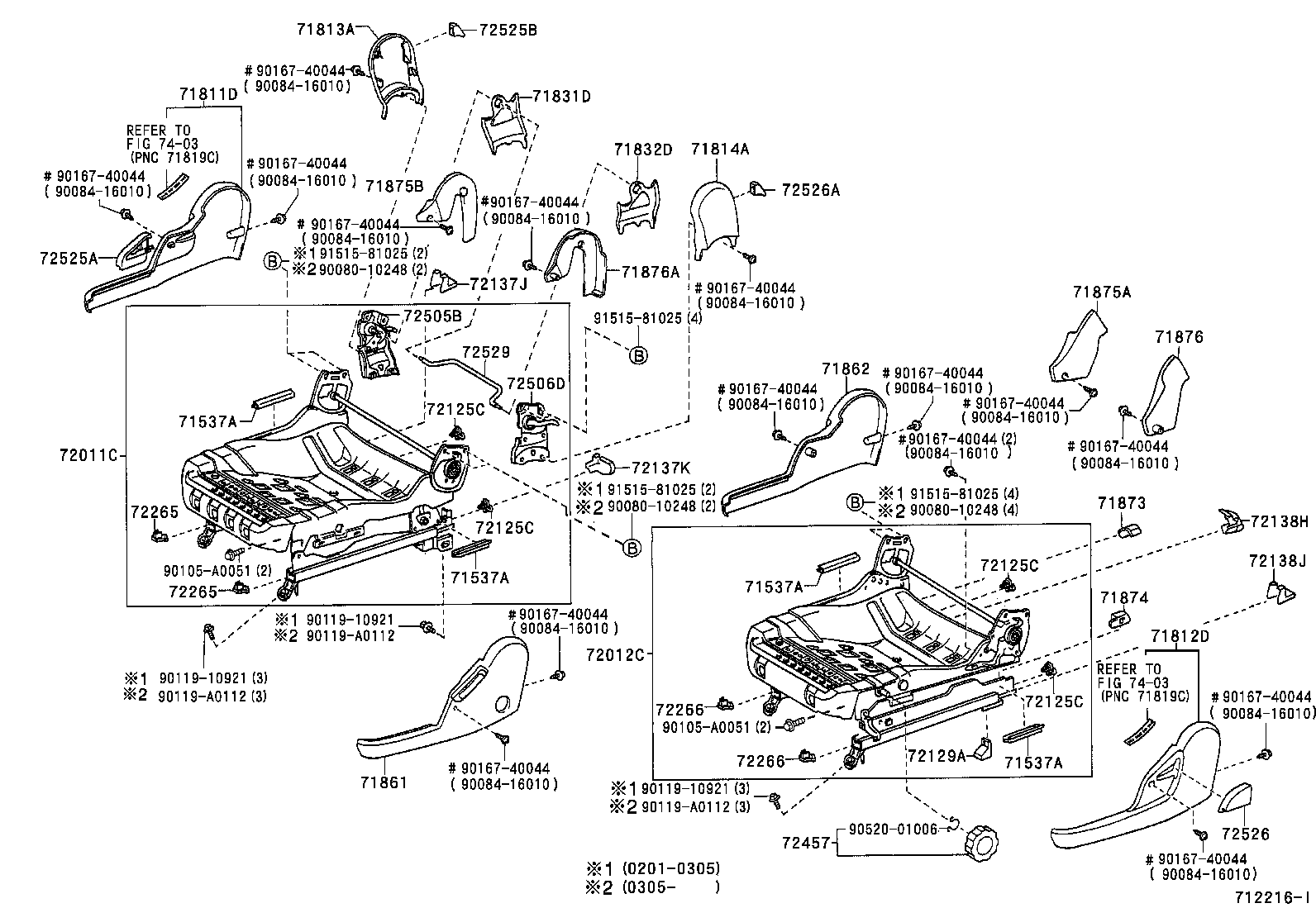

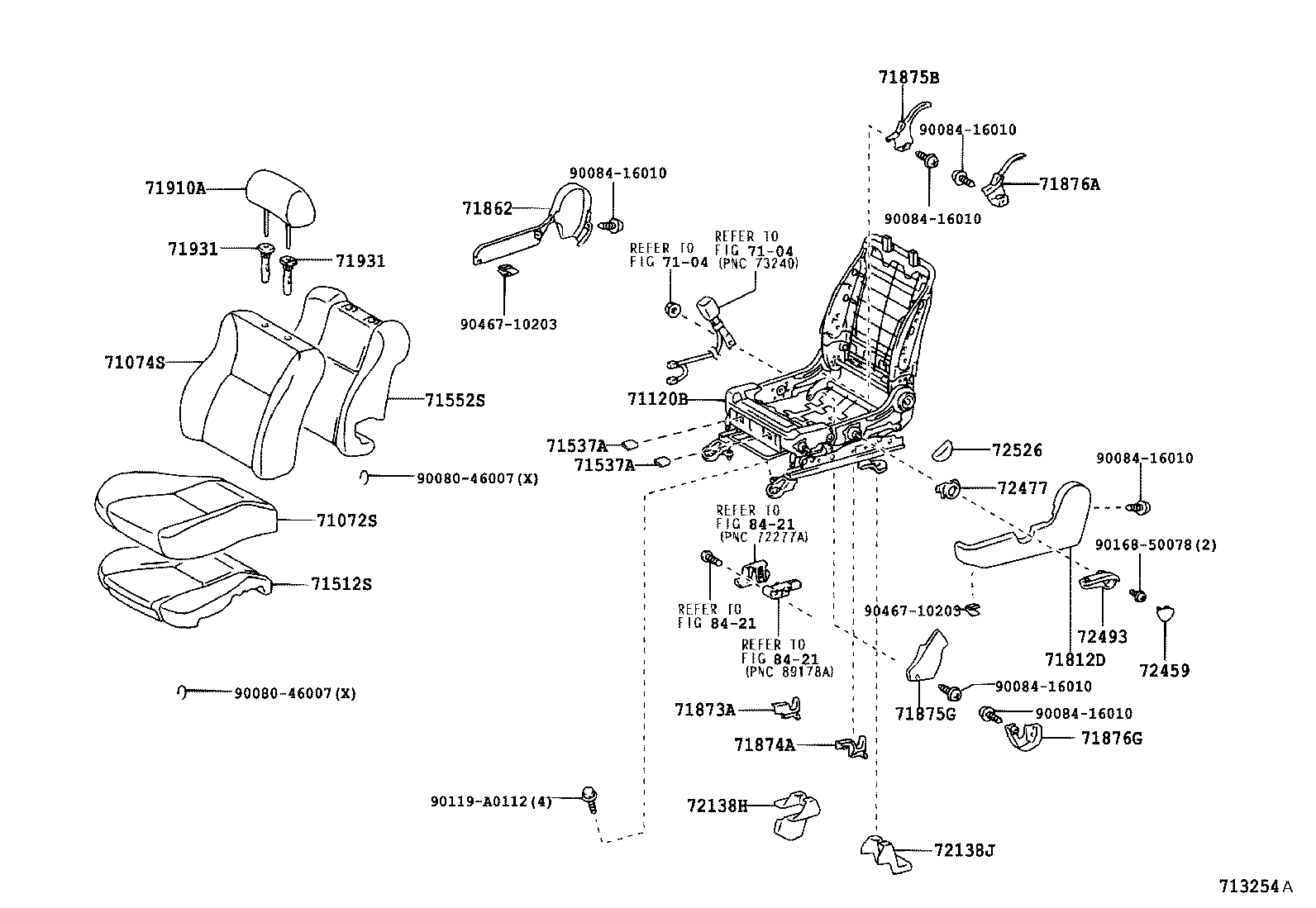

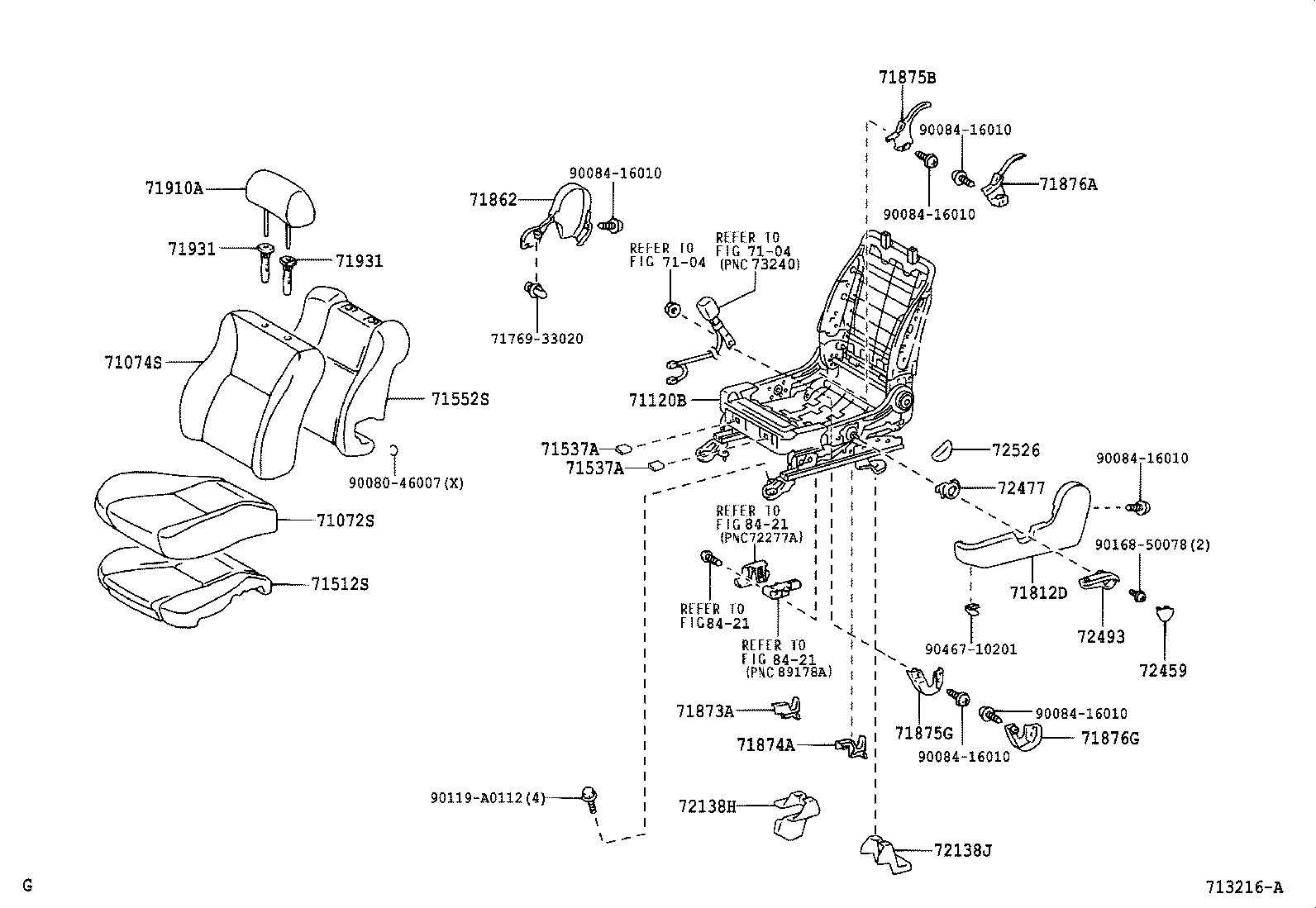

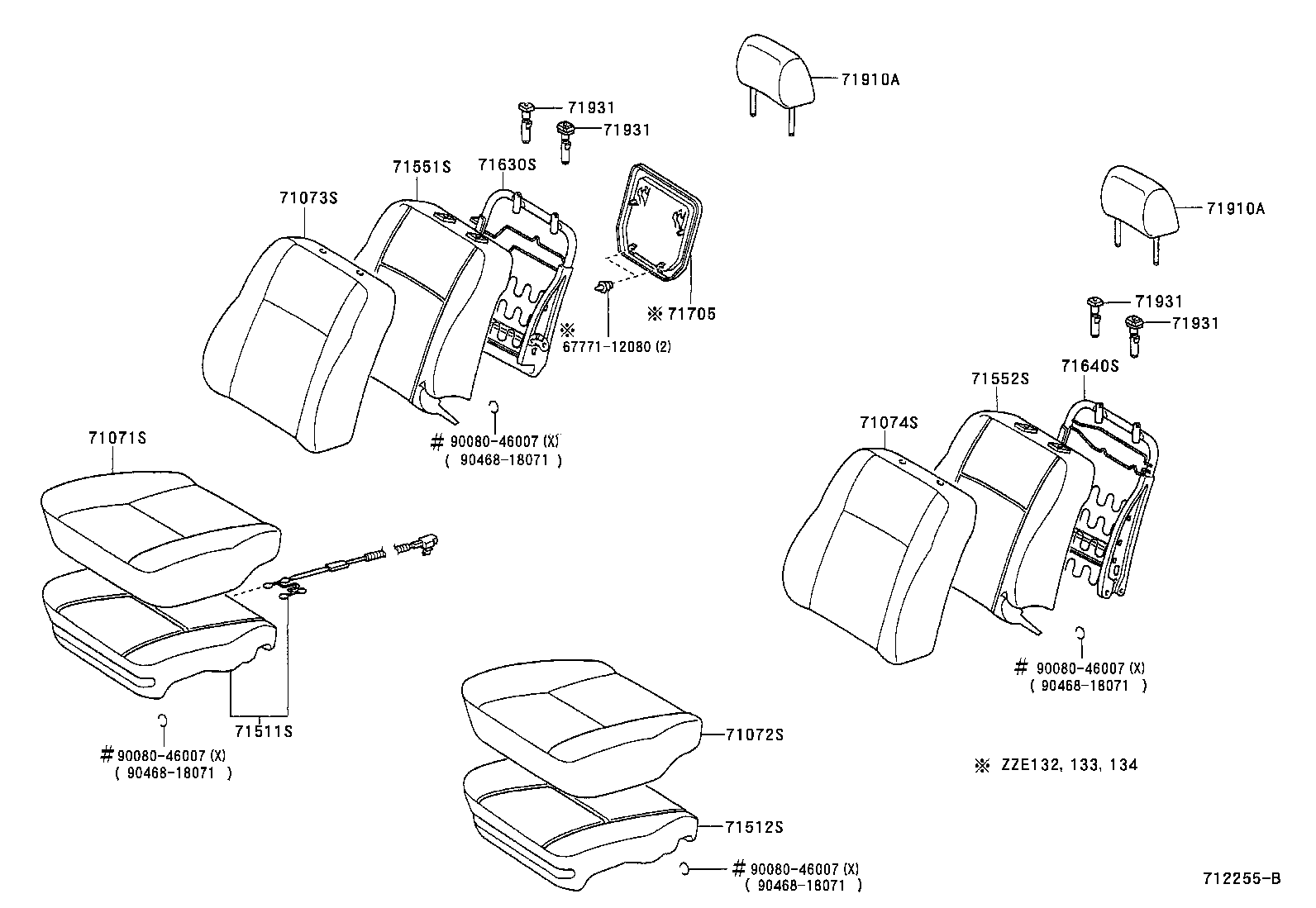

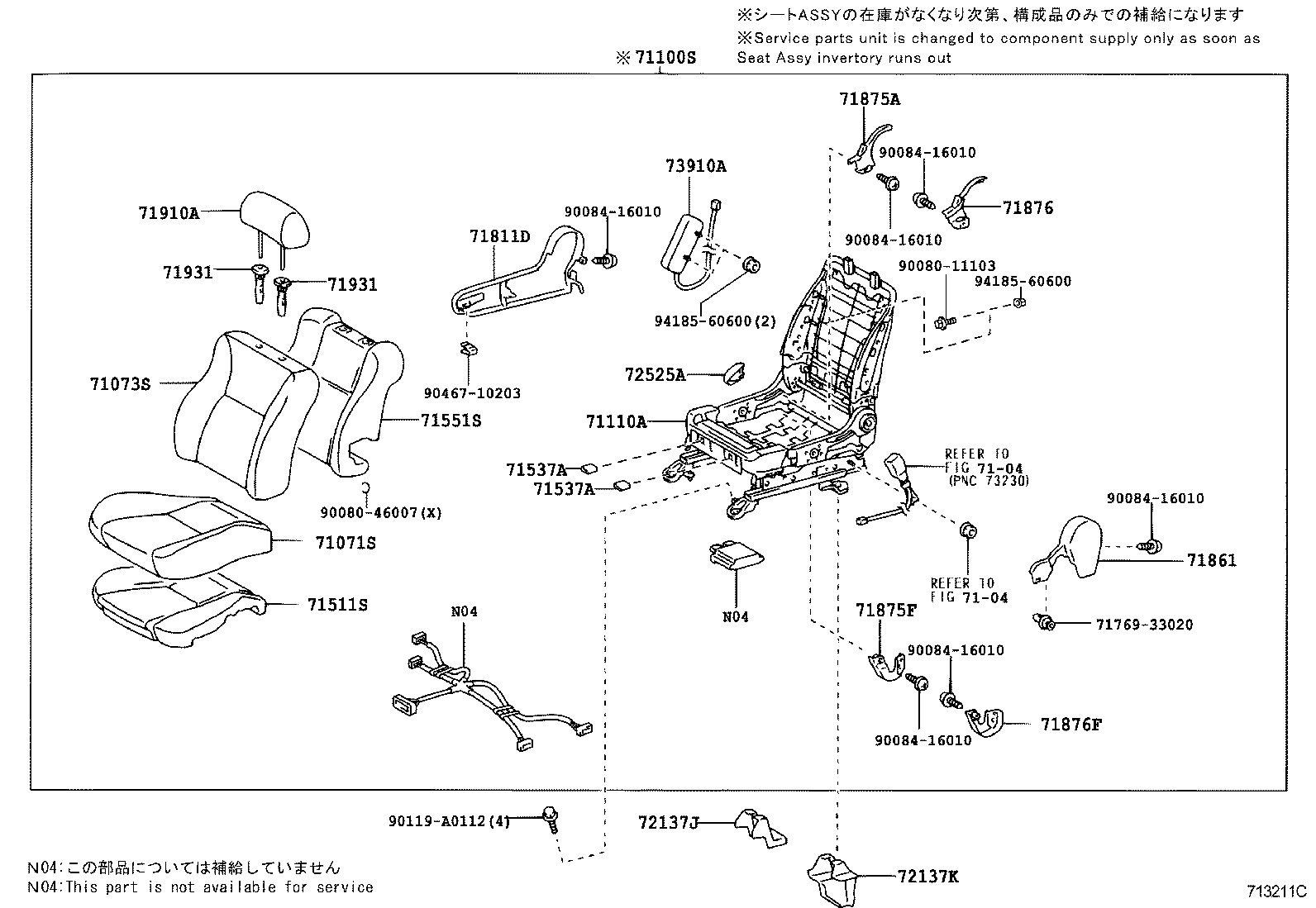

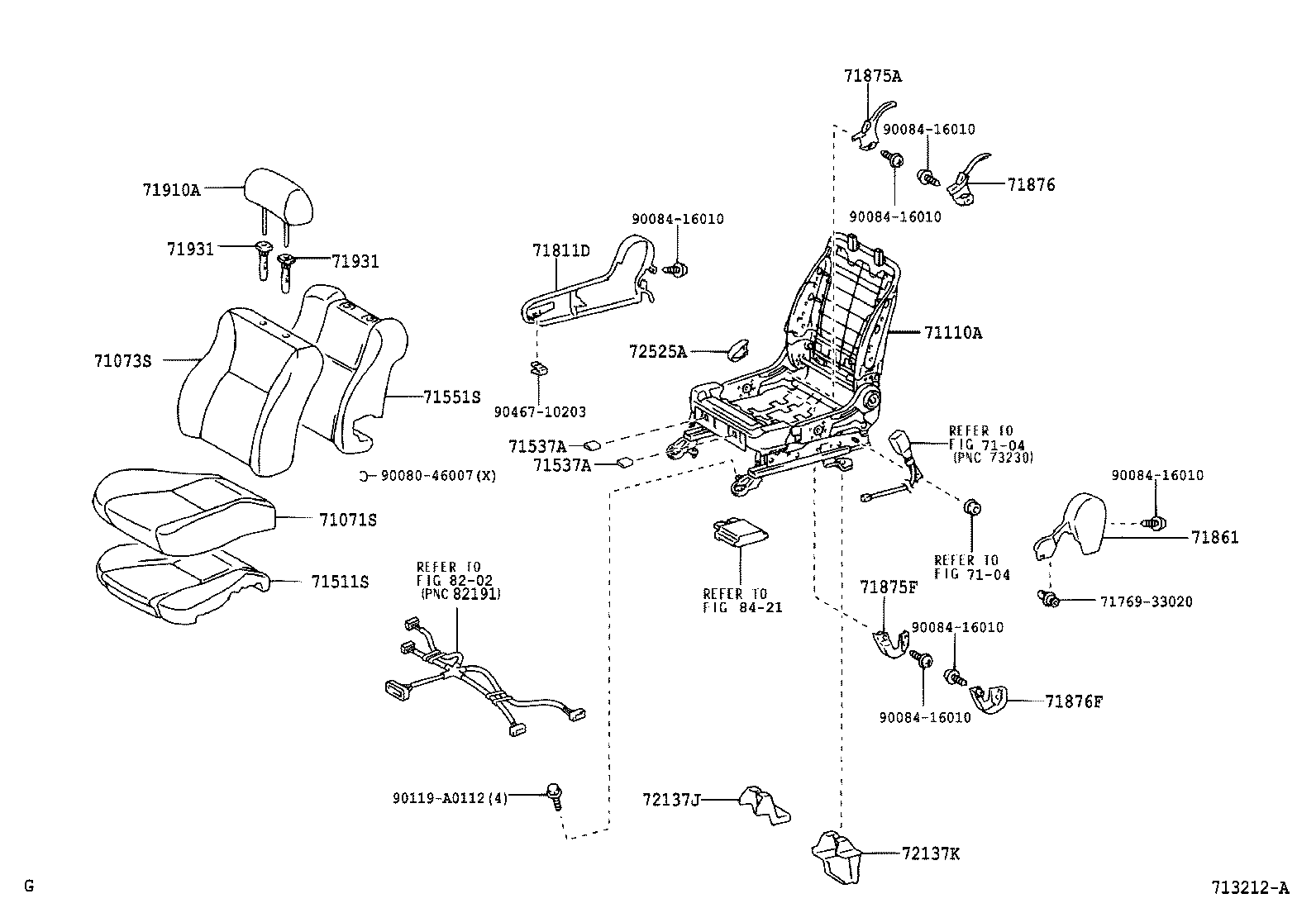

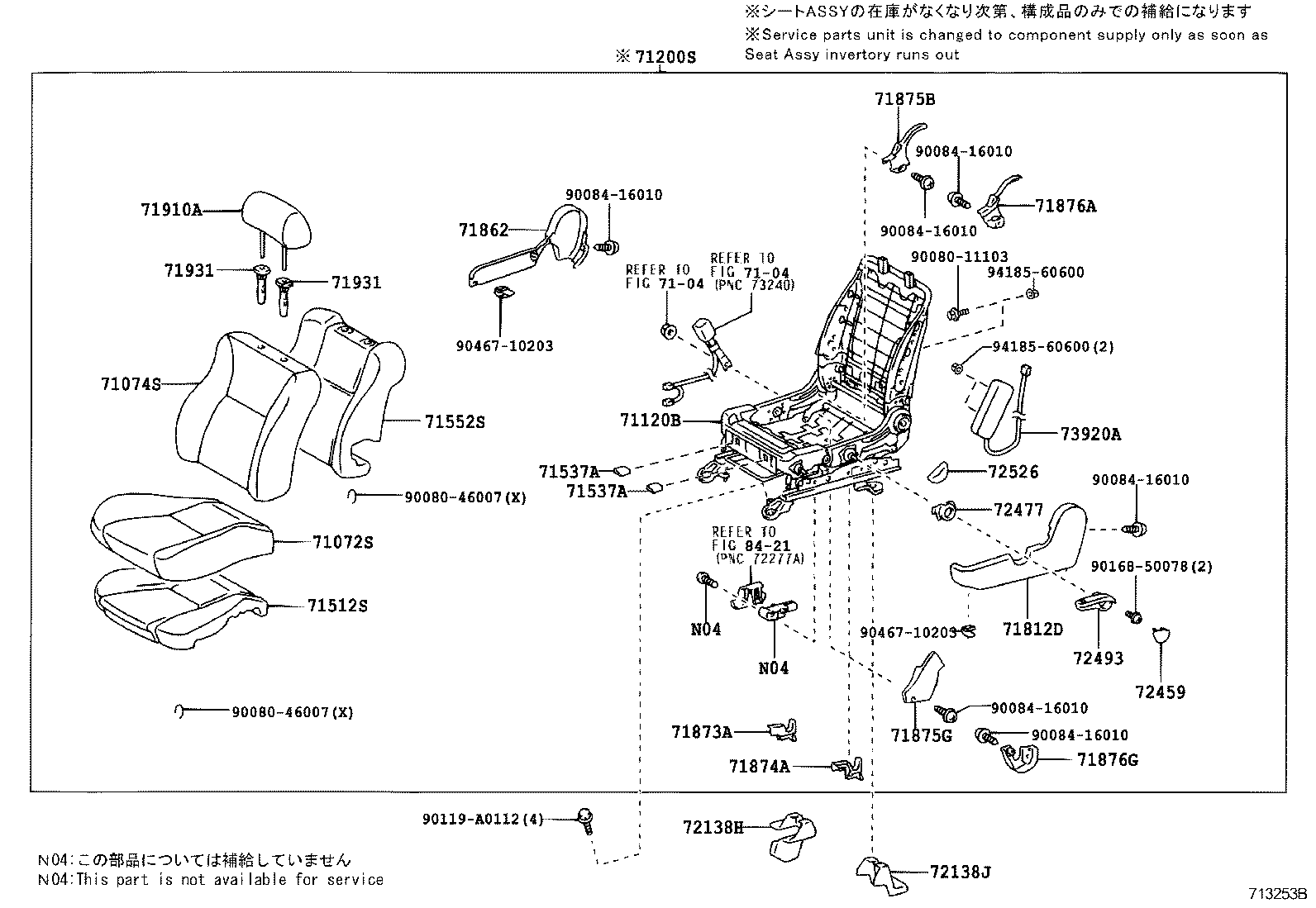

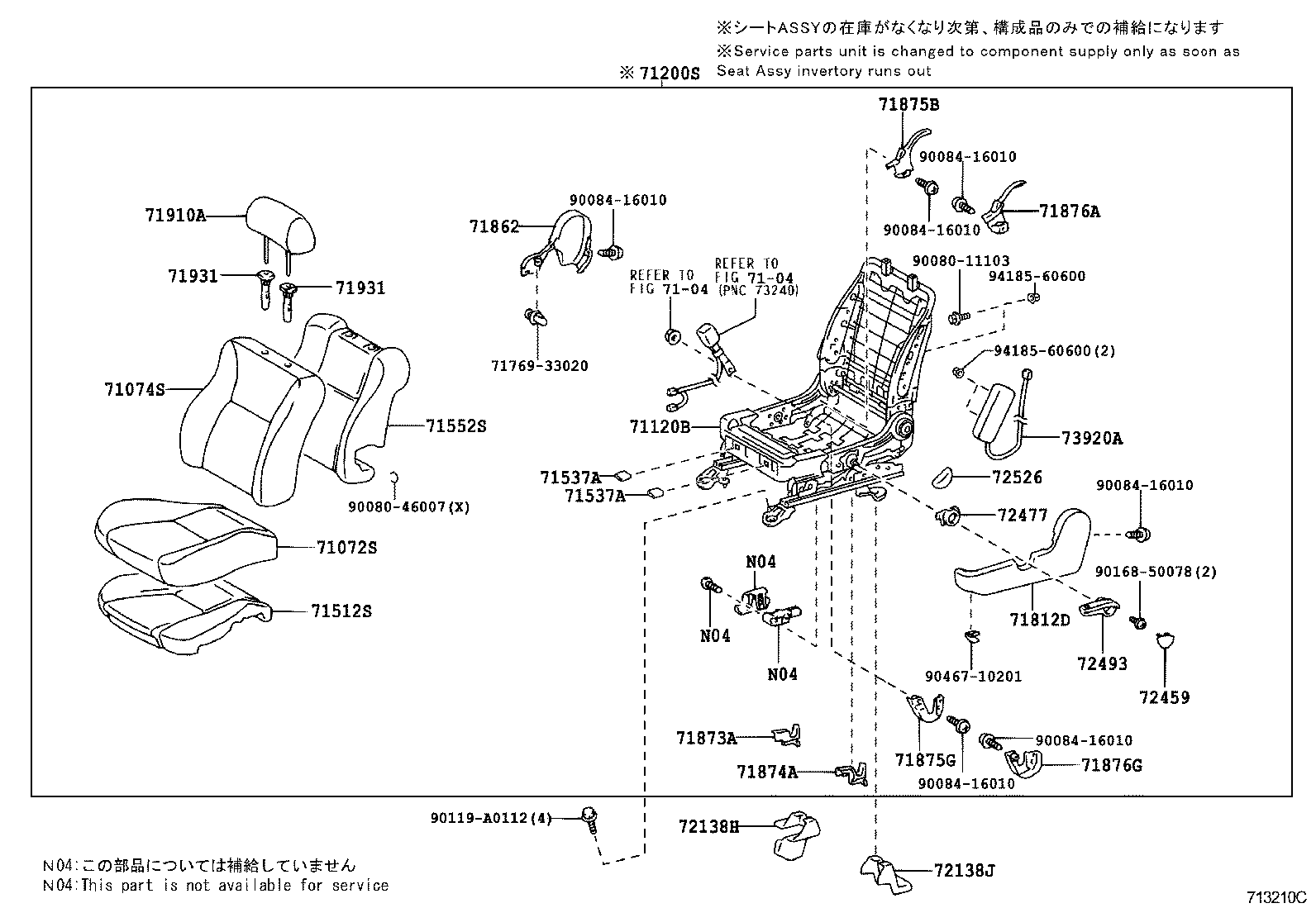

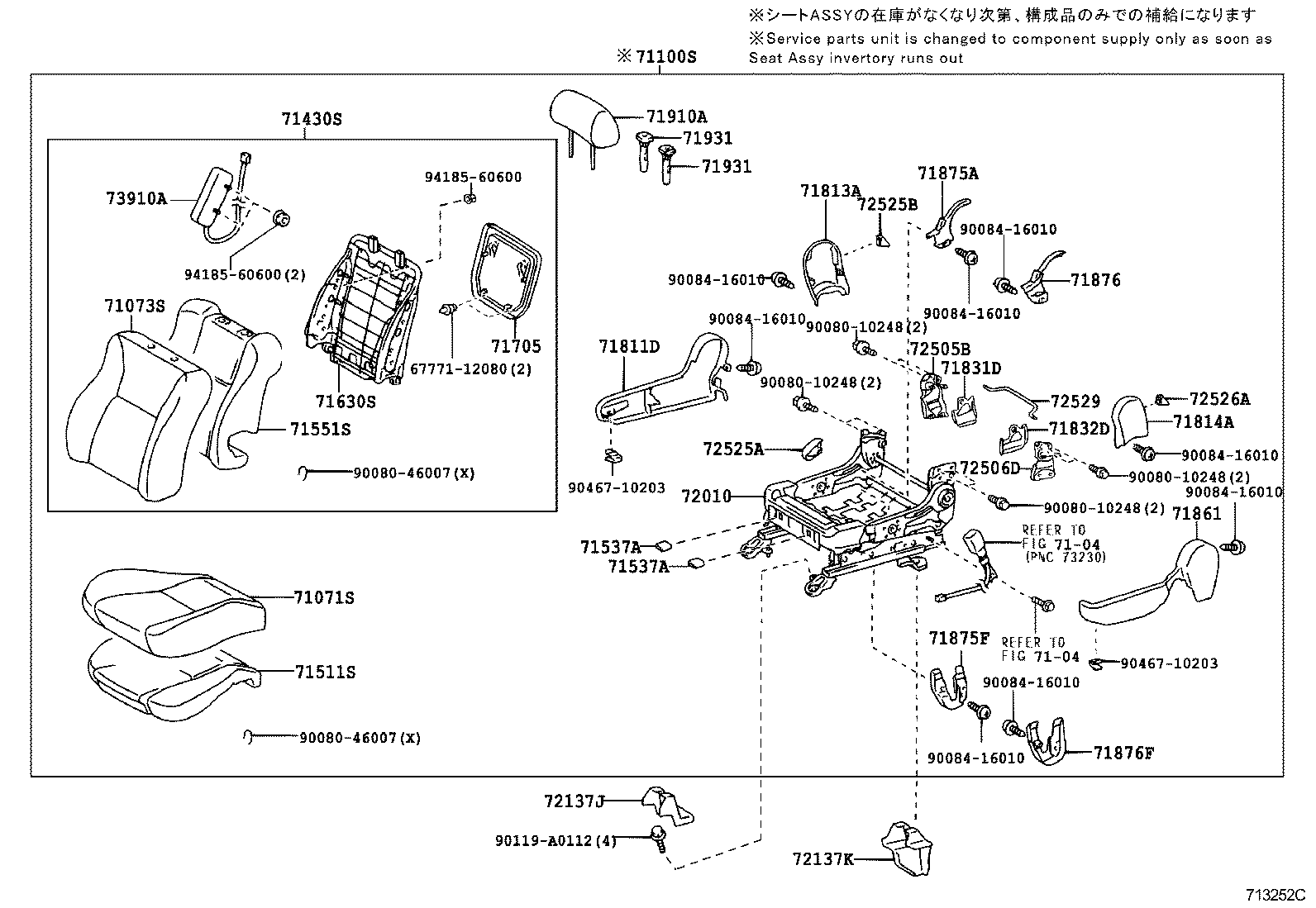

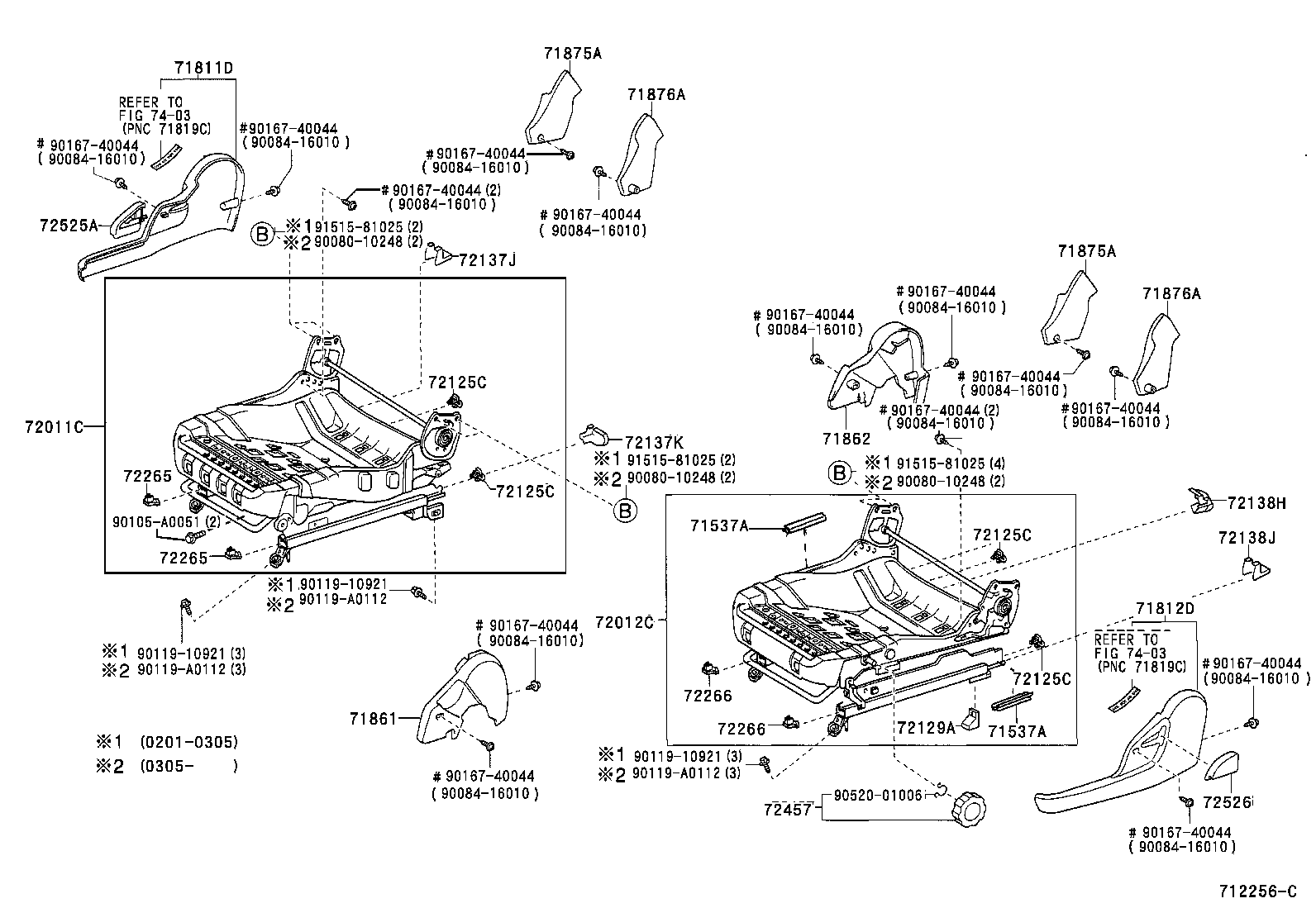

Figure 712254B 712254B 2002-01 → 2004-05 Figure 712255B 712255B 2002-01 → 2004-05 Figure 712256C 712256C 2002-01 → 2004-05 Figure 712216I 712216I 2002-01 → 2004-05 Figure 713210C 713210C 2004-05 → — Figure 713211C 713211C 2004-05 → — Figure 713216A 713216A 2004-05 → — Figure 713212A 713212A 2004-05 → — Figure 713253B 713253B 2004-05 → — Figure 713252C 713252C 2004-05 → — Figure 713254A 713254A 2004-05 → — Figure 713251 713251 2004-05 → —

Part groups

PNCDescription
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71100S Seat Assy, Front RH
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71200S Seat Assy, Front LH
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71705 Board Sub-assy, Front Seatback, RH
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71813A Shield, Front Seatback, RH
71814A Shield, Front Seatback, LH
71831D Cover, Front Seat Hinge, RH
71832D Cover, Front Seat Hinge, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72010 Adjuster Assy, Front Seat, RH
72011C Adjuster Sub-assy, Front Seat, RH
72012C Adjuster Sub-assy, Front Seat, LH
72125C Cover, Seat Track Lock Plate, NO.1
72129A Protector, Seat Track Lower Rail, NO.2
72137J Cover, Front Seat Track, RH Rear Outer
72137K Cover, Front Seat Track, RH Rear Inner
72138H Cover, Front Seat Track, LH Rear Inner
72138J Cover, Front Seat Track, LH Rear Outer
72265 Cover, Seat Track Upper Rail, RH
72266 Cover, Seat Track Upper Rail, LH
72457 Knob, Vertical Seat Adjuster
72459 Cap, Vertical Seat Adjuster Knob
72477 Spacer, Vertical Adjuster
72493 Handle, Vertical Adjusting, NO.2
72505B Lock Sub-assy, Front Seatback, RH
72506D Lock Sub-assy, Front Seatback, LH
72525A Handle, Reclining Adjuster Release, RH
72525B Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72526A Handle, Reclining Adjuster Release, LH
72529 Rod, Front Seat Backlock Handle
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
