Toyota Corolla/Matrix (NAP)

2002-01 → 2008-01 · chassis ZZE13# · catalogue 155450 · United States

Discontinued model Data version 2008-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

47 part groups · 6 illustrations

Illustrations

712257C 2002-01 → 2004-05

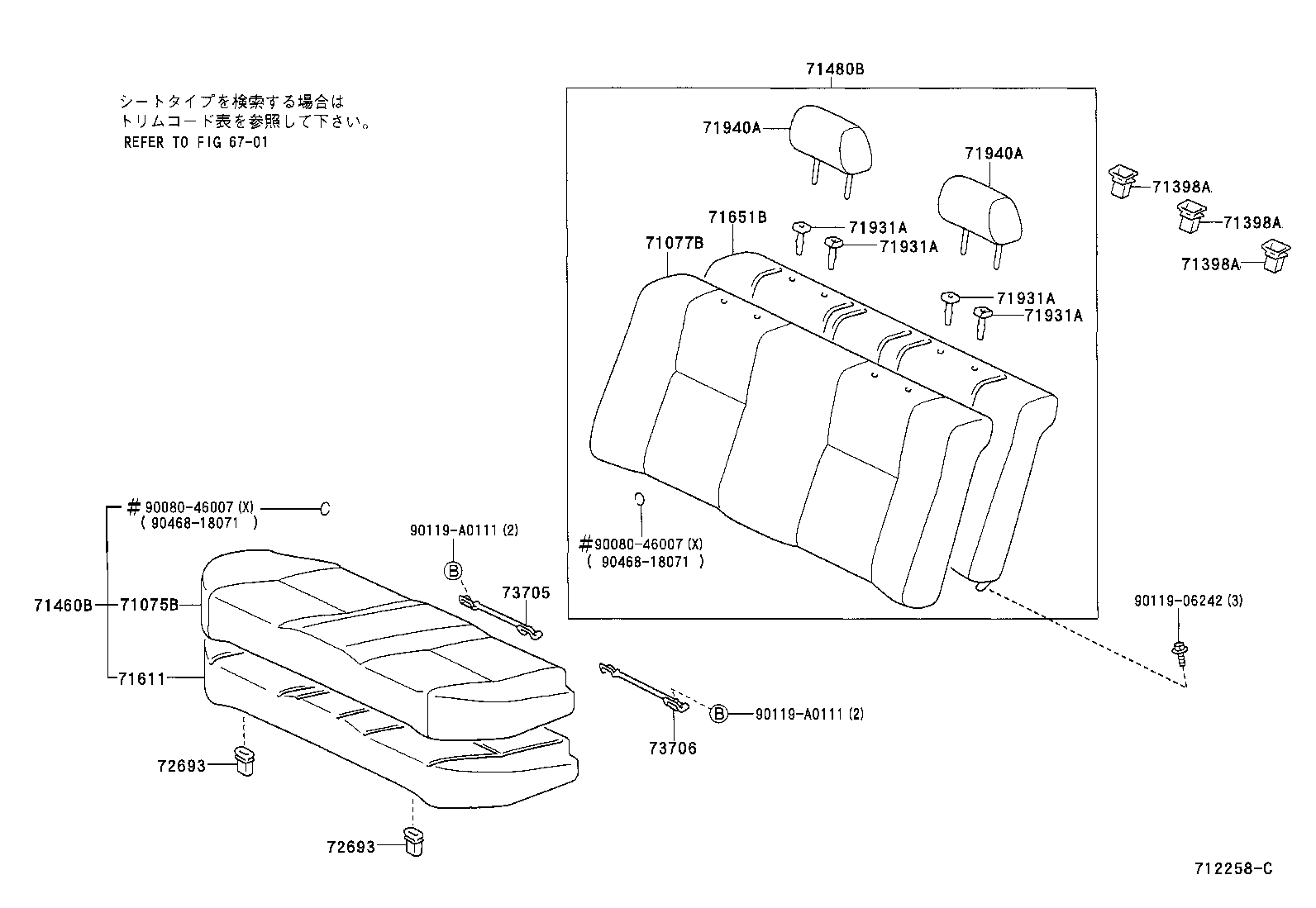

712258C 2002-01 → 2004-05

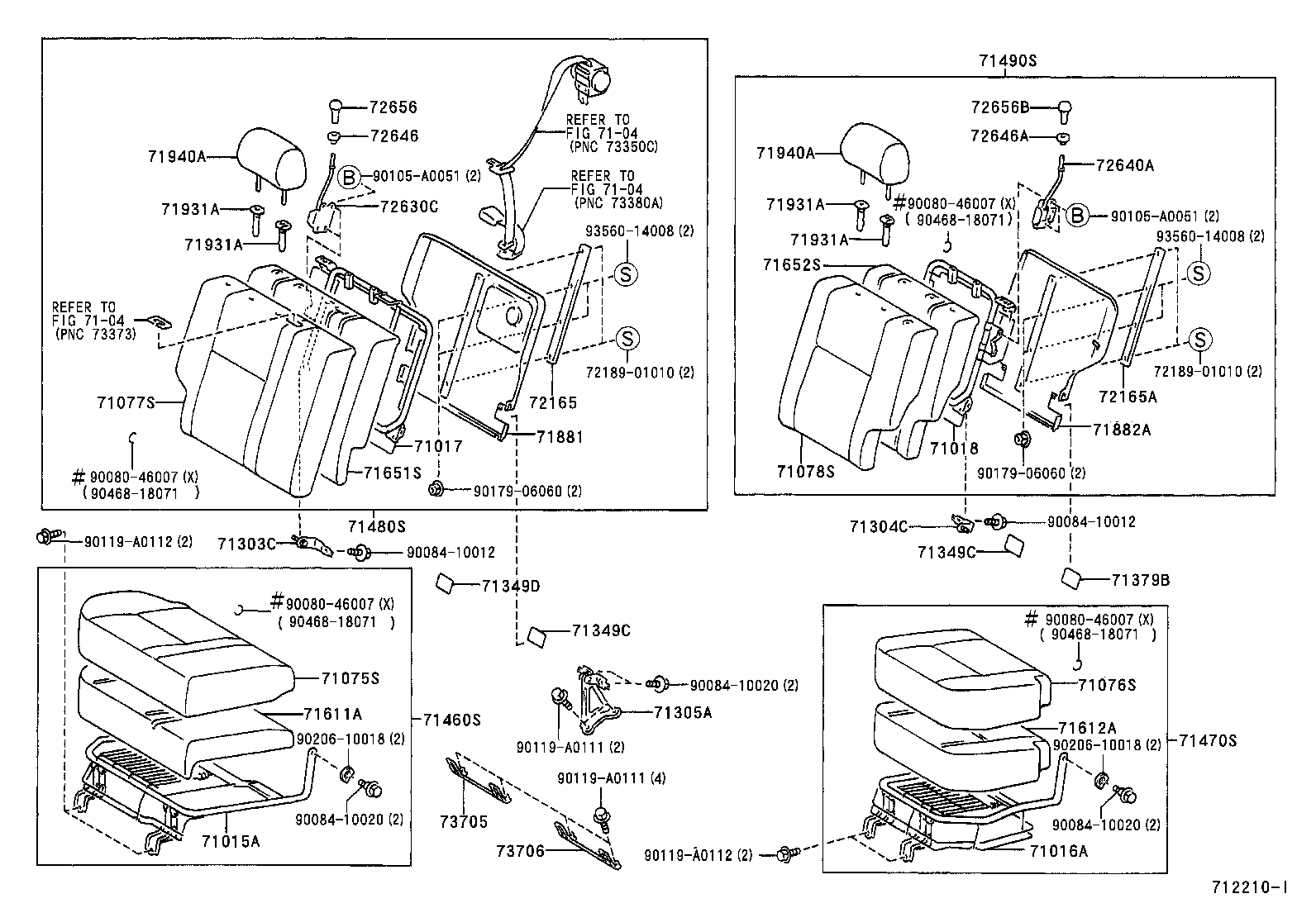

712210I 2002-01 → 2004-05

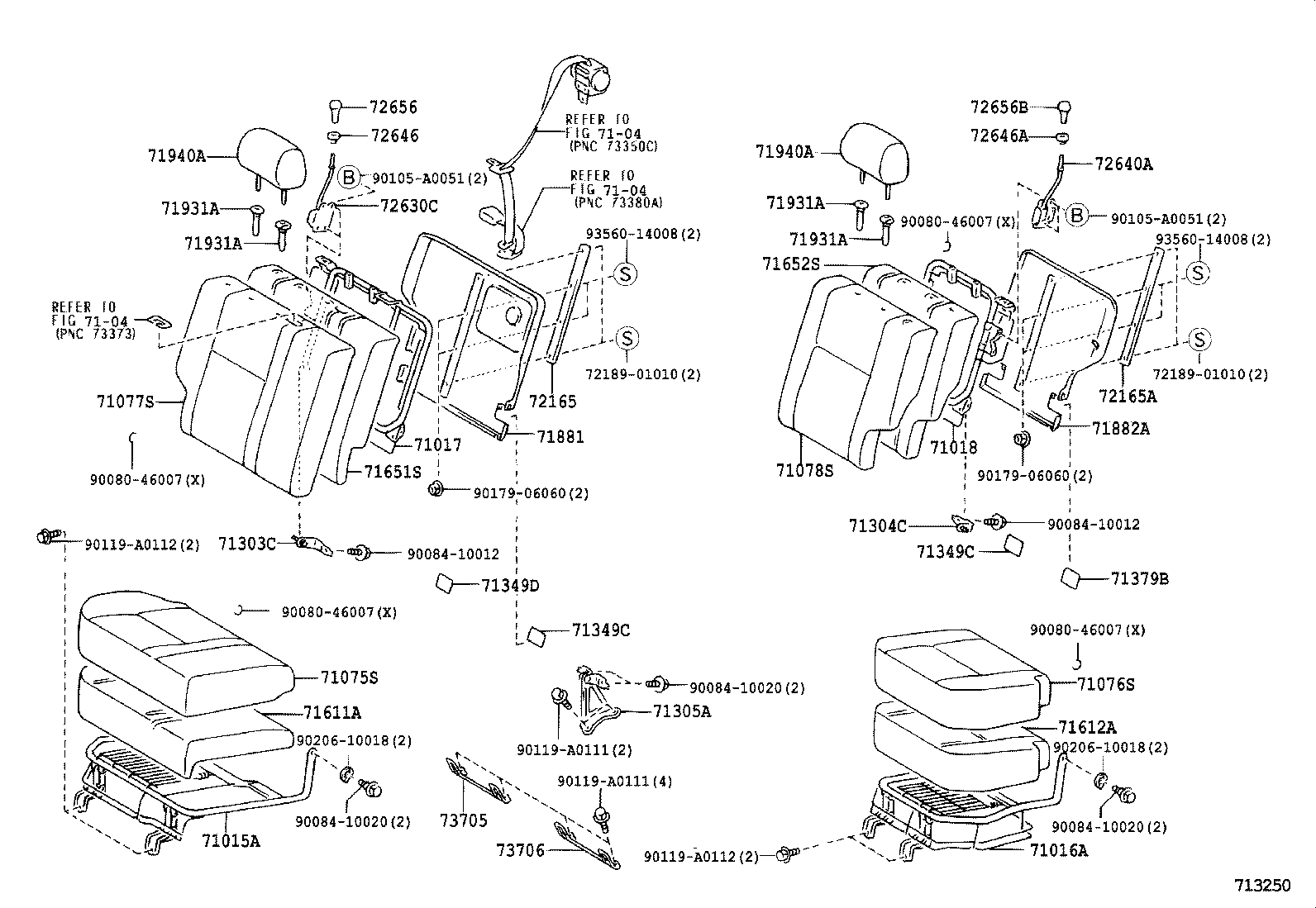

713250 2004-05 → —

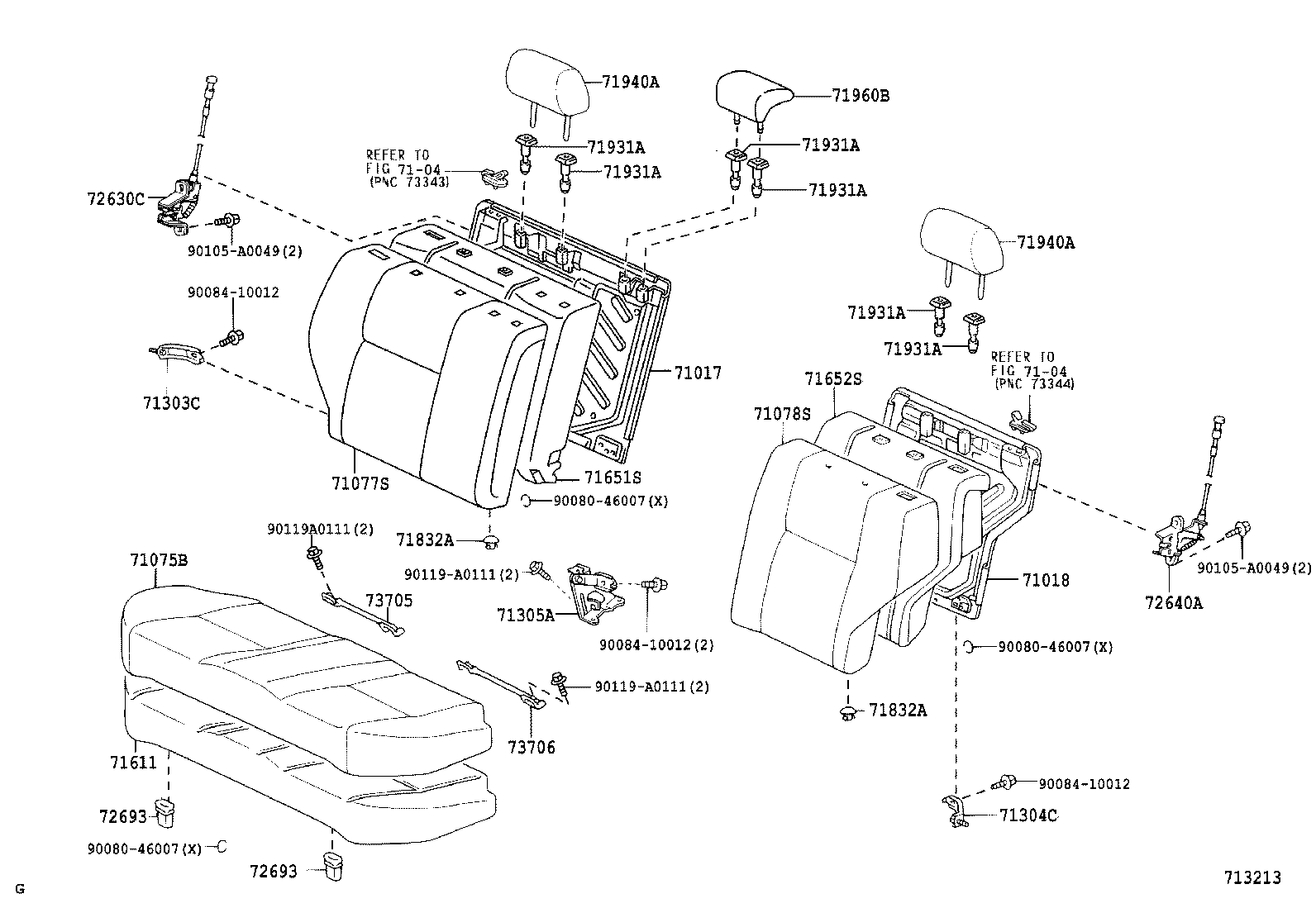

713219 2004-05 → —

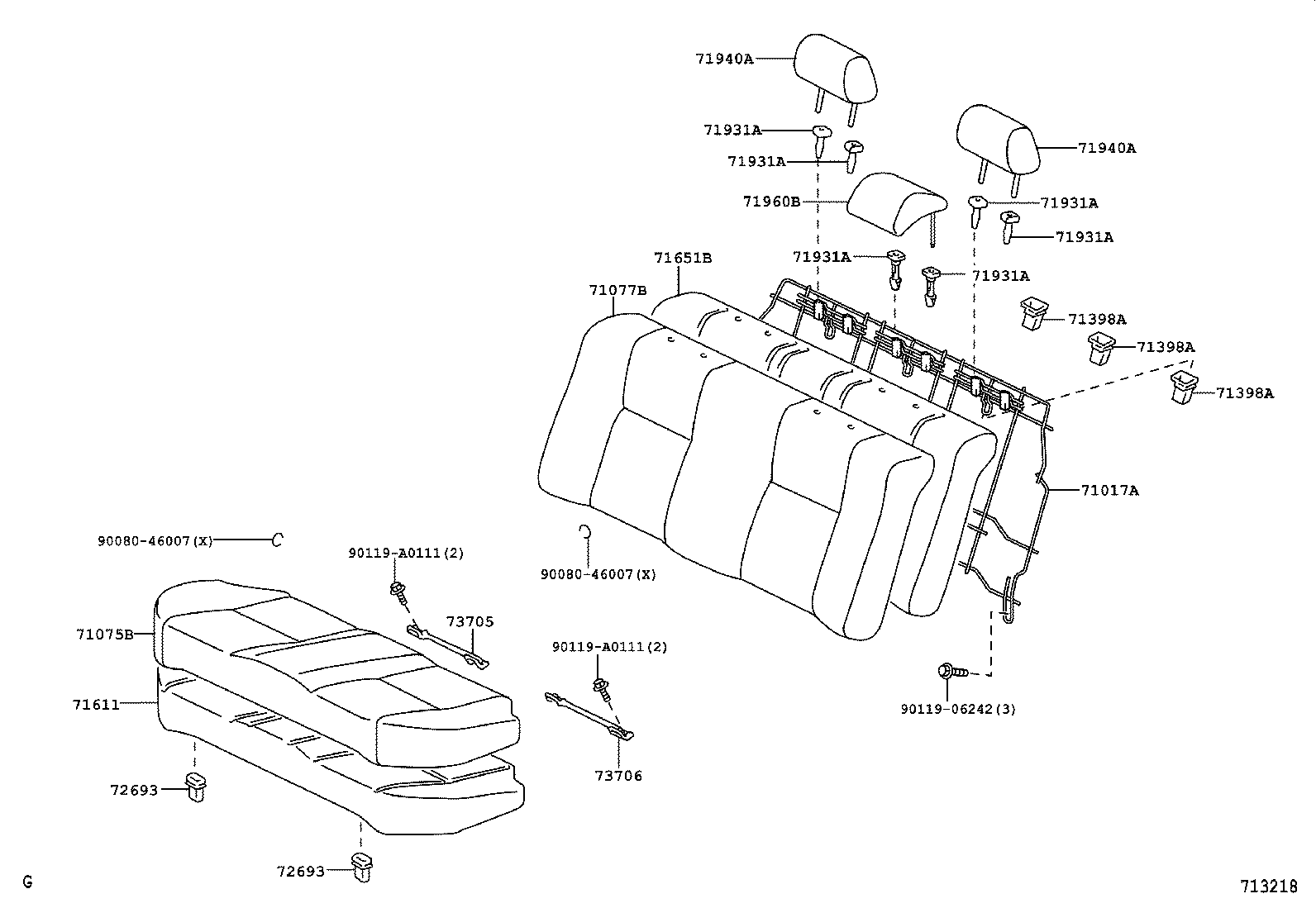

713218 2004-05 → —

Part groups

PNC	Description
71015A	Frame Sub-assy, Rear Seat Cushion, RH
71016A	Frame Sub-assy, Rear Seat Cushion, LH
71017	Frame Sub-assy, Rear Seatback, RH
71017A	Frame Sub-assy, Rear Seatback
71018	Frame Sub-assy, Rear Seatback, LH
71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077B	Cover, Rear Seatback (FOR BENCH TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71303C	Hinge Sub-assy, Rear Seatback, RH
71304C	Hinge Sub-assy, Rear Seatback, LH
71305A	Hinge Sub-assy, Rear Seatback, Center
71349C	Cover, Rear Seatback Hinge
71349D	Cover, Rear Seatback Hinge, RH
71379B	Cover, Rear Seatback Hinge, LH
71398A	Holder, Rear Seatback
71460B	Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460S	Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71470S	Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71480B	Back Assy, Rear Seat (FOR BENCH TYPE)
71480S	Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S	Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71611	Pad, Rear Seat Cushion
71611A	Pad, Rear Seat Cushion, RH
71612A	Pad, Rear Seat Cushion, LH
71651B	Pad, Rear Seatback(FOR BENCH TYPE)
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71832A	Clip, Rear Seatback Carpet OR Mat
71881	Board, Rear Seatback, RH
71882A	Board, Rear Seatback, LH
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
71960B	Headrest Assy, Rear Seat, Center
72165	Rail, Rear Outer Seat Track, Lower RH
72165A	Rail, Rear Outer Seat Track, Lower LH
72630C	Lock Assy, Rear Seatback, RH
72640A	Lock Assy, Rear Seatback, LH
72646	Grommet, Rear Seatback Stop Button
72646A	Grommet, Rear Seatback Stop Button
72656	Button, Rear Seatback Stop Release
72656B	Button, Rear Seatback Stop Release
72693	Hook, Rear Seat Cushion Lock
73705	Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706	Bracket Sub-assy, Child Restraint Seat Anchor, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
