Toyota Corolla/Matrix (NAP)

2002-01 → 2008-01 · chassis ZZE13# · catalogue 155450 · United States

Discontinued model Data version 2008-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

16 part groups · 4 illustrations

Illustrations

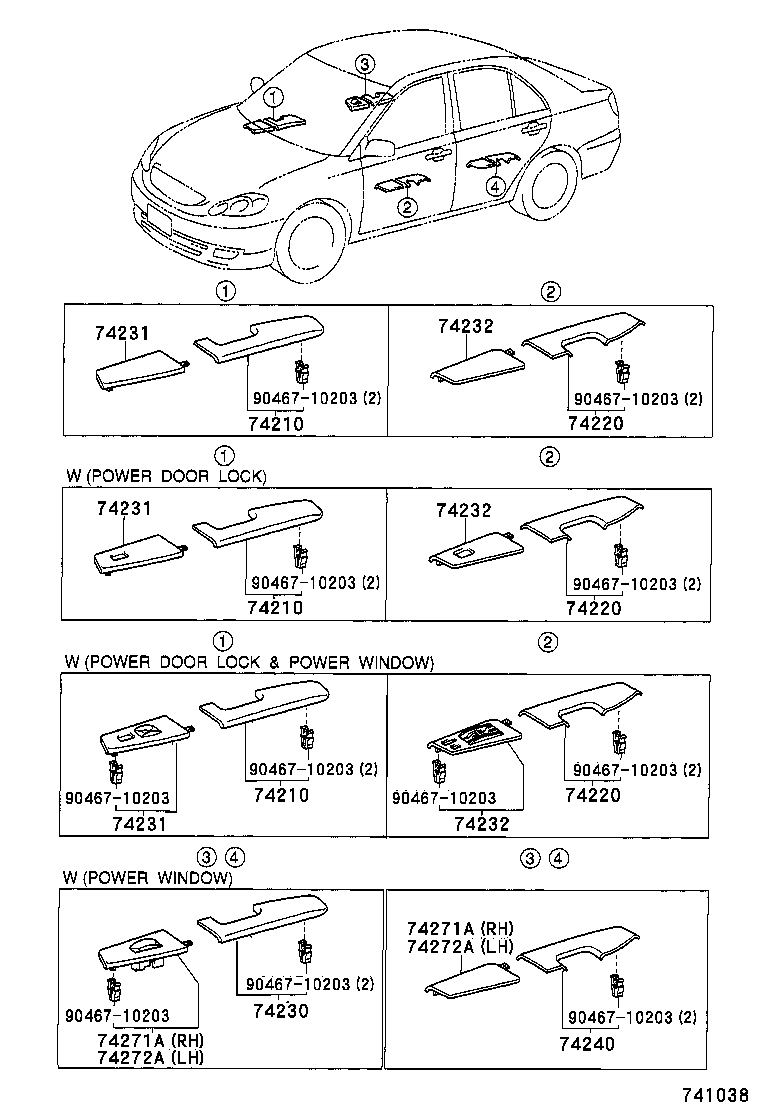

Figure 741014 741014 2002-01 → — Figure 741013A 741013A 2002-01 → — Figure 741037A 741037A 2002-01 → — Figure 741038 741038 2002-01 → —

Part groups

PNCDescription
74210 Armrest Assy, Front, RH
74220 Armrest Assy, Front, LH
74230 Armrest Assy, Rear, RH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74240 Armrest Assy, Rear, LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74620B Grip Assy, Assist, Rear
74813B Handle, Front Door Pull, RH
74814C Handle, Front Door Pull, LH
74815B Handle, Rear Door Pull
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
