Toyota Corolla/Matrix (NAP)
2002-01 → 2008-01 · chassis ZZE13# · catalogue 155450 · United States
Discontinued model
Data version 2008-06

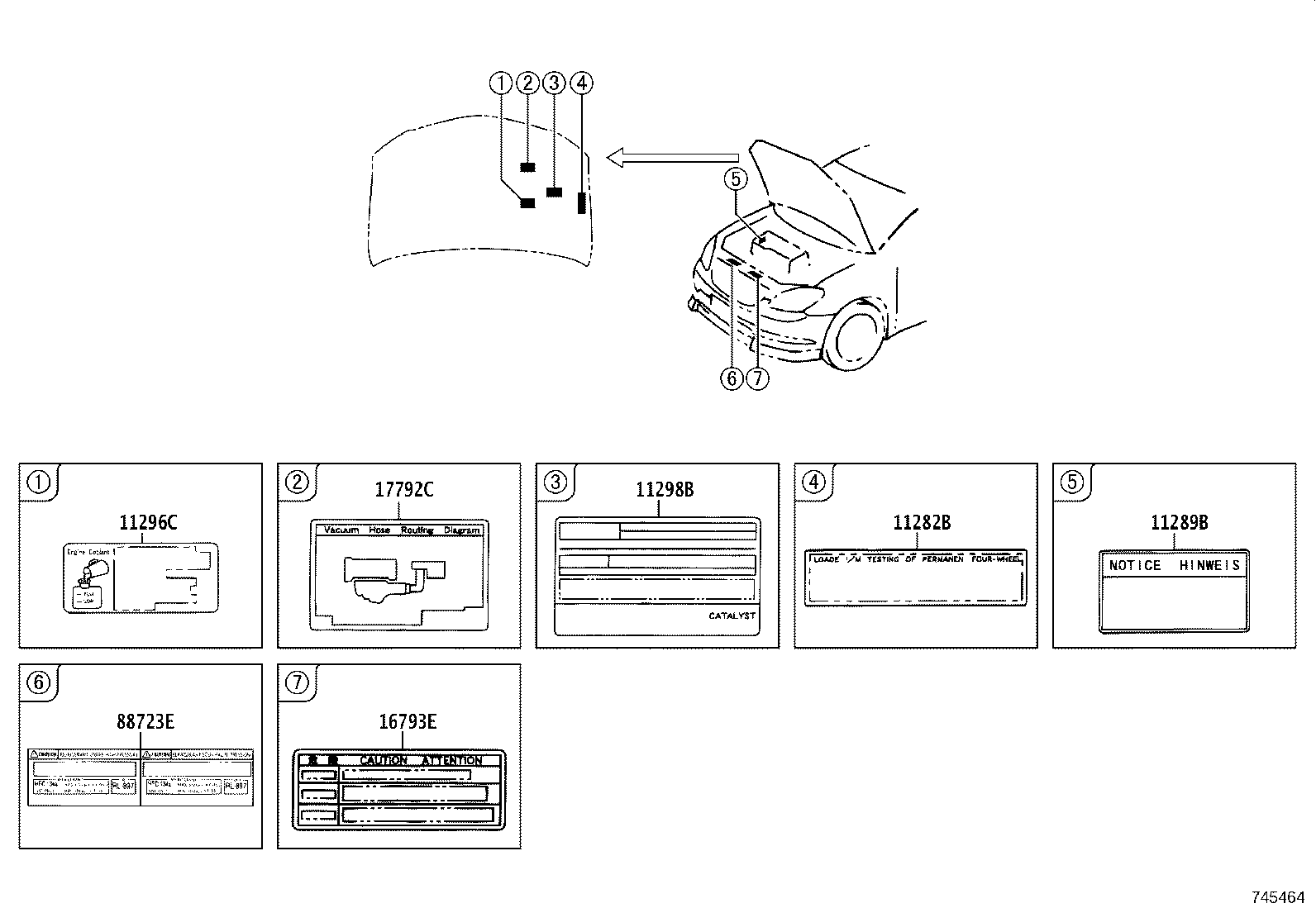

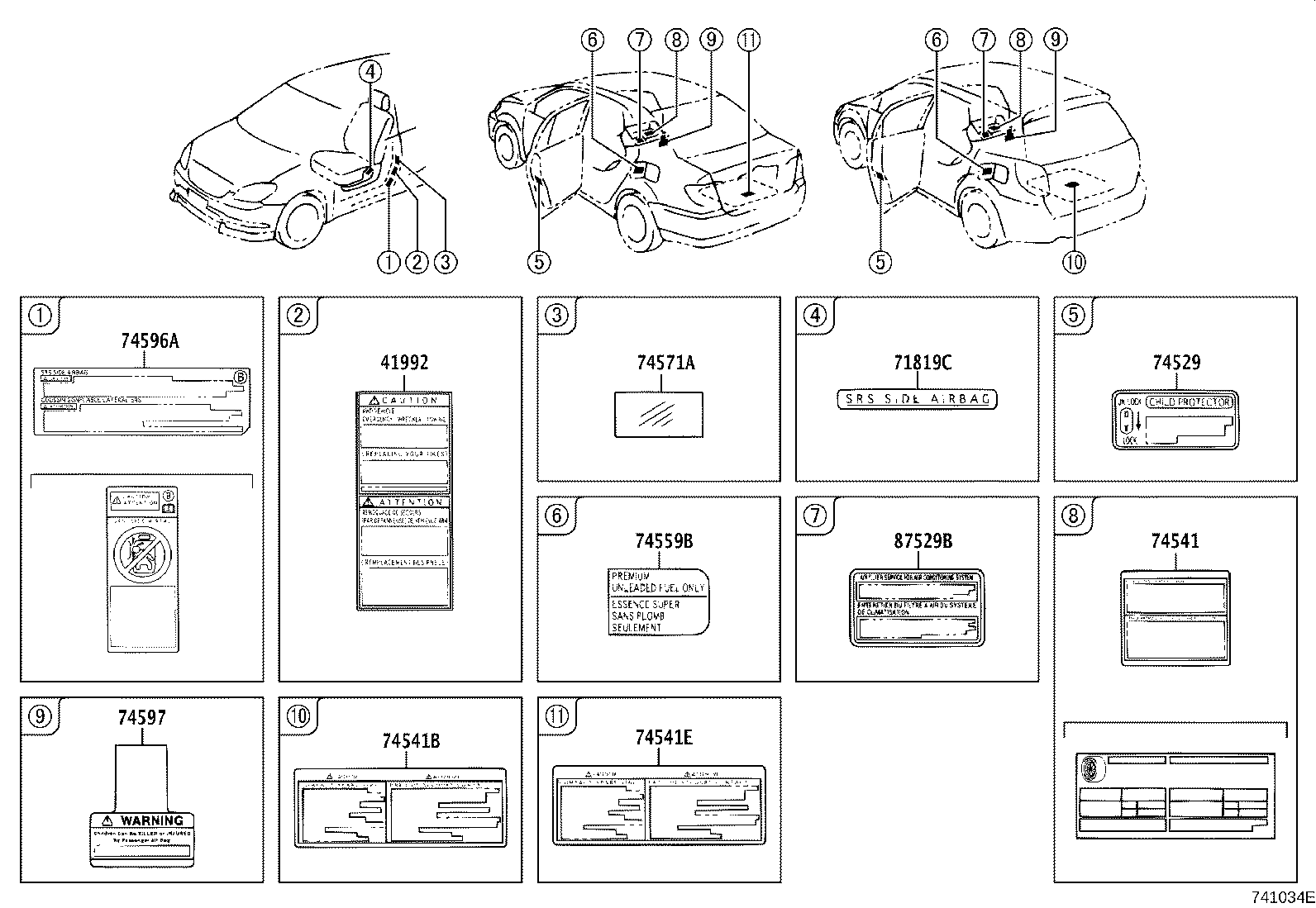

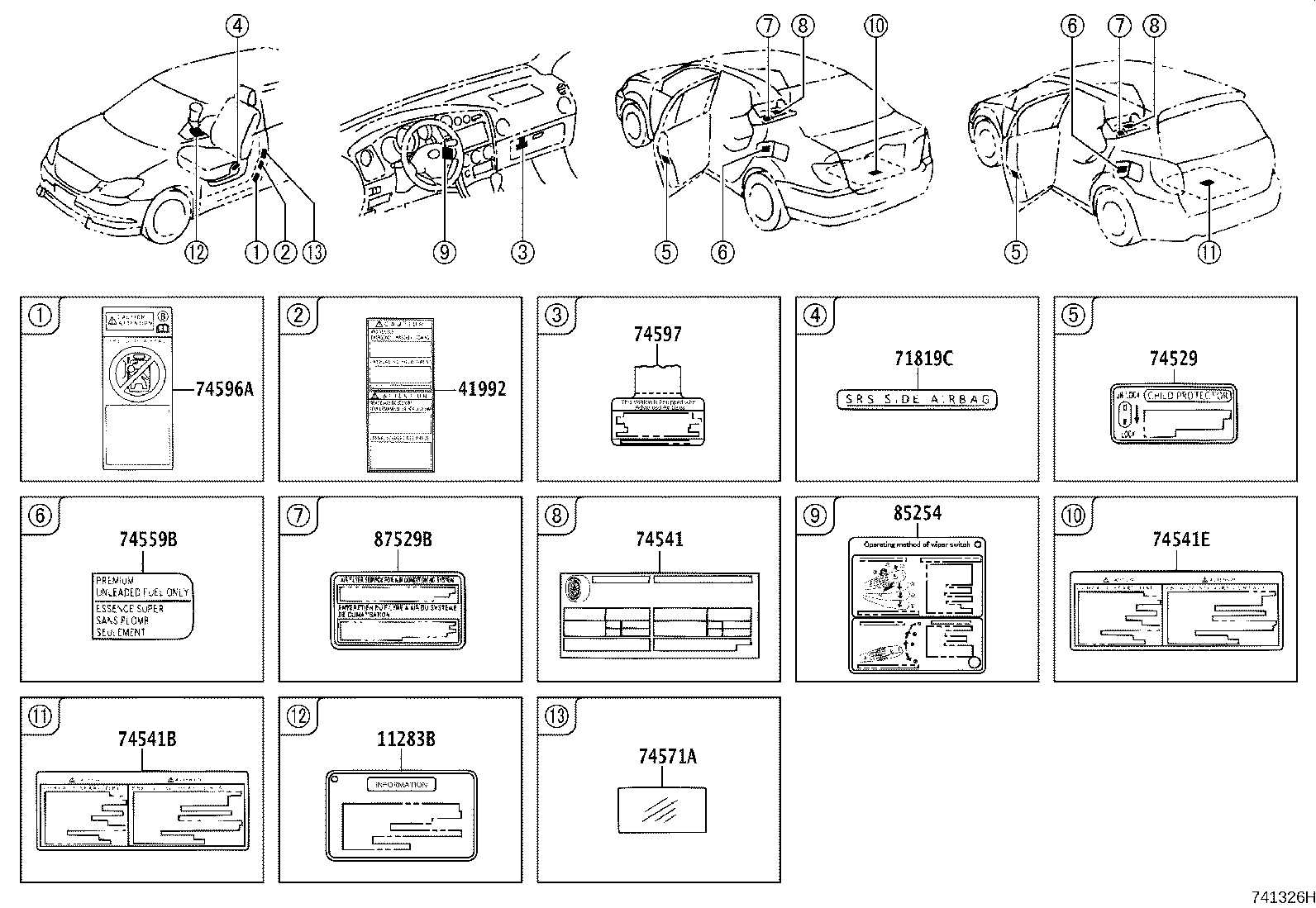

Caution Plate (EXTERIOR & INTERIOR)
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11282B | Label, Loaded Testing Caution |
| 11283B | Label, Leak Detection Pump Information |
| 11289B | Label, Spark Plug Notice |
| 11296C | Label, Engine Service Information |
| 11298B | Label, Emission Control Information |
| 16793E | Label, Cooling Fan Caution |
| 17792C | Label, Engine Vacuum Hose Information |
| 41992 | Label, Differential Notice |
| 71819C | Label, Side Airbag Name |
| 74529 | Plate, Child Proof OR Child Protector Lock Caution |
| 74541 | Plate, Tire Pressure Caution |
| 74541B | Plate, Compact Spare Tire Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74559B | Label, Fuel Information |
| 74571A | Film, Label Cover |
| 74596A | Label, Side Airbag Caution |
| 74597 | Label, Driver & Passenger Airbag Caution |
| 85254 | Label, Rear Wiper Information |
| 87529B | Label, A/C Filter Information |
| 88723E | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
