Toyota Corolla/Matrix (NAP)

2002-01 → 2008-01 · chassis ZZE13# · catalogue 155450 · United States

Discontinued model Data version 2008-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

30 part groups · 11 illustrations

Illustrations

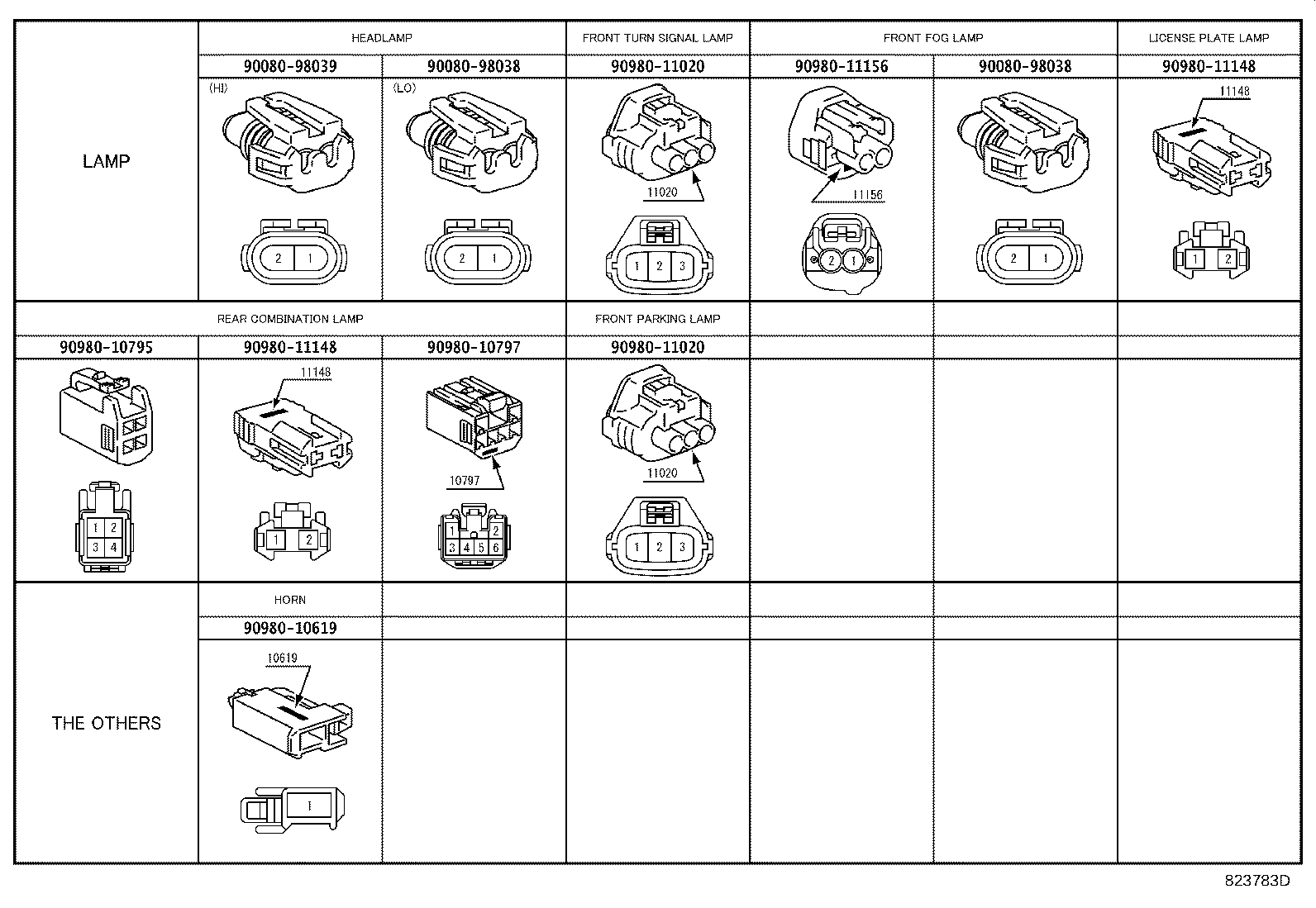

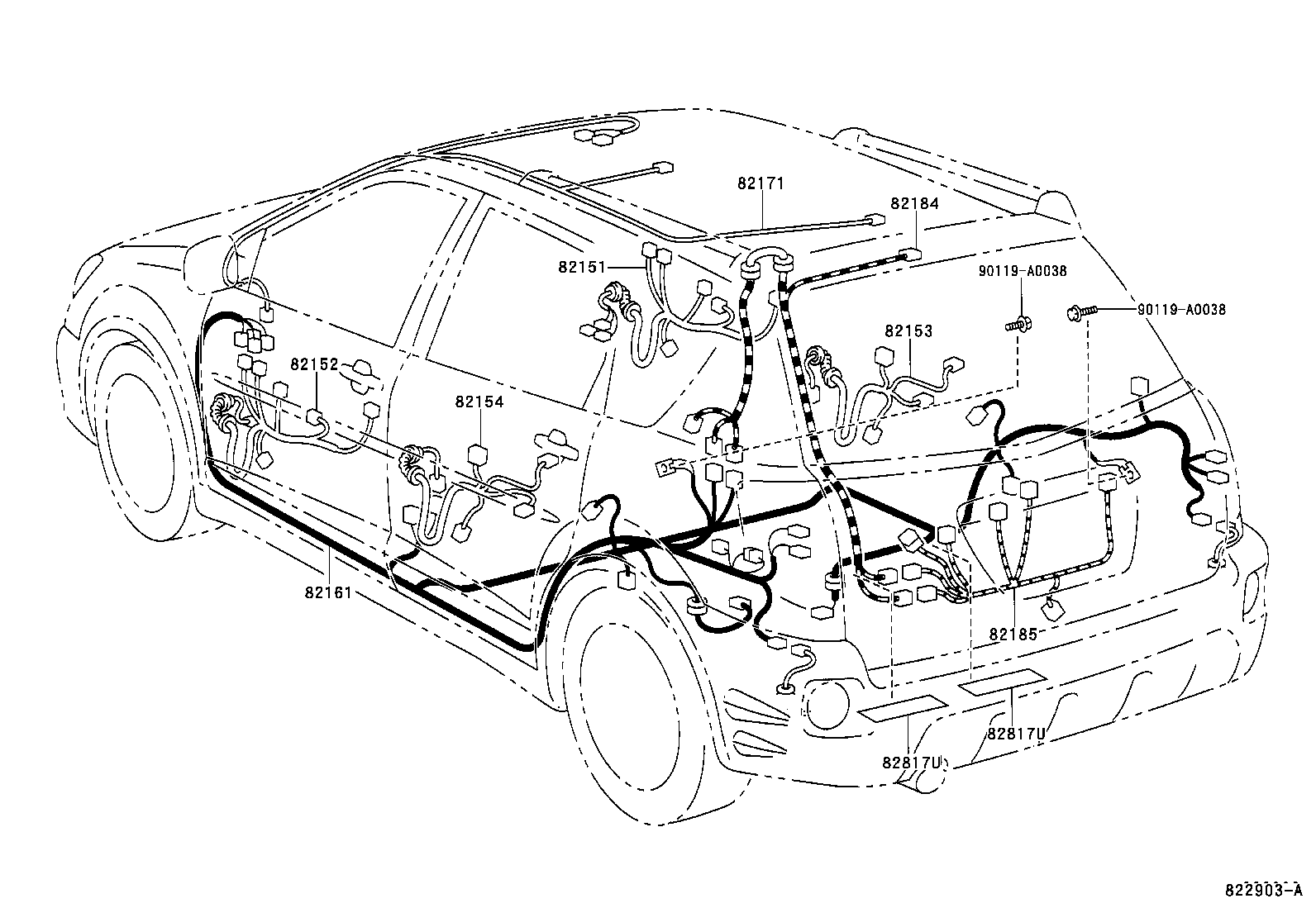

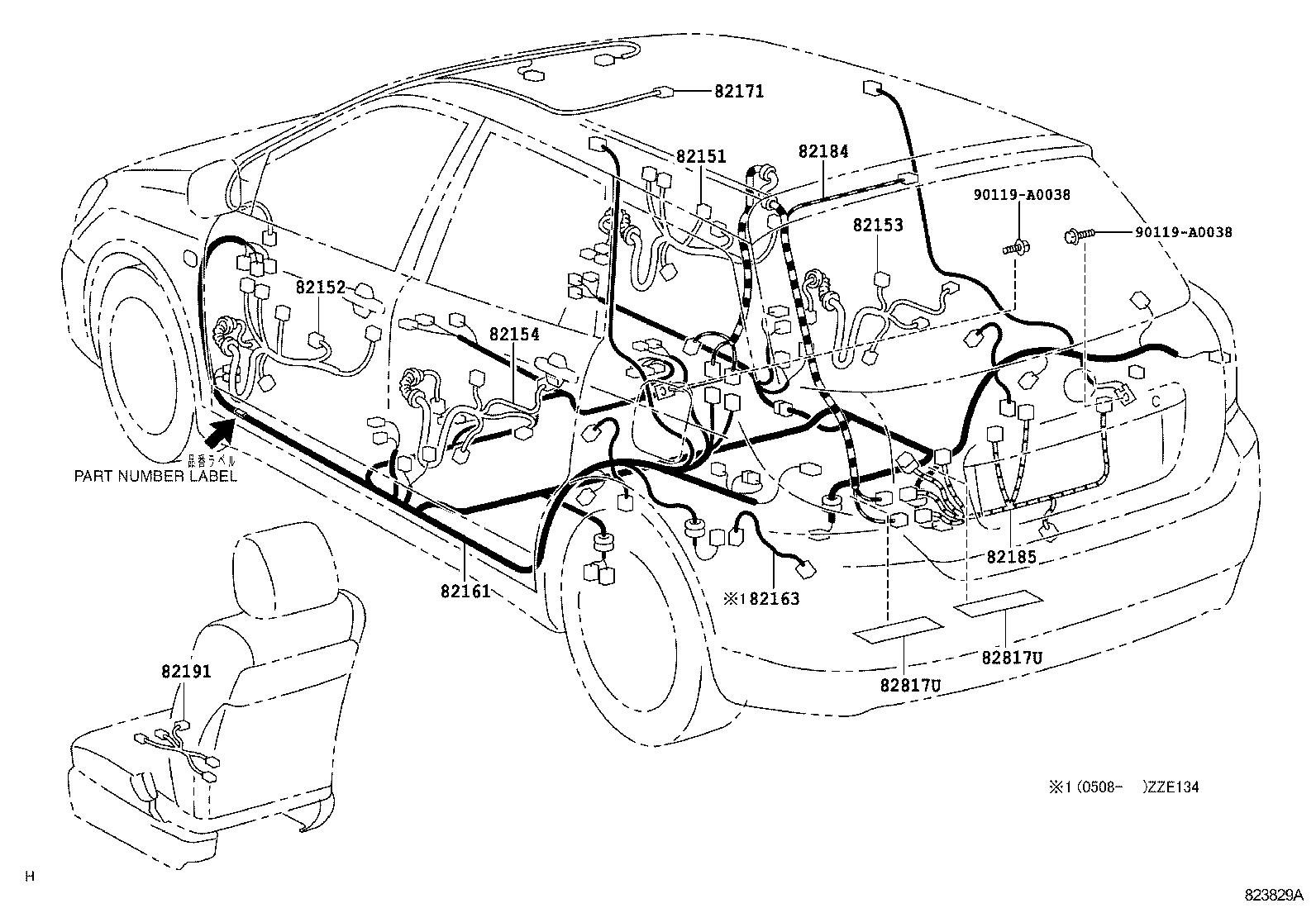

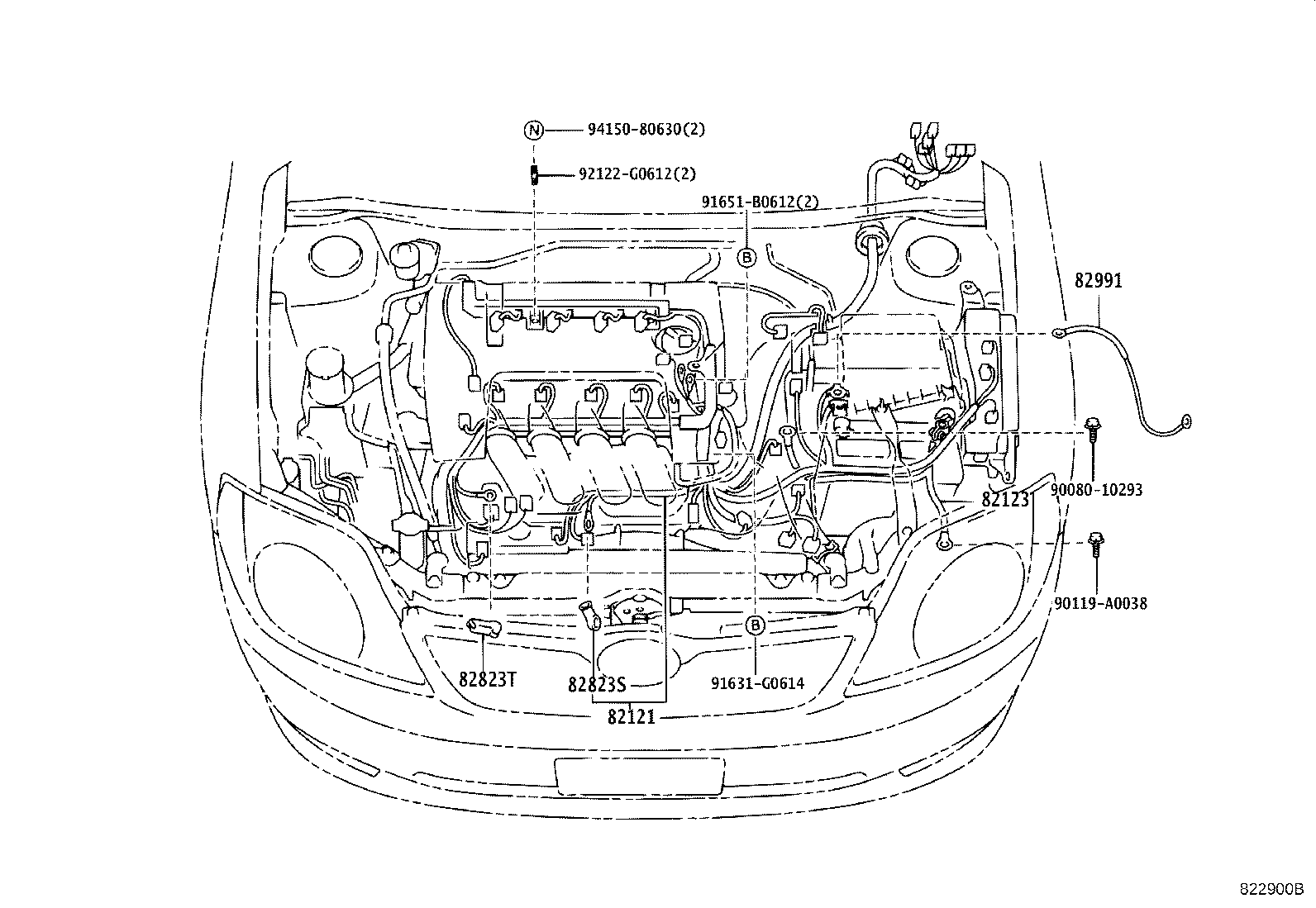

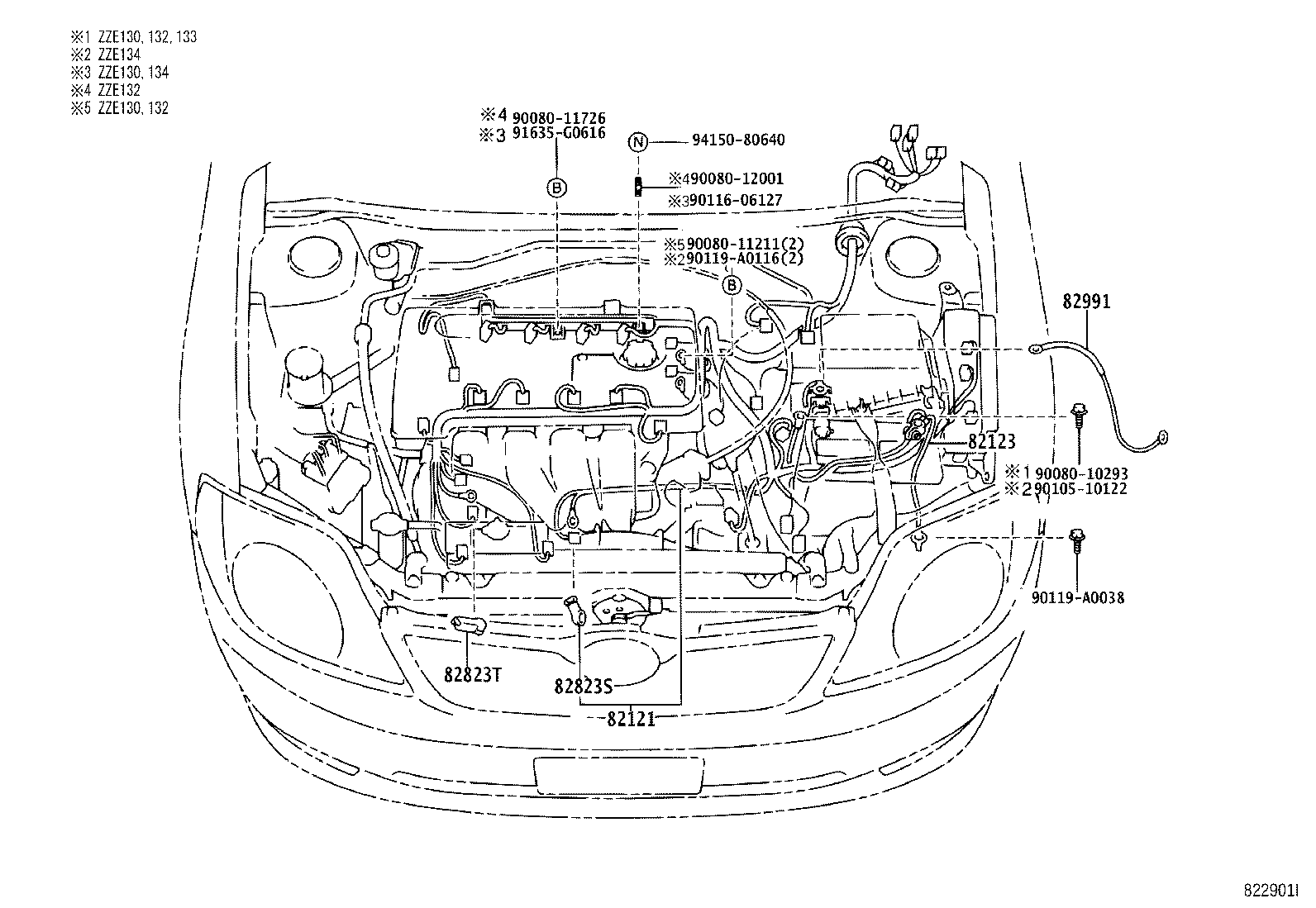

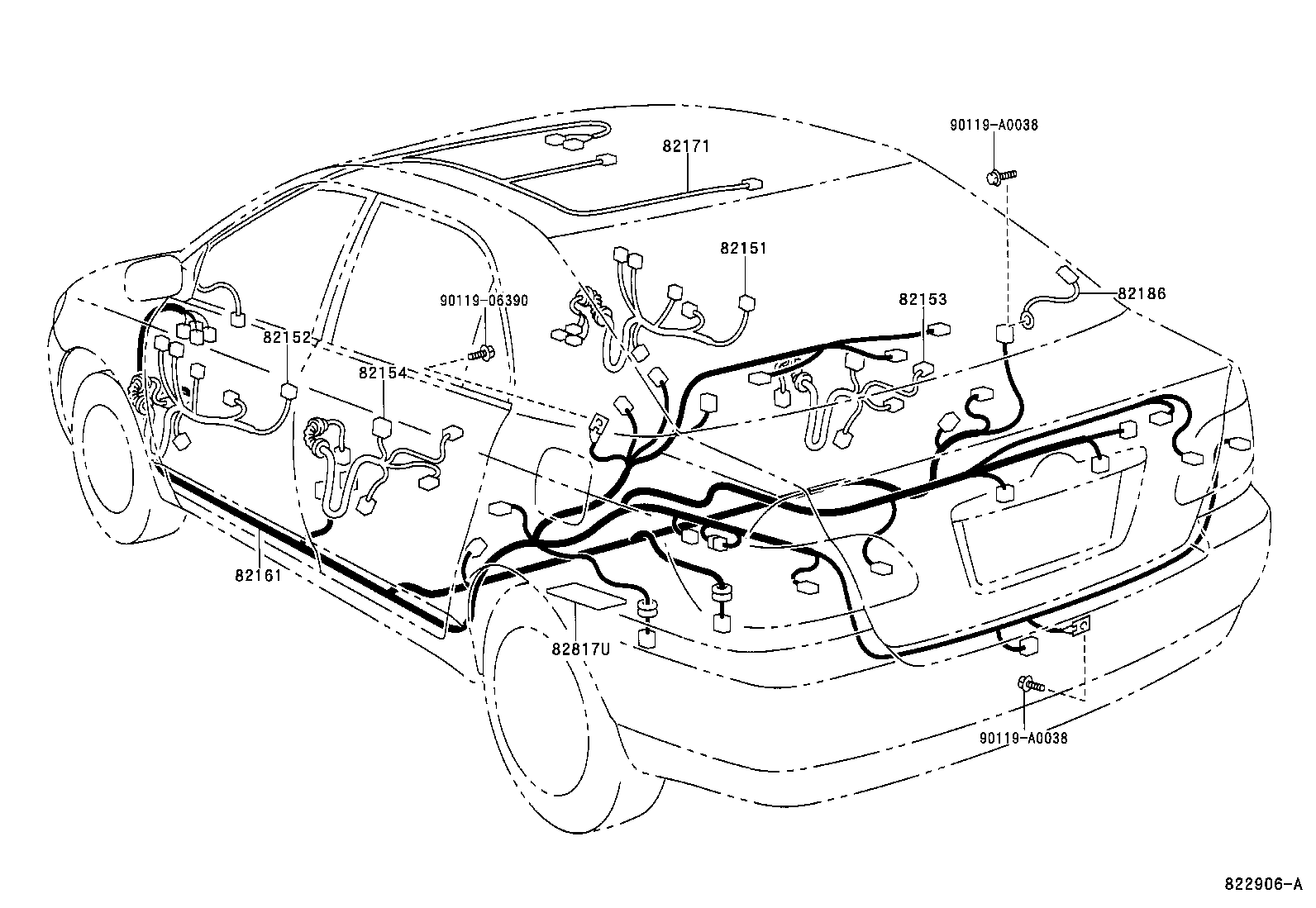

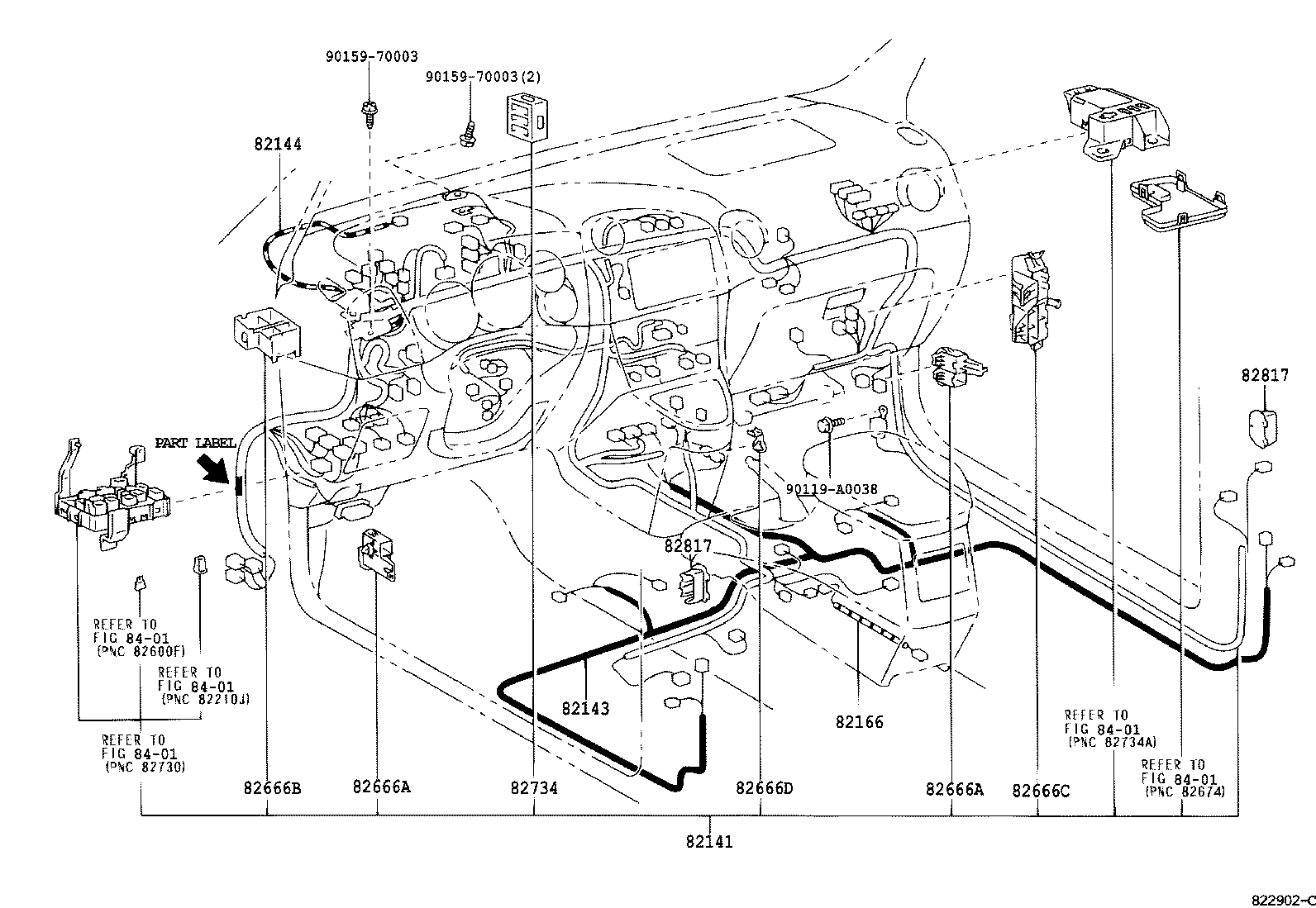

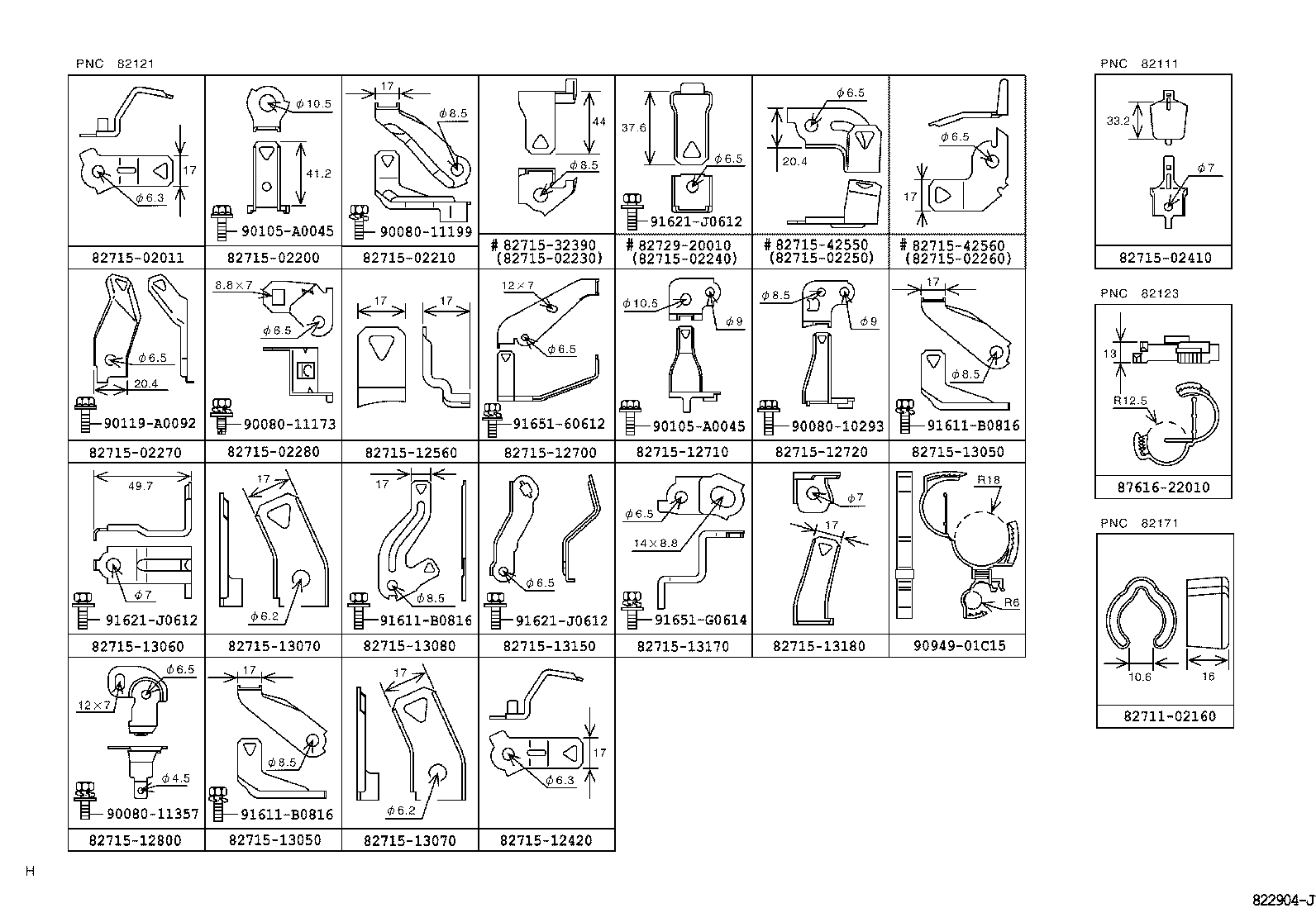

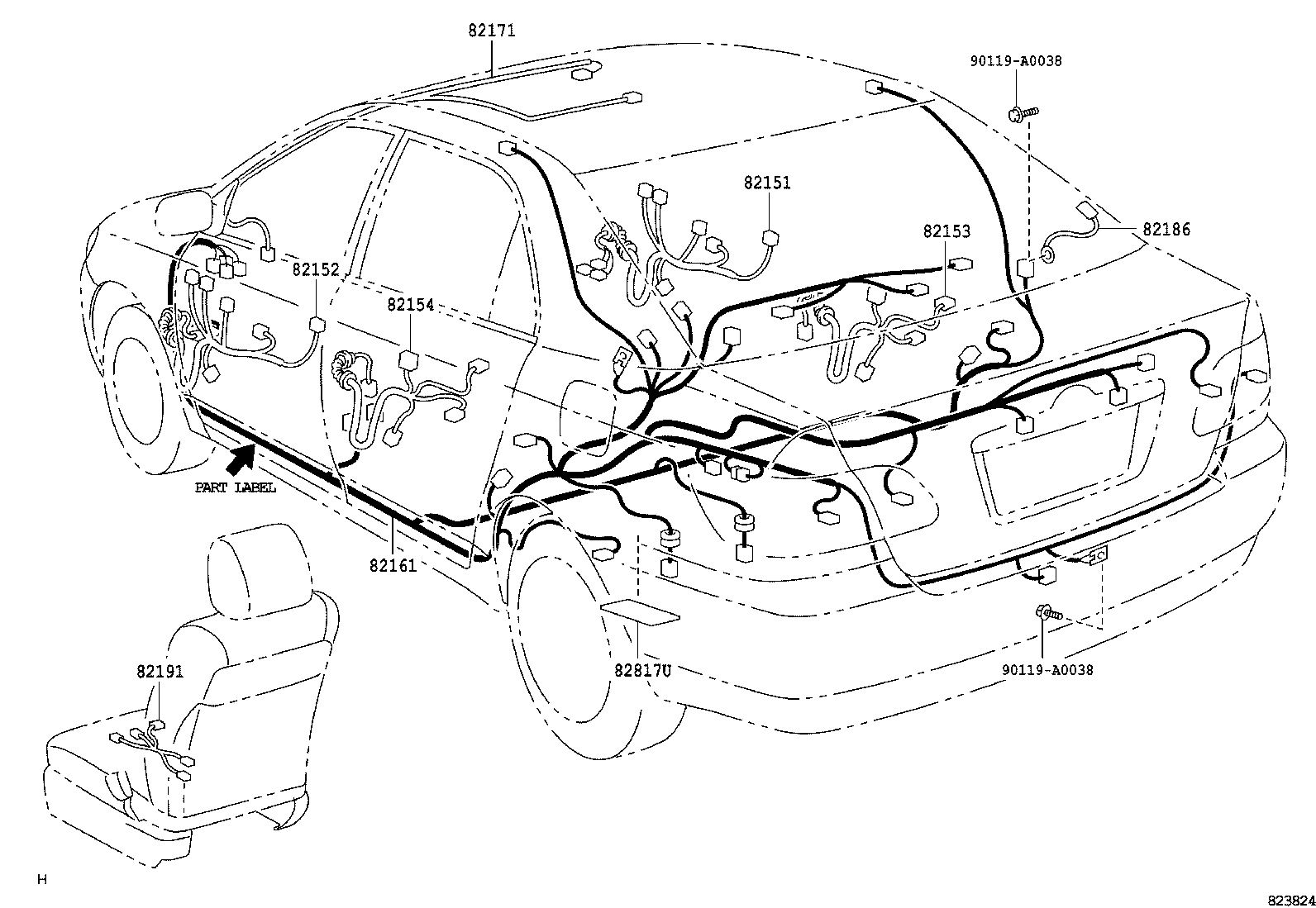

Figure 822899D 822899D 2002-01 → — Figure 822900B 822900B 2002-01 → — Figure 822901I 822901I 2002-01 → — Figure 822902C 822902C 2002-01 → — Figure 822906A 822906A 2002-01 → 2004-05 Figure 822903A 822903A 2002-01 → 2004-05 Figure 823824 823824 2004-05 → — Figure 823829A 823829A 2004-05 → — Figure 822904J 822904J 2002-01 → — Figure 822905E 822905E 2002-01 → — Figure 823783D 823783D 2002-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82143 Wire, Instrument Panel, NO.3
82144 Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82163 Wire, Floor, NO.3
82166 Wire, Console Box
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82191 Wire, Front Seat, RH
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82734 Block, Center Junction
82817 Protector, Wiring Harness, NO.1
82817U Protector, Wiring Harness, NO.16
82821A Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
