Toyota Corolla/Matrix (NAP)

2002-01 → 2008-01 · chassis ZZE13# · catalogue 155450 · United States

Discontinued model Data version 2008-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

89 part groups · 12 illustrations

Illustrations

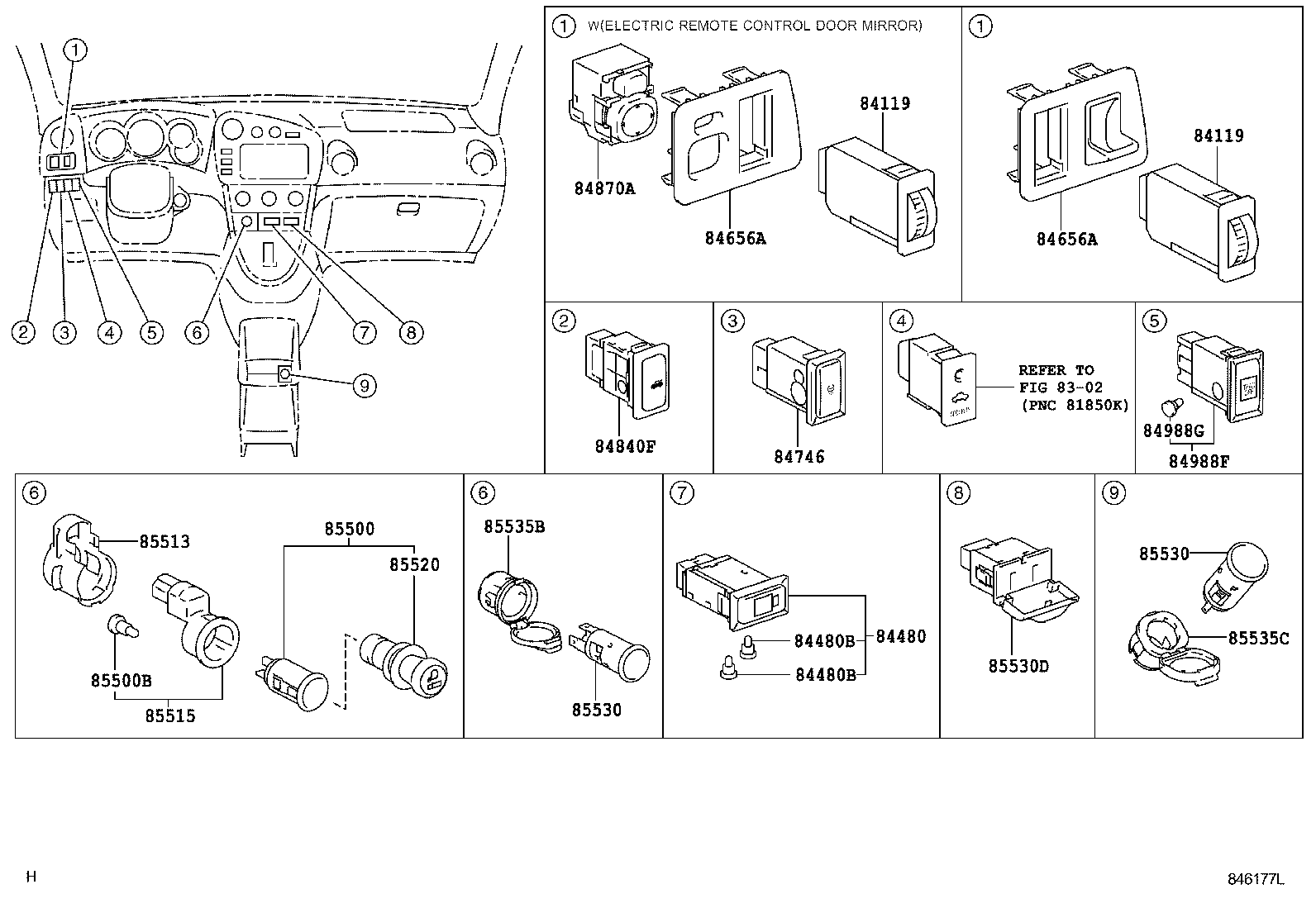

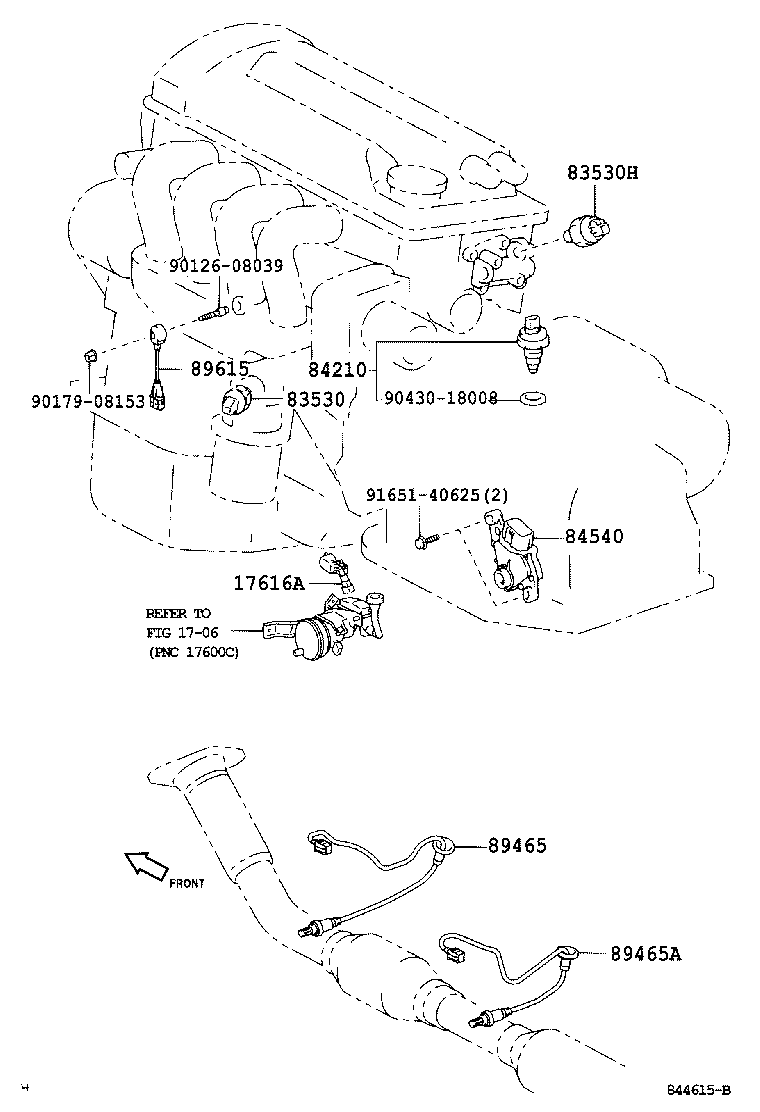

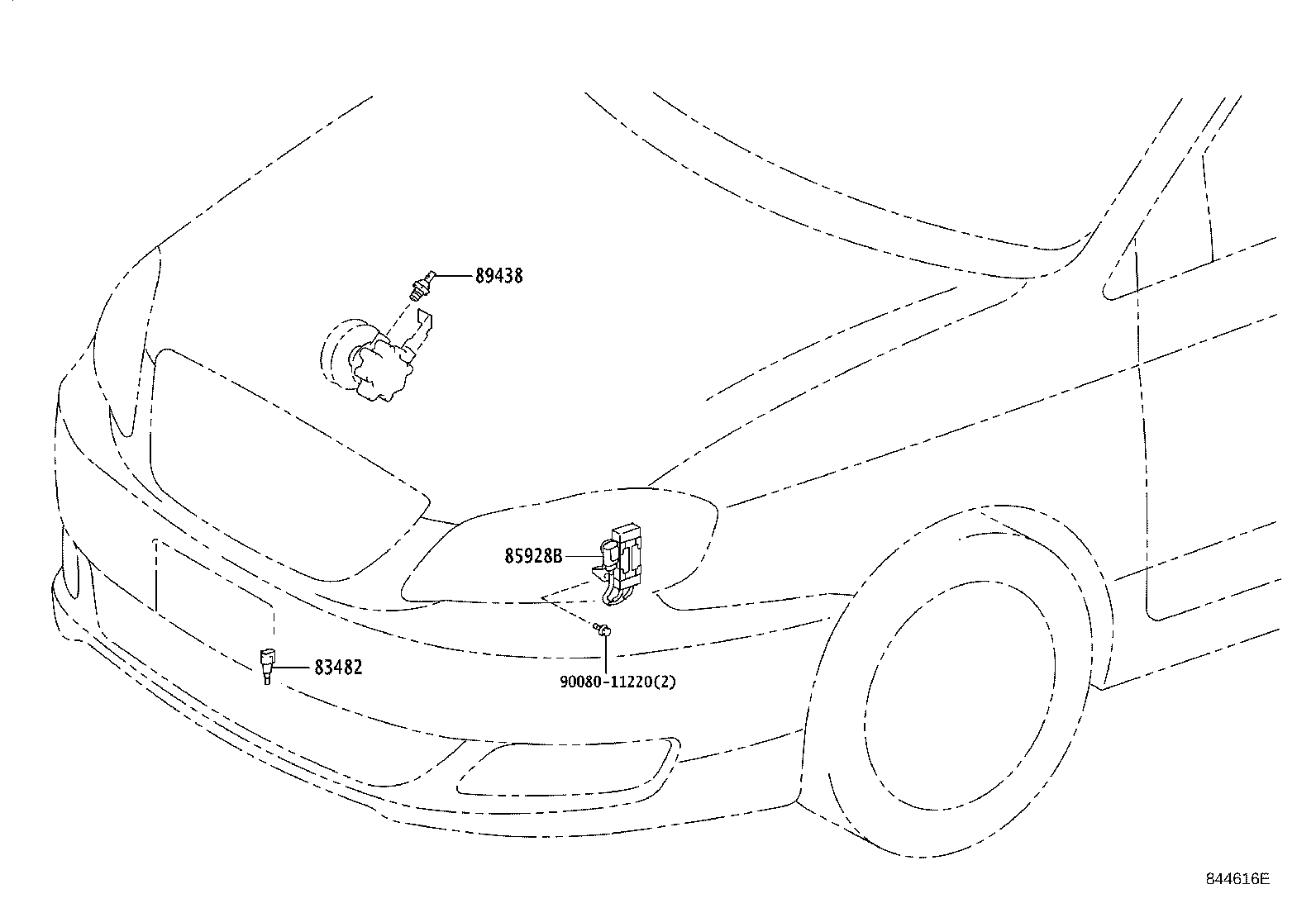

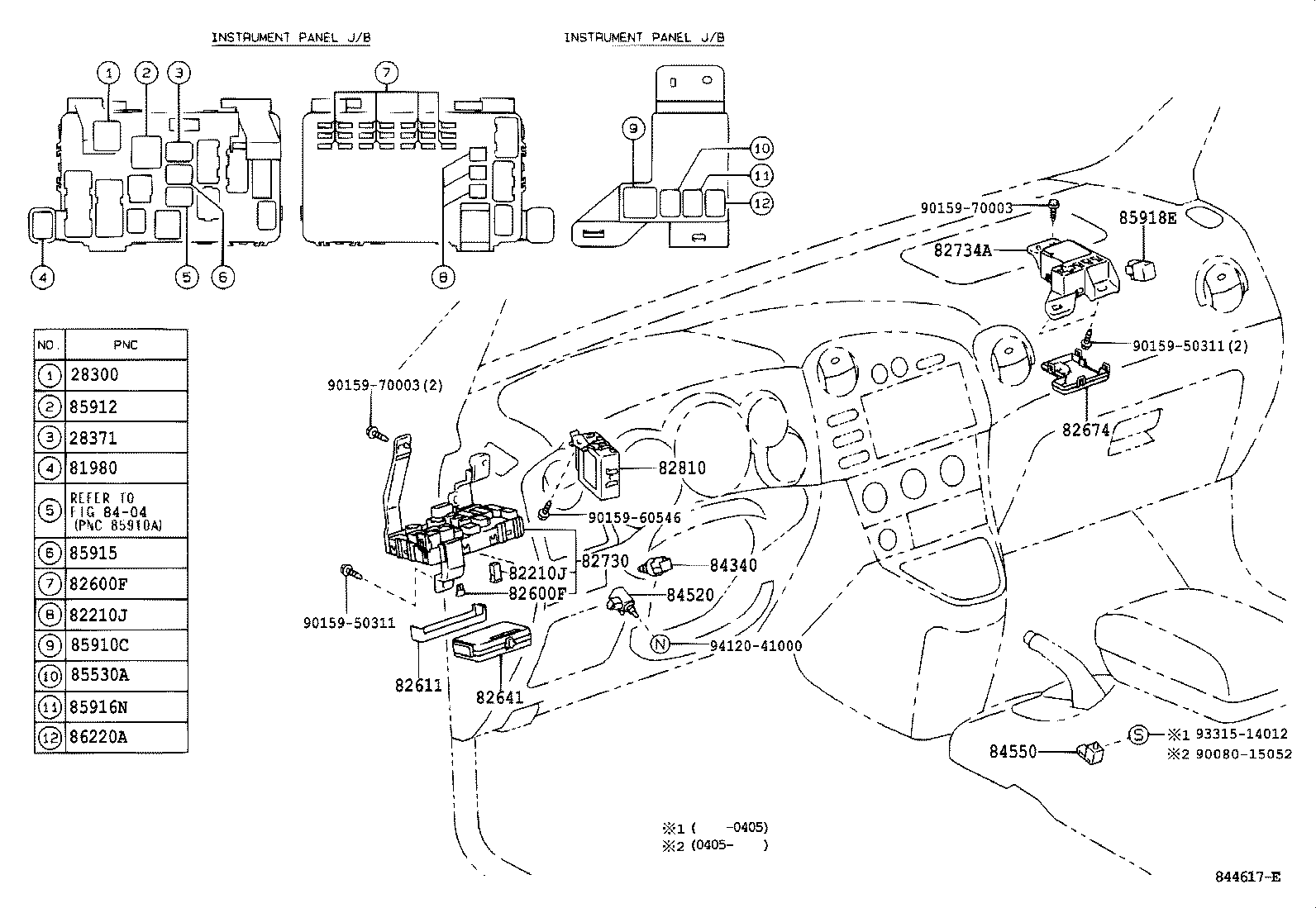

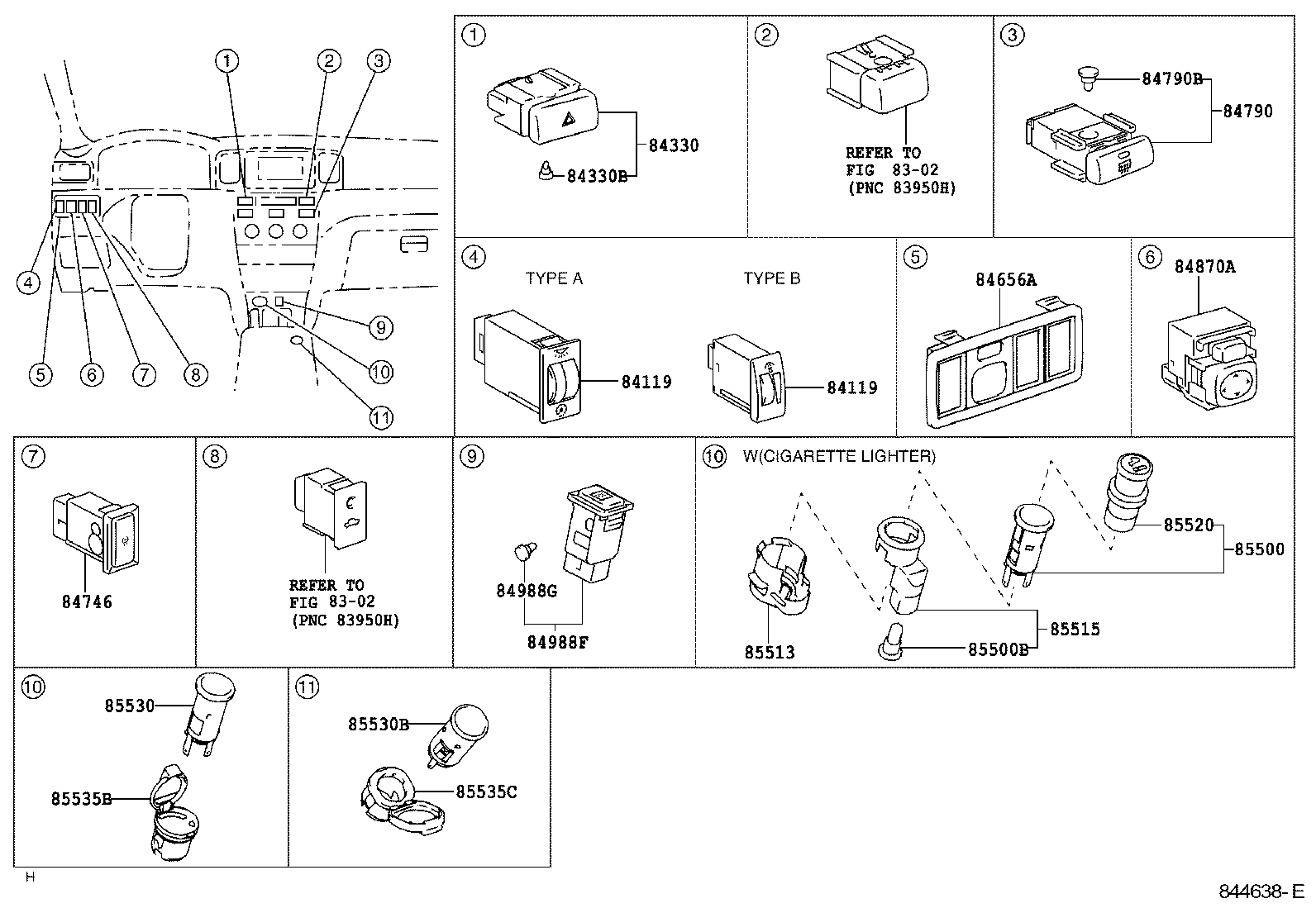

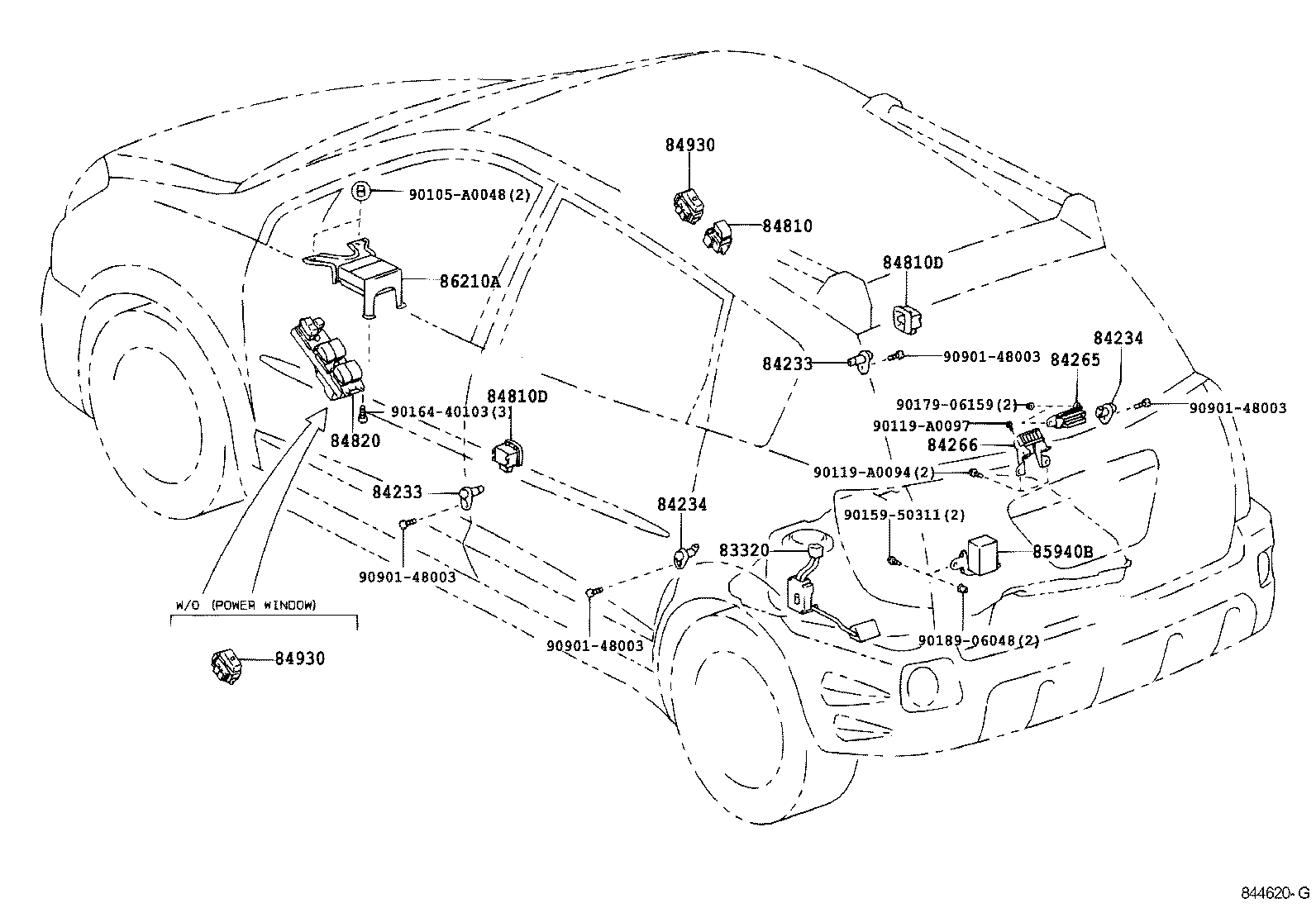

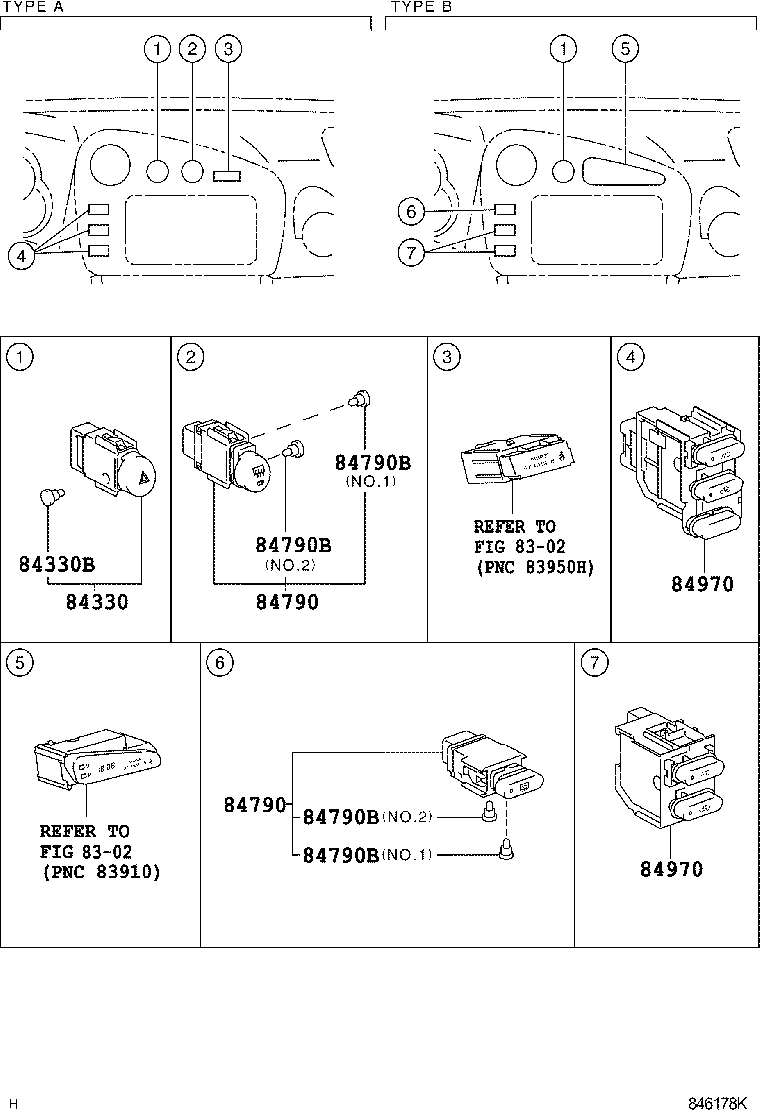

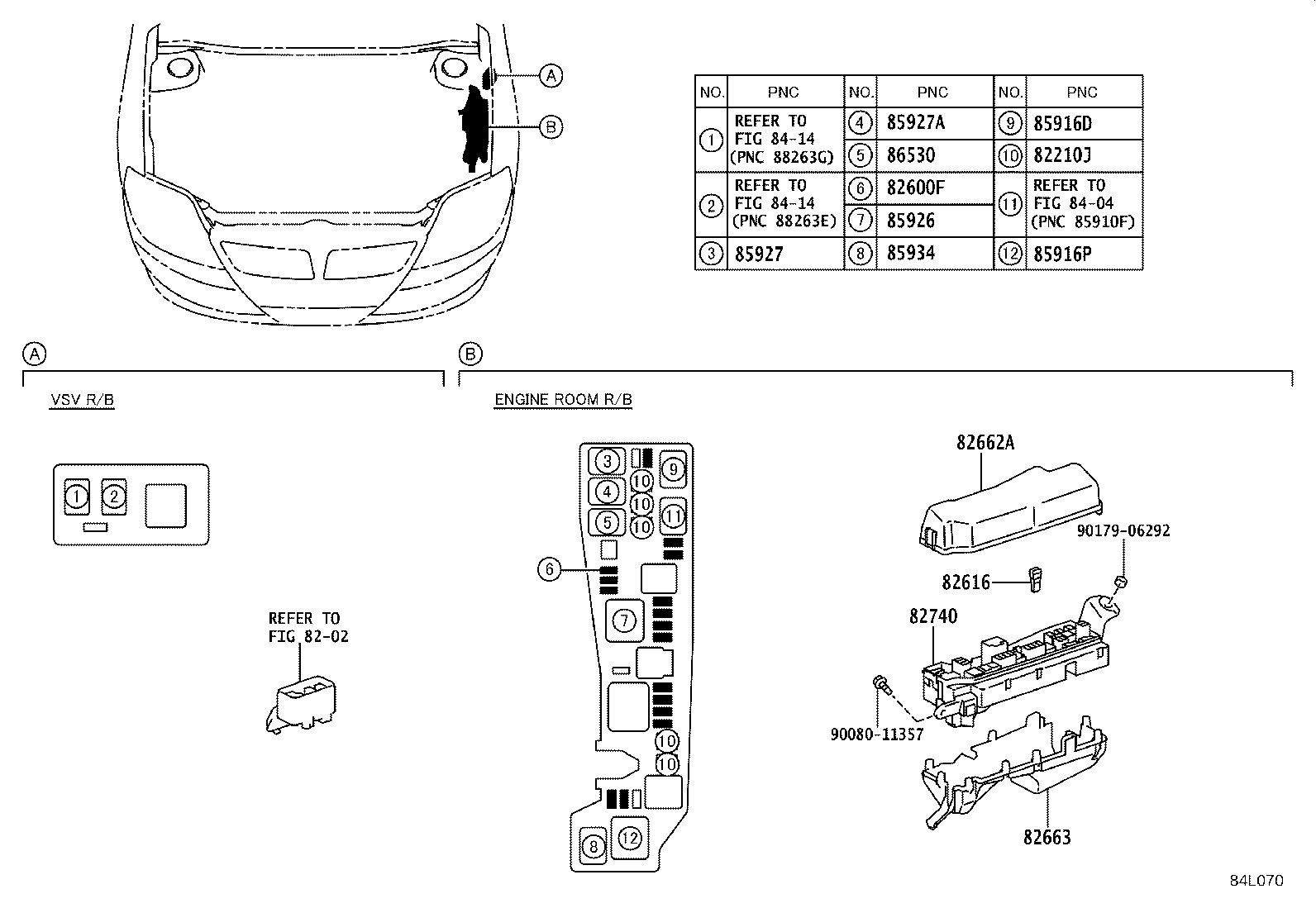

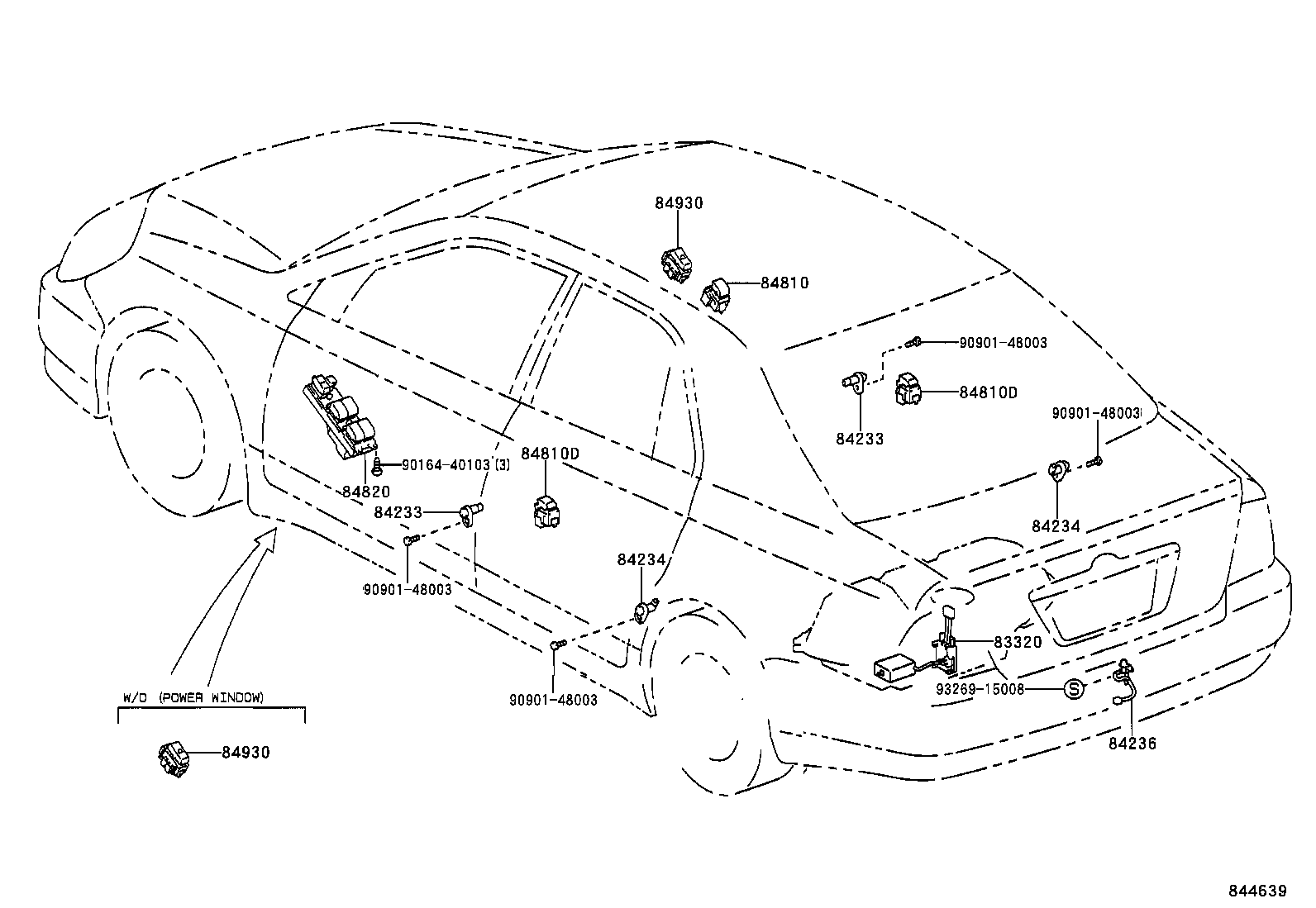

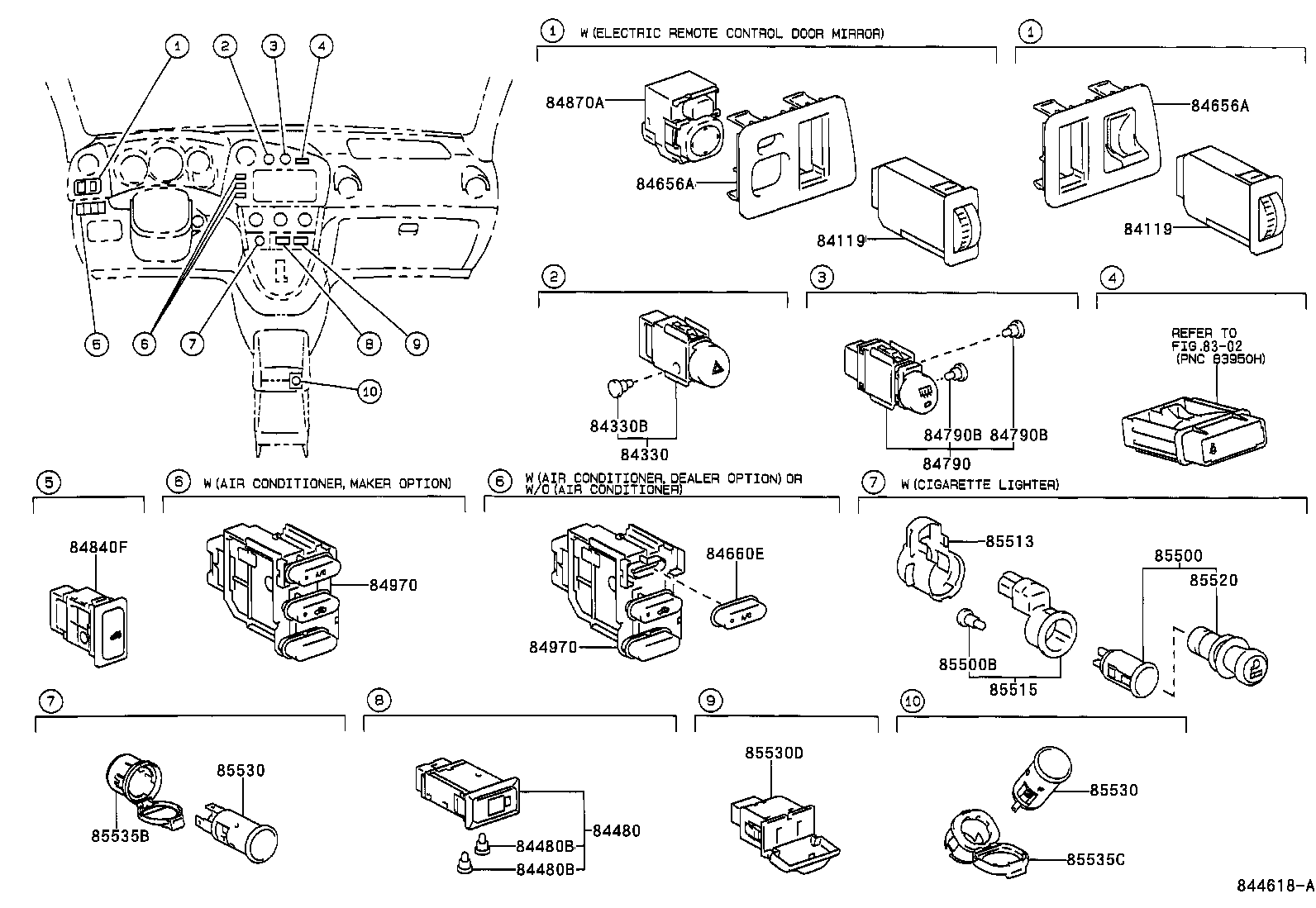

Figure 844614C 844614C 2002-01 → — Figure 844615B 844615B 2002-01 → — Figure 844616E 844616E 2002-01 → — Figure 84L070 84L070 2002-01 → — Figure 844617E 844617E 2002-01 → — Figure 844638E 844638E 2002-01 → — Figure 844618A 844618A 2002-01 → 2004-05 Figure 846177L 846177L 2004-05 → — Figure 846178K 846178K 2004-05 → — Figure 844619B 844619B 2002-01 → — Figure 844639 844639 2002-01 → — Figure 844620G 844620G 2002-01 → —

Part groups

PNCDescription
17616A Relay, Air Pump
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82600F Fuse, Fuse Block
82611 Cover, Fuse Block
82616 Puller, Fuse
82641 Relay, Integration NO.1
82662A Cover, Relay Block, Upper, NO.1
82663 Cover, Relay Block, Lower
82674 Cover, Junction Block Lower
82730 Block Assy, Instrument Panel Junction
82734A Block, Center Junction
82740 Block Assy, Engine Room Relay
82810 Relay Assy, Running Light
83181G Sensor, Speedometer
83181H Ring, O (FOR SPEEDOMETER SENSOR)
83320 Gage Assy, Fuel Sender
83482 Sensor, Outer Ambient Temperature
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83530H Switch Assy, Oil Pressure
84052 Switch Assy, Un-lock Warning
84119 Rheostat, Light Control
84140 Switch Assy, Headlamp Dimmer
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84236 Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM)
84265 Junction, Back Door Male
84266 Junction, Back Door Female
84306 Cable Sub-assy, Spiral
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84480 Switch Assy, Main
84480B Bulb, Main Switch Assy
84520 Switch Assy, Clutch Start
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84656A Bezel, Switch
84660E Knob, Cooler Switch
84746 Switch, Tire Pressure Warning
84790 Switch Assy, Rear Window Defogger
84790B Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84840F Switch Assy, Glass Hatch Opener
84870A Switch Assy, Outer Mirror
84930 Switch Assy, Door Control
84970 Switch Assy, Combination
84988F Switch, Traction Control
84988G Bulb, Traction Control Switch
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85513 Cover, Cigarette Lighter
85515 Stay, Cigarette Lighter Bezel
85520 Knob And Element Assy, Cigarette Lighter
85530 Socket Assy, Power Outlet, NO.1
85530A Relay, Power Outlet Socket
85530B Socket Assy, Power Outlet, Rear NO.1
85530D Socket Assy, Power Outlet, NO.2
85535B Cover, Power Outlet Socket, NO.1
85535C Cover, Power Outlet Socket, Rear
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85912 Relay, Defogger
85915 Relay, Main
85916D Relay, Fog Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85918E Relay, Glass Hatch Junction
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85928B Resistor, Cooling Fan
85934 Relay, Magnet-clutch
85940B Relay Assy, Rear Wiper
86210A Inverter Assy, Voltage
86220A Relay, Inverter
86530 Relay Assy, Horn
89245B Sensor, Steering
89437 Cover, Sensor
89438 Switch, Power Steering Oil Pressure
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89615 Sensor, Knock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
