Toyota Corolla/Matrix (NAP)
2002-01 → 2008-01 · chassis ZZE13# · catalogue 155450 · United States
Discontinued model
Data version 2008-06
Radio Receiver & Amplifier & Condenser
10 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

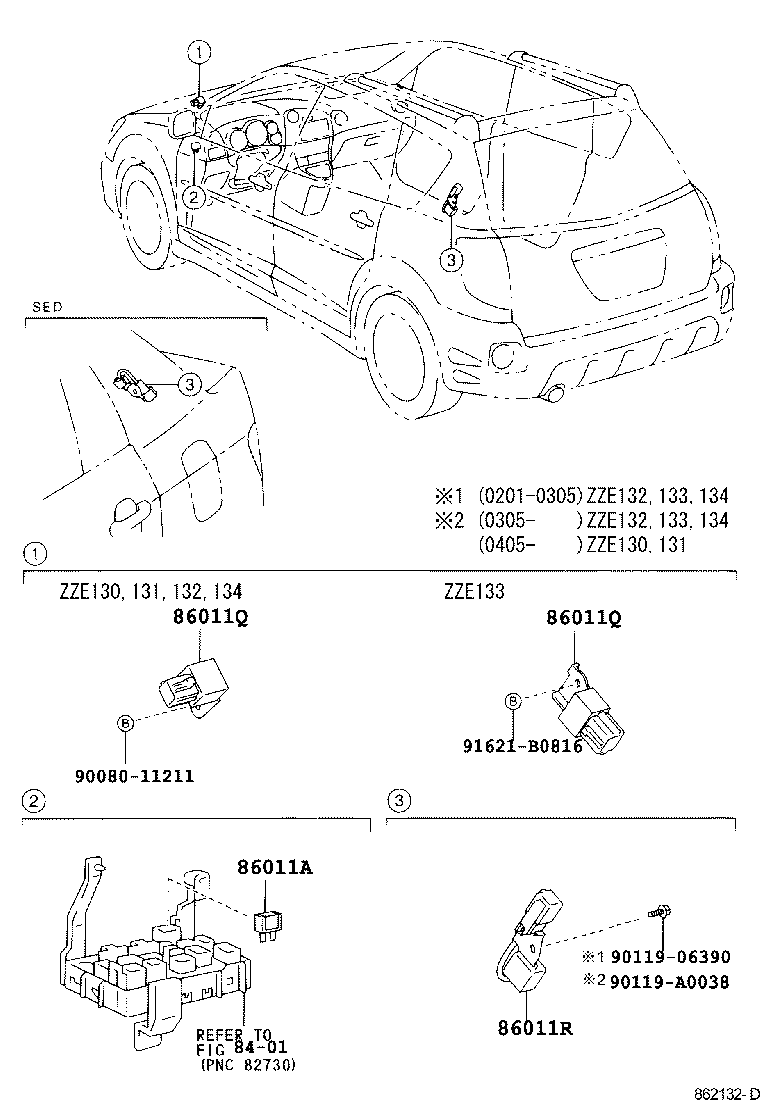

| 86011A | Condenser, Radio Setting |
| 86011Q | Condenser, Radio Setting |
| 86011R | Condenser, Radio Setting |

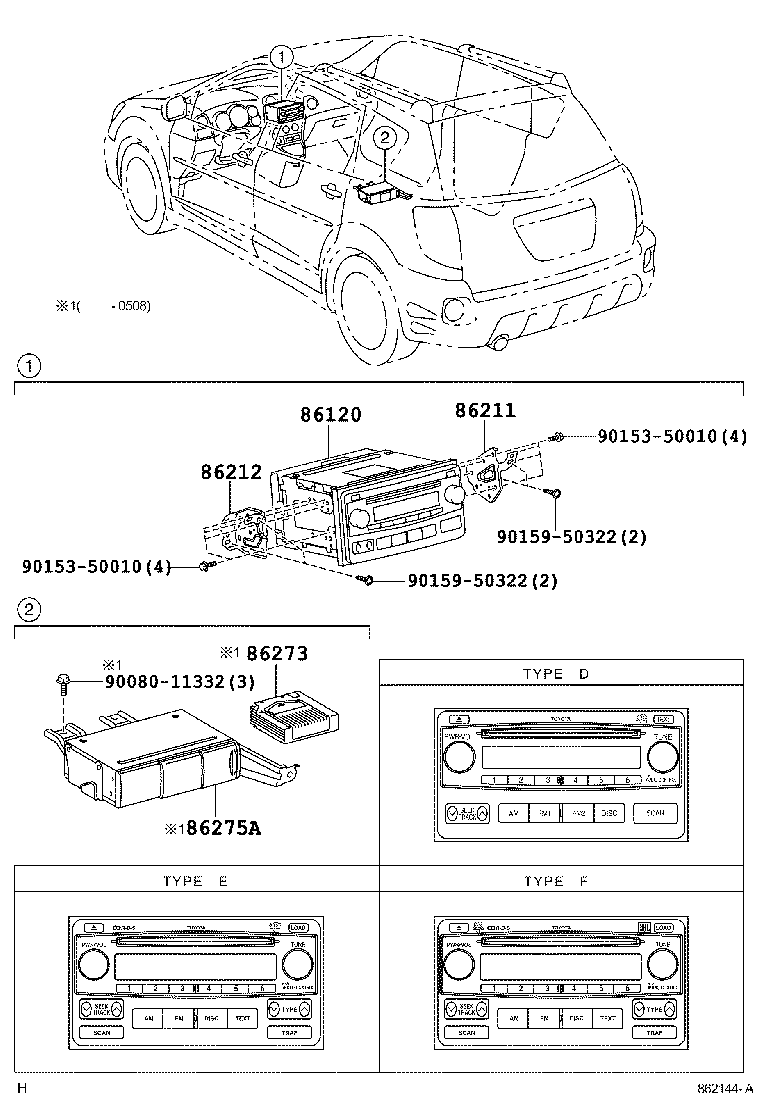

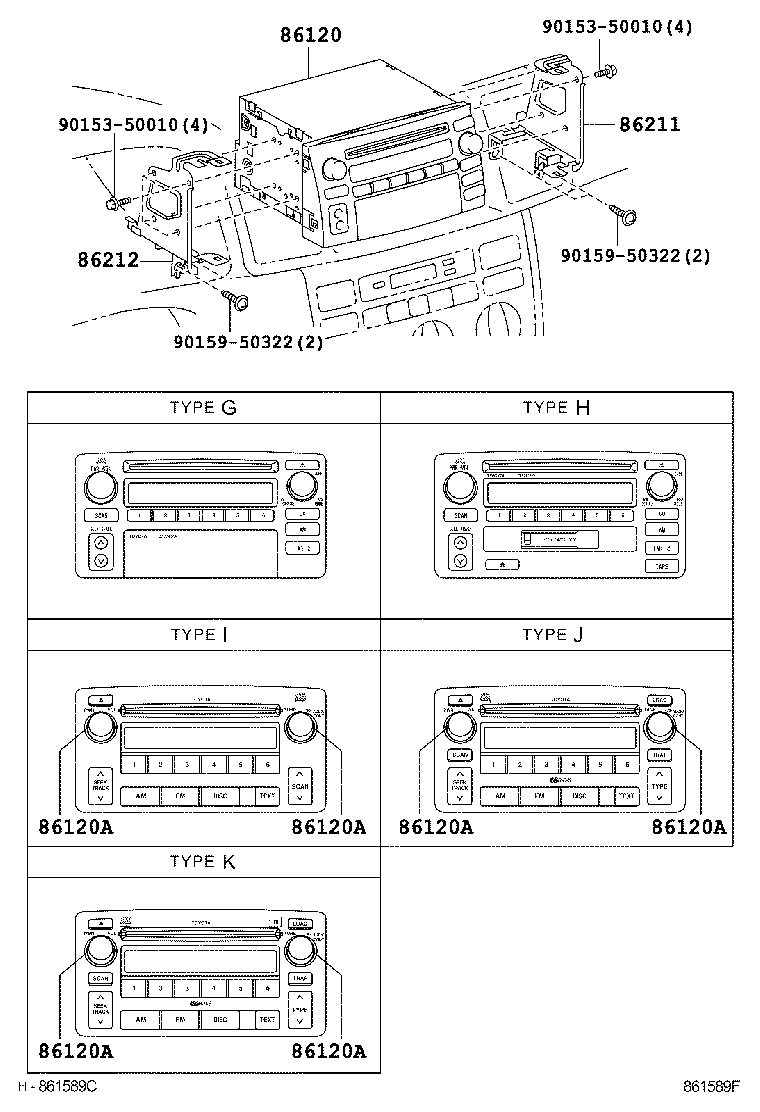

| 86120 | Receiver Assy, Radio |
| 86120A | Knob, Radio Receiver Switch |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86273 | Magazine, Disc Player |
| 86275A | Changer, Disc Player |
| 86280 | Amplifier Assy, Stereo Component |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
