Toyota Corolla Nap

2008-01 → 2013-08 · chassis AZE141,ZRE142 · catalogue 155460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

8 part groups · 2 illustrations

Illustrations

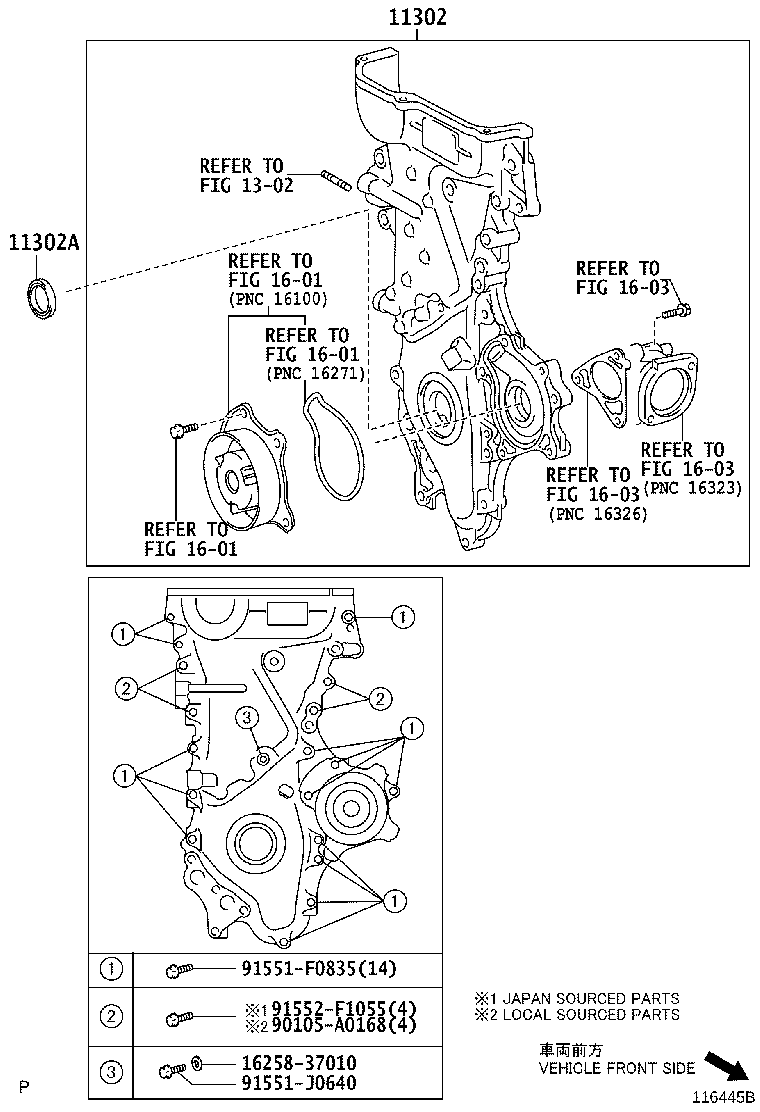

Figure 115258E 115258E 2008-01 → — Figure 116445B 116445B 2008-01 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
16603B Pulley Sub-assy, Idler
16631A Bracket, Idler Pulley
16659B Plate, Idler Pulley Cover, NO.2
19529A Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
