Toyota Corolla Nap

2008-01 → 2013-08 · chassis AZE141,ZRE142 · catalogue 155460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

11 part groups · 2 illustrations

Illustrations

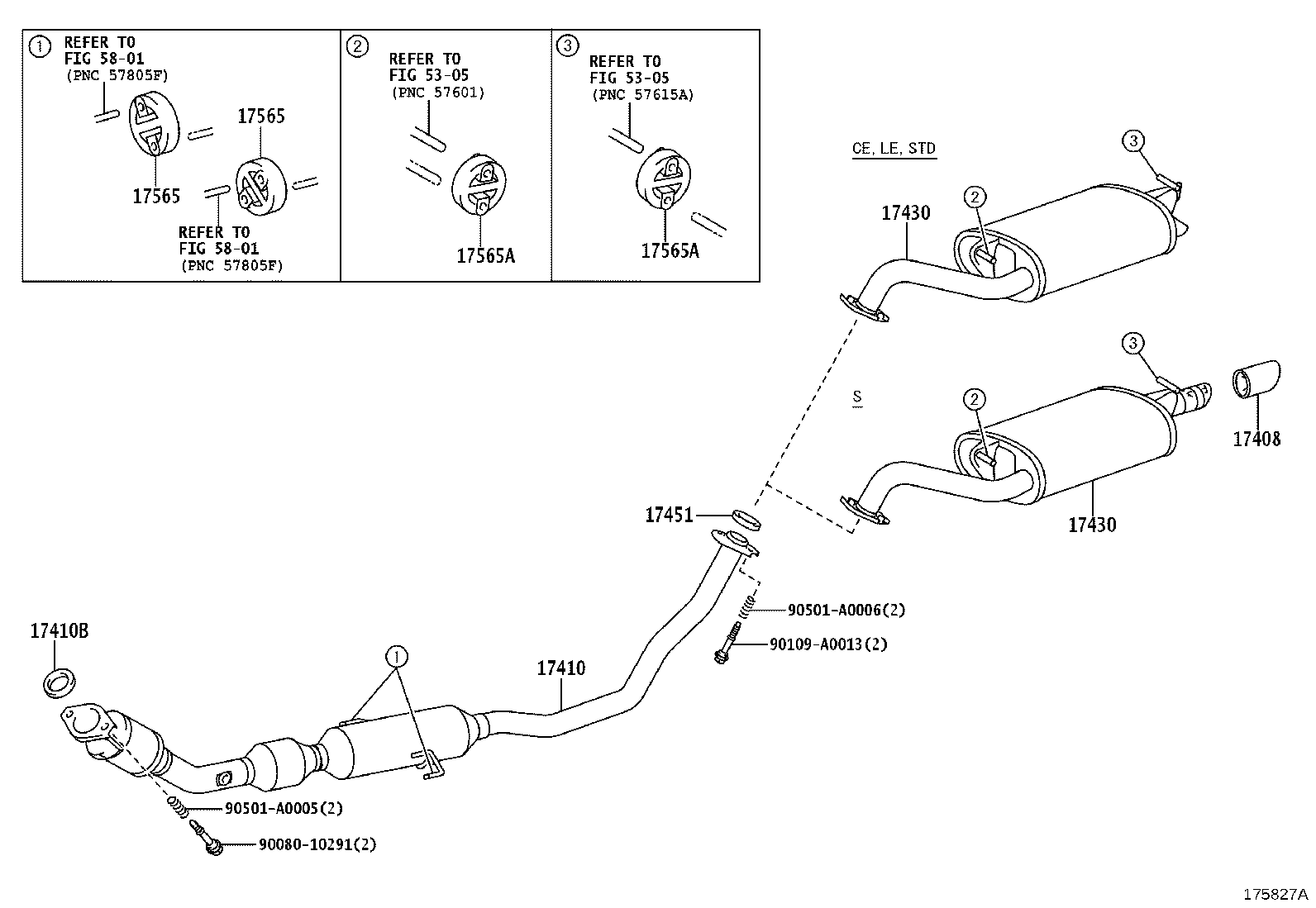

Figure 175826B 175826B 2008-01 → — Figure 175827A 175827A 2008-01 → —

Part groups

PNCDescription
17408 Baffle Sub Assy, Exhaust Tailpipe
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17511A Insulator, Exhaust Pipe, Upper NO.1
17513 Insulator, Exhaust Pipe, Lower NO.1
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
