Toyota Corolla Nap

2008-01 → 2013-08 · chassis AZE141,ZRE142 · catalogue 155460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

9 part groups · 8 illustrations

Illustrations

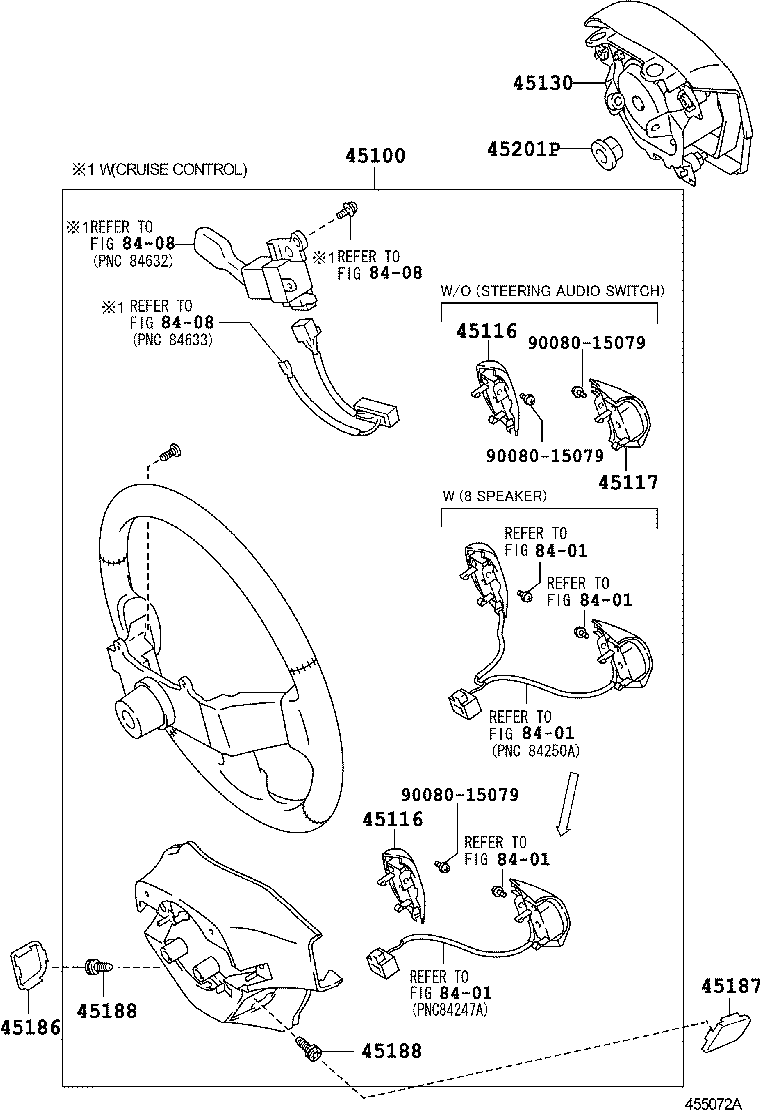

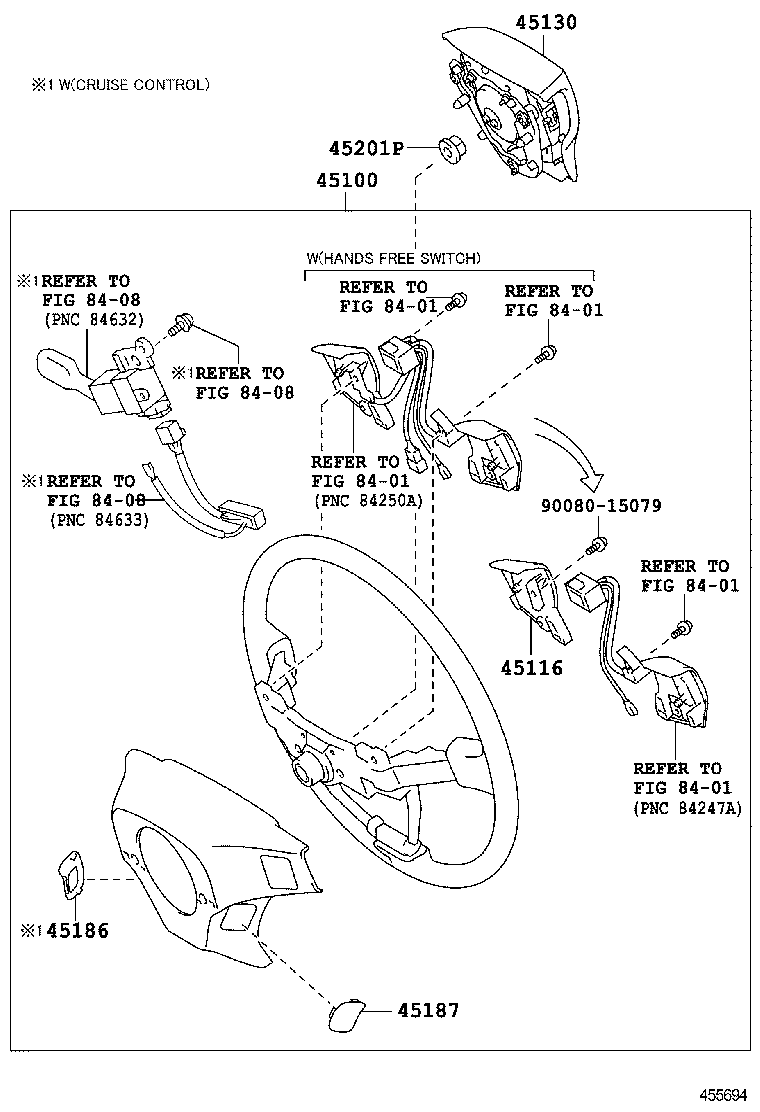

Figure 455080 455080 2008-01 → 2009-02 Figure 455080 455080 2008-01 → 2010-12 Figure 455080 455080 2008-01 → — Figure 455072A 455072A 2008-01 → 2010-12 Figure 455072A 455072A 2009-02 → 2010-12 Figure 455072A 455072A 2010-12 → — Figure 455072A 455072A 2011-12 → — Figure 455694 455694 2010-12 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45107 Wire Sub-assy, Horn Button
45116 Ornament, Steering Wheel, NO.1
45117 Ornament, Steering Wheel, NO.2
45130 Button Assy, Horn
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
