Toyota Corolla Nap
2008-01 → 2013-08 · chassis AZE141,ZRE142 · catalogue 155460 · United States
Supported model
Data version 2014-02

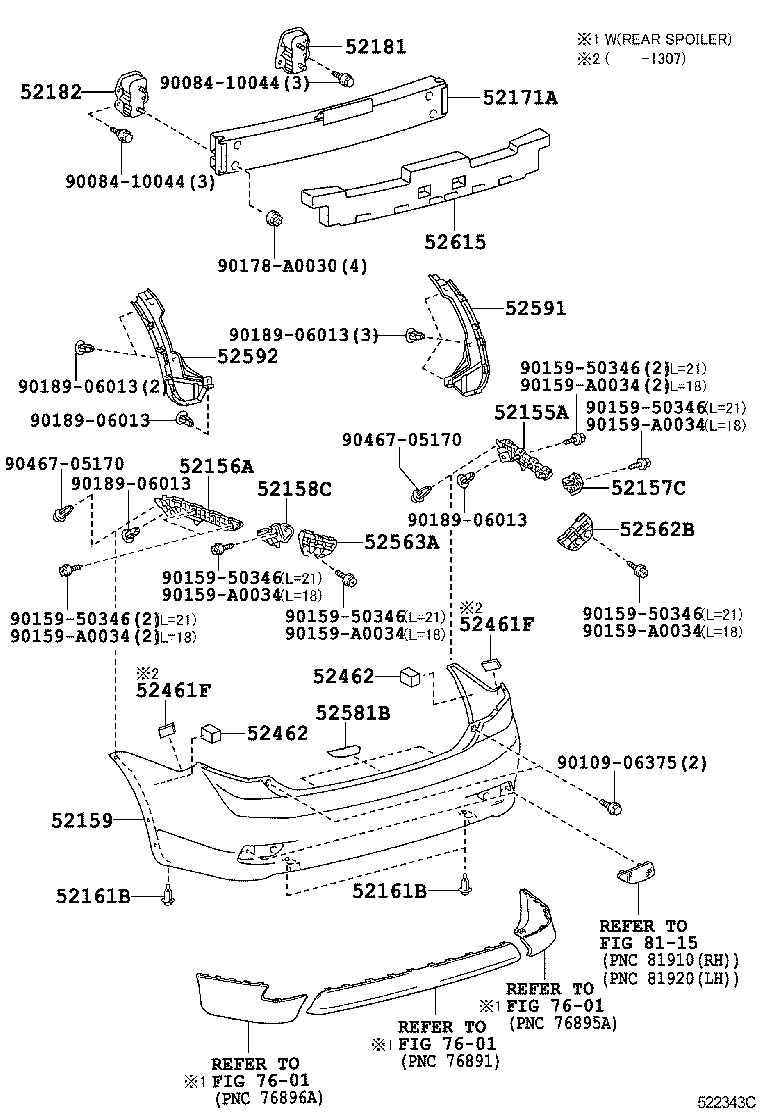

Rear Bumper & Bumper Stay
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52155A | Support, Rear Bumper Side, RH |
| 52156A | Support, Rear Bumper Side, LH |
| 52157C | Support, Rear Bumper Side, NO.2 RH |
| 52158C | Support, Rear Bumper Side, NO.2 LH |
| 52159 | Cover, Rear Bumper |
| 52161B | Piece, Rear Bumper |
| 52171A | Reinforcement, Rear Bumper, NO.1 |
| 52172C | Reinforcement, Rear Bumper Bar, Center |
| 52181 | Arm, Rear Bumper, RH |
| 52182 | Arm, Rear Bumper, LH |
| 52461F | Pad, Rear Bumper |
| 52462 | Pad, Rear Bumper, RH |
| 52562B | Retainer, Rear Bumper, Upper RH |
| 52563A | Retainer, Rear Bumper, Upper LH |
| 52581B | Protector, Rear Bumper |
| 52591 | Seal, Rear Bumper Side, RH |
| 52592 | Seal, Rear Bumper Side, LH |
| 52615 | Absorber, Rear Bumper Energy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
