Toyota Corolla Nap

2008-01 → 2013-08 · chassis AZE141,ZRE142 · catalogue 155460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

7 part groups · 4 illustrations

Illustrations

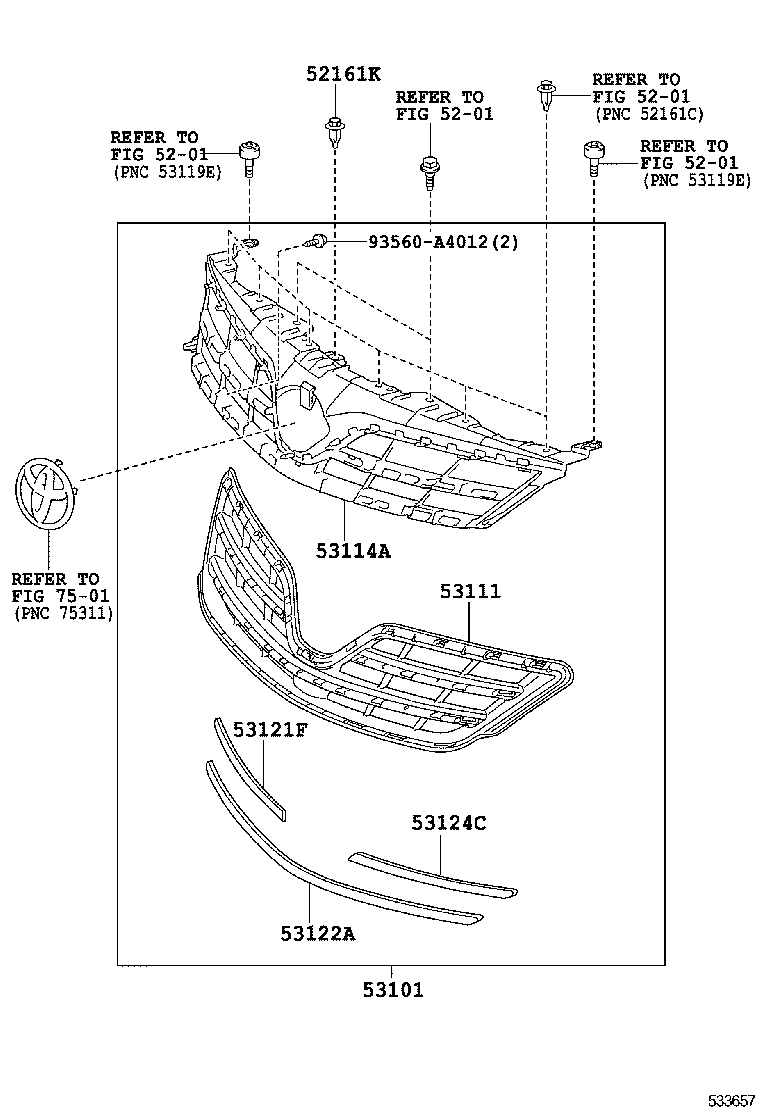

Figure 533338 533338 2008-01 → 2010-12 Figure 533321 533321 2010-12 → 2012-08 Figure 533321 533321 2010-12 → — Figure 533657 533657 2012-08 → —

Part groups

PNCDescription
52161K Piece, Front Bumper
53101 Grille Sub-assy, Radiator
53111 Grille, Radiator
53114A Grille, Radiator, Inner
53121F Moulding, Radiator Grille, Upper RH
53122A Moulding, Radiator Grille, Lower
53124C Moulding, Radiator Grille, Upper LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
