Toyota Corolla Nap

2008-01 → 2013-08 · chassis AZE141,ZRE142 · catalogue 155460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

21 part groups · 2 illustrations

Illustrations

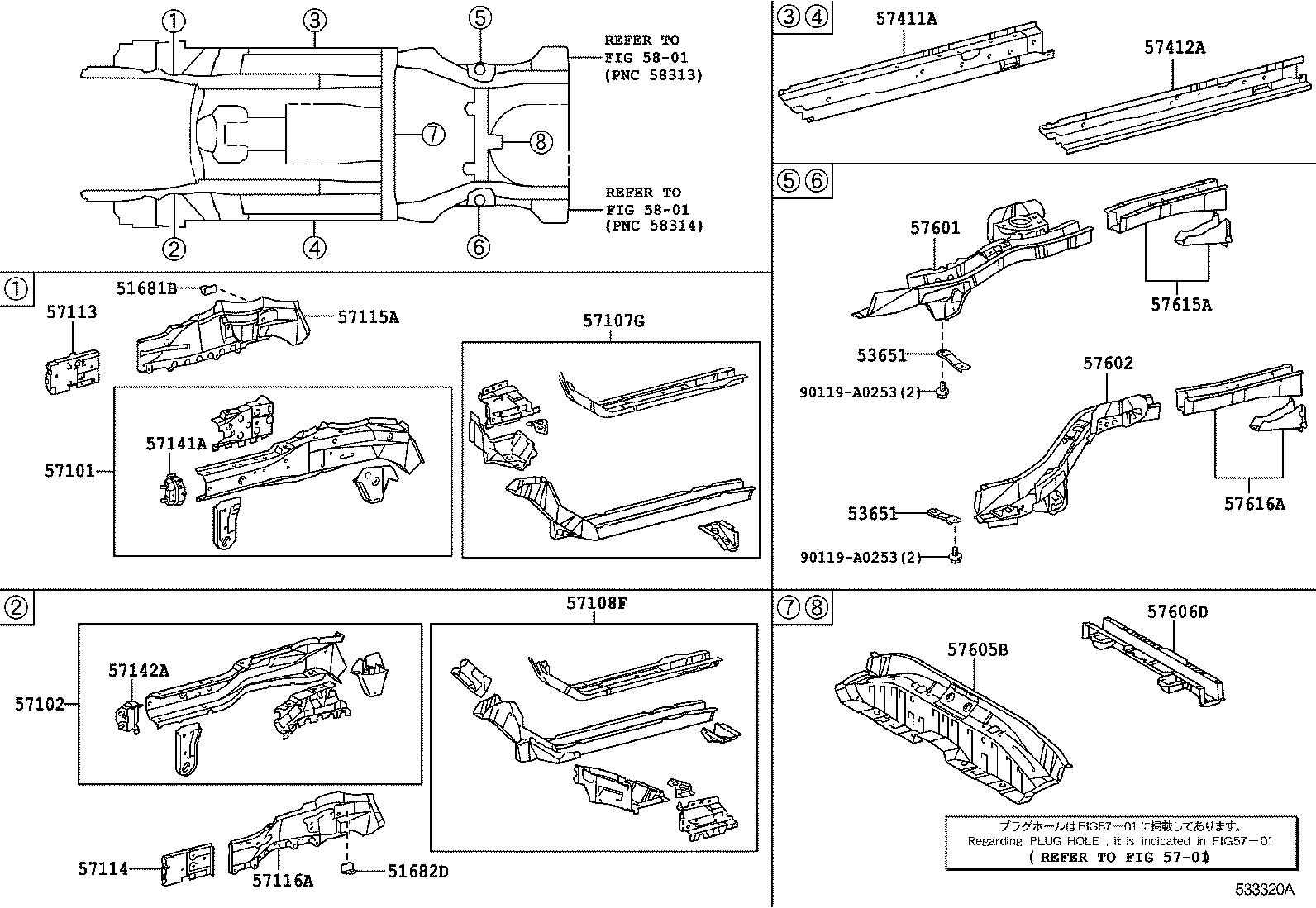

Figure 532698F 532698F 2008-01 → 2010-12 Figure 533320A 533320A 2010-12 → —

Part groups

PNCDescription
51681B Plate, Front Brake Flexible Hose Support, RH
51682D Plate, Front Brake Flexible Hose Support, LH
53651 Brace, Rear Floor Side Member
57101 Member Sub-assy, Front Side, RH
57102 Member Sub-assy, Front Side, LH
57107G Bracket Sub-assy, Front Suspension Member Mounting, Rear RH
57108F Bracket Sub-assy, Front Suspension Member Mounting, Rear LH
57113 Extension, Front Side Member, RH
57114 Extension, Front Side Member, LH
57115A Plate, Front Side Member, Outer RH
57116A Plate, Front Side Member, Outer LH
57141A Support, Front Bumper Arm, RH
57142A Support, Front Bumper Arm, LH
57411A Member, Floor Side, Inner RH
57412A Member, Floor Side, Inner LH
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57605B Member Sub-assy, Rear Floor Cross, NO.1
57606D Member Sub-assy, Rear Absorber Mounting
57615A Member, Rear Floor Side, Rear RH
57616A Member, Rear Floor Side, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
