Toyota Corolla Nap

2008-01 → 2013-08 · chassis AZE141,ZRE142 · catalogue 155460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

12 part groups · 2 illustrations

Illustrations

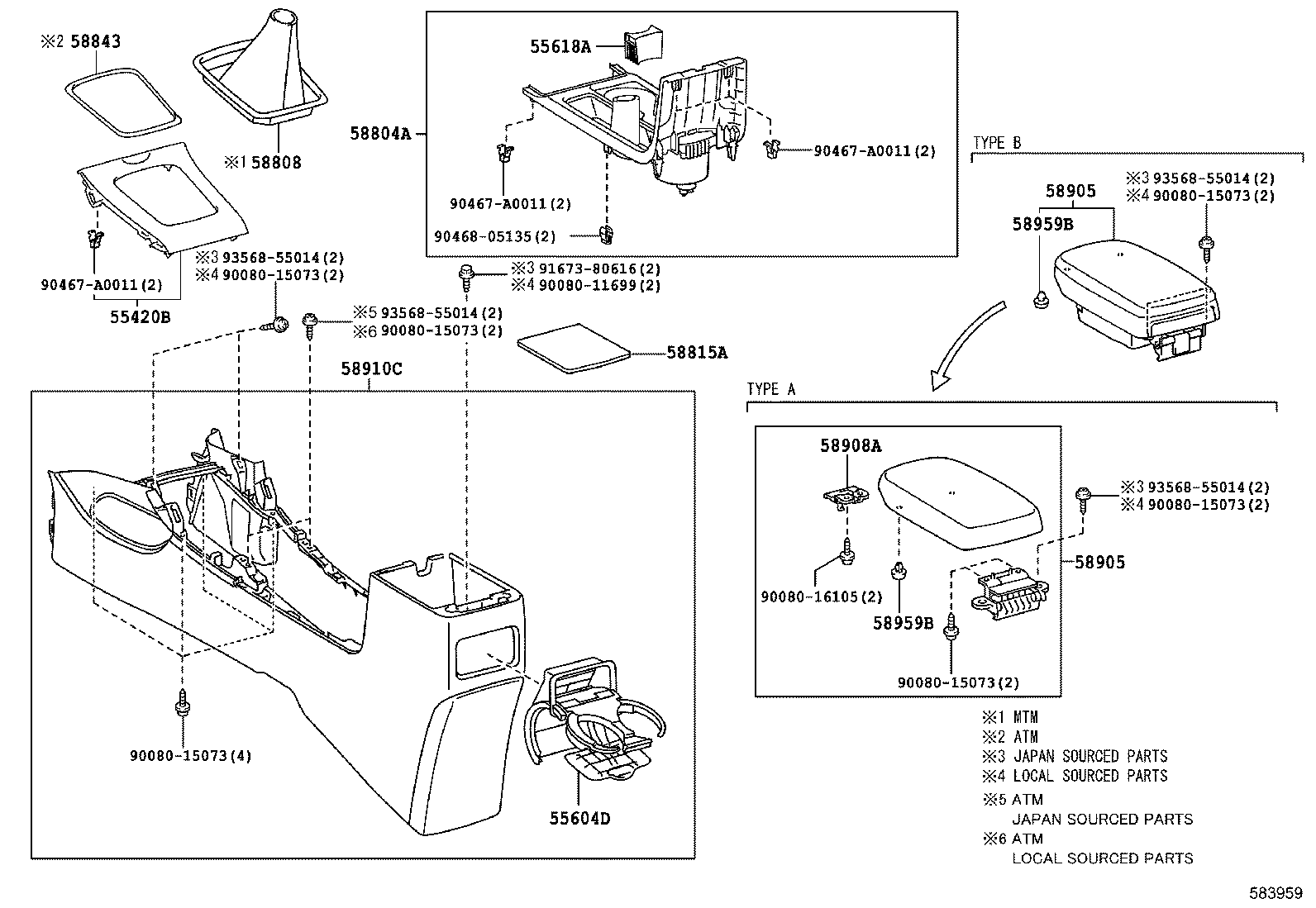

Figure 583222A 583222A 2008-01 → 2010-12 Figure 583959 583959 2010-12 → —

Part groups

PNCDescription
55420B Panel Assy, Instrument Cluster Finish, Center NO.1
55604D Holder Sub-assy, Instrument Panel Cup
55618A Holder, Console Box Cup
55620B Holder, Instrument Panel Cup
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58815A Carpet, Console Box
58843 Bezel, Shifting Hole
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58959B Cushion, Console Compartment Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
