Toyota Corolla Nap

2008-01 → 2013-08 · chassis AZE141,ZRE142 · catalogue 155460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

6 part groups · 2 illustrations

Illustrations

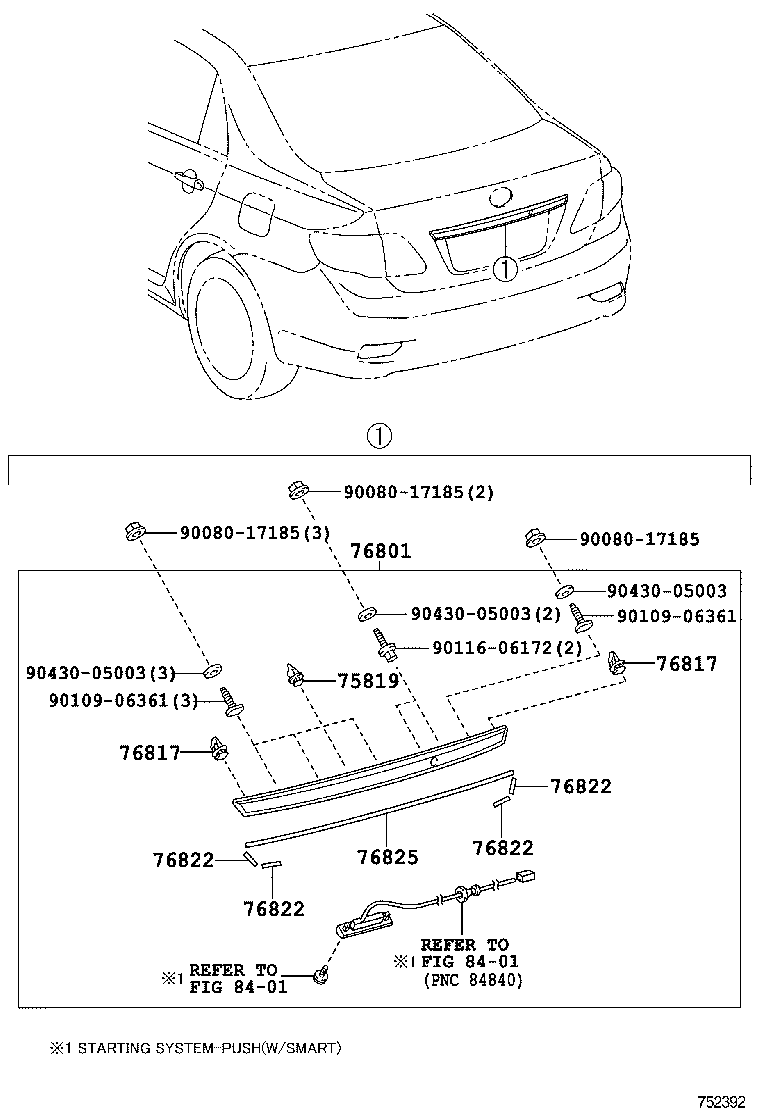

Figure 751996A 751996A 2008-01 → 2010-12 Figure 752392 752392 2010-12 → —

Part groups

PNCDescription
75819 Clip, Luggage Compartment Door Moulding
76801 Garnish Sub-assy, Back Door, Outside
76817 Clip, Back Door Outside Garnish
76821 Protector, Back Door Garnish Moulding, Upper
76822 Protector, Back Door Garnish Moulding, Lower
76825 Protector, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
