Toyota Corolla Nap
2008-01 → 2013-08 · chassis AZE141,ZRE142 · catalogue 155460 · United States
Supported model
Data version 2014-02
Switch & Relay & Computer

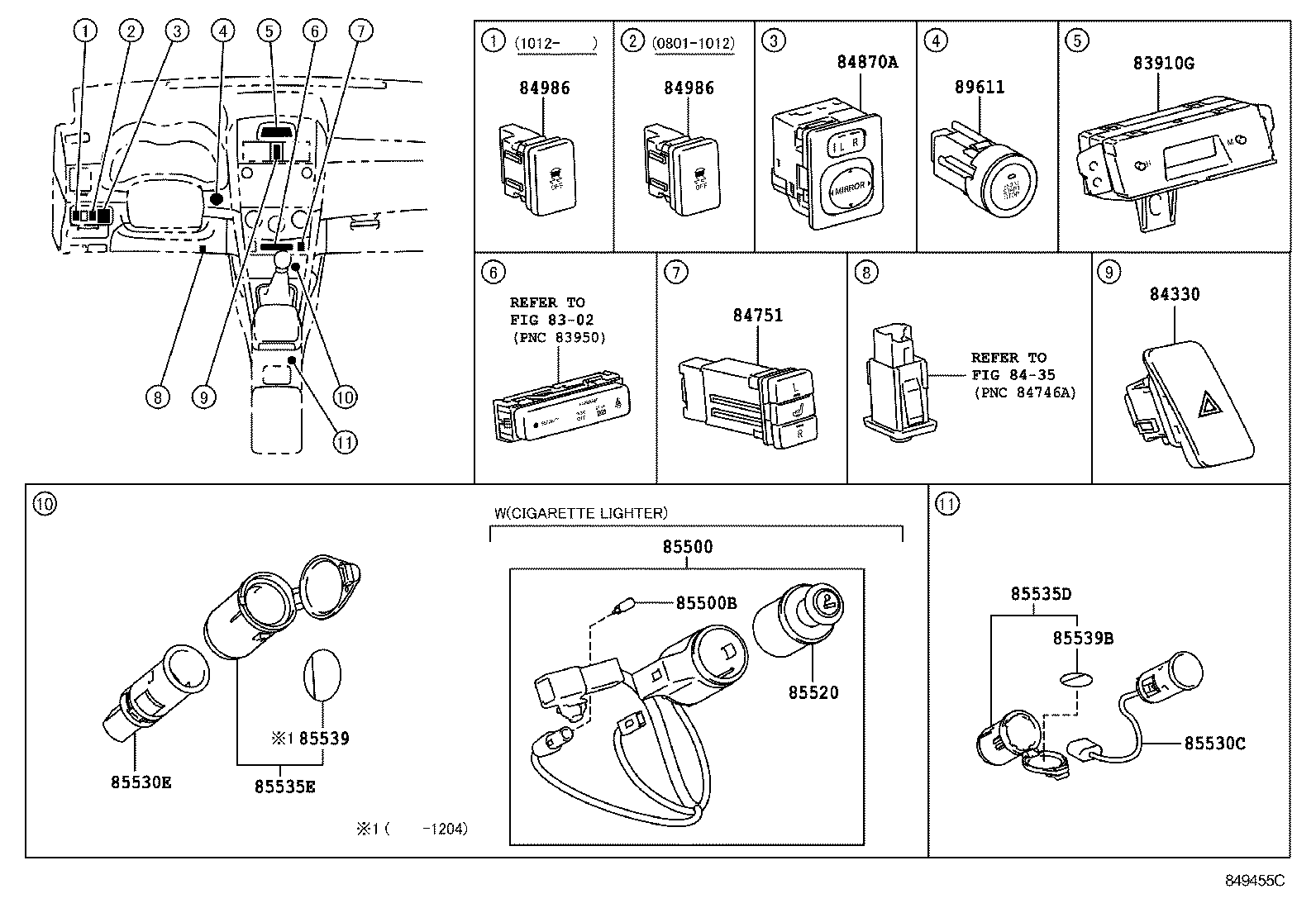

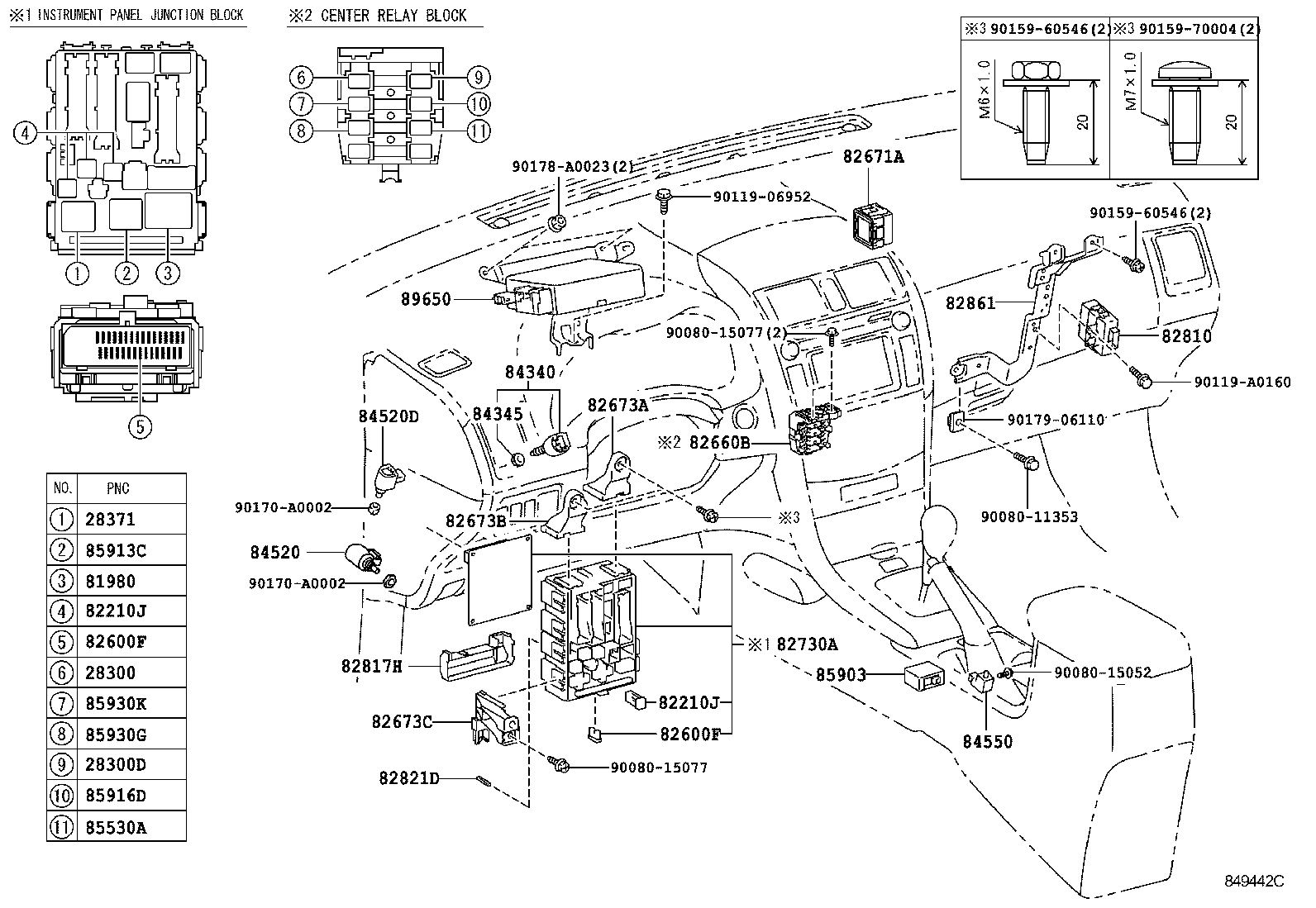

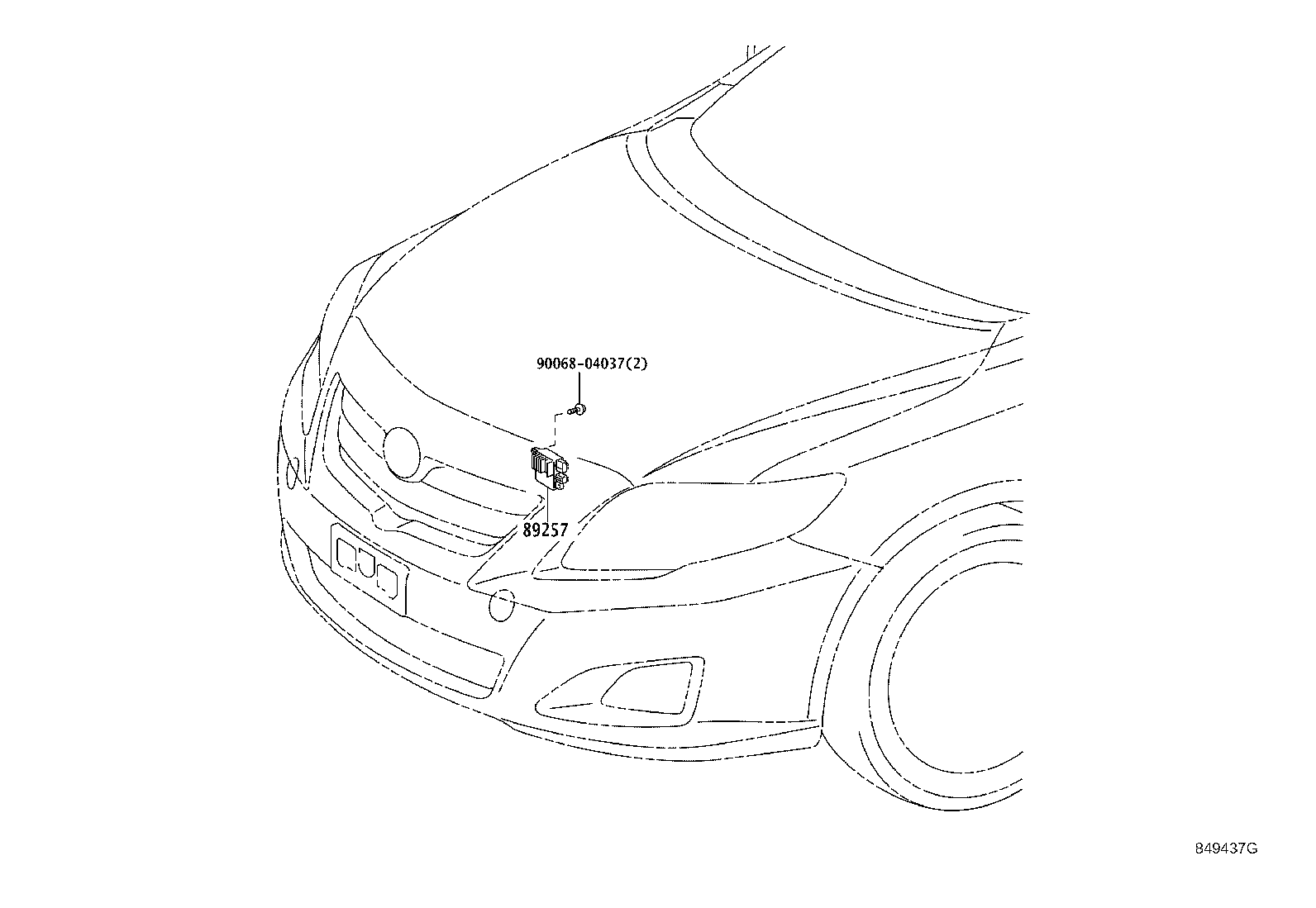

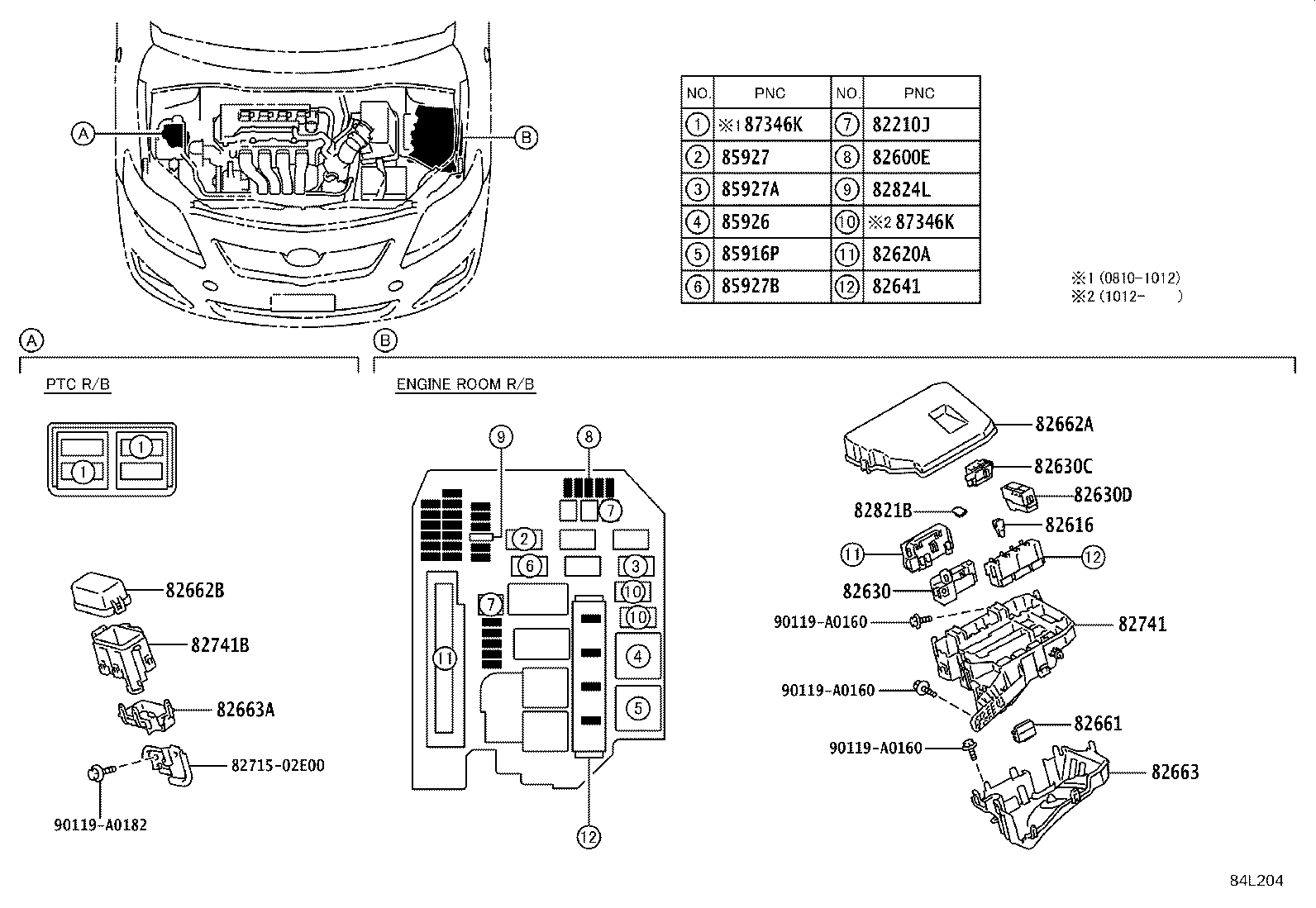

94 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28300D | Relay, Starter Cut |
| 28371 | Relay, Ignition, NO.1 |
| 81980 | Flasher Assy, Turn Signal |
| 82210J | Fusible Link |
| 82291D | Wire, TO Solenoid |
| 82600E | Engine Room Fuse |
| 82600F | Fuse, Fuse Block |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82630 | Holder Assy, Fuse |
| 82630C | Holder Assy, Fuse |
| 82630D | Holder, Fuse |
| 82641 | Relay, Integration NO.1 |
| 82660B | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82671A | Block, Junction |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82673C | Bracket, Junction Block |
| 82730A | Block Assy, Driver Side Junction |
| 82741 | Block, Engine Room Relay |
| 82741B | Block, Engine Room Relay |
| 82810 | Relay Assy, Running Light |
| 82817H | Protector, Wiring Harness |
| 82821B | Cover, Connector |
| 82821D | Cover, Connector |
| 82824L | Pin, Short |
| 82861 | Bracket, Computer Integration, NO.1 |
| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83910G | Clock Assy |
| 84052 | Switch Assy, Un-lock Warning |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84247A | Switch, Steering Pad, LH |
| 84250A | Switch Assy, Steering Pad |
| 84306 | Cable Sub-assy, Spiral |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84450 | Switch Assy, Ignition OR Starter |
| 84520 | Switch Assy, Clutch Start |
| 84520D | Switch Assy, Cruise Control Cancel |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84751 | Switch, Seat Heater |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84840 | Switch Assy, Luggage Compartment Door Opening |
| 84870A | Switch Assy, Outer Mirror |
| 84921A | Knob, Power Seat Switch (FOR RECLINING) |
| 84921B | Knob, Power Seat Switch (FOR SLIDE & VERTICAL) |
| 84922A | Switch, Front Power Seat(FOR LUMBAR) |
| 84922C | Switch, Front Power Seat, LH |
| 84930 | Switch Assy, Door Control |
| 84986 | Switch, Vehicle Stability Control |
| 85432 | Solenoid, Key Interlock |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85530A | Relay, Power Outlet Socket |
| 85530C | Socket Assy, Power Outlet, Center |
| 85530E | Socket Assy, Power Outlet, NO.3 |
| 85535D | Cover, Power Outlet Socket, Center |
| 85535E | Cover, Power Outlet Socket, NO.2 |
| 85539 | Label, Power Outlet Notice |
| 85539B | Label, Power Outlet Notice, Center |
| 85903 | Computer Sub-assy, Shift Lock Control |
| 85913C | Relay, Heater, NO.1 |
| 85916D | Relay, Fog Lamp |
| 85916P | Relay, Headlamp |
| 85926 | Relay, Headlamp Dimmer |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85927B | Relay, Cooling Fan, NO.3 |
| 85930G | Relay, Acc |
| 85930K | Relay, Acc, NO.2 |
| 87346K | Relay, Ptc Heater |
| 89245B | Sensor, Steering |
| 89257 | Computer, Cooling Fan |
| 89465 | Sensor, Oxygen |
| 89467B | Sensor, Air Fuel Ratio |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
