Toyota Corolla Nap

2008-01 → 2013-08 · chassis AZE141,ZRE142 · catalogue 155460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

10 part groups · 3 illustrations

Illustrations

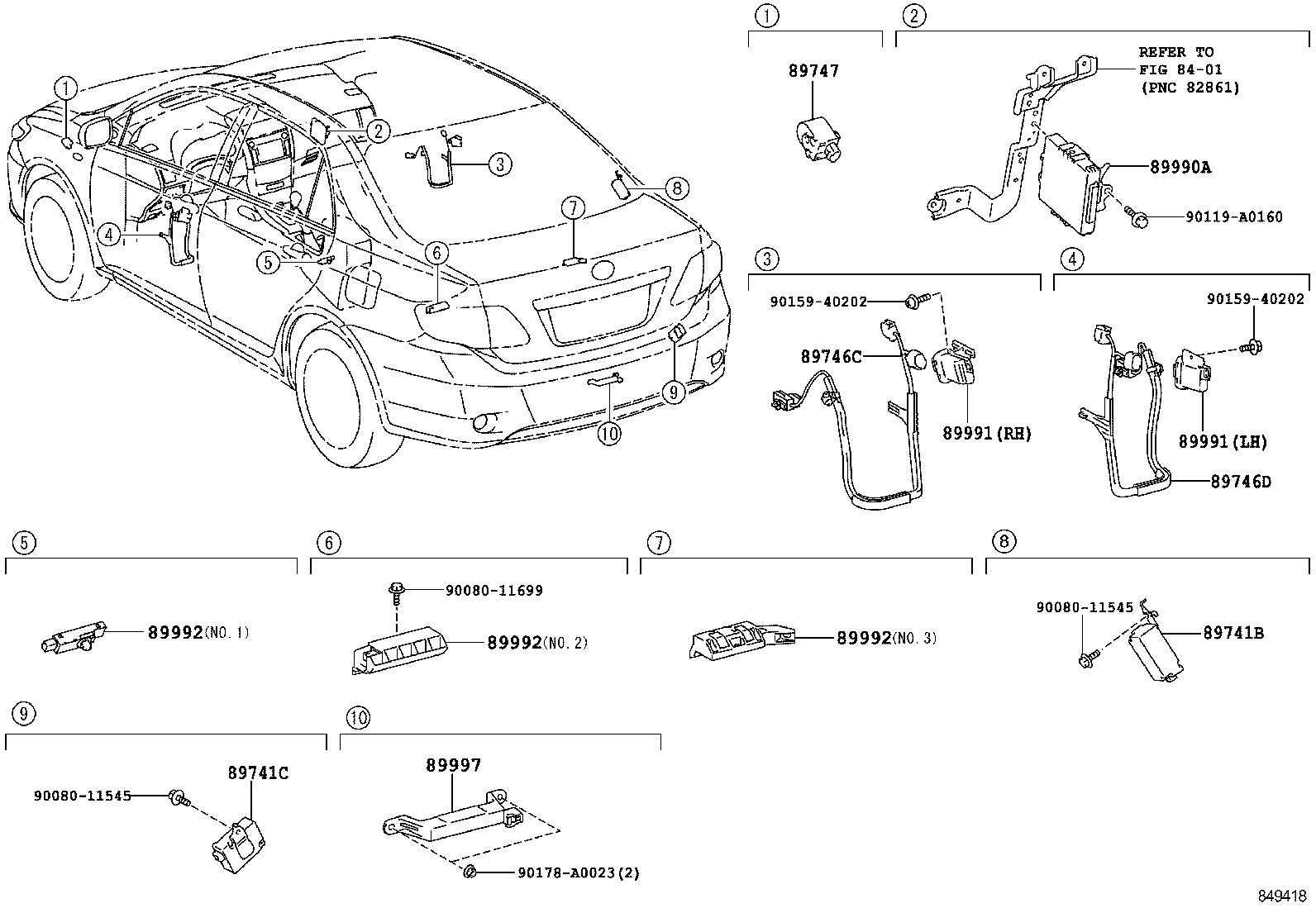

Figure 849417 849417 2008-01 → — Figure 849418 849418 2008-01 → — Figure 849418 849418 2011-12 → —

Part groups

PNCDescription
89741 Receiver, Door Control
89741B Receiver, Door Control, NO.2
89741C Receiver, Door Control, NO.3
89746C Harness, Electrical Key Wire, NO.1
89746D Harness, Electrical Key Wire, NO.2
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
89991 Oscillator, Door Electrical Key
89992 Oscillator, Indoor Electrical Key
89997 Antenna, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
