Toyota Corolla Nap

2008-01 → 2013-08 · chassis AZE141,ZRE142 · catalogue 155460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

7 part groups · 3 illustrations

Illustrations

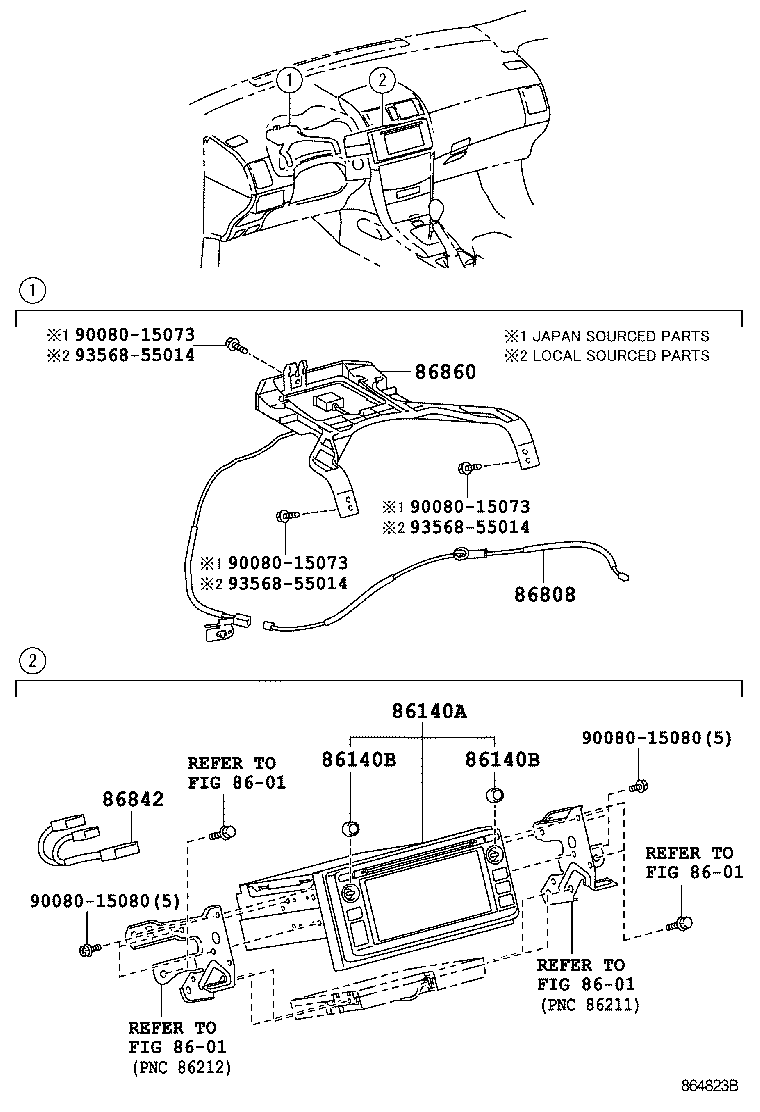

Figure 863408G 863408G 2008-01 → 2010-12 Figure 864823B 864823B 2011-12 → — Figure 864823B 864823B 2012-08 → —

Part groups

PNCDescription
86120L Receiver Assy, Navigation
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86271 Disc, Disc Player
86808 Cord Sub-assy, Navigation Antenna, NO.1
86842 Wire, Navigation, NO.1
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
