Toyota Corolla (S.AMERICA)

2008-03 → 2014-11 · chassis ZRE14#,ZZE14# · catalogue 157360 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

13 part groups · 5 illustrations

Illustrations

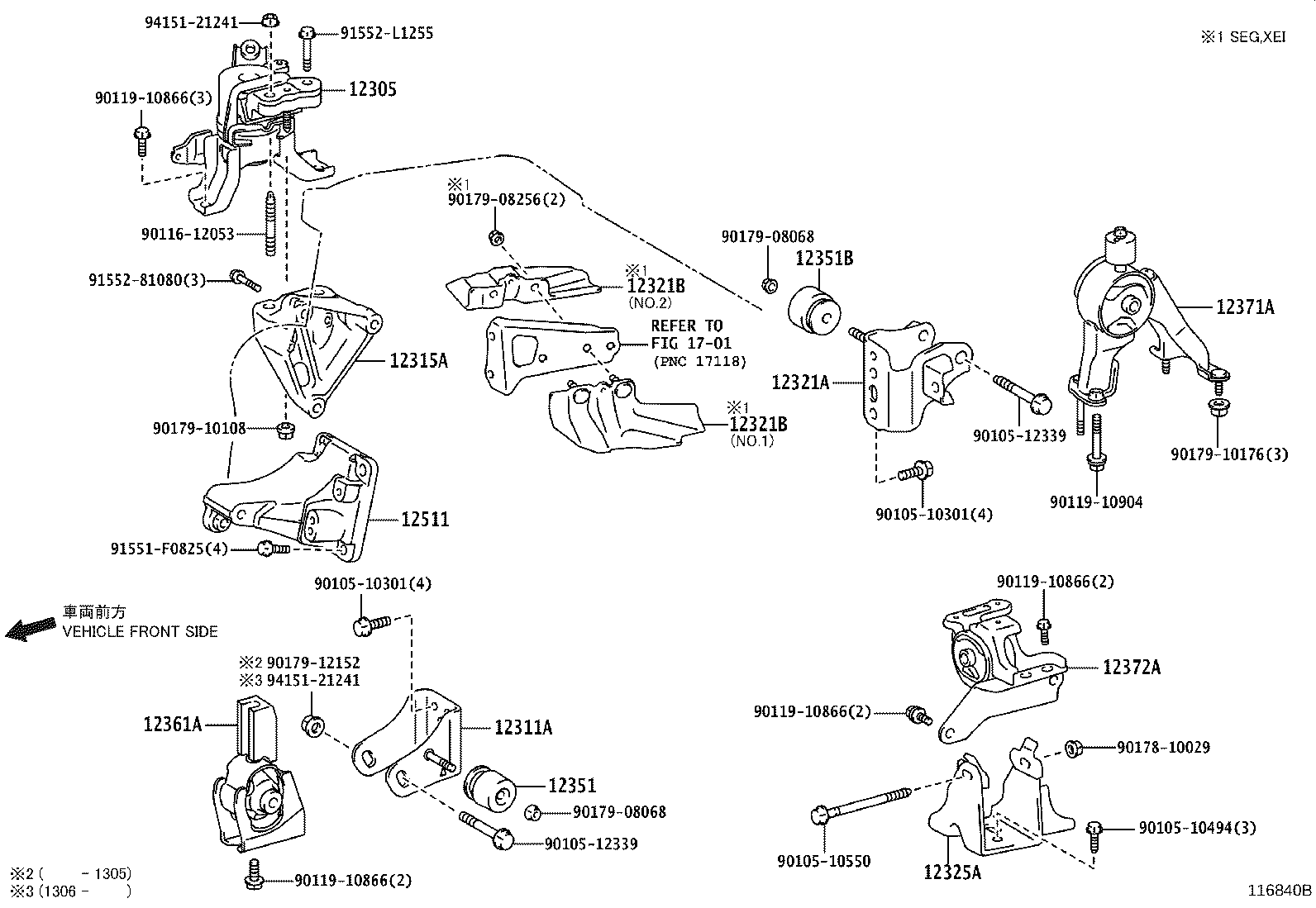

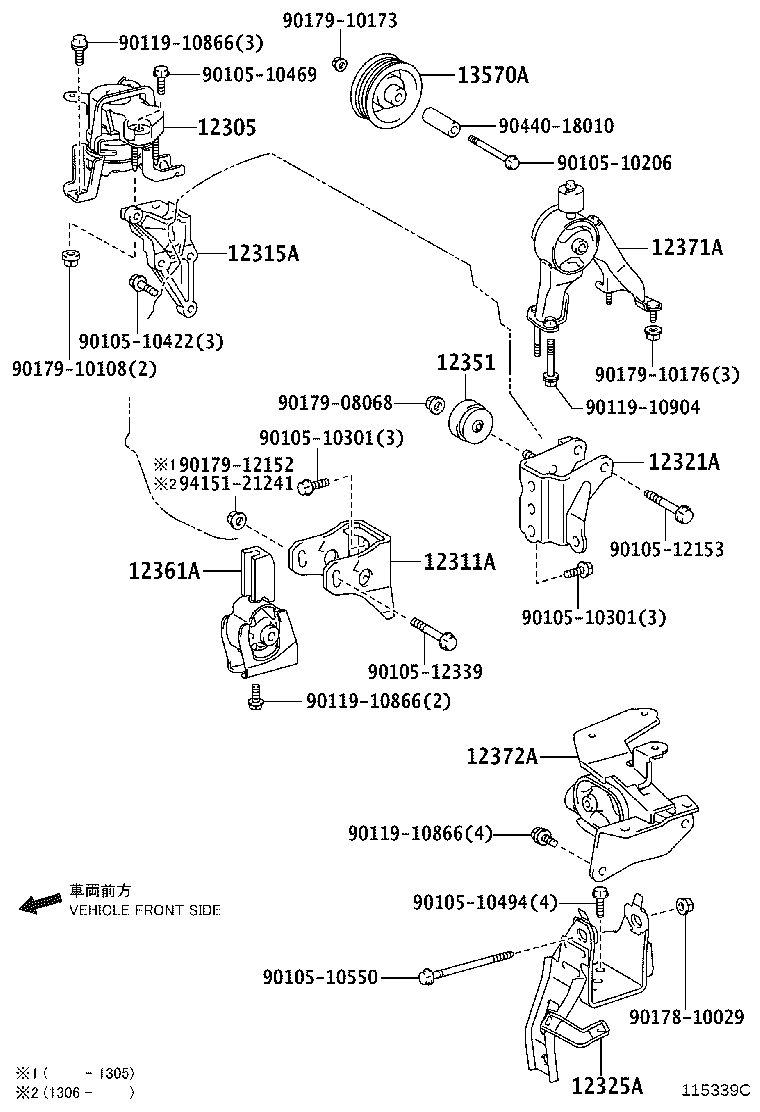

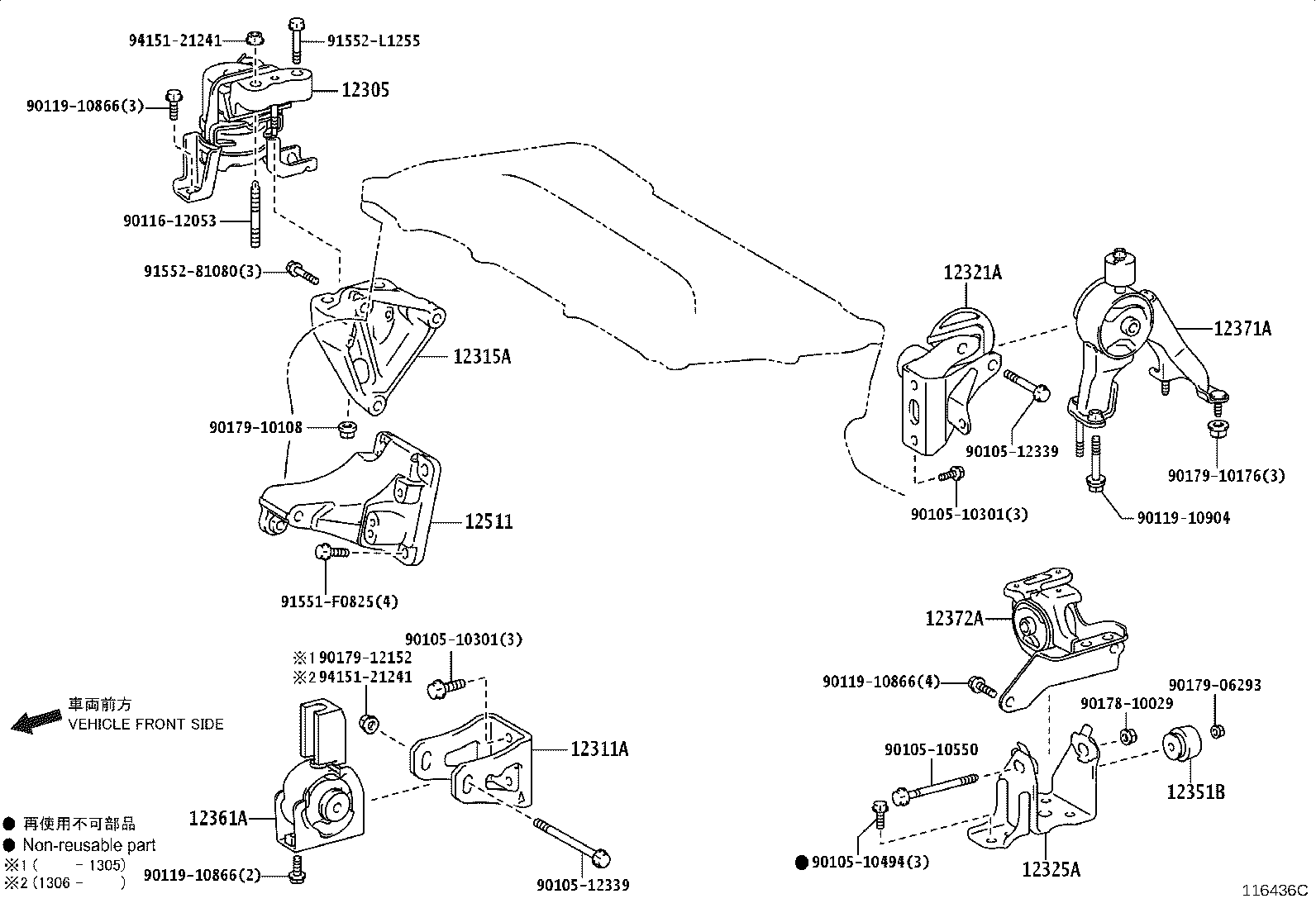

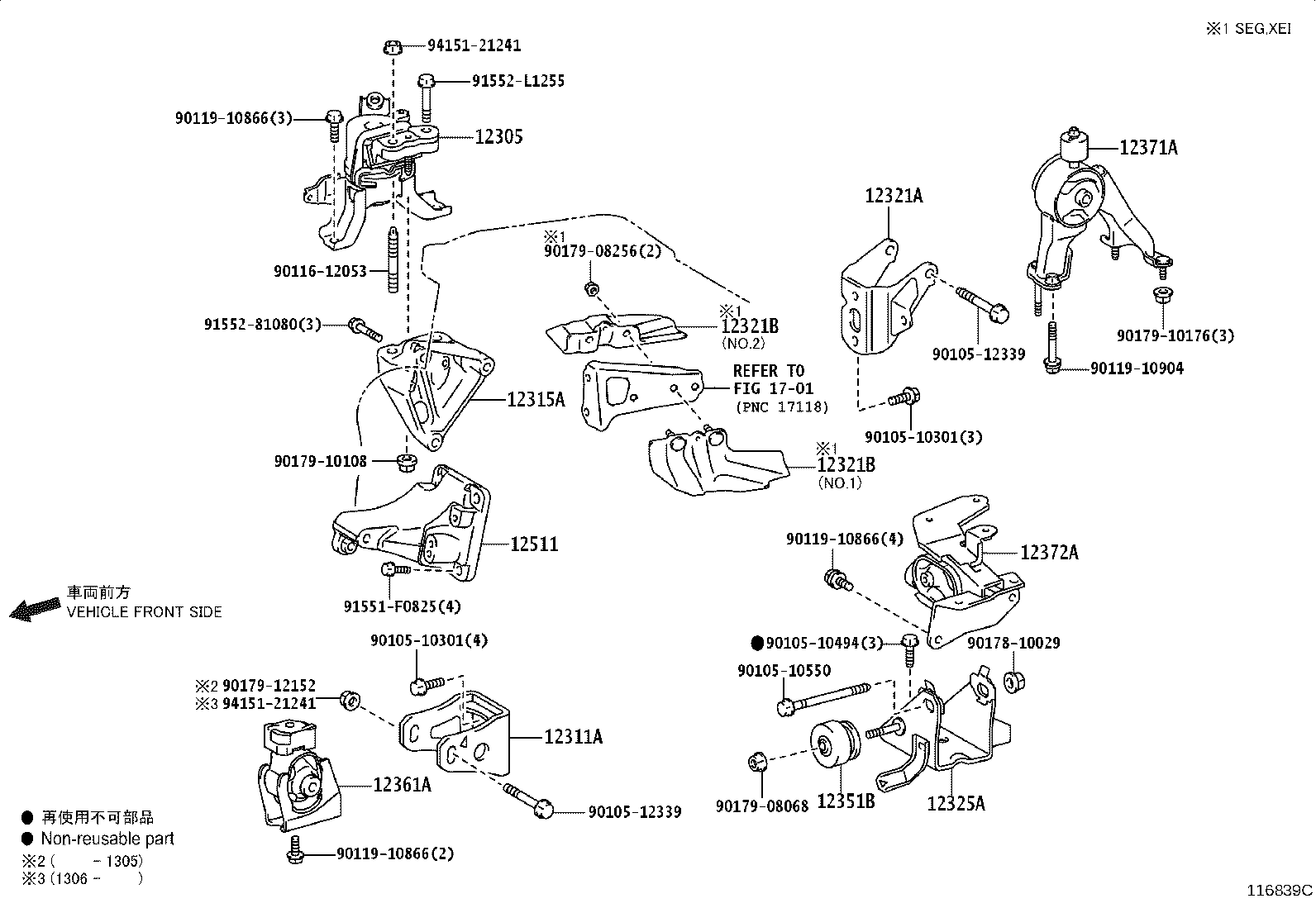

Figure 115338D 115338D 2008-03 → — Figure 115339C 115339C 2008-03 → — Figure 116436C 116436C 2010-03 → — Figure 116839C 116839C 2011-03 → — Figure 116840B 116840B 2011-03 → —

Part groups

PNCDescription
12305 Insulator Sub-assy, Engine Mounting, RH
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12321B Insulator Sub-assy, Drive Shaft Heat
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12351 Damper, Engine Mounting
12351B Damper, Engine Mounting
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12511 Bracket, Alternator, NO.1
13570A Idler Assy, V-ribbed, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
