Toyota Corolla (S.AMERICA)
2008-03 → 2014-11 · chassis ZRE14#,ZZE14# · catalogue 157360 · United States
Supported model
Data version 2015-01

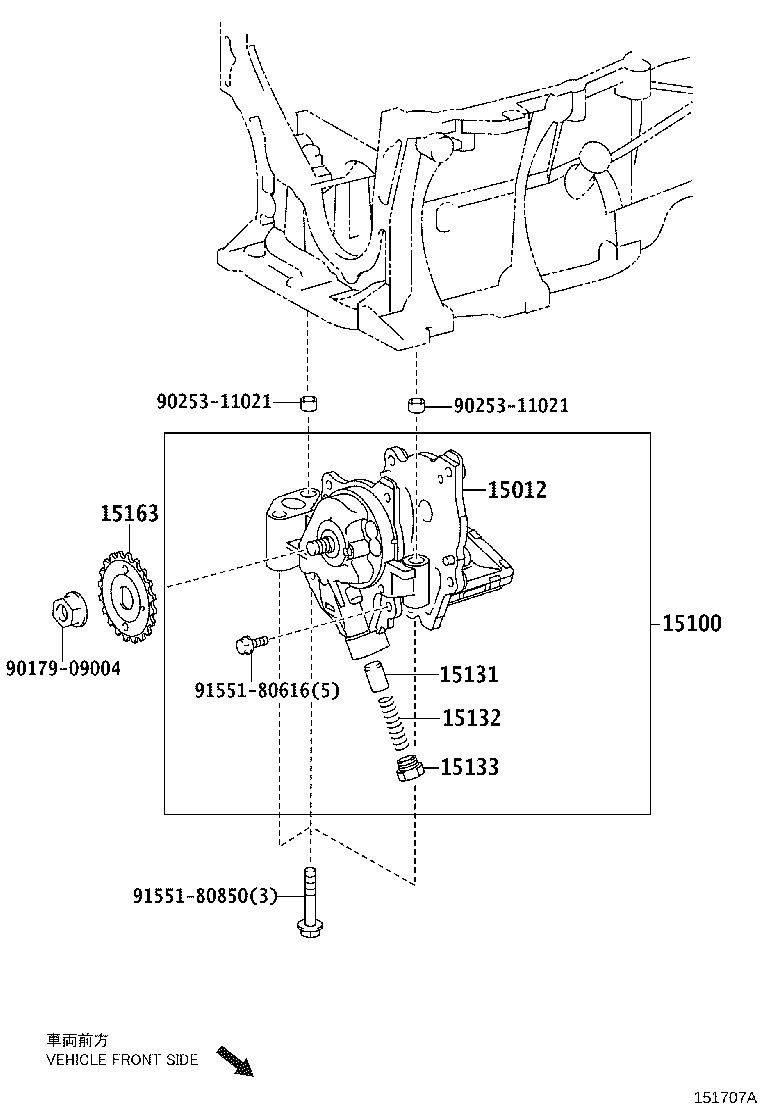

Engine Oil Pump
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15012 | Cover Sub-assy, Oil Pump |
| 15100 | Pump Assy, Oil |
| 15100A | Pin, Ring(FOR OIL PUMP SET) |
| 15104 | Strainer Sub-assy, Oil |
| 15131 | Valve, Oil Pump Relief |
| 15132 | Spring, Oil Pump Relief Valve |
| 15133 | Plug, Oil Pump Relief Valve |
| 15149 | Gasket, Oil Strainer Flange |
| 15163 | Gear, Oil Pump Drive Shaft |
| 15193 | Gasket, Oil Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
