Toyota Corolla (S.AMERICA)
2008-03 → 2014-11 · chassis ZRE14#,ZZE14# · catalogue 157360 · United States
Supported model
Data version 2015-01
Starter
12 part groups · 3 illustrations

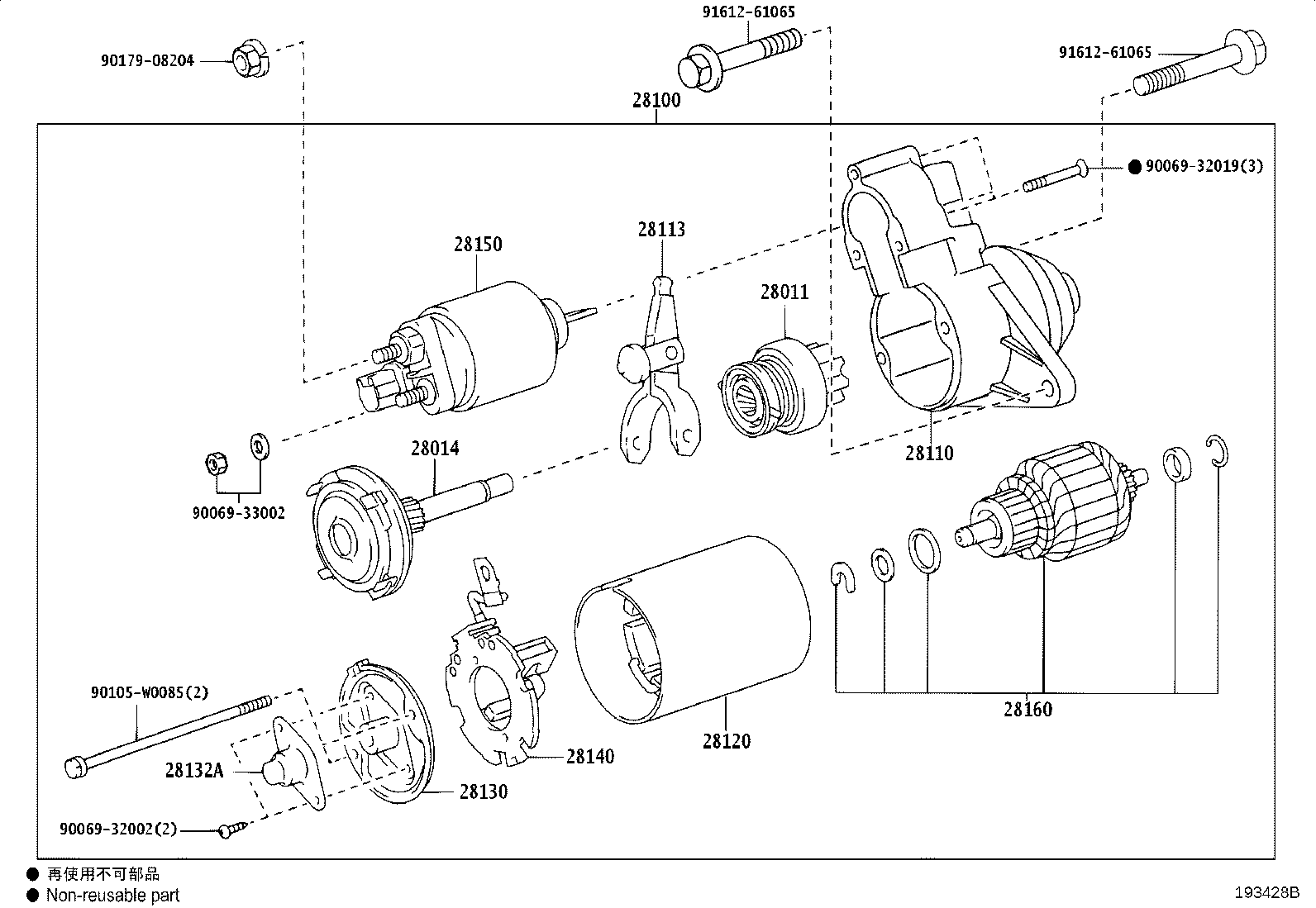

Part groups
| PNC | Description |
|---|---|
| 28011 | Clutch Sub-assy, Starter |
| 28014 | Shaft Sub-assy, Planet Carrier |
| 28100 | Starter Assy |
| 28110 | Housing Assy, Starter Drive |
| 28113 | Lever, Starter Pinion Drive |
| 28120 | Yoke Assy, Starter |
| 28130 | Frame Assy, Starter Commutator End |
| 28132A | Cover, Starter Commutator End Frame |
| 28140 | Holder Assy, Starter Brush |
| 28150 | Switch Assy, Magnet Starter |
| 28160 | Armature Assy, Starter |
| 28226B | Starter Kit, Repair Service |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
