Toyota Corolla (S.AMERICA)
2008-03 → 2014-11 · chassis ZRE14#,ZZE14# · catalogue 157360 · United States
Supported model
Data version 2015-01

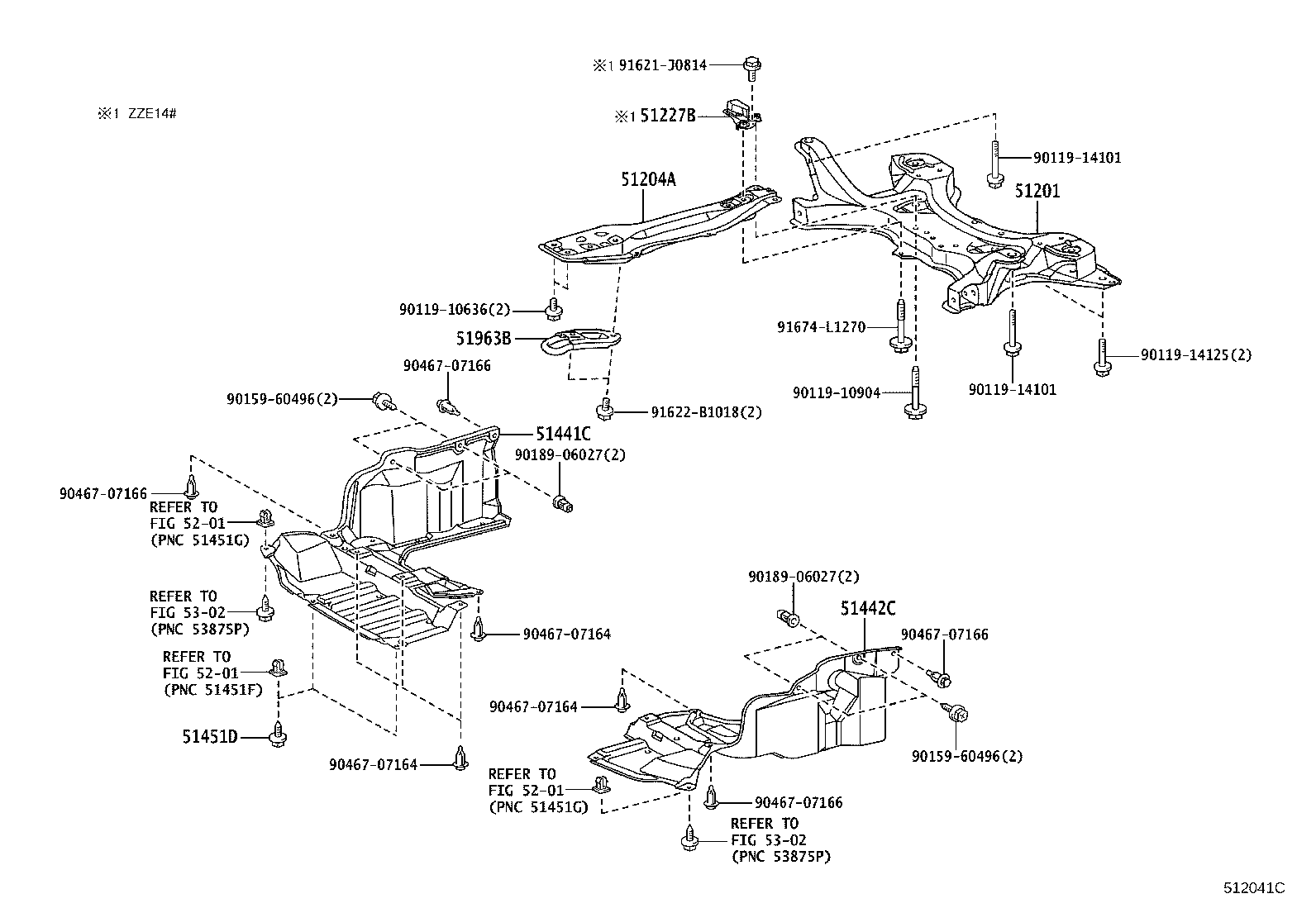

Suspension Crossmember & Under Cover
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 51201 | Crossmember Sub-assy, Front Suspension |
| 51204A | Member Sub-assy, Engine Mounting, Center |
| 51227B | Damper, Front Suspension Member Dynamic |
| 51441C | Cover, Engine Under, RH |
| 51442C | Cover, Engine Under, LH |
| 51451D | Screw, NO.1 |
| 51963B | Hook, Transport, Front RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
