Toyota Corolla (S.AMERICA)

2008-03 → 2014-11 · chassis ZRE14#,ZZE14# · catalogue 157360 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

15 part groups · 10 illustrations

Illustrations

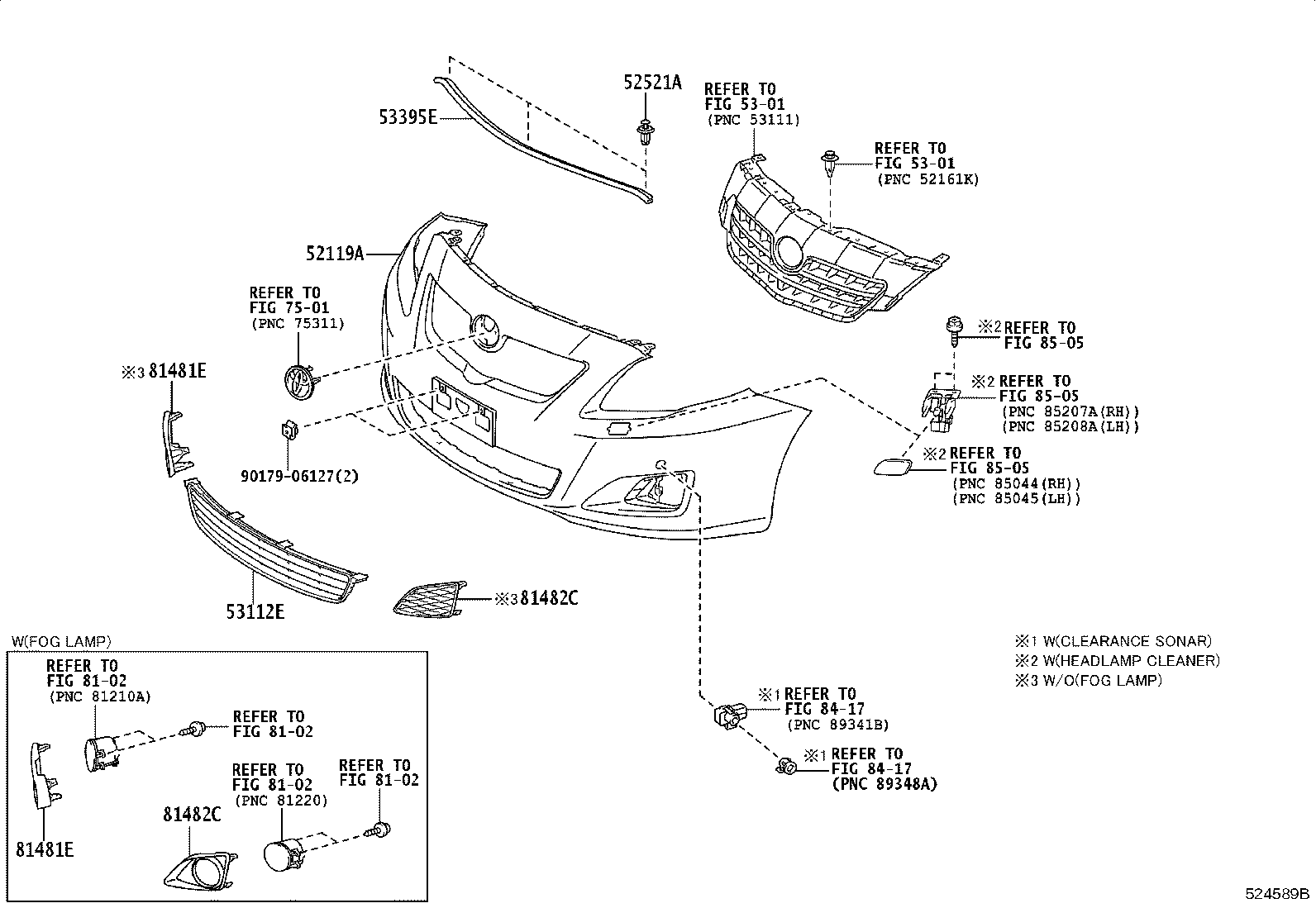

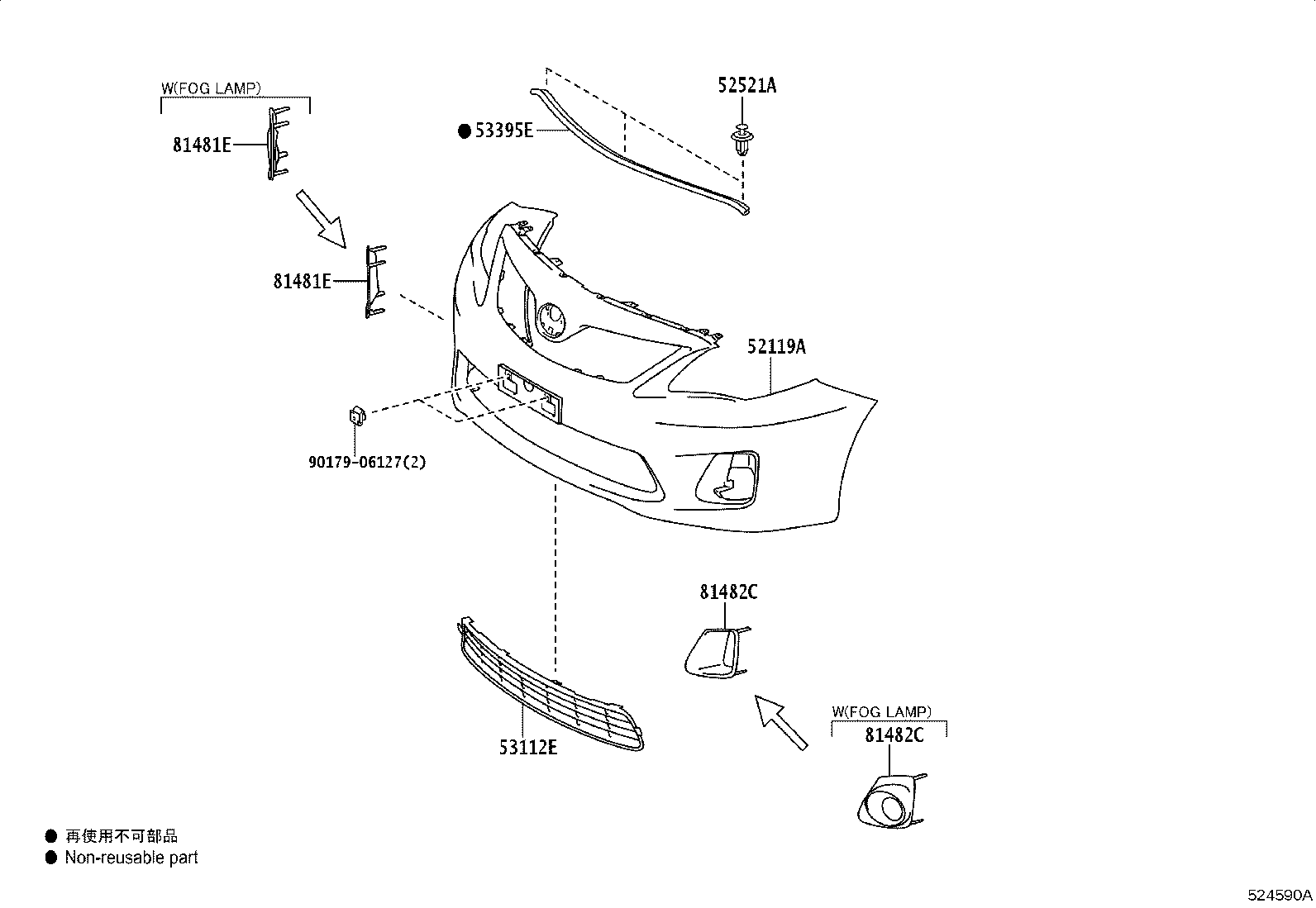

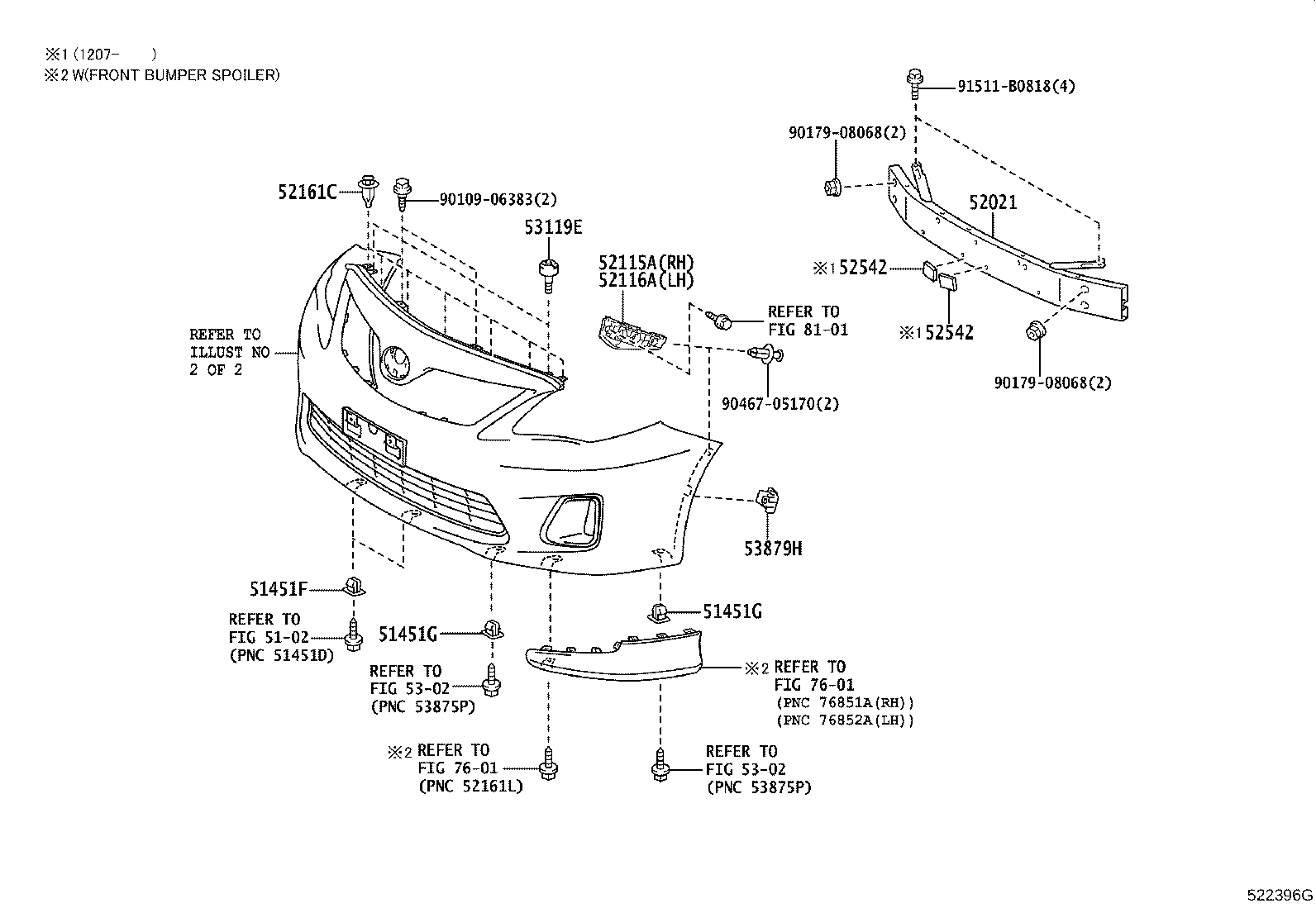

Figure 521916E 521916E 2008-03 → — Figure 521916E 521916E 2009-06 → 2011-05 Figure 521916E 521916E 2010-03 → 2011-03 Figure 524589B 524589B 2008-03 → — Figure 524589B 524589B 2009-06 → 2011-05 Figure 524589B 524589B 2010-03 → 2011-03 Figure 522396G 522396G 2011-03 → — Figure 522396G 522396G 2011-05 → — Figure 524590A 524590A 2011-03 → — Figure 524590A 524590A 2011-05 → —

Part groups

PNCDescription
51451F Grommet, NO.1
51451G Grommet, NO.2
52021 Reinforcement Sub-assy, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52161C Piece, Front Bumper
52521A Clip(FOR FRONT BUMPER RETAINER)
52542 Seal, Front Bumper, Center
53112E Grille, Radiator, Lower NO.1
53119E Protector, Radiator Grille
53395E Seal, Hood TO Front End Panel
53879H Retainer, Front Fender Liner
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
